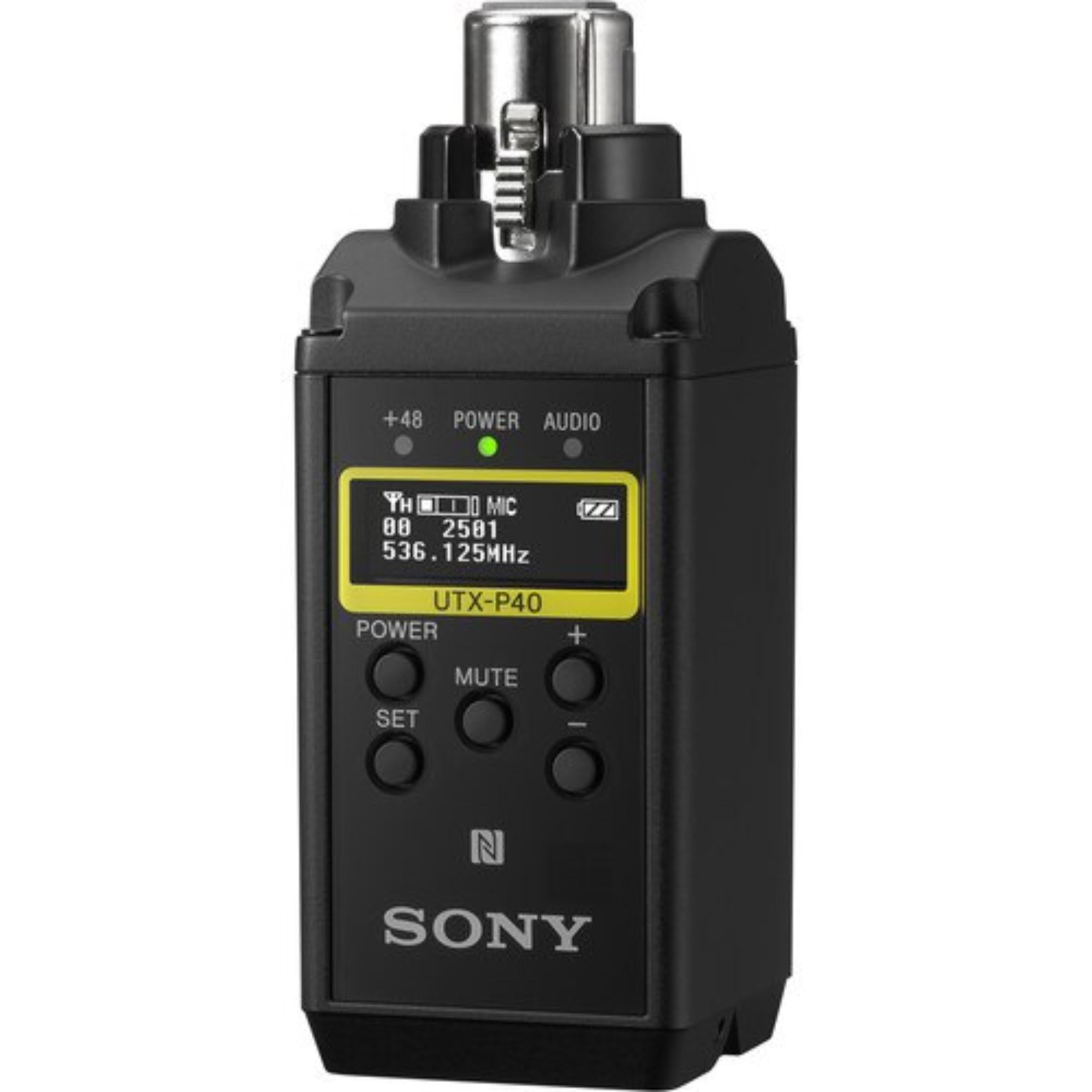

SONY Wireless XLR Plug-on Transmitter (14)

SONY Wireless XLR Plug-on Transmitter (14) is a compact UWP-D plug-on transmitter made for turning compatible XLR microphones into wireless sources. From the supplied source, the Sony UTX-P40 uses an XLR-3-11C female input connector, supports +48V power, and operates on the UC14 frequency range from 470.125 to 541.875 MHz.

This is useful when the crew wants the handling of a familiar XLR microphone without keeping it tied to the camera by cable. A reporter mic, handheld interview mic, or compatible XLR microphone can stay mobile while the audio is sent wirelessly back to the receiver.

Highlights

• XLR plug-on wireless transmitter for compatible microphones
• UC14 frequency range: 470.125 to 541.875 MHz
• XLR-3-11C female input connector
• 0 dB to 48 dB audio attenuator in 3 dB steps
• +48V power, OLED display, NFC sync, and USB-C power support

Quick Specs & Uses

• Model: Sony UTX-P40 wireless plug-on transmitter
• Carrier frequency, UC14: 470.125 MHz to 541.875 MHz
• Input connector: XLR-3-11C type, female
• Audio attenuator adjustment: 0 dB to 48 dB, 3 dB steps
• Audio delay: Approx. 0.35 ms
• Display: OLED
• Distortion: 0.9% or less
• Frequency response: 23 Hz to 18 kHz typical
• Oscillator type: Crystal-controlled PLL synthesizer
• RF output power: 40 mW / 5 mW selectable for UC models
• Reference audio input level: -60 dBV mic input, gain mode set to normal, 0 dB attenuation
• Signal-to-noise ratio: 60 dB; 102 dB in AUTO GAIN max.; 96 dB in NORMAL max.
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector
• Dimensions: 38 x 98 x 38 mm / 1 1/2 x 3 7/8 x 1 1/2 in, including audio input connector
• Mass: Approx. 139 g / 4.9 oz, excluding batteries
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -4°F to 140°F / -20°C to +60°C

Why It Helps

The UTX-P40 is helpful when the microphone choice matters as much as the wireless link. Crews can keep using a preferred handheld or XLR microphone while avoiding a long cable run back to camera, mixer, or receiver position.

The wide attenuator range gives the operator room to manage different source levels before the signal hits the wireless path. That is useful when moving between quieter speech, louder presenters, or microphones with different output behavior.

Powering is flexible too. AA batteries keep the transmitter portable, while USB-C power is useful when the unit is used in a longer fixed setup or powered production environment.

System Characteristics

• Plug-on XLR design for wireless handheld and XLR microphone workflows
• +48V power support for compatible condenser microphone operation
• NFC sync for quick and secure channel setting with compatible receivers
• OLED display for clear status checking in indoor or outdoor use
• Variable muting function for practical field control

What’s In The Box

• 1 x Sony UTX-P40 Wireless Plug-On Transmitter (UC14: 470 to 542 MHz)
• 1 x Soft Case
