SONY Wireless Package with Handheld Mic with built-in Transmitter (90)

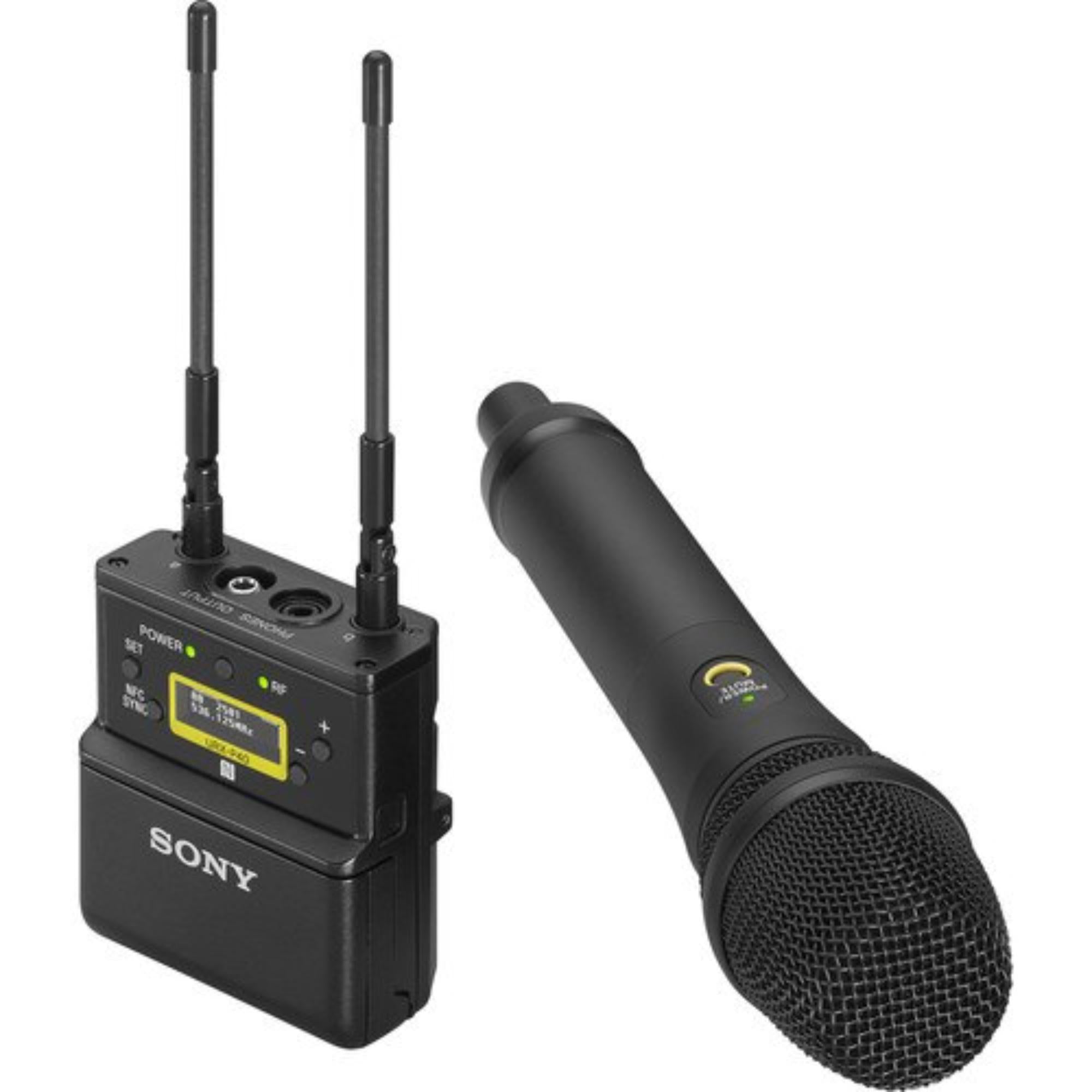

SONY Wireless Package with Handheld Mic with built-in Transmitter (90) is a camera-mount wireless handheld microphone system made for ENG, electronic field production, interviews, documentaries, weddings, and remote production work. From the supplied source, the package includes a Sony URX-P40 camera-mount wireless receiver and a Sony UTX-M40 handheld wireless microphone with cardioid capsule.

This setup is useful when the person speaking needs a handheld mic but the camera crew still wants a clean wireless path back to the camera. The UTX-M40 keeps the microphone and transmitter together in one handheld unit, while the URX-P40 stays compact on the camera side.

Highlights

• Wireless handheld microphone package for camera-mounted production workflows
• UC90 frequency range: 941.625 to 951.875 MHz, 953.000 to 956.125 MHz, and 956.625 to 959.625 MHz
• UTX-M40 handheld microphone with dynamic unidirectional capsule
• URX-P40 receiver with true diversity reception and OLED display
• NFC sync, USB-C power support, and adjustable output level

Quick Specs & Uses

• Receiver model: Sony URX-P40 portable camera-mount receiver
• Handheld transmitter: Sony UTX-M40 handheld microphone with unidirectional capsule
• Carrier frequency, UC90: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
• Receiver reception type: True diversity method
• Receiver antenna: 1/4 wavelength wire antenna, angle-adjustable
• Receiver display: OLED
• Receiver frequency response: 23 Hz to 18 kHz typical
• Receiver output adjustment: -12 dB to +12 dB, 3 dB steps
• Receiver audio output connector: 3.5 mm 3-pole locking mini jack
• Receiver headphone connector: 3.5 mm mini jack
• Receiver battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• Receiver dimensions: 63 x 70 x 31 mm / 2 1/2 x 2 7/8 x 1 1/4 in, excluding antenna
• Receiver mass: Approx. 131 g / 4.6 oz, excluding batteries
• Handheld capsule type: Dynamic
• Handheld directivity: Uni-directional
• Handheld frequency response: 70 Hz to 18 kHz typical
• Handheld audio attenuator: 0 dB to 21 dB, 3 dB steps
• Handheld RF output power: 30 mW / 5 mW selectable for UC models
• Handheld maximum audio input level: 151 dB SPL
• Handheld battery life: Approx. 8 hours at 30 mW output power
• Handheld dimensions: ø48 x 258 mm / 1 15/16 x 10 1/4 in
• Handheld mass: Approx. 255 g / 9.0 oz, excluding batteries
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector

Why It Helps

This package fits the classic wireless handheld interview workflow. A reporter, presenter, or event speaker can hold the microphone naturally, while the receiver sends the signal into the camera without a cable run across the floor or back to the operator.

The dynamic unidirectional capsule is a practical choice for field work. It keeps the pickup focused toward the person speaking, which helps when shooting around crowd noise, room reflections, or general location sound.

On the camera side, the URX-P40 keeps things simple. The receiver is compact, uses an OLED display, and gives adjustable output from -12 dB to +12 dB, so the operator has room to match levels across different camera inputs.

System Characteristics

• True diversity reception on the URX-P40 receiver for stable wireless capture
• UTX-M40 handheld transmitter with built-in wireless operation
• OLED displays for quick status checks on receiver and transmitter
• NFC sync for fast channel setting between transmitter and receiver
• USB-C power support for flexible receiver and transmitter powering

What’s In The Box

• 1 x Sony UWP-D22 Camera-Mount Wireless Cardioid Handheld Microphone System (UC90: 941 to 960 MHz)
• 1 x URX-P40 Camera-Mount Receiver (UC90: 941 to 960 MHz)
• 1 x UTX-M40 Handheld Wireless Microphone with Cardioid Capsule (UC90: 941 to 960 MHz)
• 1 x Mic Holder
• 1 x Belt Clip
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
