SONY Wireless Package with Handheld Mic with built-in Transmitter (14)

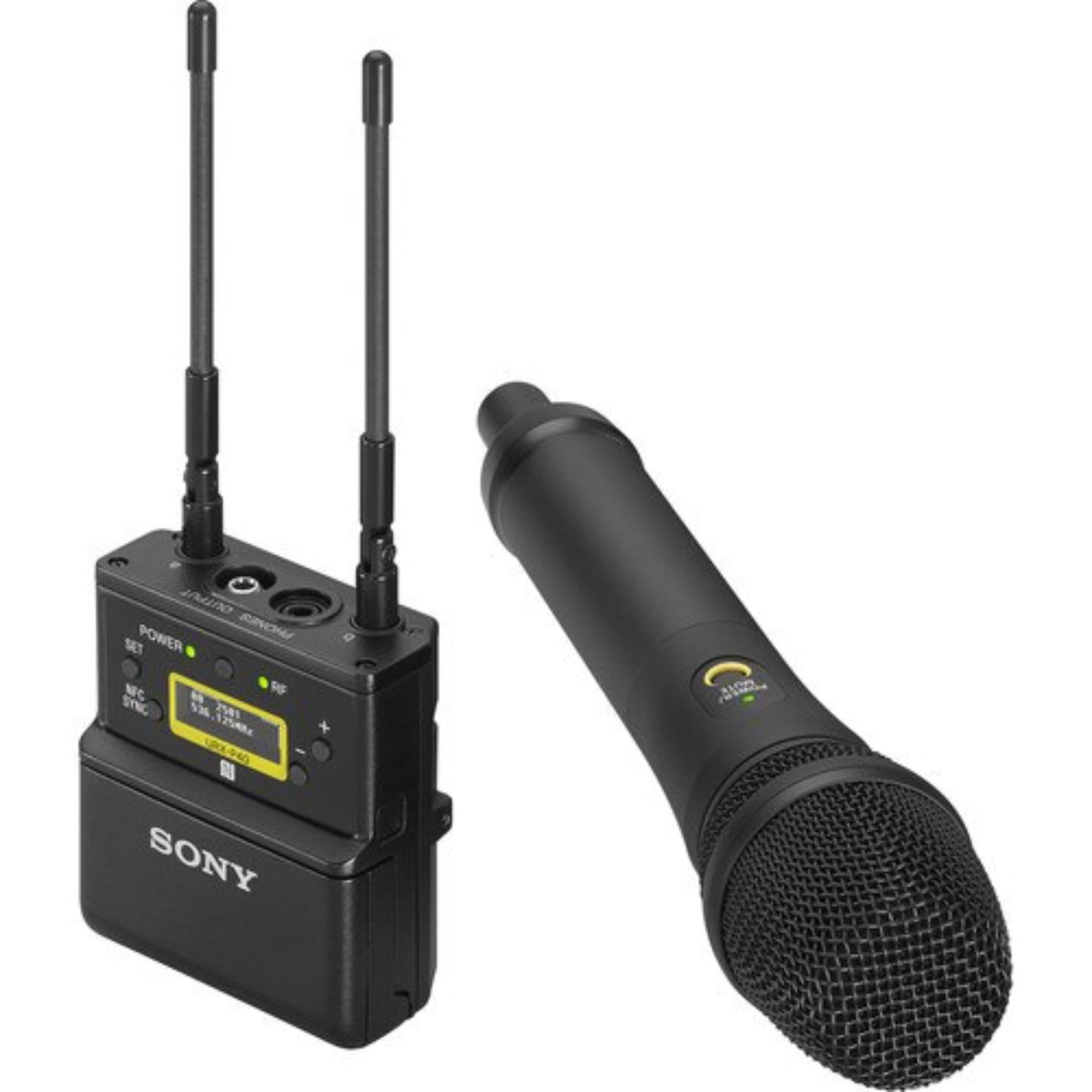

SONY Wireless Package with Handheld Mic with built-in Transmitter (14) is a camera-mount wireless handheld microphone system built for ENG, electronic field production, interviews, documentaries, weddings, and remote production work. From the supplied source, the package includes a Sony URX-P40 camera-mount wireless receiver and a Sony UTX-M40 wireless handheld cardioid microphone transmitter.

This setup is useful when a reporter, presenter, or interview subject needs a handheld microphone without a cable running back to the camera. The UTX-M40 keeps the microphone and transmitter in one unit, while the URX-P40 gives the camera operator a compact receiver with level control and monitoring support.

Highlights

• Wireless handheld microphone package for camera-mounted production workflows
• UC14 frequency range: 470.125 to 541.875 MHz
• UTX-M40 handheld transmitter with dynamic unidirectional capsule
• URX-P40 receiver with true diversity reception and OLED display
• NFC sync, USB-C power support, and adjustable output level

Quick Specs & Uses

• Receiver model: Sony URX-P40 portable camera-mount receiver
• Handheld transmitter: Sony UTX-M40 handheld microphone with unidirectional capsule
• Carrier frequency, UC14: 470.125 MHz to 541.875 MHz
• Receiver reception type: True diversity method
• Receiver antenna: 1/4 wavelength wire antenna, angle-adjustable
• Receiver display: OLED
• Receiver frequency response: 23 Hz to 18 kHz typical
• Receiver output adjustment: -12 dB to +12 dB, 3 dB steps
• Receiver audio output connector: 3.5 mm 3-pole locking mini jack
• Receiver headphone connector: 3.5 mm mini jack
• Receiver battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• Receiver dimensions: 63 x 70 x 31 mm / 2 1/2 x 2 7/8 x 1 1/4 in, excluding antenna
• Receiver mass: Approx. 131 g / 4.6 oz, excluding batteries
• Handheld capsule type: Dynamic
• Handheld directivity: Uni-directional
• Handheld frequency response: 70 Hz to 18 kHz typical
• Handheld audio attenuator: 0 dB to 21 dB, 3 dB steps
• Handheld RF output power: 30 mW / 5 mW selectable for UC models
• Handheld maximum audio input level: 151 dB SPL
• Handheld battery life: Approx. 8 hours at 30 mW output power
• Handheld dimensions: ø48 x 258 mm / 1 15/16 x 10 1/4 in
• Handheld mass: Approx. 255 g / 9.0 oz, excluding batteries
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector

Why It Helps

This package fits the classic field interview workflow. The interviewer can work with a handheld mic, the subject can speak naturally, and the camera stays free of a hard audio cable. It is a simple, familiar setup for news gathering, event coverage, documentary segments, and quick stand-up reports.

The dynamic unidirectional capsule helps keep the pickup aimed toward the speaker. In crowded rooms, outdoor locations, and live event spaces, that extra directionality helps the operator manage background noise better than a more open pickup pattern.

On the camera side, the URX-P40 keeps operation straightforward. The receiver is compact, uses an OLED display, and gives the operator adjustable output from -12 dB to +12 dB, which helps when matching the wireless feed to different camera input stages.

System Characteristics

• True diversity reception on the URX-P40 receiver for stable wireless capture
• UTX-M40 handheld transmitter with built-in wireless operation
• OLED displays for quick status checks on receiver and transmitter
• NFC sync for fast channel setting between transmitter and receiver
• USB-C power support for flexible receiver and transmitter powering

What’s In The Box

• 1 x Sony UWP-D22 Camera-Mount Wireless Cardioid Handheld Microphone System (UC14: 470 to 542 MHz)
• 1 x Sony URX-P40 Camera-Mount Wireless Receiver (UC14: 470 to 542 MHz)
• 1 x Sony UTX-M40 Wireless Handheld Cardioid Microphone Transmitter (UC14: 470 to 542 MHz)
• 1 x Mic Holder
• 1 x Belt Clip
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
