SONY Wireless Package with Bodypack Transmitter & Lapel Mic (90)

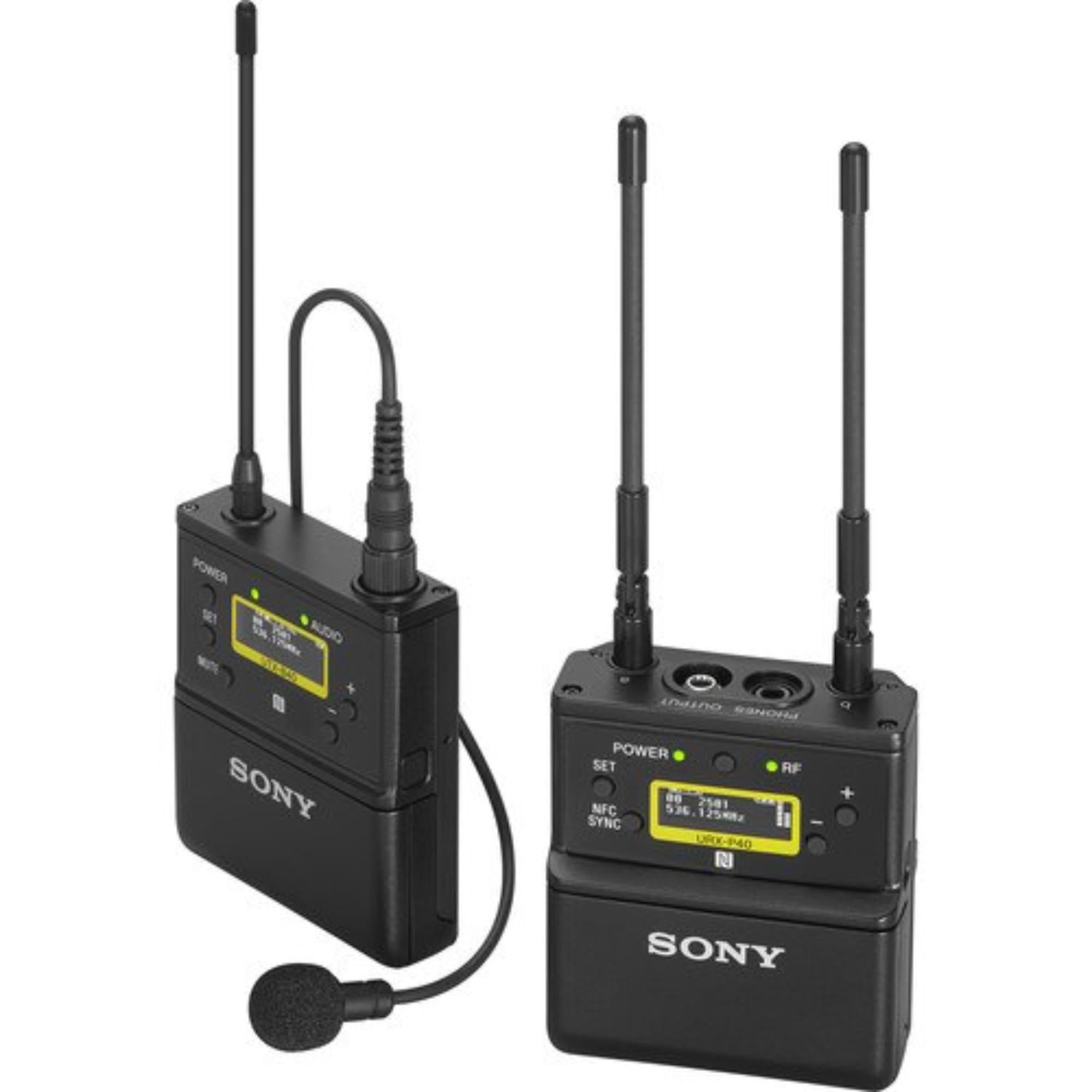

SONY Wireless Package with Bodypack Transmitter & Lapel Mic (90) is a camera-mount wireless lavalier package built for ENG, interviews, documentaries, weddings, and compact camera production. From the supplied source, the package includes a Sony UWP-D21 camera-mount wireless omni lavalier microphone system, a URX-P40 portable receiver, and a UTX-B40 bodypack transmitter with omni lavalier microphone.

This is a clean one-person wireless setup when the speaker needs to move freely but the camera still needs a dependable audio feed. The lavalier handles speech capture, the bodypack stays on talent, and the URX-P40 gives the camera operator level control, monitoring, and a clear OLED display.

Highlights

• Camera-mount wireless lavalier package for field and production audio
• UC90 frequency range: 941.625 to 951.875 MHz, 953.000 to 956.125 MHz, and 956.625 to 959.625 MHz
• URX-P40 portable receiver with true diversity reception
• UTX-B40 bodypack transmitter with omni lavalier microphone
• NFC sync, USB-C power, OLED display, and adjustable receiver output level

Quick Specs & Uses

• Receiver model: URX-P40 portable receiver
• Transmitter model: UTX-B40 bodypack transmitter
• Carrier frequency, UC90: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
• Receiver reception type: True diversity method
• Receiver antenna: 1/4 λ wavelength wire antenna, angle-adjustable
• Receiver display: OLED
• Receiver frequency response: 23 Hz to 18 kHz typical
• Receiver output adjustment: -12 dB to +12 dB, 3 dB steps
• Receiver audio output connector: 3.5 mm 3-pole locking mini jack
• Receiver headphone output: 3.5 mm mini jack, max. 10 mW at 16 ohms
• Receiver battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• Receiver dimensions: 63 x 70 x 31 mm / 2 1/2 x 2 7/8 x 1 1/4 in, excluding antenna
• Receiver mass: Approx. 131 g / 4.6 oz, excluding batteries
• Transmitter antenna: 1/4 λ wavelength wire antenna
• Transmitter capsule type: Electret condenser
• Transmitter directivity: Omni-directional
• Transmitter input connector: 3.5 mm 3-pole locking mini jack
• Transmitter audio attenuator: 0 dB to 27 dB, 3 dB steps
• Transmitter RF output power: 30 mW / 5 mW selectable for UC models
• Transmitter frequency response: 23 Hz to 18 kHz typical
• Transmitter battery life: Approx. 8 hours at 30 mW output power
• Transmitter dimensions: 63 x 73 x 19 mm / 2 1/2 x 2 7/8 x 3/4 in, excluding antenna
• Transmitter mass: Approx. 83 g / 2.9 oz, excluding batteries
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector

Why It Helps

The UWP-D21 is useful when one speaker needs wireless lavalier audio without adding too much hardware to the camera rig. It fits interviews, presenter pieces, documentary coverage, wedding audio, and small crew shoots where fast setup matters.

The URX-P40 gives the operator practical control at the camera. Output level can be adjusted from -12 dB to +12 dB, which helps when matching the receiver to different camera inputs. The headphone output also gives a quick way to confirm the signal before recording.

NFC sync keeps setup simple. Pair the transmitter and receiver, check the OLED display, listen for clothing noise, and move on. In field production, that kind of workflow saves time and helps reduce mistakes.

System Characteristics

• True diversity reception on the URX-P40 receiver for stable field audio
• UTX-B40 bodypack transmitter for lavalier, presenter, and interview workflows
• OLED display for clear status checking in indoor or outdoor use
• NFC sync for fast and secure channel setting
• USB-C power support for receiver and transmitter operation

What’s In The Box

• 1 x Sony UWP-D21 Camera-Mount Wireless Omni Lavalier Microphone System (UC90: 941 to 960 MHz)
• 1 x URX-P40 Portable Receiver (UC90: 941 to 960 MHz)
• 1 x UTX-B40 Bodypack Transmitter with Omni Lavalier Microphone (UC90: 941 to 960 MHz)
• 1 x Mic Clip
• 1 x Windscreen
• 2 x Belt Clips
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
