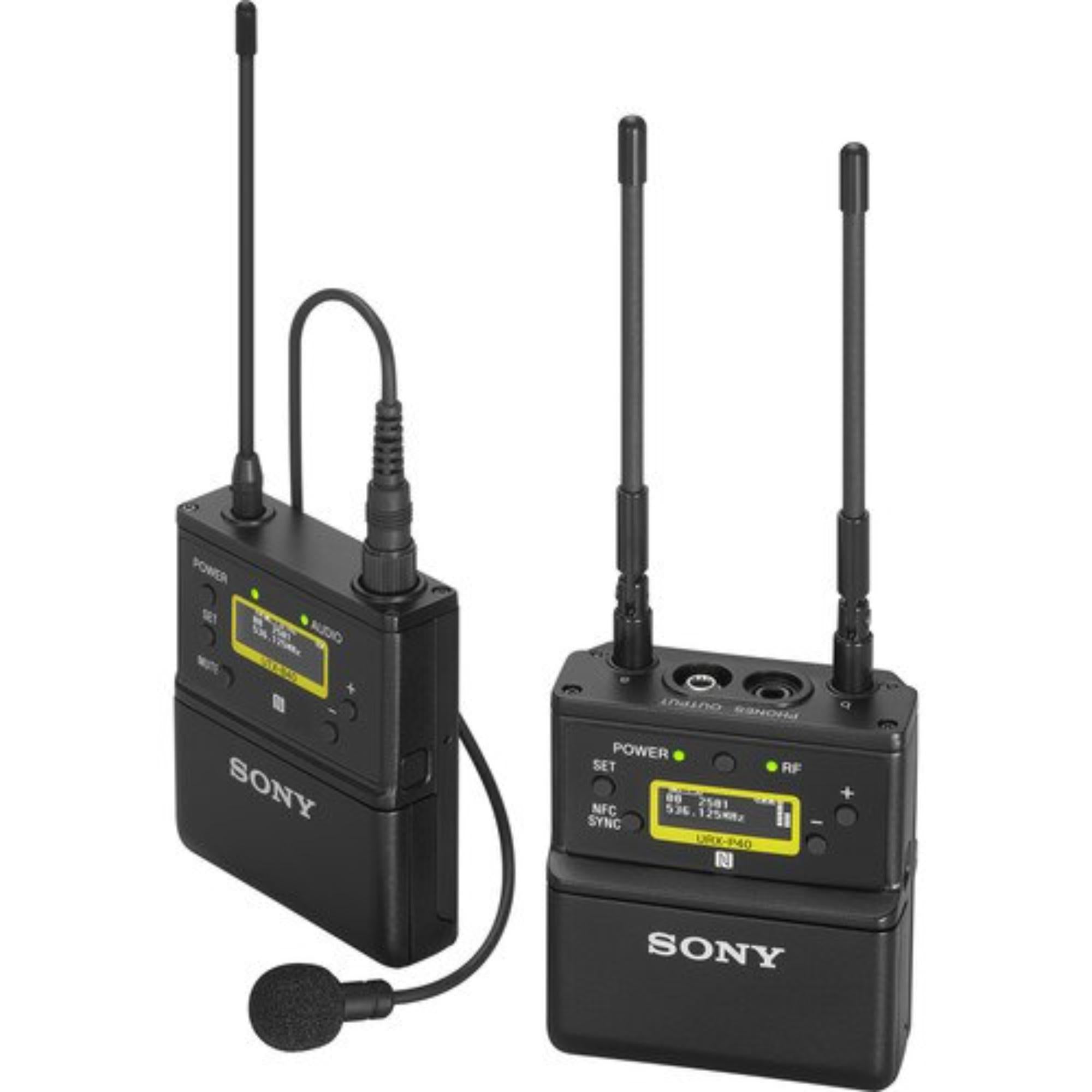

SONY Wireless Package with Bodypack Transmitter & Lapel Mic (25)

SONY Wireless Package with Bodypack Transmitter & Lapel Mic (25) is a camera-mount wireless lavalier package made for ENG, field interviews, documentaries, weddings, and compact camera production. From the supplied source, the package includes a Sony UWP-D21 camera-mount wireless omni lavalier microphone system, a URX-P40 portable receiver, and a UTX-B40 bodypack transmitter with omni lavalier microphone.

This is a practical setup when one speaker needs clean wireless audio going straight to camera. The lavalier stays on talent, the bodypack handles transmission, and the URX-P40 gives the camera operator a compact receiver with level control, monitoring, and a bright OLED display for quick checks.

Highlights

• Camera-mount wireless lavalier package for field and production audio
• UC25 frequency range: 536.125 to 607.875 MHz
• URX-P40 portable receiver with true diversity reception
• UTX-B40 bodypack transmitter with omni lavalier microphone
• NFC sync, USB-C power, OLED display, and adjustable receiver output level

Quick Specs & Uses

• Receiver model: URX-P40 portable receiver
• Transmitter model: UTX-B40 bodypack transmitter
• Carrier frequency, UC25: 536.125 MHz to 607.875 MHz
• Receiver reception type: True diversity method
• Receiver antenna: 1/4 λ wavelength wire antenna, angle-adjustable
• Receiver display: OLED
• Receiver frequency response: 23 Hz to 18 kHz typical
• Receiver output adjustment: -12 dB to +12 dB, 3 dB steps
• Receiver audio output connector: 3.5 mm 3-pole locking mini jack
• Receiver headphone output: 3.5 mm mini jack, max. 10 mW at 16 ohms
• Receiver battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• Receiver dimensions: 63 x 70 x 31 mm / 2 1/2 x 2 7/8 x 1 1/4 in, excluding antenna
• Receiver mass: Approx. 131 g / 4.6 oz, excluding batteries
• Transmitter antenna: 1/4 λ wavelength wire antenna
• Transmitter capsule type: Electret condenser
• Transmitter directivity: Omni-directional
• Transmitter input connector: 3.5 mm 3-pole locking mini jack
• Transmitter audio attenuator: 0 dB to 27 dB, 3 dB steps
• Transmitter RF output power: 30 mW / 5 mW selectable for UC models
• Transmitter frequency response: 23 Hz to 18 kHz typical
• Transmitter battery life: Approx. 8 hours at 30 mW output power
• Transmitter dimensions: 63 x 73 x 19 mm / 2 1/2 x 2 7/8 x 3/4 in, excluding antenna
• Transmitter mass: Approx. 83 g / 2.9 oz, excluding batteries
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector

Why It Helps

The UWP-D21 is useful when the camera needs one reliable wireless lavalier channel without turning the setup into a full audio bag. It fits presenter work, quick interviews, documentary coverage, and event shooting where the speaker needs to move naturally while staying on mic.

The URX-P40 gives the operator practical control at the camera. Output level can be adjusted from -12 dB to +12 dB, which helps when matching the wireless receiver to different camera inputs. The headphone output is also useful for quick confidence monitoring before rolling.

NFC sync keeps frequency setup fast. In the field, that saves time. Instead of spending too long in menus, the crew can pair the transmitter and receiver, check levels, listen for clothing noise, and get back to the shot.

System Characteristics

• True diversity reception on the URX-P40 receiver for stable field audio
• UTX-B40 bodypack transmitter for lavalier, presenter, and interview workflows
• OLED display for clear status checking in indoor or outdoor use
• NFC sync for fast and secure channel setting
• USB-C power support for receiver and transmitter operation

What’s In The Box

• 1 x Sony UWP-D21 Camera-Mount Wireless Omni Lavalier Microphone System (UC25: 536 to 608 MHz)
• 1 x Sony URX-P40 Camera-Mount Wireless Receiver (UC25: 536 to 608 MHz)
• 1 x Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC25: 536 to 608 MHz)
• 1 x Mic Clip
• 1 x Windscreen
• 2 x Belt Clips
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
