SONY Wireless Package with Bodypack Transmitter & Lapel Mic (14)

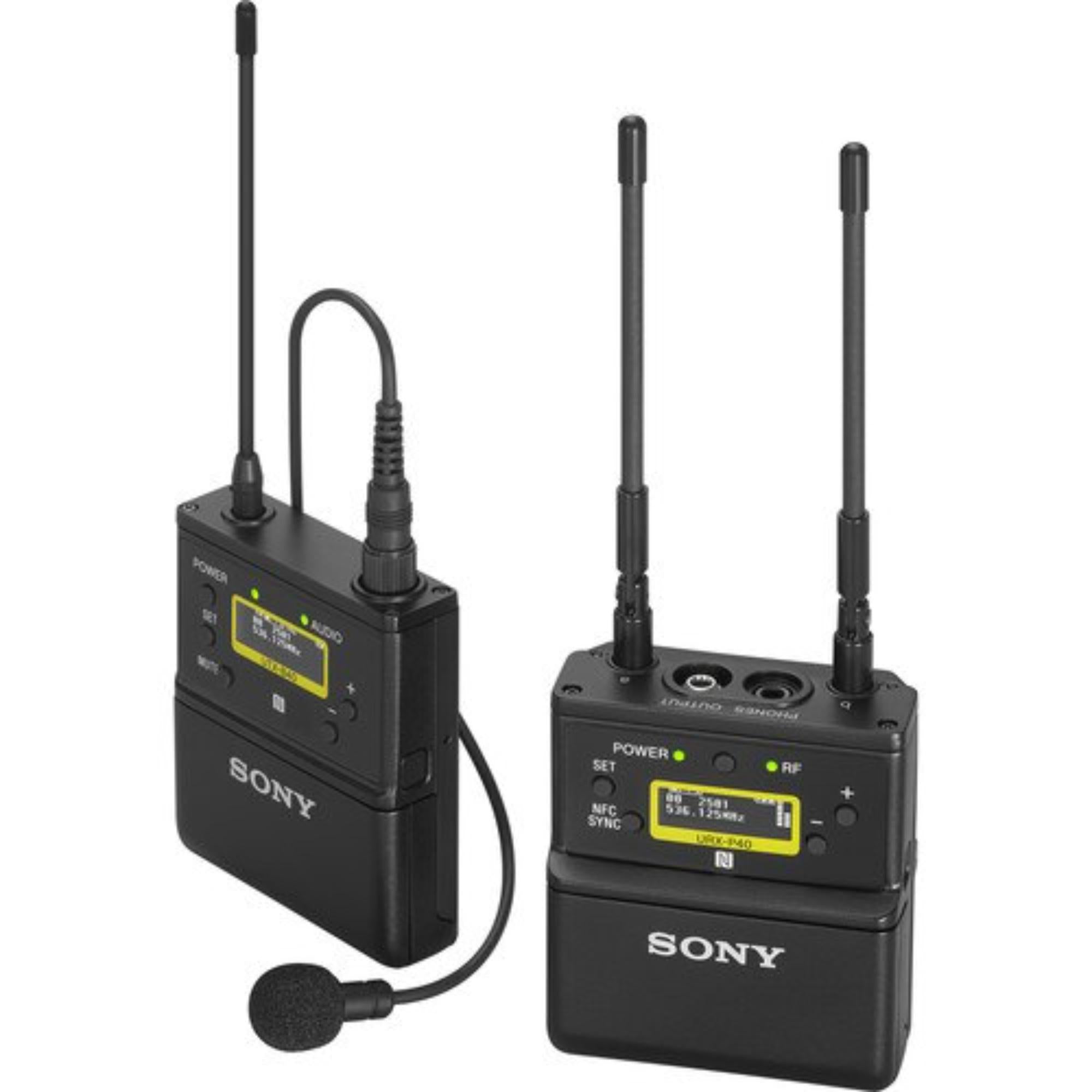

SONY Wireless Package with Bodypack Transmitter & Lapel Mic (14) is a camera-mount wireless lavalier package built for ENG, field interviews, documentaries, weddings, and compact camera production. From the supplied source, the package includes a Sony UWP-D21 camera-mount wireless omni lavalier microphone system, a URX-P40 camera-mount wireless receiver, and a UTX-B40 bodypack transmitter with omni lavalier mic.

This is a clean one-person wireless setup for speech capture. The lavalier stays clipped on talent, the bodypack handles transmission, and the URX-P40 gives the camera operator level control, headphone monitoring, and a clear OLED display without making the camera rig feel overloaded.

Highlights

• Camera-mount wireless lavalier package for field and production audio
• UC14 frequency range: 470.125 to 541.875 MHz
• URX-P40 portable receiver with true diversity reception
• UTX-B40 bodypack transmitter with omni lavalier microphone
• NFC sync, USB-C power, OLED display, and adjustable receiver output level

Quick Specs & Uses

• Receiver model: URX-P40 portable receiver
• Transmitter model: UTX-B40 bodypack transmitter
• Carrier frequency, UC14: 470.125 MHz to 541.875 MHz
• Receiver reception type: True diversity method
• Receiver antenna: 1/4 λ wavelength wire antenna, angle-adjustable
• Receiver display: OLED
• Receiver frequency response: 23 Hz to 18 kHz typical
• Receiver output adjustment: -12 dB to +12 dB, 3 dB steps
• Receiver audio output connector: 3.5 mm 3-pole locking mini jack
• Receiver headphone output: 3.5 mm mini jack, max. 10 mW at 16 ohms
• Receiver battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• Receiver dimensions: 63 x 70 x 31 mm / 2 1/2 x 2 7/8 x 1 1/4 in, excluding antenna
• Receiver mass: Approx. 131 g / 4.6 oz, excluding batteries
• Transmitter antenna: 1/4 λ wavelength wire antenna
• Transmitter capsule type: Electret condenser
• Transmitter directivity: Omni-directional
• Transmitter input connector: 3.5 mm 3-pole locking mini jack
• Transmitter audio attenuator: 0 dB to 27 dB, 3 dB steps
• Transmitter RF output power: 30 mW / 5 mW selectable for UC models
• Transmitter frequency response: 23 Hz to 18 kHz typical
• Transmitter battery life: Approx. 8 hours at 30 mW output power
• Transmitter dimensions: 63 x 73 x 19 mm / 2 1/2 x 2 7/8 x 3/4 in, excluding antenna
• Transmitter mass: Approx. 83 g / 2.9 oz, excluding batteries
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector

Why It Helps

The UWP-D21 is useful when one speaker needs to move freely while the camera still receives a clean audio feed. It is a natural fit for interviews, presenter pieces, documentary coverage, wedding audio, and small crew shoots where speed and reliability matter.

The URX-P40 gives the operator practical control at the camera. Output level can be adjusted from -12 dB to +12 dB, making it easier to match the wireless feed to different camera inputs. The headphone output also gives a quick way to confirm audio before the take starts.

NFC sync helps keep setup fast. Pair the transmitter and receiver, check the OLED, listen for clothing noise, then move on. On location, that kind of simple workflow saves time and reduces mistakes.

System Characteristics

• True diversity reception on the URX-P40 receiver for stable field audio
• UTX-B40 bodypack transmitter for lavalier, presenter, and interview workflows
• OLED display for clear status checking in indoor or outdoor use
• NFC sync for fast and secure channel setting
• USB-C power support for receiver and transmitter operation

What’s In The Box

• 1 x Sony UWP-D21 Camera-Mount Wireless Omni Lavalier Microphone System (UC14: 470 to 542 MHz)
• 1 x Sony URX-P40 Camera-Mount Wireless Receiver (UC14: 470 to 542 MHz)
• 1 x Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC14: 470 to 542 MHz)
• 1 x Mic Clip
• 1 x Windscreen
• 2 x Belt Clips
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
