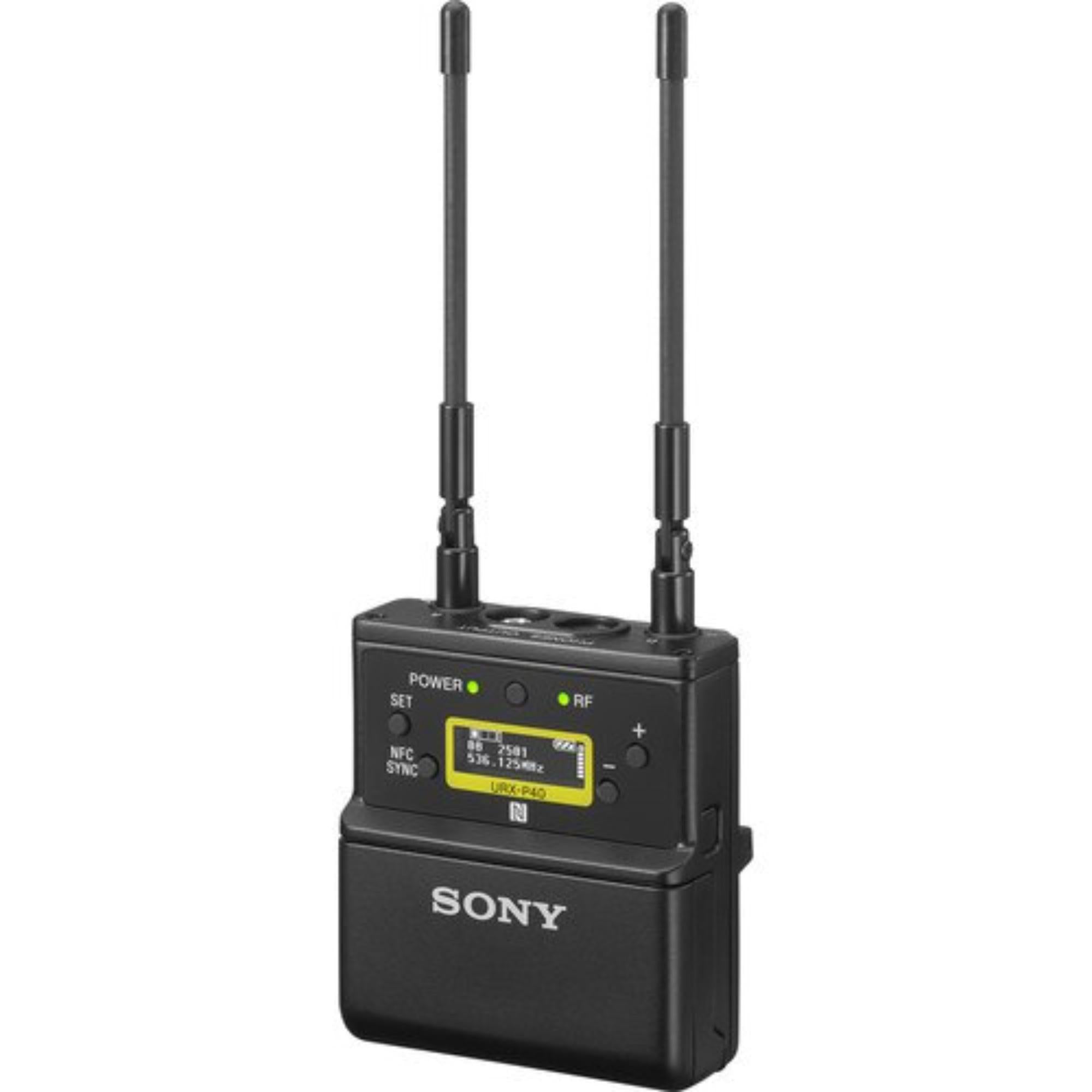

SONY UWP-D Wireless Portable Receiver (25)

SONY UWP-D Wireless Portable Receiver (25) is a compact camera-mount wireless receiver built for ENG, interviews, documentaries, weddings, and small camera production. From the supplied source, the Sony URX-P40 operates on the UC25 frequency range from 536.125 to 607.875 MHz and uses true diversity reception.

This receiver is made for crews who need reliable wireless audio without making the camera rig bulky. It mounts easily, gives the operator a clear OLED display, and provides output level control for matching different camera inputs in the field.

Highlights

• Portable camera-mount wireless receiver for UWP-D audio workflows
• UC25 frequency range: 536.125 to 607.875 MHz
• True diversity reception for stable wireless performance
• OLED display and headphone output for quick monitoring checks
• USB-C power support and adjustable output from -12 dB to +12 dB

Quick Specs & Uses

• Model: Sony URX-P40 camera-mount wireless receiver
• Carrier frequency, UC25: 536.125 MHz to 607.875 MHz
• Oscillator type: Crystal-controlled PLL synthesizer
• Reception type: True diversity method
• Antenna type: 1/4 λ wavelength wire antenna, angle-adjustable
• Frequency response: 23 Hz to 18 kHz typical
• Signal-to-noise ratio: 60 dB
• Distortion: 0.9% or less
• Audio delay: Approx. 0.35 ms analog output, approx. 0.24 ms digital output
• Audio output connector: 3.5 mm diameter 3-pole locking mini jack, external connection
• Audio output level: -60 dBV analog output, -20 dBFS digital output, -50 dBFS external analog output
• Analog audio output adjustment: -12 dB to +12 dB, 3 dB steps
• Headphone output connector: 3.5 mm mini jack
• Headphone output level: Max. 10 mW at 16 ohms
• Display: OLED
• Power requirements: DC 3.0V with two LR6/AA alkaline batteries or DC 5.0V from USB Type-C connector
• Battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• Dimensions: 63 x 70 x 31 mm / 2 1/2 x 2 7/8 x 1 1/4 in, excluding antenna
• Mass: Approx. 131 g / 4.6 oz, excluding batteries
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -4°F to 140°F / -20°C to +60°C

Why It Helps

The URX-P40 is useful when the camera needs a compact wireless receiver that does not turn the rig into a full audio bag. It fits small camcorders, handheld camera builds, interview setups, and documentary work where speed and clean mounting matter.

The adjustable output range is especially practical. Different cameras expect different input levels, so having -12 dB to +12 dB control helps the operator match the receiver to the camera before recording.

The OLED display and headphone output make field checks easier. You can confirm receiver status, listen to the signal, and make level decisions quickly before the shot starts.

System Characteristics

• True diversity reception for stable wireless audio capture
• Camera-mount receiver design for compact field rigs
• OLED display for clear status checking indoors or outdoors
• Headphone output for quick confidence monitoring
• USB Type-C power support for flexible receiver powering

What’s In The Box

• 1 x Sony URX-P40 Camera-Mount Wireless Receiver
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x Belt Clip
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
