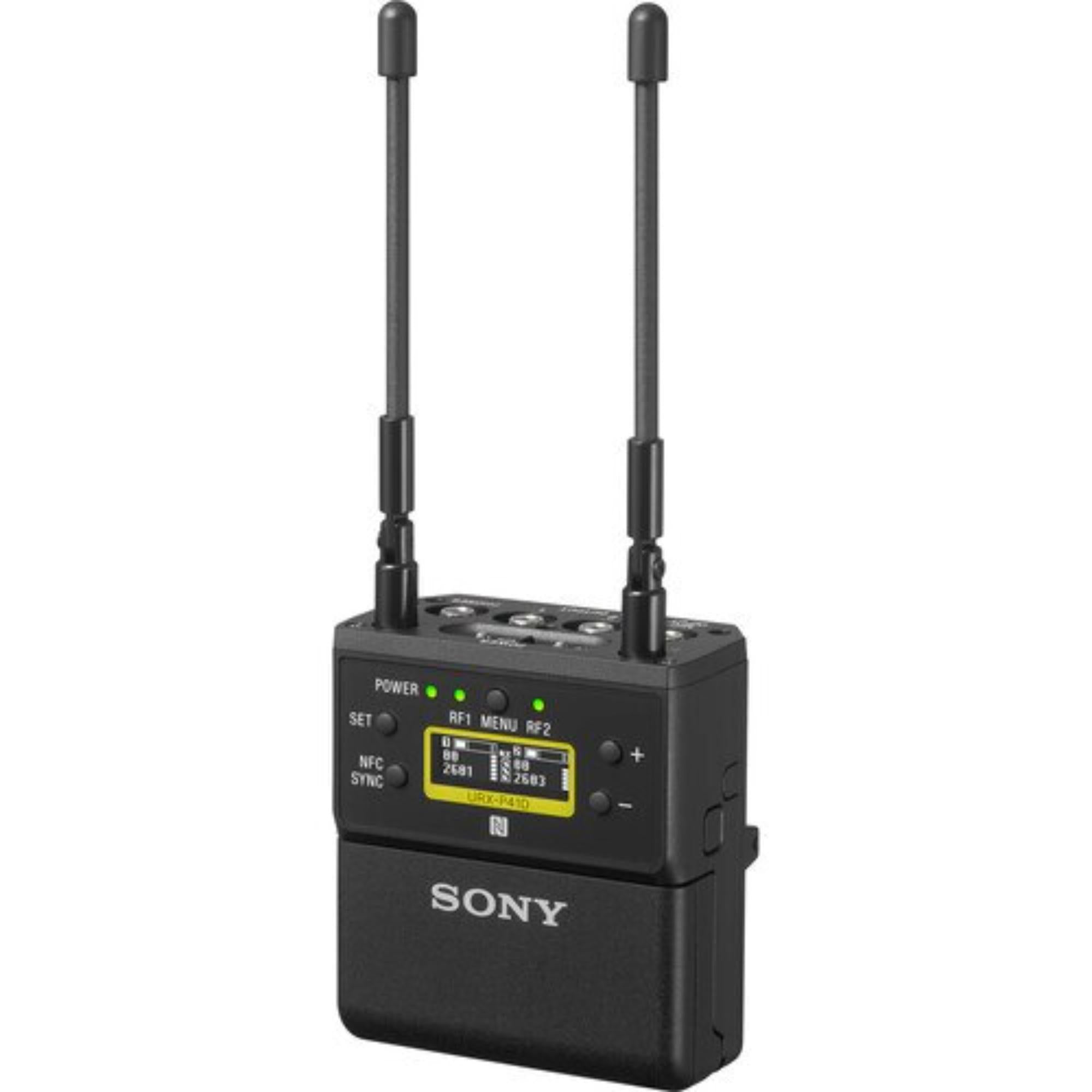

SONY UWP-D Dual Channel Wireless Receiver (90)

SONY UWP-D Dual Channel Wireless Receiver (90) is a compact two-channel camera-mount wireless receiver built for ENG, interviews, documentary work, handheld camera setups, and compact camcorder audio. From the supplied source, the URX-P41D operates on the UC90 frequency range from 941.625 to 959.625 MHz and uses space diversity reception.

This receiver is useful when one camera needs two wireless audio channels without stacking multiple receivers on the rig. It keeps the setup lighter, gives the operator receiver-side level control, and still provides headphone output for quick monitoring in the field.

Highlights

• Dual-channel camera-mount receiver for Sony UWP-D wireless workflows
• UC90 frequency range: 941.625 to 951.875 MHz, 953.000 to 956.125 MHz, and 956.625 to 959.625 MHz
• Space diversity reception for stable portable operation
• OLED display and headphone output for quick field checks
• Adjustable audio output from -12 dB to +12 dB in 3 dB steps

Quick Specs & Uses

• Model: Sony URX-P41D dual-channel camera-mount wireless receiver
• Carrier frequency, UC90: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
• Oscillator type: Crystal-controlled PLL synthesizer
• Reception type: Space diversity
• Antenna type: 1/4 λ wavelength wire antenna, angle-adjustable
• Frequency response: 23 Hz to 18 kHz typical
• Distortion: 0.9% or less
• Signal-to-noise ratio: 60 dB; 96 dB max deviation, A-weighted
• Audio delay: Approx. 0.35 ms analog output, approx. 0.24 ms digital output
• Analog input: 3.5 mm 3-pole locking mini jack, unbalanced
• Analog input level: -50 dBV, ±12 dB adjustable in 3 dB steps
• Audio output connector: 3.5 mm 3-pole locking mini jack, balanced; external connection
• Audio output adjust range: -12 dB to +12 dB, 3 dB steps
• Headphone output connector: 3.5 mm mini jack
• Headphone output level: Max. 10 mW at 16 ohms
• Display: OLED
• Power requirements: DC 3.0V with two AA alkaline batteries or DC 5.0V from USB Type-C connector
• Battery life: Approx. 4.5 hours with two AA alkaline batteries
• Dimensions: 63 x 70 x 35 mm / 2.48 x 2.76 x 1.38 in, excluding antenna
• Mass: Approx. 159 g / 5.6 oz, excluding batteries
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -20°C to +55°C / -4°F to +131°F

Why It Helps

The URX-P41D is useful when one camera needs to receive two wireless sources but the rig still needs to stay small. For interviews, presenter work, compact documentary shoots, and self-shooter setups, that means fewer boxes mounted to the camera and less cabling to manage.

The adjustable output level is one of the practical parts. Different cameras do not always want the same input level, so having -12 dB to +12 dB control gives the operator room to match the receiver to the camera before recording.

The OLED display and headphone output also help during real shoots. You can check receiver status, confirm audio, and make quick decisions without turning the camera build into a larger audio bag.

System Characteristics

• Two-channel receiver design for compact camera-mounted wireless audio
• Space diversity reception for stable portable operation
• OLED display for clear status checking indoors or outdoors
• Headphone monitoring for quick confidence checks on location
• USB Type-C power support for flexible receiver powering

What’s In The Box

• 1 x Sony URX-P41D Dual-Channel Camera-Mount Wireless Receiver
• 1 x Belt Clip
• 1 x Shoemount Adapter
• 2 x XLR to Locking 3.5mm Output Cables
• 1 x 3.5mm to Locking 3.5mm Cable
