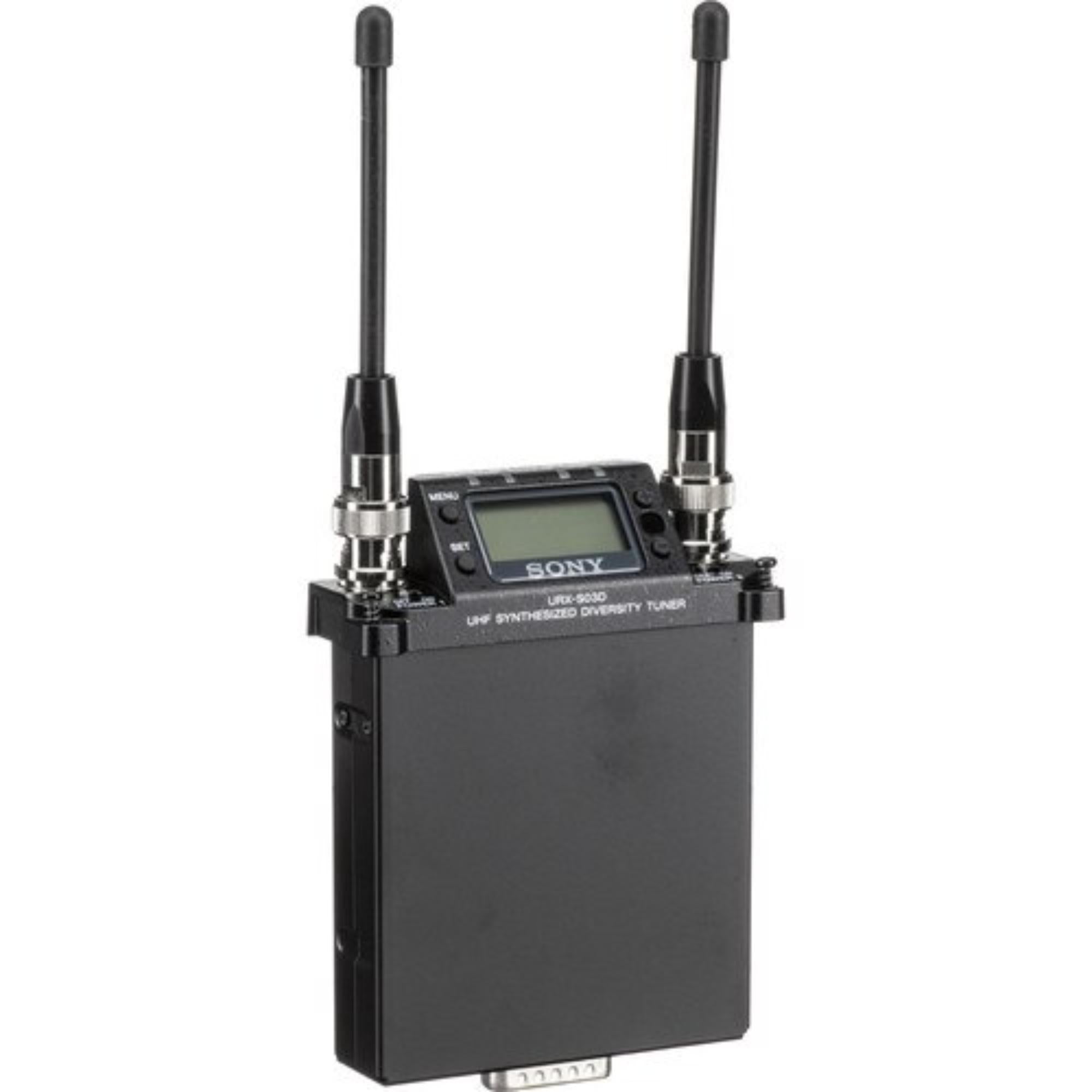

SONY UWP-D Dual Ch Diversity Slot-in Receiver (25)

SONY UWP-D Dual Ch Diversity Slot-in Receiver (25) is a dual-channel slot-in wireless receiver built for compatible Sony XDCAM and HDCAM camcorder workflows. From the supplied source, the URX-S03D fits directly into the slot of supported Sony camcorders and operates on the UC25 frequency range from 536.125 to 607.875 MHz.

This receiver is useful when the camera team wants a cleaner wireless setup without mounting an external receiver on top of the camera. It sits inside the camcorder slot, keeps cabling minimal, and supports two-channel wireless audio directly into the camera system.

Highlights

• Dual-channel slot-in wireless receiver for supported Sony camcorders
• UC25 frequency range: 536.125 to 607.875 MHz
• True diversity reception for stable RF performance
• Digital audio connection with compatible Sony XDCAM and HDCAM camcorders
• Detachable antenna design with 2 x whip antennas included

Quick Specs & Uses

• Model: Sony URX-S03D UWP-D dual-channel slot-in wireless receiver
• Carrier frequency, UC25: 536.125 MHz to 607.875 MHz
• Reception type: True diversity
• Oscillator type: Crystal-controlled PLL synthesizer
• Antenna type: Detachable
• Frequency response: 23 Hz to 18 kHz typical
• Signal-to-noise ratio: 96 dB max deviation, A-weighted
• Distortion: 0.9% or less
• Audio delay: Approx. 0.375 msec
• Analog output: D-sub 15 pin, unbalanced
• Analog output level: -40 dBu at ±5 kHz deviation
• Display: LCD
• Power requirements: DC 7.0V
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -20°C to +55°C / -4°F to +131°F
• Dimensions: 88 x 116.2 x 31.2 mm / 3 1/2 x 4 5/8 x 1 1/4 in, excluding antennas
• Mass: Approx. 303 g / 10.7 oz with supplied antennas attached

Why It Helps

The URX-S03D is built for camera systems where a slot-in receiver is cleaner than a top-mounted receiver. For ENG, EFP, documentary, and broadcast camera work, that means less external cabling, fewer loose accessories, and a more integrated camera package.

The dual-channel design is useful when the camera needs to receive two wireless sources at once. That can be two talent mics, a presenter and interviewer, or another two-transmitter setup depending on the production.

True diversity reception helps maintain a more stable RF path, while the detachable antennas give the operator a serviceable receiver layout for real field use. It is the kind of receiver that keeps the audio side integrated instead of hanging off the camera rig.

System Characteristics

• Slot-in receiver format for supported Sony XDCAM and HDCAM camcorders
• Two-channel reception for multi-source wireless audio capture
• True diversity RF design with two adjustable receiving antennas
• LCD display for receiver status and setup checks
• Durable metal body for professional camera-side operation

What’s In The Box

• 1 x Sony URX-S03D UWP-D Dual-Channel Slot-In Wireless Receiver
• 2 x Whip Antennas
