SONY UWP-D Dual Ch Diversity Slot-in Receiver (14)

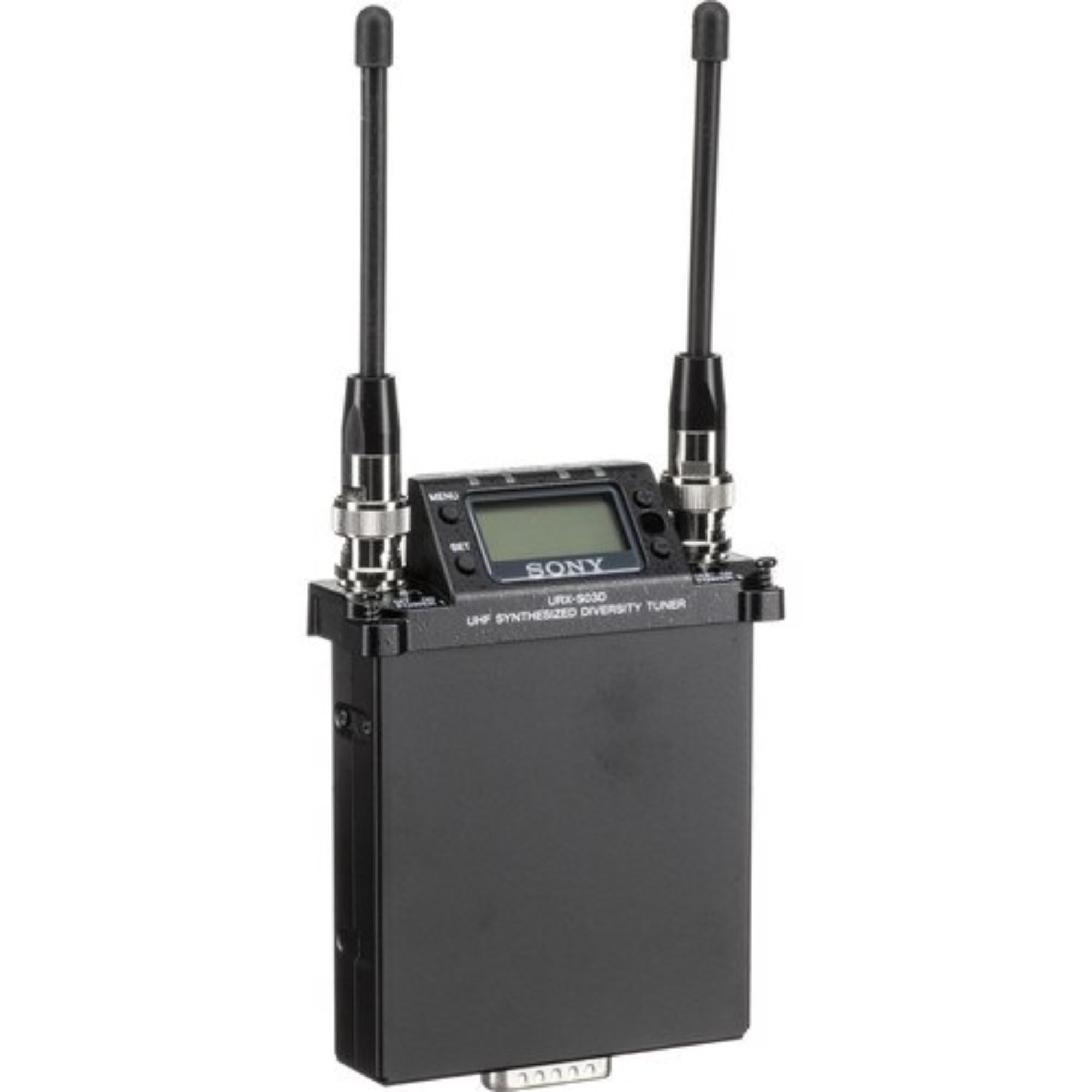

SONY UWP-D Dual Ch Diversity Slot-in Receiver (14) is a dual-channel slot-in wireless receiver built for compatible Sony XDCAM and HDCAM camcorder workflows. From the supplied source, the URX-S03D fits directly into the slot of supported Sony camcorders and operates on the UC14 frequency range from 470.125 to 541.875 MHz.

This receiver is useful when the camera team wants wireless audio integrated into the camera body instead of hanging an external receiver from the rig. It keeps the setup cleaner, reduces loose cabling, and gives the operator a more broadcast-style camera package.

Highlights

• Dual-channel slot-in wireless receiver for supported Sony camcorders
• UC14 frequency range: 470.125 to 541.875 MHz
• True diversity reception for stable RF performance
• Digital audio connection with compatible Sony XDCAM and HDCAM camcorders
• Detachable antenna design with 2 x whip antennas included

Quick Specs & Uses

• Model: Sony URX-S03D UWP-D dual-channel slot-in wireless receiver
• Carrier frequency, UC14: 470.125 MHz to 541.875 MHz
• Reception type: True diversity
• Oscillator type: Crystal-controlled PLL synthesizer
• Antenna type: Detachable
• Frequency response: 23 Hz to 18 kHz typical
• Signal-to-noise ratio: 96 dB max deviation, A-weighted
• Distortion: 0.9% or less
• Audio delay: Approx. 0.375 msec
• Analog output: D-sub 15 pin, unbalanced
• Analog output level: -40 dBu at ±5 kHz deviation
• Display: LCD
• Power requirements: DC 7.0V
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -20°C to +55°C / -4°F to +131°F
• Dimensions: 88 x 116.2 x 31.2 mm / 3 1/2 x 4 5/8 x 1 1/4 in, excluding antennas
• Mass: Approx. 303 g / 10.7 oz with supplied antennas attached

Why It Helps

The URX-S03D is built for operators who want the wireless receiver to become part of the camera system, not another box mounted outside of it. In ENG, documentary, and broadcast camera work, that matters because fewer loose accessories usually means a cleaner, faster rig.

The dual-channel design is useful when the camera needs to receive two wireless sources at the same time. That can be two talent mics, a presenter and interviewer, or another two-transmitter setup depending on the production.

True diversity reception helps maintain a stable RF link, while the detachable antennas give the receiver a more serviceable field layout. It is a compact way to bring UWP-D wireless audio into compatible Sony camcorder workflows.

System Characteristics

• Slot-in receiver format for supported Sony XDCAM and HDCAM camcorders
• Two-channel reception for multi-source wireless audio capture
• True diversity RF design with detachable antennas
• LCD display for receiver status and setup checks
• Metal body construction for reliable professional use

What’s In The Box

• 1 x Sony URX-S03D UWP-D Dual-Channel Slot-In Wireless Receiver
• 2 x Whip Antennas
