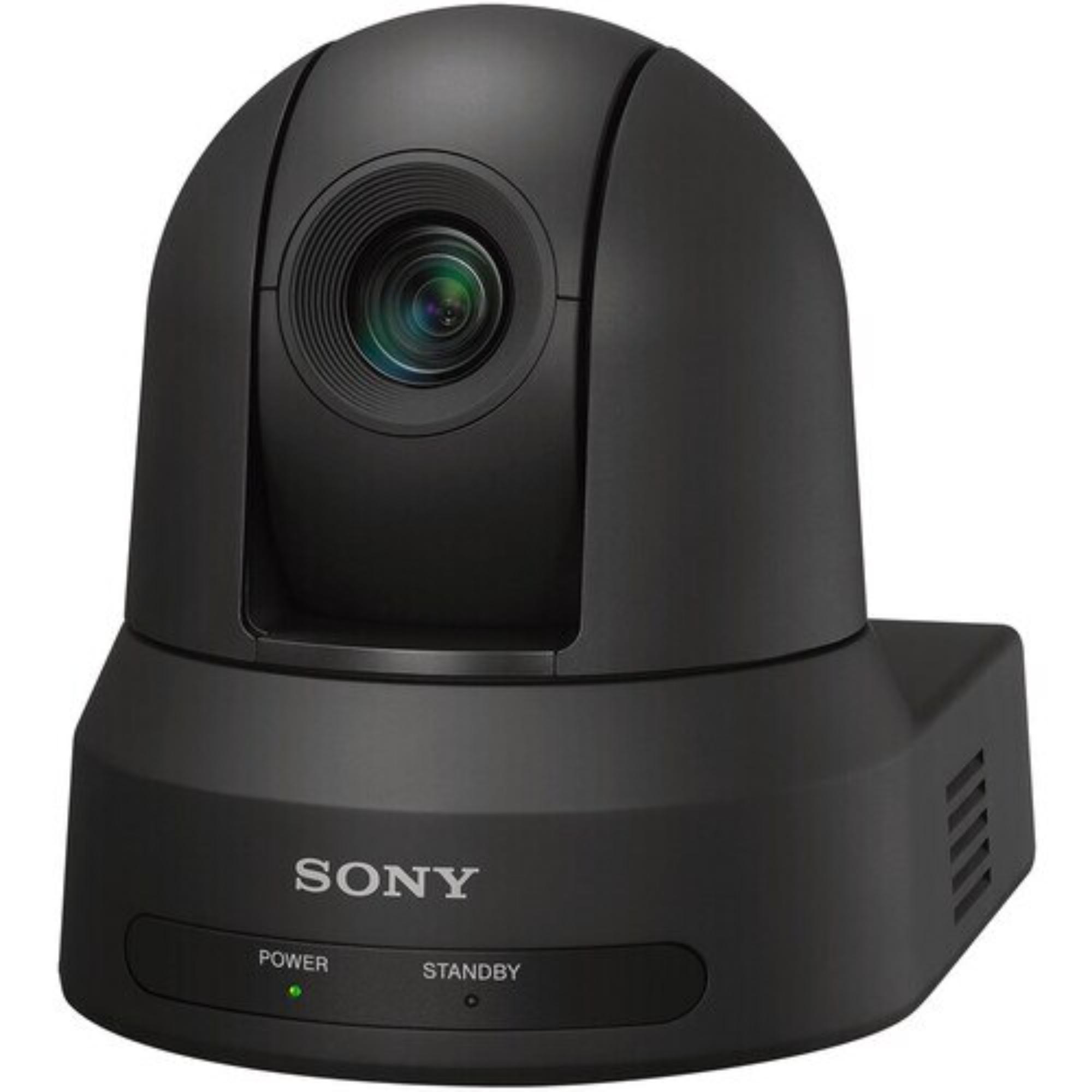

SONY SRG-X40UH 4K30P 20x Optical Zoom PTZ Camera (Black)

SONY SRG-X40UH 4K30P 20x Optical Zoom PTZ Camera (Black) is a remotely controlled PTZ camera built for clean 4K imaging in business, education, medical, auditorium, and fixed-room production environments. From the supplied specs, it uses a 1/2.5" Exmor R CMOS sensor, approx. 8.5MP effective pixels, and supports 4K video output through HDMI.

For install teams and operators, the SRG-X40UH is the kind of camera that fits into rooms where the camera needs to stay mounted, powered, and remotely controlled with minimal fuss. It supports 20x optical zoom, 30x zoom in 4K, and 40x zoom in HD using Clear Image Zoom, so one fixed camera position can still cover a wide shot, a speaker, or a tighter presentation view.

Highlights

• 4K30 PTZ camera with 20x optical zoom
• 1/2.5" Exmor R CMOS sensor with approx. 8.5MP effective pixels
• 30x zoom in 4K and 40x zoom in HD with Clear Image Zoom
• HDMI and USB video outputs for simple room integration
• PoE+ and VISCA over IP support for single-cable network-based control and power

Quick Specs & Uses

• Image sensor: 1/2.5" Exmor R CMOS
• Effective pixels: Approx. 8.5 MP
• Signal system: 2160p29.97/25, 1080p59.94/50/29.97/25, 1080i59.94/50, 720p59.94/50
• 4K capability: Yes
• Minimum illumination: 1.6 Lux
• Horizontal resolution: 1700 TV lines in 4K, center; 1000+ TV lines in FHD, center
• Gain: Auto / Manual, 0 to +48 dB
• High sensitivity mode: Supported
• Shutter speed: 1/1 to 1/10000 s
• Exposure control: Auto, Manual, Priority AE
• White balance: Auto1, Auto2, One Push, WB, Indoor, Outdoor, Manual
• Zoom capability: 30x in 4K, 40x in HD
• Focusing system: Auto / Manual
• Horizontal viewing angle: Approx. 70° wide
• Focal length: 4.4 to 88.0 mm, F2.0 to F3.8
• Minimum object distance: 80 mm wide, 800 mm tele
• Pan range: ±170°
• Tilt range: +90° to -20°
• Maximum pan speed: 300°/s
• Maximum tilt speed: 126°/s
• Preset positions: 100 using VISCA
• Day/Night mode: Yes
• Image stabilizer: Yes
• 4K video output: 1 x HDMI
• HD video outputs: 1 x HDMI, 1 x USB

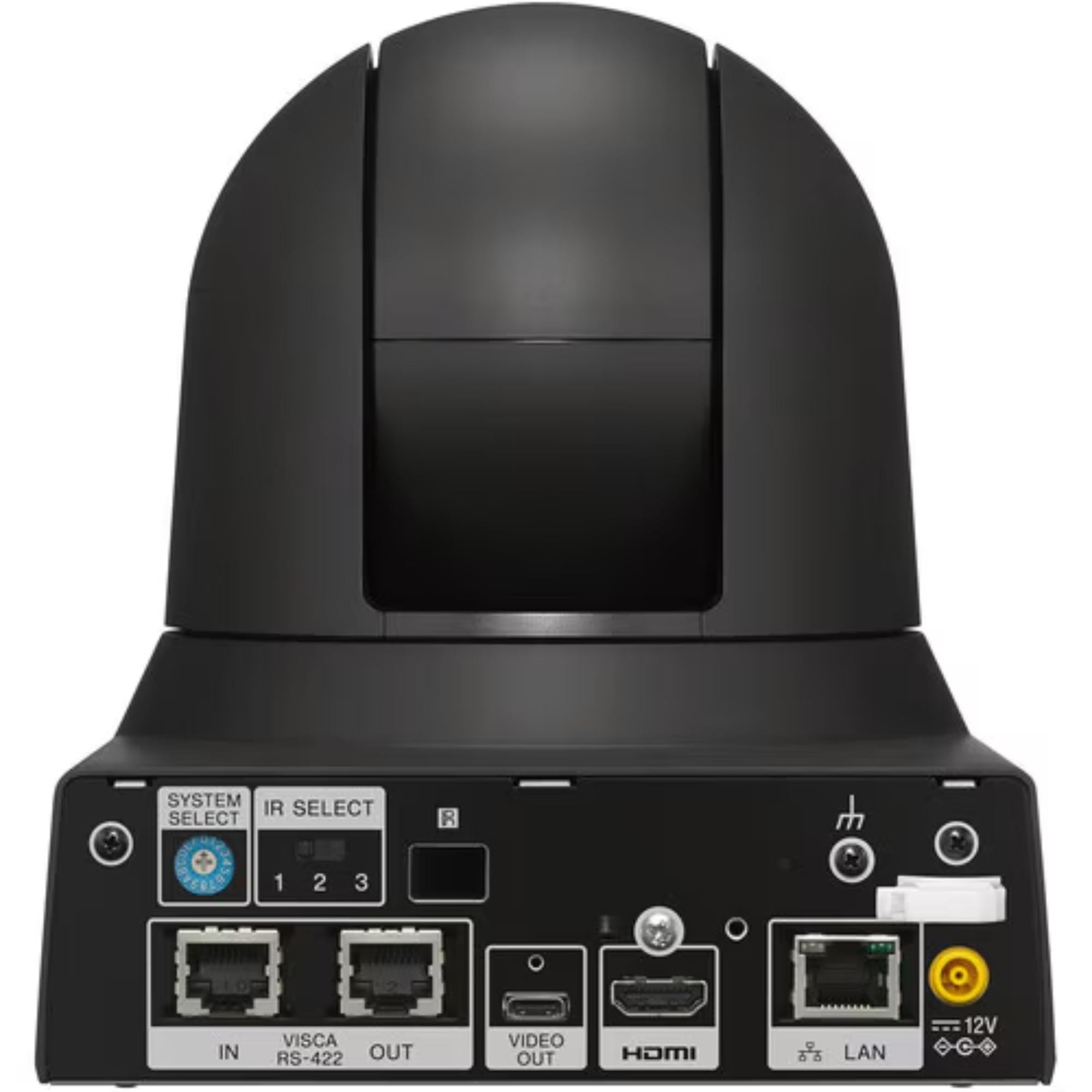

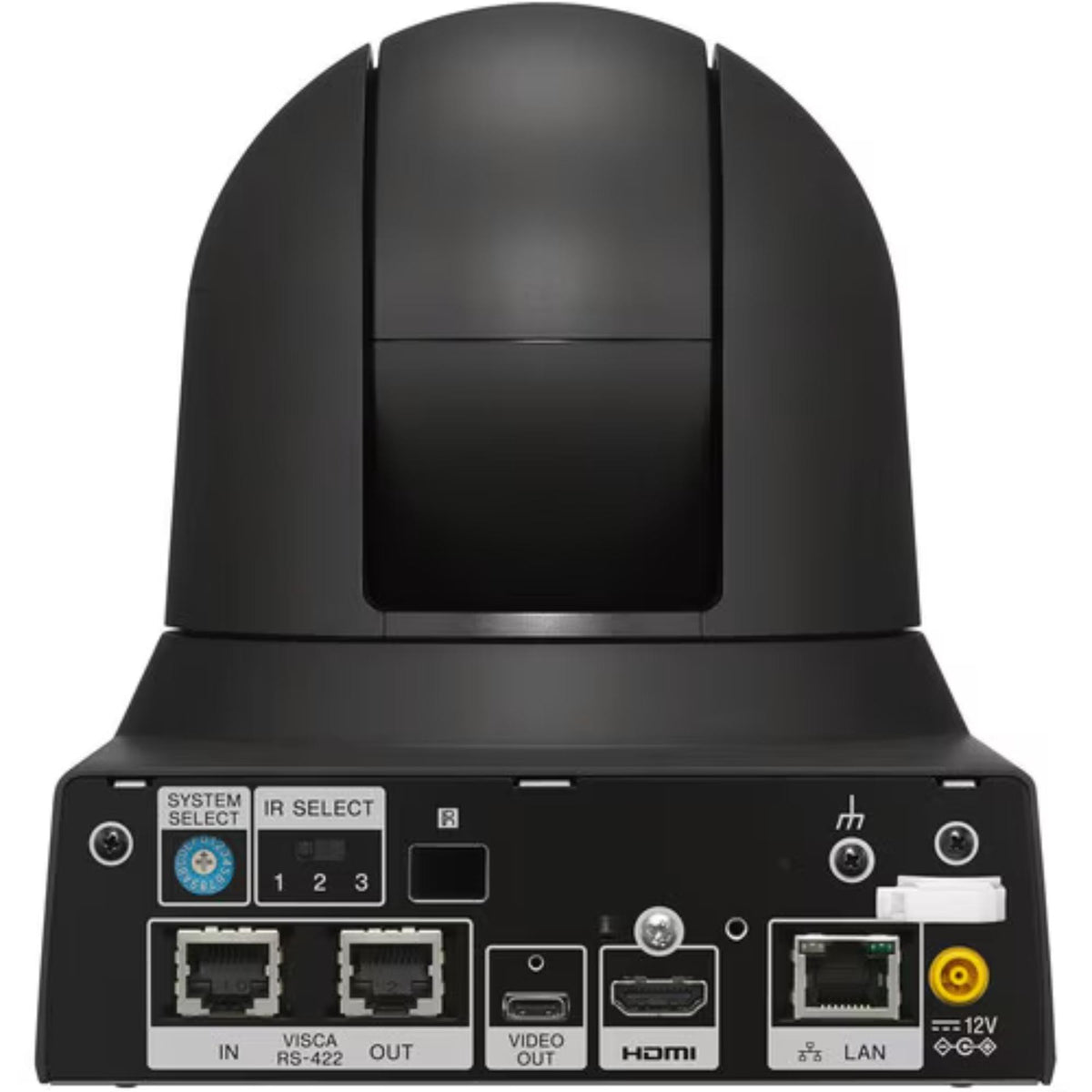

• Camera control: VISCA RS-422 RJ45, VISCA over IP RJ45, UVC USB Type-C 2.0
• Power requirements: DC 12V or PoE+ IEEE 802.3at
• Power consumption: 25.5 W max
• Tripod mount: 1 x 1/4"-20 UNC
• Ceiling mount: Yes
• Dimensions: 158.4 x 177.5 x 200.2 mm / 6.24 x 7.00 x 8.00 in
• Weight: 1.600 kg / 3.53 lb

Why It Helps

The SRG-X40UH is a good fit when the room needs a clean installed camera instead of a manned camera position. In a boardroom, classroom, auditorium, or medical space, the operator can frame the shot from a control position using pan, tilt, zoom, presets, and remote control rather than standing at the camera.

The 20x optical zoom gives the lens enough reach for close-ups from a fixed mounting point. Clear Image Zoom adds extra working range when needed, with up to 30x zoom in 4K and 40x in HD. That is useful when one camera has to cover both the room and the person speaking at the front.

Connection is also kept practical. HDMI handles direct video output, USB supports UVC workflows, and RJ45 control allows VISCA over IP. With PoE+ support, the camera can be powered and controlled over the network, reducing cabling work in ceiling or wall-mounted installs.

System Characteristics

• Exmor R CMOS sensor for detailed 4K capture with low noise
• Day/Night mode and Auto ICR for changing lighting conditions
• Visibility Enhancer and image stabilizer for cleaner operational viewing
• Fast PTZ movement with up to 300°/s pan speed and 126°/s tilt speed
• 100 VISCA preset positions for repeatable camera framing
• PoE+ support for simpler installed cabling

What’s In The Box

• 1 x SONY SRG-X40UH 4K30P 20x Optical Zoom PTZ Camera (Black)
• 1 x AC Power Adapter
• 1 x IR Remote Commander
• 2 x Ceiling Brackets
• 1 x Wire Rope
• 9 x M3x8 Mounting Screws
• 1 x M2.6x6 Screw (Black)
• 1 x HDMI Cable Clamp
