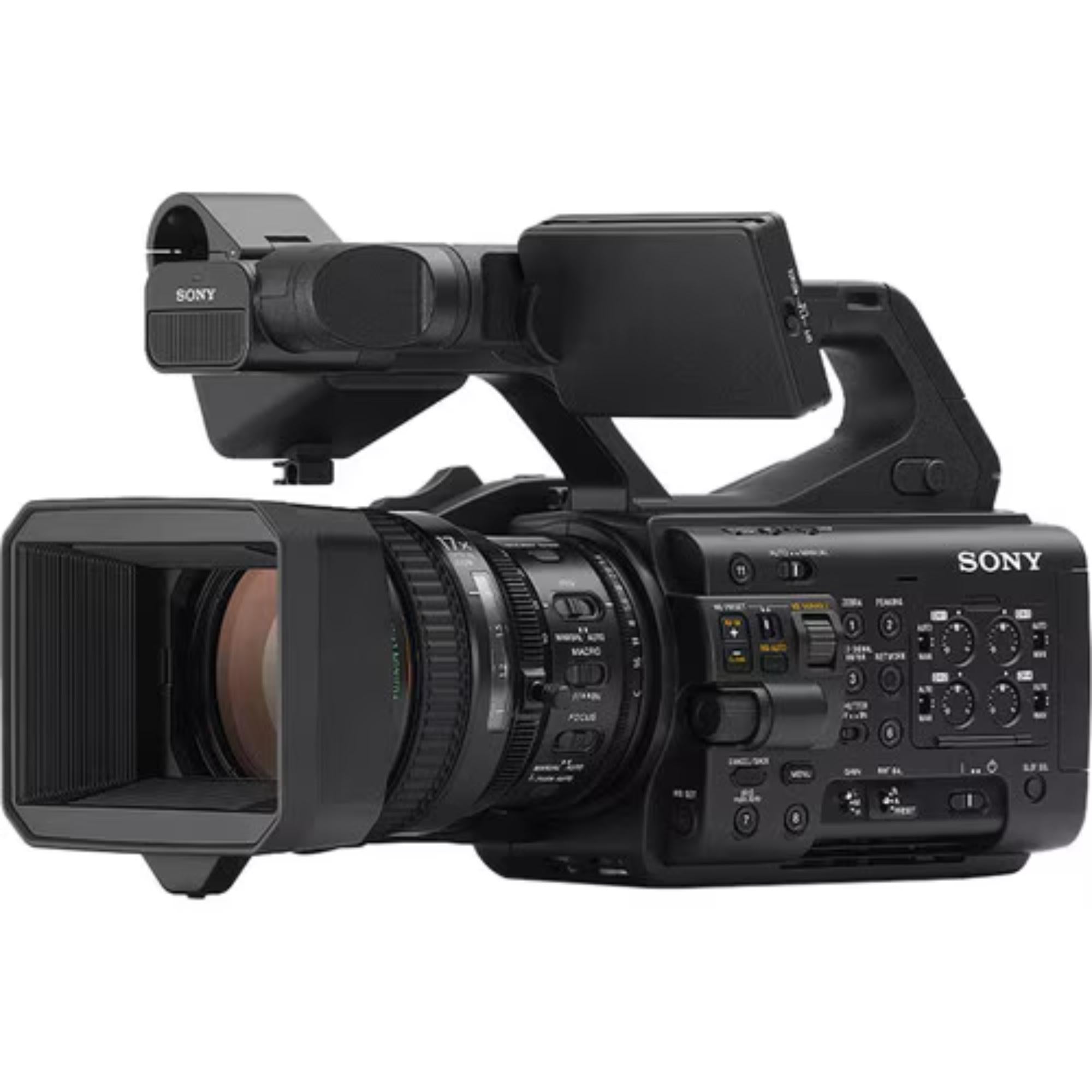

SONY PXW-Z300 Flagship Handheld XDCAM Camcorder

SONY PXW-Z300 Flagship Handheld XDCAM Camcorder is a professional handheld camcorder built for news, documentary, field, and live production crews that need fast operation, reliable image quality, and strong connectivity in one portable camera body. It combines three 1/2-type 4K Exmor R CMOS sensors, a BIONZ XR image processing engine, and an AI Processing Unit for high-performance 4K shooting with Subject Recognition AF.

For broadcast engineers and field operators, the PXW-Z300 is made for real-world work: quick handheld shooting, ENG coverage, file transfer, live streaming, wireless monitoring, and professional audio capture. It supports 4K 60p workflows, 12G-SDI output, HDMI, timecode, genlock, LAN, Wi-Fi, USB-C, and XLR audio inputs.

Highlights

• Flagship handheld XDCAM camcorder for broadcast and documentary production
• Three 1/2-type 4K Exmor R CMOS sensors for detailed 4K and HD capture
• 4K 60p recording support with multiple recording format options
• AI-based Subject Recognition AF for human subject tracking
• 17x optical zoom lens with 30.3 to 515 mm 35mm-equivalent range
• Electronic variable ND filter from 1/4 ND to 1/128 ND
• 12G-SDI, HDMI, XLR audio, LAN, Wi-Fi, Bluetooth, USB-C, timecode, and genlock

Quick Specs & Uses

• Product type: Solid-state memory camcorder
• Image sensor: 1/2-type Exmor R 3CMOS sensor
• Total pixels: Approx. 12.2 megapixels
• Effective pixels: Approx. 8.3 megapixels max. for movies
• Lens: 17x optical zoom
• Focal length: 5.6 to 95.2 mm
• 35mm equivalent focal length: 30.3 to 515 mm
• Iris: F1.9 maximum aperture
• Focus range: Approx. 5 cm to infinity in Macro On; approx. 80 cm to infinity in Macro Off
• Built-in ND filter: Linear variable ND, 1/4 ND to 1/128 ND
• Minimum illumination: 0.0003 lx typical
• Shutter speed: 64 frames to 1/8000 sec
• White balance: 2000 K to 15000 K
• Gain: -3 dB to 18 dB; 42 dB with Turbo Gain On
• Image stabilization: Lens shift mechanism, movie on / off
• Focus type: Contrast-detection AF
• Focus recognition target: Human
• Proxy recording: Yes
• Recording format: XAVC Intra, XAVC Long, MPEG HD422
• Audio recording: LPCM 4-channel, 48 kHz, 24-bit
• Audio input: XLR 3-pin female x2
• Built-in microphone: Stereo
• SDI output: BNC, 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI
• HDMI output: HDMI Type-A
• Timecode: BNC, TC input / output switchable
• Genlock: BNC, Genlock input / reference output switchable
• USB terminal: USB Type-C, SuperSpeed USB 5 Gbps
• Wired LAN: 1000BASE-T, 100BASE-TX, 10BASE-T
• Wireless LAN: Wi-Fi compatible, 2.4 GHz and 5 GHz bands
• Bluetooth: Bluetooth Standard Ver. 5.0
• LCD screen: 3.5-type TFT, 2,764,800 dots, touch panel
• Media slots: Dual SD / CFexpress Type A compatible slots
• Dimensions: 7 x 8 x 13 in
• Weight: 2600 g main body only; 2990 g with supplied accessories and battery
• Power requirements: DC 20 V
• Normal power consumption: Approx. 26 W
• Maximum power consumption: Approx. 47 W
• Operating temperature: 32°F to 104°F
• Storage temperature: -4°F to 140°F

Why It Helps

The PXW-Z300 is built for crews that need to move quickly without giving up professional control. Three independent lens rings for focus, zoom, and iris make the camera feel familiar in the field, while the 17x optical zoom gives operators a practical wide-to-telephoto range for interviews, press coverage, sports, and documentary work.

The AI Processing Unit helps the autofocus system recognize human subjects using body, posture, and related subject information. That is useful in fast-moving ENG and documentary situations where the subject may turn away, wear a mask, or move through difficult lighting.

Connectivity is one of the camera’s strongest points. 12G-SDI, HDMI, timecode, genlock, XLR audio, LAN, Wi-Fi, USB-C, proxy recording, file transfer, and streaming support make the PXW-Z300 practical for both traditional broadcast chains and modern cloud-connected production workflows.

System Characteristics

• BIONZ XR processing for high-quality 4K 60p image handling
• AI Subject Recognition AF for human-focused shooting support
• Electronic variable ND for smooth exposure control in changing light
• Dual memory card slots for full-resolution recording, proxy recording, or relay recording
• Wireless monitoring and remote control through Wi-Fi connectivity
• Live streaming support with RTMP, RTMPS, and SRT protocols
• USB Power Delivery support through USB Type-C
• Rugged reliability with dust-proof and moisture-proof design notes from the source
• Accessibility support with enlarge screen function

What’s In The Box

• 1 x SONY PXW-Z300 Flagship Handheld XDCAM Camcorder
• 1 x LCD hood
• 1 x Lens hood
• 1 x V-shoe attachment
