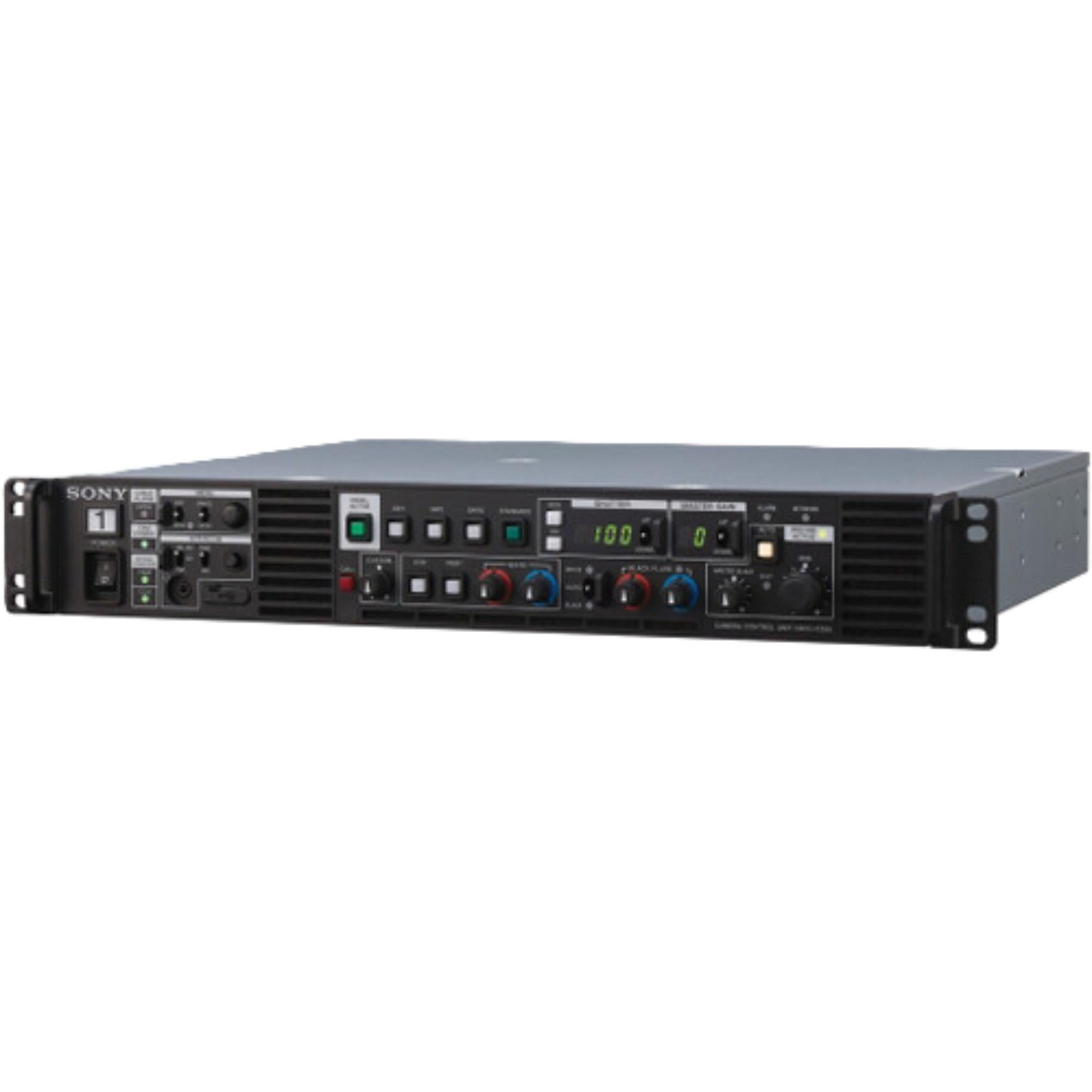

SONY HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (LEMO)

SONY HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (LEMO) is a professional camera control unit built for Sony HXC-FZ90 studio camera workflows. It supplies camera power, handles video signal processing, and provides the control, tally, intercom, reference, trunk, and SDI connections needed in a live broadcast camera chain.

For broadcast engineers, the HXCU-FZ90 is useful when the camera needs to work far from the control position while still keeping stable power, video, communication, and remote control. This LEMO version uses a LEMO optical fiber camera connector, making it suitable for studio, stadium, campus, house-of-worship, and event production systems.

Highlights

• 4K/HD camera control unit for Sony HXC-FZ90 camera systems
• LEMO optical fiber camera connector for professional camera-to-CCU connection
• Supports 12G-SDI, 3G-SDI, HD-SDI, and SD-SDI output workflows
• Long-distance optical fiber extension up to 6.21 miles / 10 km with optional extension unit
• Intercom, tally, LAN, trunk, reference, and remote control support
• Optional 4K and HDR upgrade with BT.2020, HLG, and S-Log3 support

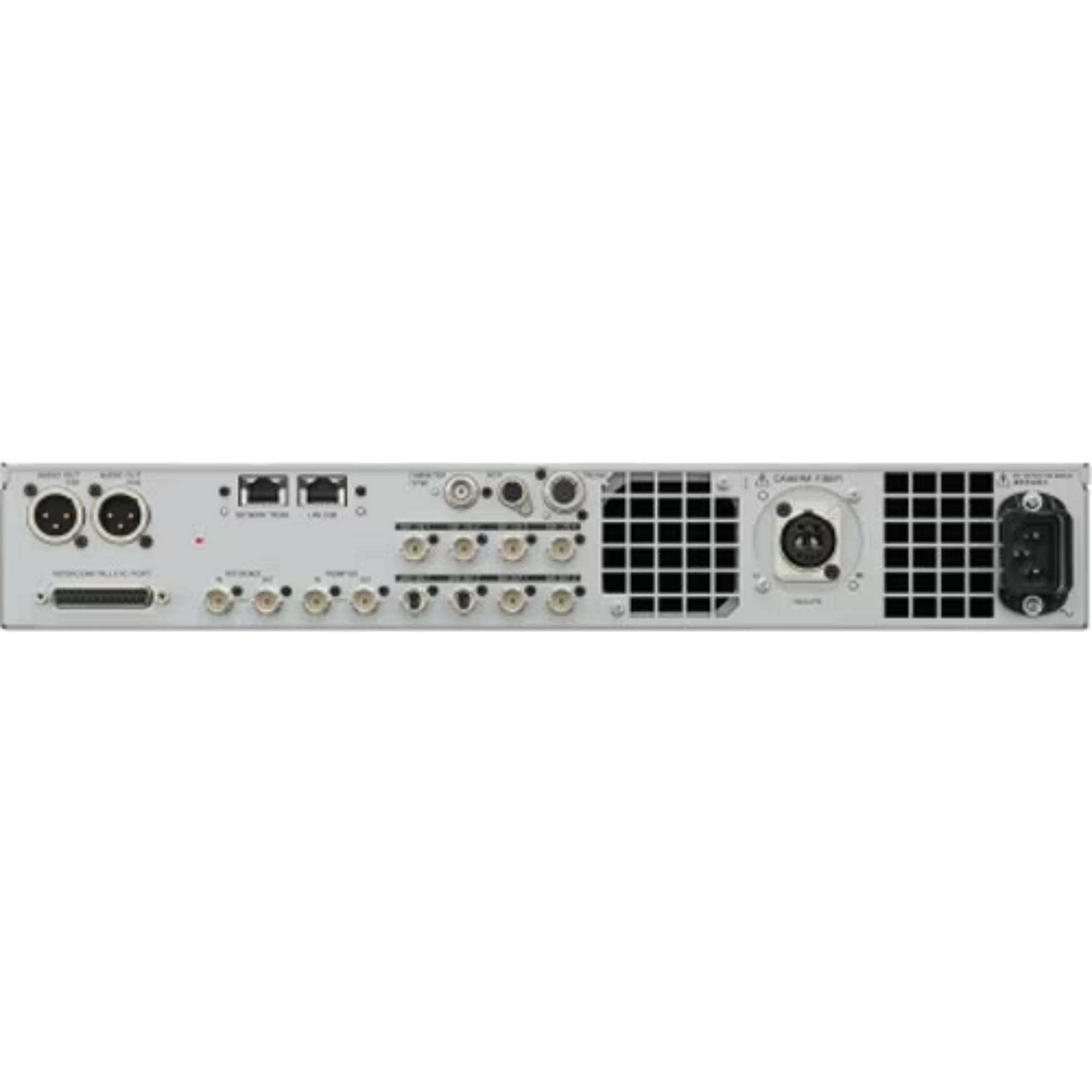

Quick Specs & Uses

• Product type: 4K/HD camera control unit
• Compatible camera: Sony HXC-FZ90 studio camera
• Camera connector: LEMO optical fiber connector x1
• Fiber cable support: Single-mode LC / CCFN
• Maximum distance: 6.21 miles / 10 km
• Power supply maximum distance: 984.3 ft / 300 m
• AC input: 100 V to 240 V AC
• Remote: 8-pin x1
• LAN: RJ-45 x1
• Trunk: 12-pin x1 and RJ-45 x1
• Intercom front panel: 4-pole mini jack
• Intercom / program / tally: DB-25, red and green tally / preview out
• Reference input: BNC x2, HD and SD support
• Prompter input / output: BNC x2, loop-through
• Video output: 3G / HD / SD-SDI BNC x4; 12G / 6G / 3G / HD-SDI BNC x2
• Character display output: BNC x1
• Audio output: Channel 1 and Channel 2, 3-pin XLR x2
• Audio output level: 0 / -20 dBu / +4 dBu

Why It Helps

The HXCU-FZ90 gives the HXC-FZ90 a proper studio-style camera chain. Camera power, video return, tally, intercom, reference, trunk, control, and output routing are handled from the CCU side, which keeps the system easier to manage during live production.

The LEMO fiber connection is useful for long camera runs and permanent installations. With optional fiber extension support, the system can reach up to 6.21 miles / 10 km, giving engineers more freedom when placing cameras in large venues or remote locations.

The output section is flexible enough for mixed facilities. 12G-SDI and 6G-SDI support modern 4K routing, while 3G-SDI, HD-SDI, and SD-SDI help the unit fit into existing HD and SD infrastructure.

System Characteristics

• Multi-format output for UHD 4K, Full HD, and SD production environments
• Multi-frame-rate support for broadcast and live production standards
• Optional 4K / HDR upgrade for BT.2020, HLG, and S-Log3 workflows
• Reference input for sync and timing integration
• Intercom and tally support for live studio communication
• Prompter loop-through for studio camera setups
• LAN and trunk connectivity for system control and auxiliary communication
• Audio output support through dual 3-pin XLR connectors

What’s In The Box

• 1 x Sony HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (LEMO)
• 1 x Tally Number Plate Set (0–9)
