SONY HSCFZ90 Package with Viewfinder & Lens (Neutrik)

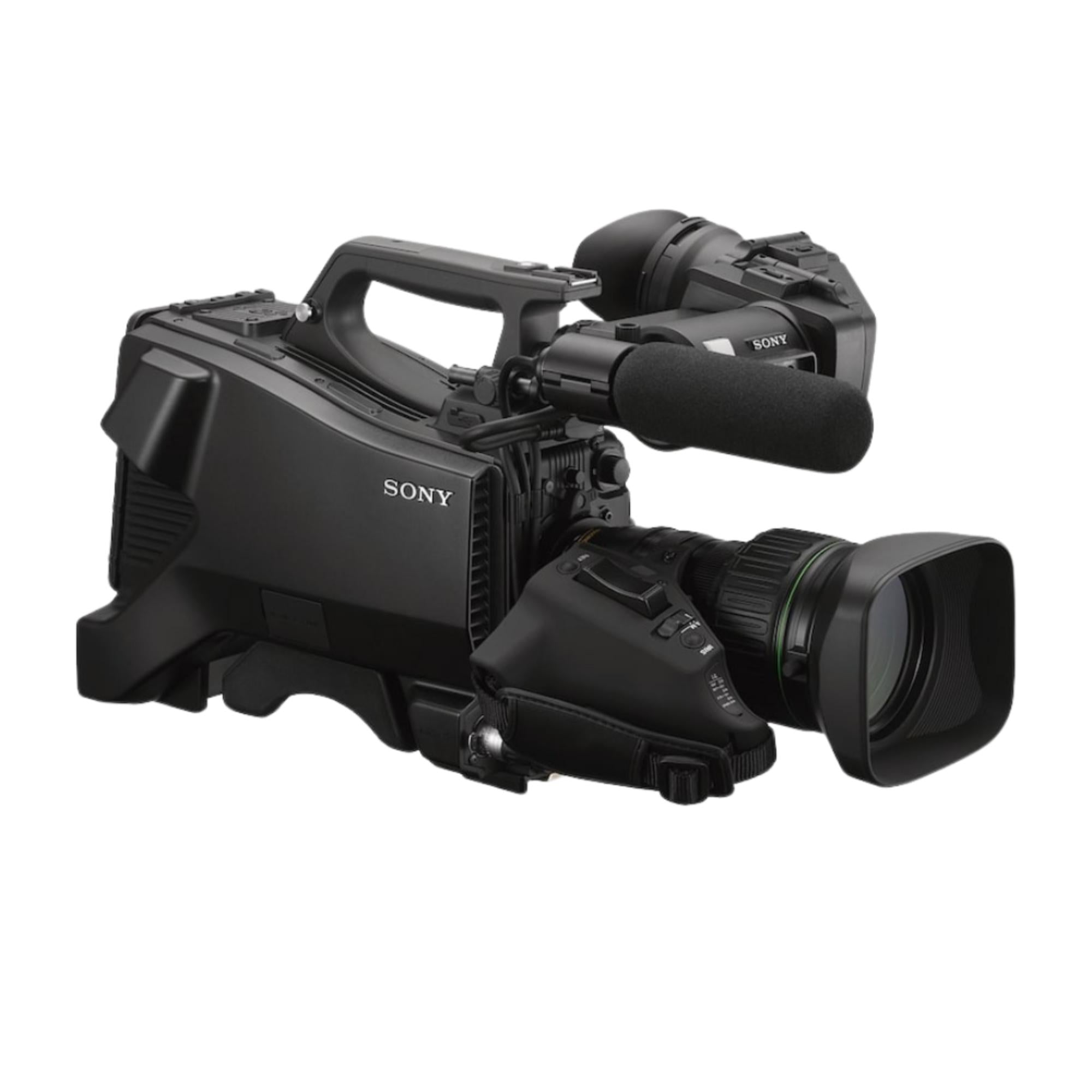

SONY HSCFZ90 Package with Viewfinder & Lens (Neutrik) is a portable 4K/HD studio camera package built for live production environments that need clean imaging, flexible camera-chain integration, and familiar broadcast-style operation. The package includes the HXC-FZ90 camera, viewfinder, and 2/3-inch HD portable lens for a practical studio or field camera setup.

For broadcast engineers, this package is useful when a production wants to start with dependable HD operation and keep a clear path toward 4K workflows. It supports fiber camera-chain operation, intercom, tally, prompter/genlock, SDI input/output, network trunk control, and optional 4K / HDR upgrade capability.

Highlights

• Portable 4K/HD studio camera package for live production
• 2/3-inch 4K CMOS imager with 3840 x 2160 effective resolution
• Neutrik optical fiber camera-chain connection
• Included 7-inch OLED viewfinder for studio-style operation
• Included Canon 20x 2/3-inch portable lens
• Supports intercom, tally, prompter/genlock, SDI, USB, and network trunk
• Upgradeable 4K / HDR workflow support with optional software

Quick Specs & Uses

• Product type: 4K/HD studio camera package with viewfinder and lens
• Camera model: HXC-FZ90
• Camera connector: Neutrik optical fiber
• Imager: 2/3-inch type 4K CMOS
• Effective resolution: 3840 x 2160
• Lens mount: B4 mount lens
• Horizontal resolution: 2,000 TV lines
• Sensitivity: F10 with 59.94 Hz; F11 with 50 Hz
• Signal-to-noise ratio: -62 dB
• Signal format: 4K 2160, HD 1080, and HD 720 formats
• Audio input: XLR 3-pin female x2, channel 1 and channel 2
• Microphone input: 60 dBu, up to -20 dBu menu setting, +48 V phantom power supported
• CCU connection: Optical fiber, CCFN cable or single-mode fiber LC type
• DC input: XLR 4-pin x1, DC 10.5 V to 17 V
• DC output: 4-pin x1, DC 10.5 V to 17 V
• Intercom: XLR 5-pin female x2
• Network trunk: RJ-45 8-pin x1
• Prompter / Genlock: BNC x1, 1 Vp-p, 75 Ω
• SDI: SDI output BNC x1; SDI input / output BNC x1
• USB: USB 2.0 x1
• Viewfinder: 20-pin x1
• Dimensions: Body 6.3 x 10.47 x 12.83 in
• Weight: Body approx. 3.8 kg / 8 lb 6 oz
• Power requirements: Approx. 56 W, camera body only
• Operating temperature: -10°C to +45°C / 14°F to 113°F
• Storage temperature: -20°C to +60°C / -4°F to +140°F

Why It Helps

The HSCFZ90 package is built for crews that need a proper studio camera setup without overcomplicating the chain. It gives operators a familiar shoulder-style camera body, viewfinder, lens, intercom, tally, and CCU connectivity, which makes it easier to drop into live production environments.

The 2/3-inch 4K CMOS sensor gives the system strong detail for HD and 4K production. For HD work, oversampling from 4K helps produce crisp images, while the optional 4K upgrade path gives facilities room to grow without replacing the whole camera chain.

The Neutrik optical connection keeps the camera practical for stadiums, studios, worship spaces, campuses, and long cable runs. It can be used with optical fiber composite cable or single-mode fiber extension when paired with the proper CCU and extension hardware.

System Characteristics

• Studio-style live production operation with camera, lens, viewfinder, intercom, and tally support
• Optional 4K / HDR expansion for BT.2020, HLG, and S-Log3 workflows
• Dynamic focus and focus assist support for easier image setup
• Network trunk function for camera-to-control data exchange
• Total Level Control System support for iris, gain, and shutter operation
• Prompter / Genlock BNC for studio integration
• Built-in optical filters: CC electronic, ND clear, 1/4ND, 1/16ND, and 1/64ND
• Canon 20x lens package with servo/manual zoom and manual focus operation

What’s In The Box

• 1 x HXC-FZ90 Camera
• 1 x Camera Operation Guide
• 1 x Operating Instructions CD-ROM
• 1 x Flange back adjustment chart
• 1 x Cable clamp belt
• 1 x Tally Number Plate Set (0–9)
• 1 x Lens mount cap
• 1 x Warranty booklet
• 1 x 7-inch large viewfinder
• 1 x Viewfinder hood
• 1 x 2/3-inch type HD portable lens
• 1 x V-shoe
• 1 x Viewfinder cable 20-pin
• 1 x Viewfinder Operation Guide
• 1 x Viewfinder Operation Manual CD-ROM
