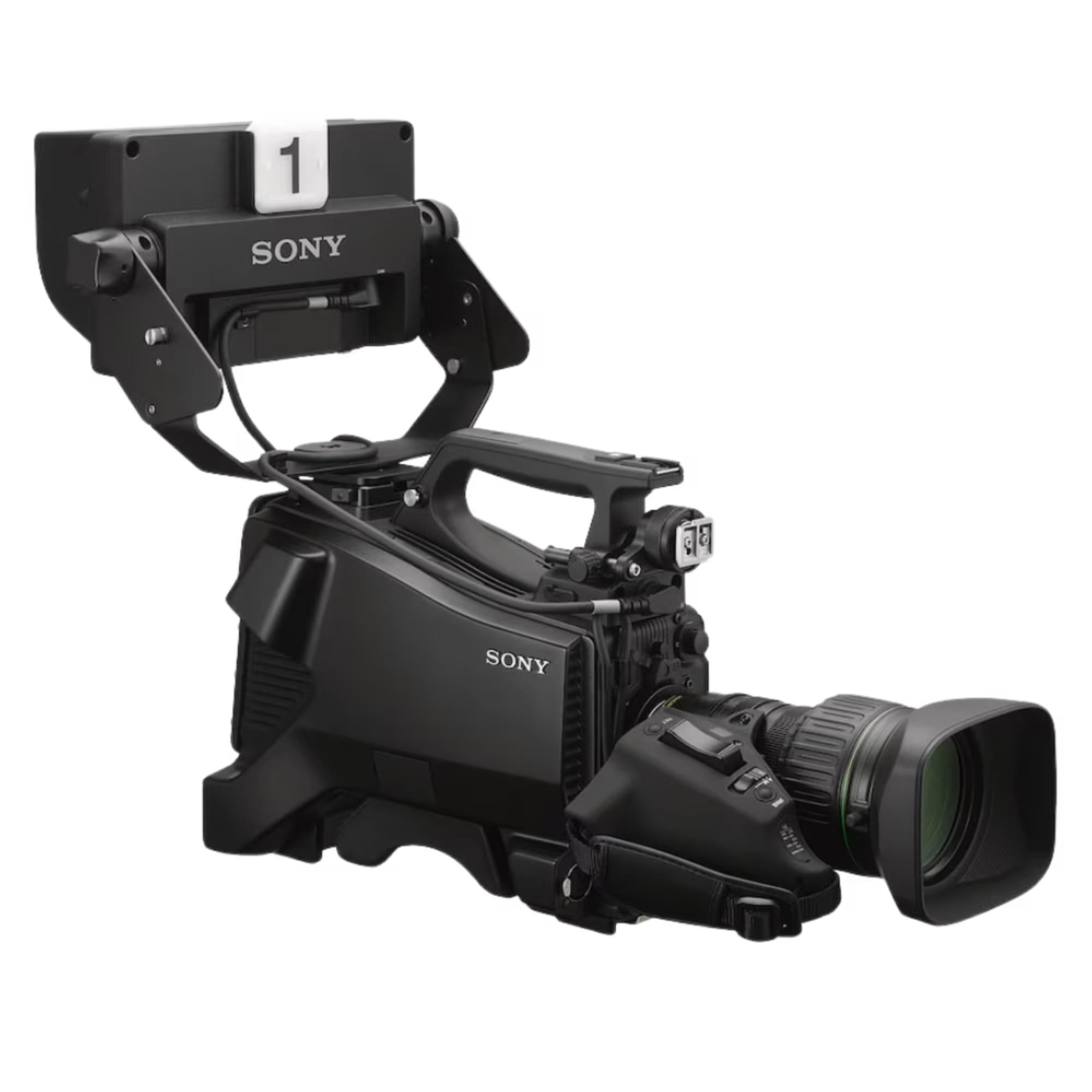

SONY HSCFZ90 Package with Viewfinder & Lens (LEMO)

SONY HSCFZ90 Package with Viewfinder & Lens (LEMO) is a portable 4K/HD studio camera package designed for live production crews that need strong image quality, camera-chain integration, and familiar broadcast operation. The package includes the HXC-FZ90 camera, viewfinder, and 2/3-inch HD portable lens for a complete studio-style camera setup.

For broadcast engineers, this package is useful when a production needs reliable HD operation today with a clear upgrade path toward 4K. It supports fiber camera-chain workflows, intercom, tally, prompter/genlock, SDI input/output, network trunk, and optional 4K / HDR expansion.

Highlights

• Portable 4K/HD studio camera package for live production
• 2/3-inch 4K CMOS imager with 3840 x 2160 effective resolution
• LEMO optical fiber camera-chain connection
• Included 7-inch OLED viewfinder for studio-style operation
• Included Canon 20x 2/3-inch portable lens
• Supports intercom, tally, prompter/genlock, SDI, USB, and network trunk
• Upgradeable 4K / HDR workflow support with optional software

Quick Specs & Uses

• Product type: 4K/HD studio camera package with viewfinder and lens
• Camera model: HXC-FZ90
• Camera connector: LEMO optical fiber
• Imager: 2/3-inch type 4K CMOS
• Effective resolution: 3840 x 2160
• Lens mount: B4 mount lens
• Horizontal resolution: 2,000 TV lines
• Sensitivity: F10 with 59.94 Hz; F11 with 50 Hz
• Signal-to-noise ratio: -62 dB
• Signal format: 4K 2160, HD 1080, and HD 720 formats
• Audio input: XLR 3-pin female x2, channel 1 and channel 2
• Microphone input: -60 dBu, up to -20 dBu menu setting, +48 V phantom power supported
• CCU connection: Optical fiber, CCFN cable or single-mode fiber LC type
• DC input: XLR 4-pin x1, DC 10.5 V to 17 V
• DC output: 4-pin x1, DC 10.5 V to 17 V
• Intercom: XLR 5-pin female x2
• Network trunk: RJ-45 8-pin x1
• Prompter / Genlock: BNC x1, 1 Vp-p, 75 Ω
• SDI: SDI output BNC x1; SDI input / output BNC x1
• USB: USB 2.0 x1
• Viewfinder: 20-pin x1
• Dimensions: Body 6.3 x 10.47 x 12.83 in
• Weight: Body approx. 3.8 kg / 8 lb 6 oz
• Power requirements: Approx. 56 W, camera body only
• Operating temperature: -10°C to +45°C / 14°F to 113°F
• Storage temperature: -20°C to +60°C / -4°F to +140°F

Why It Helps

The HSCFZ90 package is built for crews that want a proper studio camera feel without locking themselves into one production format. It can support HD work now, while optional software allows the system to move into 4K and HDR workflows when the production pipeline is ready.

The 2/3-inch 4K CMOS sensor gives the camera a strong base for both HD and 4K production. For HD coverage, oversampling from 4K helps deliver crisp detail. For larger productions, the optional 4K path gives facilities more room to grow without replacing the entire camera chain.

The LEMO optical connection keeps the system practical for studios, stadiums, houses of worship, campuses, and long-distance live production. It supports camera-chain operation with power, communication, and control routed through a familiar broadcast workflow.

System Characteristics

• Studio-style live production operation with camera, lens, viewfinder, intercom, and tally support
• Optional 4K / HDR expansion for BT.2020, HLG, and S-Log3 workflows
• Dynamic focus and focus assist support for faster camera setup
• Network trunk function for camera-to-control data exchange
• Total Level Control System support for iris, gain, and shutter operation
• Prompter / Genlock BNC for studio integration
• Built-in optical filters: CC electronic, ND clear, 1/4ND, 1/16ND, and 1/64ND
• Canon 20x lens package with servo/manual zoom and manual focus operation

What’s In The Box

• 1 x HXC-FZ90 Camera
• 1 x Camera Operation Guide
• 1 x Operating Instructions CD-ROM
• 1 x Flange back adjustment chart
• 1 x Cable clamp belt
• 1 x Tally Number Plate Set (0–9)
• 1 x Lens mount cap
• 1 x Warranty booklet
• 1 x 7-inch large viewfinder
• 1 x Viewfinder hood
• 1 x 2/3-inch type HD portable lens
• 1 x V-shoe
• 1 x Viewfinder cable 20-pin
• 1 x Viewfinder Operation Guide
• 1 x Viewfinder Operation Manual CD-ROM
