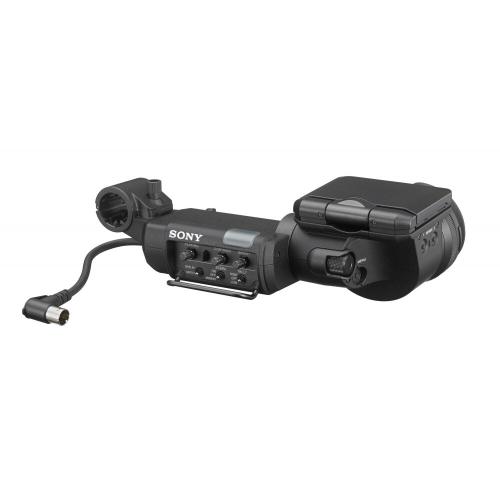

SONY HDVF-L10 3.5" Color LCD HD Viewfinder

SONY HDVF-L10 3.5" Color LCD HD Viewfinder is a 3.5-inch color LCD HD viewfinder built for Sony camera systems that use a round-type 20-pin viewfinder interface. From the supplied source, compatible cameras output a higher-resolution QHD signal to the viewfinder, allowing camera operators to monitor the image directly from the LCD.

This is the kind of viewfinder that makes sense for studio, field, and shoulder-camera workflows where the operator needs a compact display with direct camera integration. The optical loupe and elbow sections can be flipped up, so the LCD can be viewed directly when the shooting position or setup calls for it.

Highlights

• 3.5-inch color LCD HD viewfinder for compatible Sony cameras
• Round-type 20-pin viewfinder interface
• Switchable display mode for viewfinder operation
• Flip-up optical loupe and elbow parts for direct LCD viewing
• Camera-powered operation from 10.5 to 17.0 V DC

Quick Specs & Uses

• Product type: 3.5-inch color LCD HD viewfinder
• Viewfinder interface: Round-type 20-pin connector
• Display type: 3.5-inch color TFT transflective LCD
• Image display area: 76.8 x 43.2 mm / 3 1/8 x 1 3/4 in, 16:9 aspect ratio
• Resolution: 500 lines or more
• Brightness: 200 cd/m² typical, when eyepiece is attached
• Color temperature: 6500 K typical
• Power supply: 10.5 to 17.0 V DC, supplied by the camera
• Power consumption: 3.3 W
• Operating temperature: -5°C to 45°C
• Storage temperature: -20°C to +60°C / -4°F to +140°F
• Mass: 700 g
• External dimensions: 201 x 255 x 60 mm / 8 x 10 1/8 x 2 3/8 in; 89 mm / 3 5/8 in
• Compatible products: HXC-FB75KC, HXC-FB75H, HDC-1700, HDC-2400, HDC-2500, HDC-2570, HDC-3300R, HDC-4300, HSC-100R, HSC-100RF, HSC-300R, HSC-300RF, PDW-680, PDW-700, PDW-850, PDW-F800, PMW-500, PXW-X400, PXW-X500

Why It Helps

This viewfinder is useful when the camera operator needs a dedicated HD viewing point that connects directly to the camera through Sony’s round-type 20-pin interface. For broadcast camera work, that keeps the monitoring setup clean and tied into the camera body instead of relying on a separate external monitor.

The 3.5-inch color TFT transflective LCD gives operators a compact image reference for framing and camera operation. With 500 lines or more of resolution and a typical 6500 K color temperature, it provides a practical viewing display for supported Sony camera systems.

The flip-up optical loupe and elbow design adds flexibility on set. When the operator wants to view through the eyepiece, the viewfinder works in the traditional way. When direct LCD viewing is more convenient, the loupe and elbow sections can be moved out of the way.

System Characteristics

• Camera-powered design using 10.5 to 17.0 V DC supplied from the camera
• Round-type 20-pin connector for compatible Sony viewfinder interfaces
• 3.5-inch transflective LCD with 16:9 image display area
• Switchable display mode for viewfinder operation
• Flip-up loupe and elbow parts for direct LCD viewing when needed

What’s In The Box

• 1 x SONY HDVF-L10 3.5" Color LCD HD Viewfinder
• 1 x Operation Manual
