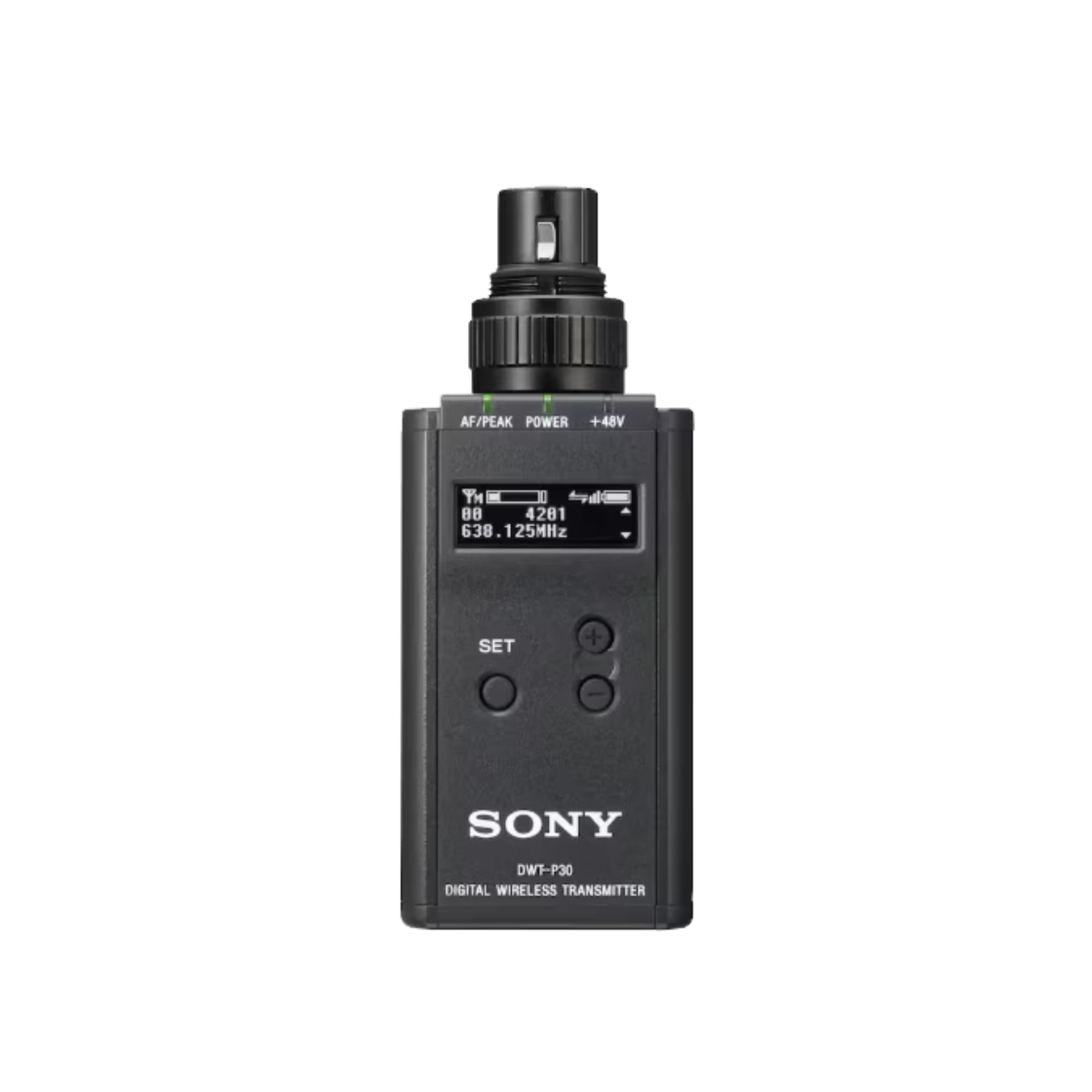

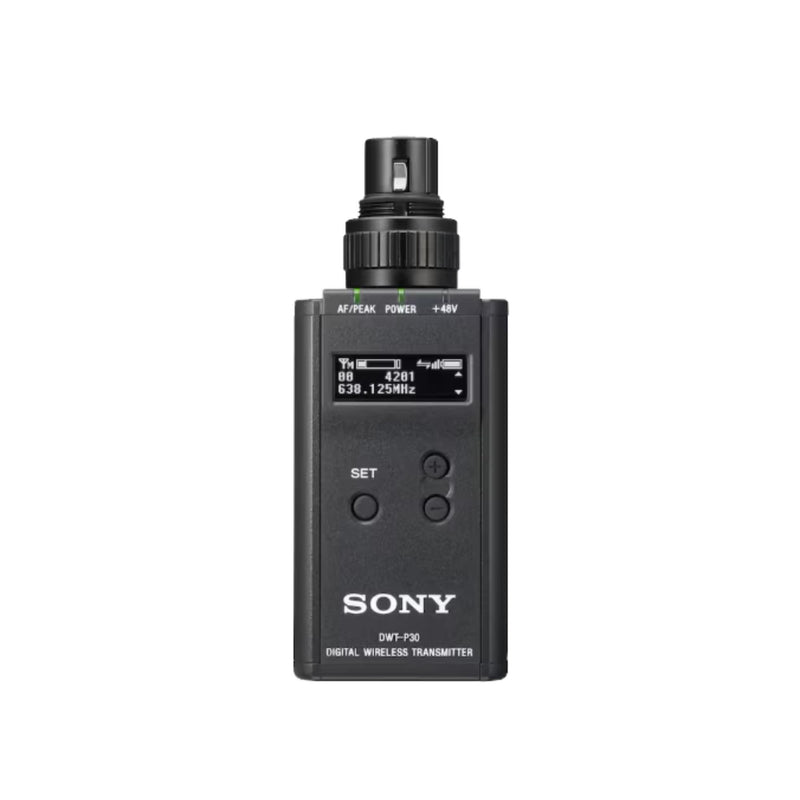

SONY DWX Ultra Wideband Plug-on Transmitter

SONY DWX Ultra Wideband Plug-on Transmitter is a high-performance digital wireless plug-on transmitter built for live sound, studio television production, ENG, and EFP workflows. From the supplied source, it is part of Sony’s third-generation DWX digital wireless microphone system and uses an XLR-3-11C female input connector for microphone or line-level operation.

This is the kind of transmitter that makes sense when a wired handheld or shotgun microphone needs to become part of a secure digital wireless system. With wideband operation, selectable RF output power, four codec modes, remote control support, and USB power capability, it gives production crews a practical plug-on option for demanding field and broadcast audio work.

Highlights

• Digital wireless plug-on transmitter for Sony DWX microphone systems
• Wideband tuning up to 148 MHz, depending on region
• XLR-3-11C female input for microphone or line input
• Selectable RF output power: 2 mW, 10 mW, or 25 mW
• USB power support for long-term or emergency operation

Quick Specs & Uses

• Product type: DWX digital wireless plug-on transmitter
• Oscillator type: Crystal-controlled PLL synthesizer
• Antenna type: 1/4 wavelength wire antenna
• Input connector: XLR-3-11C female
• Reference audio input level: MIC -60 dBV / -58 dBu, 1 kHz at 0 dB attenuator level; LINE +4 dBu, 1 kHz
• Maximum audio input level: MIC -22 dBu with 0 dB attenuator; LINE +24 dBu
• Audio attenuator adjustment range: 0 to 48 dB, 3 dB steps, MIC input mode only
• Carrier frequencies, UC7: 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz
• Carrier frequencies, L/CE7: 470.025 MHz to 614.000 MHz
• Carrier frequencies, H/CE7: 566.025 MHz to 714.000 MHz
• RF output power: 2 mW / 10 mW / 25 mW selectable
• Frequency response: 20 Hz to 22 kHz typical
• Dynamic range: 106 dB typical, A-weighted
• Distortion: MODE1, MODE2, MODE4: 0.03% or less; MODE3: 0.3% or less
• Audio delay: MODE1 0.8 ms; MODE2 0.7 ms; MODE3 1.8 ms; MODE4 0.7 ms
• Wireless remote control: Cross Remote, 2.4 GHz IEEE802.15.4 compliant
• Display: OLED
• Power requirements: DC 3.0 V with two LR6/AA alkaline batteries or DC 5.0 V from USB connector
• Battery life: Approx. 6 hours with AA-size alkaline batteries at 25°C / 77°F at 10 mW output
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: Approx. 44 x 113.5 x 44 mm / W x H x D
• Mass: Approx. 245 g, including batteries

Why It Helps

This plug-on transmitter is useful when production audio needs the flexibility of wireless operation without changing the microphone itself. For ENG interviews, boom work, live event coverage, theater, concerts, or studio TV, the XLR input lets crews adapt compatible microphones into the Sony DWX digital wireless chain.

The wideband tuning and selectable RF power are helpful in crowded RF environments. Engineers can choose 2 mW, 10 mW, or 25 mW depending on whether the priority is dense multi-channel planning, stable range, or long-distance operation.

The four codec modes give the transmitter more room to match the job. One mode supports first-generation DWX-series devices, another prioritizes short latency with stable transmission and high audio quality, another adds processing against pulse interference, and another keeps audio quality high while maintaining stability and low delay.

System Characteristics

• 24-bit digital wireless audio for high-quality transmission and reception
• AES 256-bit encryption for secure digital transmission
• Cross Remote control for input attenuation, RF frequency, RF power, low-cut filter, and sleep mode
• High-density multi-channel operation with 375 kHz spacing
• Low audio latency down to 0.7 ms depending on codec mode
• Low-noise head amplifier with -128 dBu noise floor
• User settings memory for storing and loading transmitter settings
• OLED display for quick operational status checks

What’s In The Box

• 1 x SONY DWX Ultra Wideband Plug-on Transmitter
