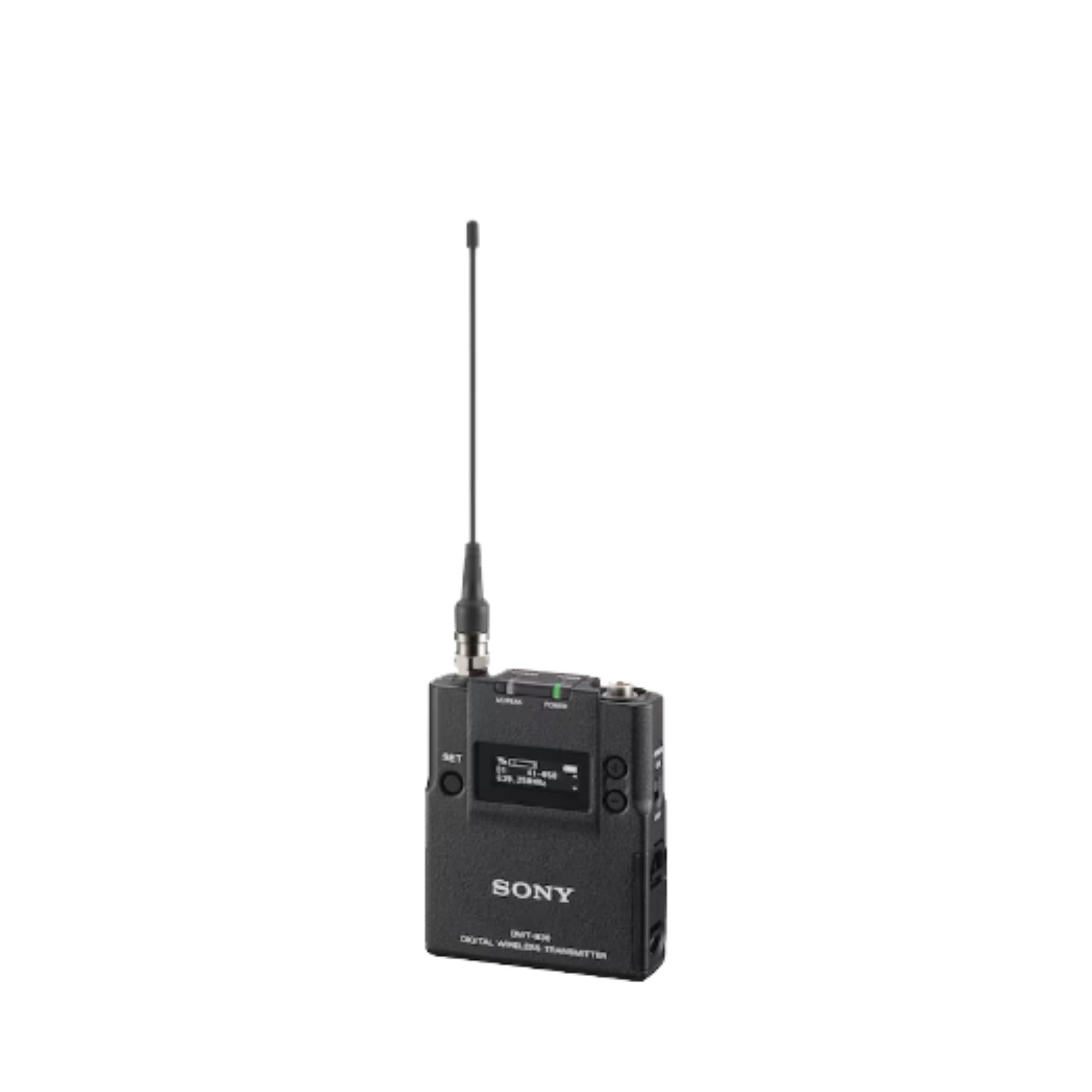

SONY DWX Ultra Wideband Bodypack Transmitter

SONY DWX Ultra Wideband Bodypack Transmitter is a compact digital wireless bodypack transmitter built for live sound, theater, concerts, studio-based TV production, ENG, and EFP work. From the supplied source, it is part of Sony’s third-generation DWX digital wireless microphone system and supports microphone or line input operation.

This is the kind of transmitter that makes sense when talent needs a discreet wireless pack with secure digital transmission and strong RF flexibility. With wideband tuning, selectable RF output power, Cross Remote control, four codec modes, OLED display, and USB power support, it is built for demanding multi-channel production environments.

Highlights

• Digital wireless bodypack transmitter for Sony DWX microphone systems
• Wideband tuning up to 148 MHz, depending on region
• Selectable RF output power: 2 mW, 10 mW, or 25 mW
• Mic / line input support with 48 dB audio attenuation control
• USB power support for long-term or emergency operation

Quick Specs & Uses

• Product type: DWX digital wireless bodypack transmitter
• Oscillator type: Crystal-controlled PLL synthesizer
• Antenna type: 1/4 wavelength wire antenna
• Input connector, UC7 / LJ: Sony 4-pin SMC9-4S female
• Input connector, CE7: Small three-pin connector with lock
• Reference audio input level: MIC -60 dBV / -58 dBu, 1 kHz at 0 dB attenuator level; LINE +4 dBu, 1 kHz
• Maximum audio input level: MIC -22 dBu with 0 dB attenuator; LINE +24 dBu
• Audio attenuator adjustment range: 0 to 48 dB, 3 dB steps, MIC input mode only
• Carrier frequencies, UC7: 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz
• Carrier frequencies, L/CE7: 470.025 MHz to 614.000 MHz
• Carrier frequencies, H/CE7: 566.025 MHz to 714.000 MHz
• Carrier frequencies, LJ: 470.150 MHz to 614.000 MHz
• Carrier frequencies, MH/J: 566.025 MHz to 713.850 MHz
• Carrier frequencies, G/J: 1240.150 MHz to 1251.825 MHz and 1253.175 MHz to 1259.850 MHz, 25 kHz steps
• RF output power: 2 mW / 10 mW / 25 mW selectable
• Frequency response: 20 Hz to 22 kHz typical
• Dynamic range: 106 dB typical, A-weighted
• Distortion: MODE1, MODE2, MODE4: 0.03% or less; MODE3: 0.3% or less
• Audio delay: MODE1 0.8 ms; MODE2 0.7 ms; MODE3 1.8 ms; MODE4 0.7 ms
• Wireless remote control: Cross Remote, 2.4 GHz IEEE802.15.4 compliant
• Display: OLED
• Power requirements: DC 3.0 V with two LR6/AA alkaline batteries or DC 5.0 V from USB connector
• Battery life: Approx. 6.5 hours with Sony LR6 AA alkaline batteries at 25°C / 77°F at 10 mW output
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: Approx. 63 x 77 x 73 mm / 2 1/2 x 11/16 x 2 7/8 in, W x H x D, excluding antenna
• Mass: Approx. 125 g, including batteries

Why It Helps

This bodypack transmitter is useful when production audio needs secure wireless capture from a lavalier, headset, or other body-worn microphone setup. For theater, concerts, live events, ENG, EFP, and studio TV, the compact pack gives talent freedom to move while keeping the audio inside Sony’s DWX digital wireless system.

The wideband tuning and selectable RF power are helpful when the RF environment is crowded. Engineers can choose lower power for dense multi-channel coordination or higher output when stable range is the priority, depending on the production layout and frequency plan.

Remote control support also saves time on set. Input attenuation, RF frequency, RF power, low-cut frequency, and sleep mode can be controlled from the receiver side through the Cross Remote system, so engineers do not always need to reach the transmitter once it is already fitted on talent.

System Characteristics

• 24-bit digital wireless audio for high-quality transmission and reception
• AES 256-bit encryption for secure digital wireless operation
• Cross Remote control for RF, input, low-cut, and sleep-mode settings
• High-density multi-channel operation with 375 kHz spacing
• Four codec modes for compatibility, stability, low latency, and audio quality
• Low audio latency down to 0.7 ms depending on codec mode
• Low-noise head amplifier with -128 dBu noise floor
• OLED display for real-time operational status checks
• Flexible battery options with alkaline, lithium, or NiMH AA-type batteries

What’s In The Box

• 1 x SONY DWX Ultra Wideband Bodypack Transmitter
