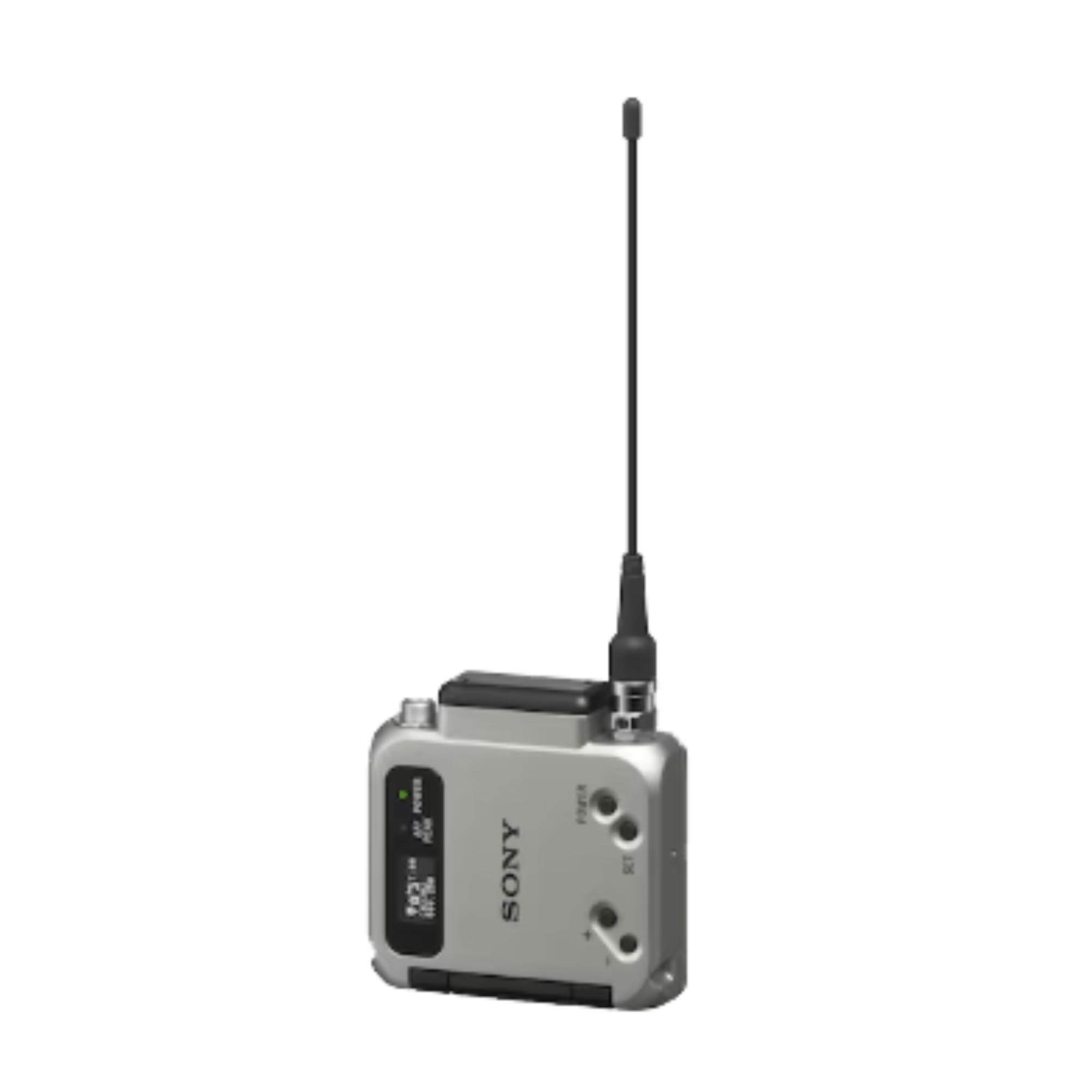

SONY DWX Gen3 Bodypack TX for DWRR03D RX

SONY DWX Gen3 Bodypack TX for DWRR03D RX is a compact third-generation Sony DWX digital wireless bodypack transmitter built for live sound, theater, concerts, studio TV production, ENG, and EFP workflows. From the supplied source, it works with Sony DWX wireless systems and is designed for remote operation with the DWR-R03D slot-in wireless receiver.

This is the kind of transmitter that makes sense when talent needs a smaller wireless pack with secure digital audio, long battery operation, and stable RF performance. The magnesium body is built to handle rain, spray, sweat, and outdoor work, while Cross Remote control helps engineers adjust settings without having to reach the transmitter during production.

Highlights

• DWX Gen3 digital bodypack transmitter for DWR-R03D receiver workflows
• Compact magnesium body with rain, spray, and sweat resistance
• Selectable RF output power: 2 mW, 10 mW, or 25 mW
• Small three-pin locking input connector for microphone or line input
• NP-BX1 rechargeable battery operation with approx. 7 hours runtime

Quick Specs & Uses

• Product type: DWX Gen3 digital wireless bodypack transmitter
• Wireless interface: WiDIF-HP
• Oscillator type: Crystal-controlled PLL synthesizer
• Antenna type: 1/4 flexible wire
• Type of emission: G1E or G1D
• Input connector: Small three-pin connector with lock
• Reference input level: MIC -60 dBV / -58 dBu, 1 kHz at 0 dB attenuator level; LINE +4 dBu, 1 kHz
• Maximum input level: MIC -22 dBu with 0 dB attenuator; LINE +24 dBu
• Audio attenuator adjustment range: 0 to 48 dB, 3 dB steps, MIC input mode only
• Carrier frequencies, UC7: 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz, 25 kHz steps
• Carrier frequencies, CE7 L: 470.025 MHz to 614.000 MHz, 25 kHz steps
• Carrier frequencies, CE7 H: 566.025 MHz to 714.000 MHz, 25 kHz steps
• Carrier frequencies, J L: 470.150 MHz to 614.000 MHz, 25 kHz steps
• Carrier frequencies, J MH: 566.025 MHz to 713.850 MHz, 25 kHz steps
• Carrier frequencies, J G: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps
• Carrier frequencies, J B: 806.125 MHz to 809.750 MHz, 125 kHz steps
• RF power: 2 mW / 10 mW / 25 mW selectable
• Frequency response: 20 Hz to 22 kHz typical
• Dynamic range: 106 dB typical, A-weighted
• Distortion: MODE1 and MODE2 0.03% or less; MODE3 0.3% or less
• Audio delay: MODE1 0.8 ms, total 2.7 ms; MODE2 0.7 ms, total 1.2 ms; MODE3 1.8 ms, total 3.7 ms
• Wireless remote control: Cross Remote, 2.4 GHz IEEE802.15.4 compliant
• Display: OLED
• Power requirements: DC 3.6 V with rechargeable NP-BX1 battery pack
• Battery operating time: Approx. 7 hours with Sony NP-BX1 at 25°C / 77°F at 10 mW output
• Operating temperature: 0°C to 50°C / 32°F to 122°F
• Storage / transport temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: Approx. 53 x 60 x 17 mm / 60 x 60 x 17 mm with projection parts, excluding antennas
• Mass: Approx. 99 g

Why It Helps

This bodypack is useful when a production needs a smaller transmitter that can stay on talent through long live or field sessions. The compact magnesium body is made for real production conditions, including rain, sweat, spray, and outdoor use, so it fits theater, broadcast, concert, and documentary-style workflows.

The selectable RF power gives audio engineers more control over the wireless plan. Lower output can help with dense multi-channel coordination, while higher output can be selected when range and stable reception are more important for the setup.

Cross Remote support is helpful once the transmitter is already placed on talent. Up to 82 transmitters can be controlled with Cross Remote and the RMU-01 remote control unit, allowing settings such as RF output and transmitter control to be handled without interrupting the performer or presenter.

System Characteristics

• Third-generation DWX digital wireless operation for professional production audio
• High-density multi-channel support with 375 kHz spacing
• AES 256-bit encryption for secure encrypted transmission
• Advanced Sony codec design for low-latency, high-quality audio
• OLED display for channel, RF status, user name, user group, and lock status
• Phase reverse function adjustable from the menu
• User setting memory for saving transmitter settings
• Setting lock to help prevent accidental operation during performance
• Transmitter / receiver identifying function with paired transmitter blinking display

What’s In The Box

• 1 x SONY DWX Gen3 Bodypack TX for DWRR03D RX
