SONY DWRS03DSKIT Kit with DWR-S03D Receiver and 15-Pin Sony Slot Mount Adapter

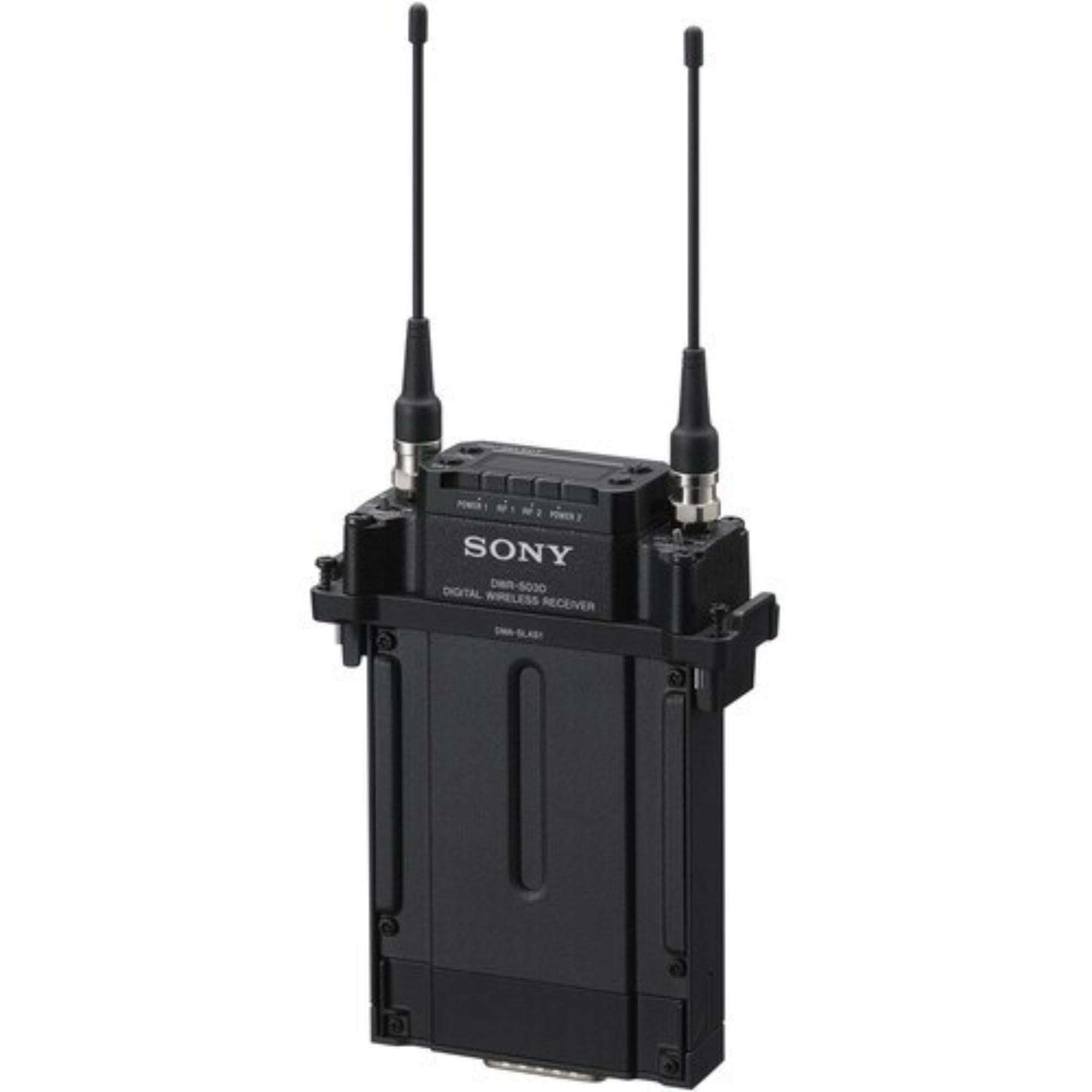

SONY DWRS03DSKIT Kit with DWR-S03D Receiver and 15-Pin Sony Slot Mount Adapter is a 2-channel digital slot-in wireless receiver kit built for Sony slot-mount camera workflows. From the supplied source, the kit includes a Sony DWR-S03D 2-channel digital slot-in wireless receiver, two antennas, and a Sony slot mount wireless audio interface adapter with 15-pin connector and adapter sleeve.

This is the kind of kit that makes sense when ENG, EFP, broadcast, or film production teams need clean wireless audio integrated directly into a compatible Sony camera slot. The slot-in receiver keeps the camera build compact, while true diversity reception, AES 256 encryption, OLED monitoring, and wide RF tuning help the audio side stay reliable in busy field environments.

Highlights

• 2-channel digital slot-in receiver kit for Sony camera slot workflows
• DWR-S03D receiver with Sony DWX 3rd-generation digital technology
• True diversity reception with X-Dimension Diversity for RF stability
• AES 256 encrypted transmission for secure wireless audio
• 15-pin Sony slot mount adapter with adapter sleeve included

Quick Specs & Uses

• Product type: 2-channel digital slot-in wireless receiver kit
• Wireless technology: Digital UHF
• Diversity: True diversity
• Receiver type: Slot-mount receiver module
• Mounting option: ENG camera slot with required hardware
• Number of audio channels: 2
• Frequency band: UC7, 470 to 608 MHz and 614 to 616 MHz
• Latency: 1.2 to 2.8 ms, selectable
• Encryption: AES 256
• Built-in recorder: No
• Timecode support: No
• Mobile app compatible: No
• Antenna: 2 x removable external top-mount antennas
• Audio I/O: 1 x proprietary module connector
• Slot-mount I/O adapter: Included 15-pin Sony slot mount adapter
• Available separately: DE-15 / DB-15 Sony type
• Available separately: DB-25 Uni / SuperSlot
• Network I/O: No
• USB / Lightning connectivity: No
• Frequency response: 20 Hz to 22 kHz
• Display: OLED
• Sony slot mount adapter connector: 1 x D-Sub 15
• Sony slot mount adapter interface: 1 x proprietary interface
• Environmental resistance: No
• Housing: Aluminum and magnesium
• Dimensions: 3.5 x 4.7 x 1.3 in / 88 x 119 x 32 mm, with mounting hardware
• Weight: 6.9 oz / 196 g, with antenna and mounting hardware

Why It Helps

This kit is useful when a camera needs two channels of digital wireless audio without adding a large external receiver stack. The DWR-S03D drops into a compatible ENG-style camera slot through the Sony 15-pin slot mount adapter, keeping the receiver tied neatly into the camera build.

True diversity reception and X-Dimension Diversity help with RF stability when the camera is moving through real production spaces. For news, field production, documentary work, and broadcast coverage, that matters because the wireless system has to stay dependable even when the location is not RF-friendly.

The OLED display keeps receiver status easy to check at the camera, while AES 256 encryption supports secure digital transmission. For crews working with sensitive interviews, corporate production, or broadcast environments, that security layer is a practical part of the workflow.

System Characteristics

• 2-channel slot-in receiver design for compact camera-mounted wireless audio
• Sony DWX 3rd-generation digital technology for professional wireless operation
• 24-bit digital audio with wide dynamic range and low latency
• Wide 140 MHz tuning bandwidth for congested RF environments
• High-density multichannel operation with up to 16 channels per 6 MHz TV band
• OLED display for real-time receiver status and monitoring
• USB power support during operation
• Lightweight magnesium and aluminum construction for production camera builds

What’s In The Box

• 1 x Sony DWR-S03D 2-Channel Digital Slot-In Wireless Receiver (UC7: 470 to 615 MHz)
• 2 x Antennas
• 1 x Sony Slot Mount Wireless Audio Interface Adapter with 15-Pin Connector and Adapter Sleeve
