SONY Dual Wireless Package with Bodypack & XLR plug-on Transmitters (90)

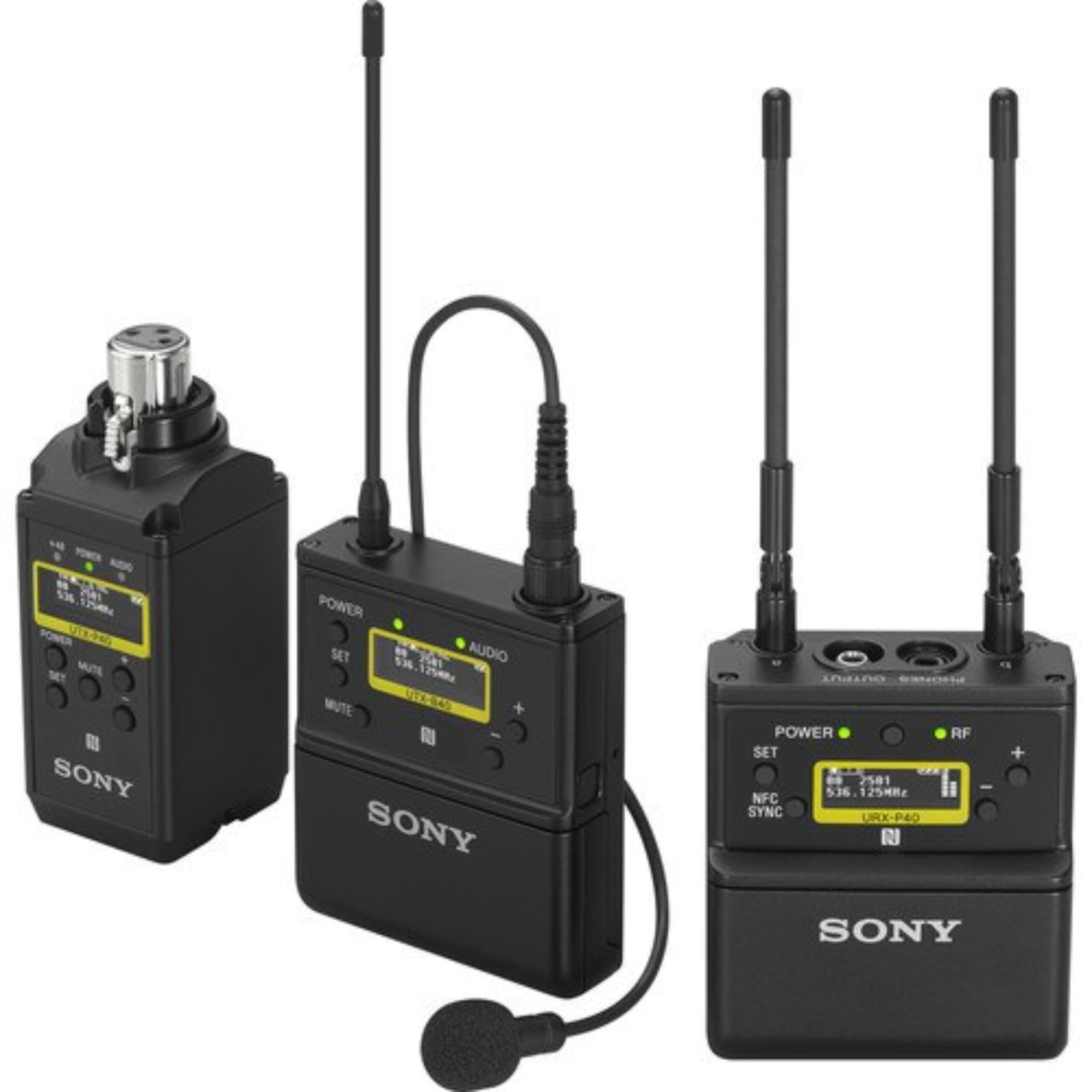

SONY Dual Wireless Package with Bodypack & XLR Plug-on Transmitters (90) is a flexible wireless audio package built for ENG, documentary work, interviews, presentations, and compact camera production. From the supplied source, it includes a Sony URX-P40 camera-mount wireless receiver, a Sony UTX-B40 bodypack transmitter with omni lavalier mic, and a Sony UTX-P40 XLR plug-on transmitter.

This kit makes sense when the shoot can move between lavalier audio and handheld mic work. The bodypack covers clipped-on speech capture, while the XLR plug-on transmitter lets the crew run a compatible XLR microphone wirelessly without pulling a cable back to the camera.

Highlights

• Camera-mount wireless receiver with bodypack and XLR plug-on transmitters
• UC90 frequency range: 941.625 to 951.875 MHz, 953.000 to 956.125 MHz, and 956.625 to 959.625 MHz
• UTX-B40 bodypack transmitter with omni lavalier microphone
• UTX-P40 XLR plug-on transmitter for XLR microphone use
• OLED display, USB-C power support, and adjustable output level

Quick Specs & Uses

• Receiver model: Sony URX-P40 portable camera-mount receiver
• Bodypack transmitter: Sony UTX-B40
• Plug-on transmitter: Sony UTX-P40 XLR plug-on transmitter
• Carrier frequency, UC90: 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
• Receiver reception type: True diversity method
• Receiver antenna: 1/4 wavelength wire antenna, angle-adjustable
• Receiver display: OLED
• Receiver frequency response: 23 Hz to 18 kHz typical
• Receiver output adjustment: -12 dB to +12 dB, 3 dB steps
• Receiver audio output connector: 3.5 mm 3-pole locking mini jack
• Receiver headphone connector: 3.5 mm mini jack
• Receiver battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• UTX-B40 RF output power: 30 mW / 5 mW selectable for UC models
• UTX-B40 input connector: 3.5 mm 3-pole locking mini jack
• UTX-B40 directivity: Omni-directional
• UTX-B40 battery life: Approx. 8 hours at 30 mW output power
• UTX-P40 input connector: XLR-3-11C type female
• UTX-P40 audio attenuator: 0 dB to 48 dB, 3 dB steps
• UTX-P40 RF output power: 40 mW / 5 mW selectable for UC models
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector

Why It Helps

This package gives a small production crew two very common audio paths in one wireless system. The bodypack transmitter is the right choice for lavalier work on talent, while the plug-on transmitter is useful for handheld interviews, reporter mics, or other compatible XLR microphones.

The URX-P40 receiver is compact enough for camera-mount use and gives adjustable output level from -12 dB to +12 dB. That helps when moving between cameras with different input sensitivity, especially on fast field shoots where gain staging needs to be handled quickly.

OLED displays and NFC sync keep the setup process straightforward. Pair the transmitter, check the screen, set the level, and move on. In real production, that kind of simplicity matters because the crew usually has more than audio to manage.

System Characteristics

• True diversity reception on the URX-P40 receiver for stable wireless capture
• OLED displays on receiver and transmitters for clear status checking
• NFC sync for quick frequency setting between transmitter and receiver
• Bodypack transmitter for lavalier, presenter, and interview audio
• XLR plug-on transmitter for wireless handheld or XLR microphone operation

What’s In The Box

• 1 x Sony URX-P40 Camera-Mount Wireless Receiver (UC90: 941 to 960 MHz)
• 1 x Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC90: 941 to 960 MHz)
• 1 x Sony UTX-P40 Wireless Plug-On Transmitter (UC90: 941 to 960 MHz)
• 1 x Mic Clip
• 1 x Windscreen
• 2 x Belt Clips
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x Soft Case for Plug-On
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
