SONY Dual Wireless Package with Bodypack & XLR plug-on Transmitters (14)

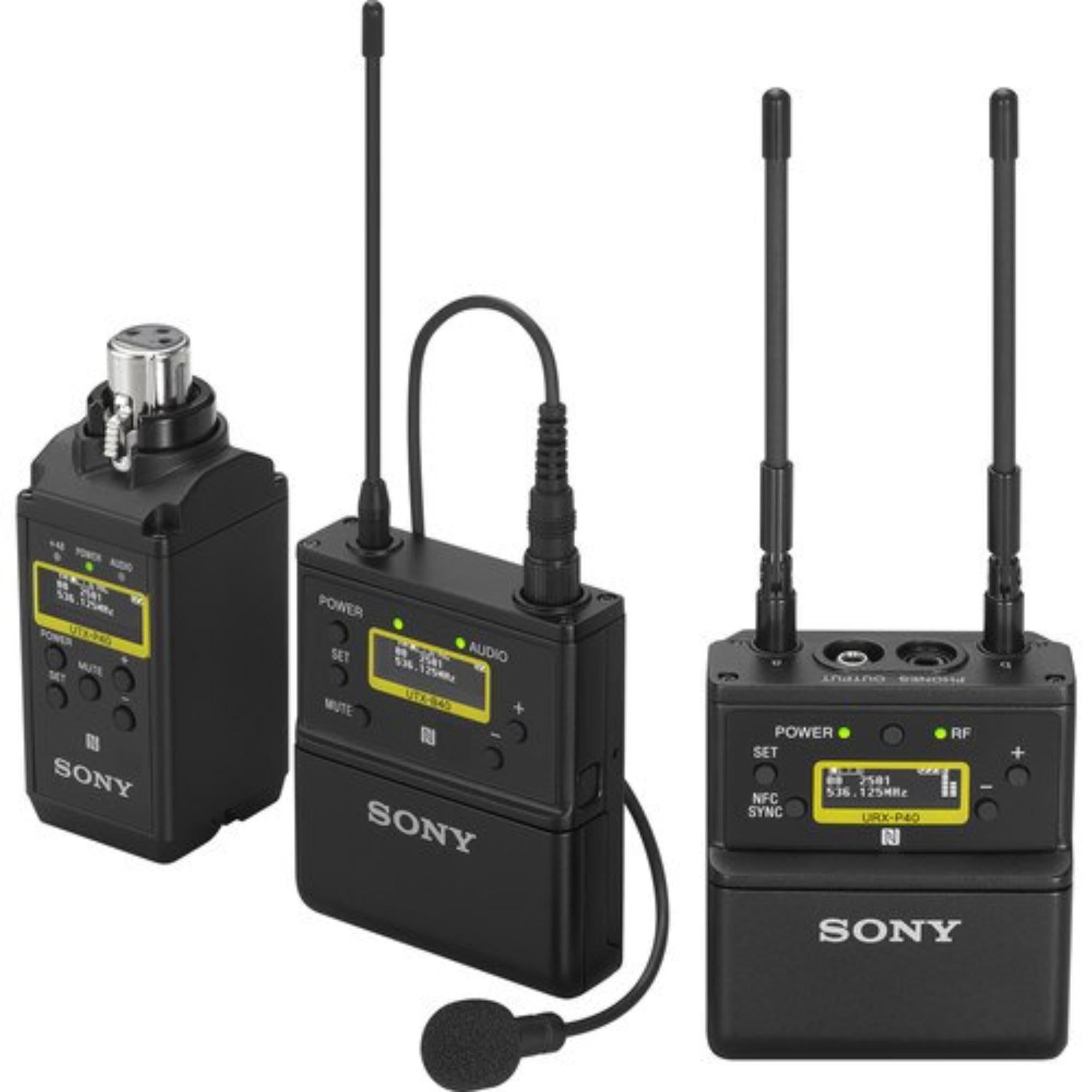

SONY Dual Wireless Package with Bodypack & XLR Plug-on Transmitters (14) is a flexible wireless audio package made for ENG, field interviews, documentary work, presentations, and compact camera production. From the supplied source, it includes a Sony URX-P40 camera-mount wireless receiver, a Sony UTX-B40 bodypack transmitter with omni lavalier mic, and a Sony UTX-P40 XLR plug-on transmitter.

This setup is useful when the audio plan may change during the shoot. The bodypack handles lavalier work for talent or presenters, while the XLR plug-on transmitter lets the crew run a handheld or compatible XLR microphone wirelessly. For small camera teams, that means fewer separate kits to manage.

Highlights

• Camera-mount wireless receiver with bodypack and XLR plug-on transmitters
• UC14 frequency range: 470.125 to 541.875 MHz
• UTX-B40 bodypack transmitter with omni lavalier microphone
• UTX-P40 XLR plug-on transmitter for XLR microphone workflows
• OLED display, USB-C power support, and adjustable output level

Quick Specs & Uses

• Receiver model: Sony URX-P40 portable camera-mount receiver
• Bodypack transmitter: Sony UTX-B40
• Plug-on transmitter: Sony UTX-P40 XLR plug-on transmitter
• Carrier frequency, UC14: 470.125 MHz to 541.875 MHz
• Receiver reception type: True diversity method
• Receiver antenna: 1/4 wavelength wire antenna, angle-adjustable
• Receiver display: OLED
• Receiver frequency response: 23 Hz to 18 kHz typical
• Receiver output adjustment: -12 dB to +12 dB, 3 dB steps
• Receiver audio output connector: 3.5 mm 3-pole locking mini jack
• Receiver headphone connector: 3.5 mm mini jack
• Receiver battery life: Approx. 6 hours with two LR6/AA alkaline batteries
• UTX-B40 RF output power: 30 mW / 5 mW selectable for UC models
• UTX-B40 input connector: 3.5 mm 3-pole locking mini jack
• UTX-B40 directivity: Omni-directional
• UTX-B40 battery life: Approx. 8 hours at 30 mW output power
• UTX-P40 input connector: XLR-3-11C type female
• UTX-P40 audio attenuator: 0 dB to 48 dB, 3 dB steps
• UTX-P40 RF output power: 40 mW / 5 mW selectable for UC models
• Power requirements: DC 3.0V with two LR6/AA batteries or DC 5.0V from USB Type-C connector

Why It Helps

This package gives a field crew two common wireless workflows in one kit. The lavalier bodypack works well for clipped-on speech capture, while the plug-on transmitter is better when the operator wants to use a handheld interview mic or another compatible XLR microphone without a cable run back to the camera.

The URX-P40 receiver stays compact enough for camera-mount work and gives adjustable output level from -12 dB to +12 dB. That makes gain matching easier when moving between different camcorders, handheld cameras, or compact production rigs.

NFC sync and OLED displays also make day-to-day operation cleaner. The operator can pair quickly, check status at a glance, and spend more time listening for placement, handling noise, and RF conditions instead of digging through setup menus.

System Characteristics

• True diversity reception on the URX-P40 receiver for stable wireless capture
• OLED displays on receiver and transmitters for clear status checking
• NFC sync for quick frequency setting between transmitter and receiver
• Bodypack transmitter for lavalier, presenter, and interview audio
• XLR plug-on transmitter for wireless handheld or XLR microphone operation

What’s In The Box

• 1 x Sony URX-P40 Camera-Mount Wireless Receiver (UC14: 470 to 542 MHz)
• 1 x Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC14: 470 to 542 MHz)
• 1 x Sony UTX-P40 Wireless Plug-On Transmitter (UC14: 470 to 542 MHz)
• 1 x Mic Clip
• 1 x Windscreen
• 2 x Belt Clips
• 1 x Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
• 1 x Soft Case for Plug-On
• 1 x 3.5mm to 3.5mm Output Cable
• 1 x 3.5mm to XLR-M Output Cable
