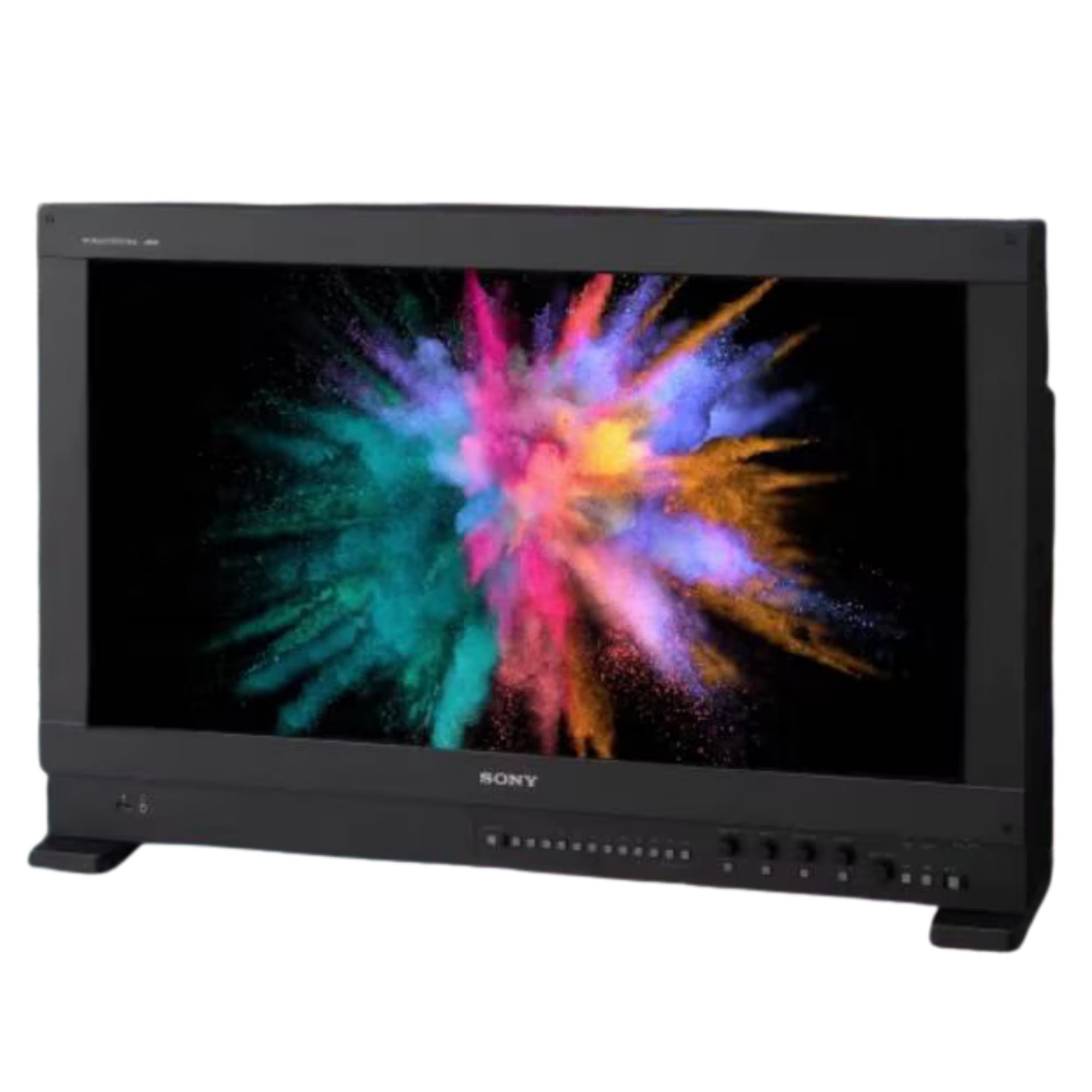

SONY BVM-HX3110 30.5-inch 4K TRIMASTER HX Professional Master Monitor

SONY BVM-HX3110 30.5-inch 4K TRIMASTER HX Professional Master Monitor is a high-end 4K HDR master monitor built for color grading, finishing, QC, VFX review, and live production monitoring. From the supplied source, it uses a 30.5-inch active matrix LCD panel with 4096 x 2160 resolution and peak luminance up to 4,000 cd/m².

This is the kind of monitor that makes sense when image judgment needs to be precise, repeatable, and trusted across HDR and SDR workflows. With SDI, HDMI, IP/LAN connectivity, LUT support, waveform and vectorscope tools, pixel zoom, and TRIMASTER HX processing, it is built for rooms where color, contrast, and signal confidence matter every day.

Highlights

• 30.5-inch 4K TRIMASTER HX master monitor for HDR / SDR production workflows
• 4096 x 2160 resolution with 4,000 cd/m² peak luminance
• SDI, HDMI, IP/LAN, remote, and USB connectivity
• Waveform, vectorscope, LUT, pixel zoom, and quad-view tools
• Supports ST 2110, ST 2022-6, NMOS, Hitless Failover, and PTP IP workflows

Quick Specs & Uses

• Product type: 4K HDR professional master monitor
• Display technology: α-Si TFT active matrix LCD
• Picture size: 30.5 in / 775.2 mm
• Effective picture size: 685.7 x 361.6 mm / 27 x 14 1/4 in
• Resolution: 4096 x 2160
• Aspect ratio: 1.90:1 / 17:9
• Display colors: 1.07 billion
• Peak luminance: 4,000 cd/m² typical
• Pixel efficiency: 99.99%
• Panel frame rate: 96 Hz, 100 Hz, 120 Hz
• Viewing angle: 89° up / down / left / right
• Color temperature: D50, D60, D65, D93, DCI, User 1–10, DCI XYZ
• Color space: ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, S-Gamut3, S-Gamut3.Cine
• EOTF: 2.2, 2.4, 2.6, CRT, 2.4 HDR, S-Log3, S-Log3 Live HDR, SMPTE ST 2084, ITU-R BT.2100 HLG
• SDI input: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2
• HDMI input: HDMI with HDCP 2.3 / 1.4, 1 x
• IP/LAN input: SFP28 x 2, 25G BASE
• Parallel remote: RJ-45 8-pin, 1 x
• Serial remote / LAN: Ethernet, 10BASE-T / 100BASE-TX / 1000BASE-T, RJ-45 x 1
• USB input: USB 2.0 connector, 1 x
• SDI output: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2
• Enhanced Monitor Output: 12G / 6G / 3G / HD-SDI BNC x 1
• Audio monitor output: Stereo mini jack, 1 x
• Headphone output: Stereo mini jack, 1 x
• Power requirement: AC 100 V to 240 V, 50 / 60 Hz
• Power consumption: Approx. 610 W max; 0.3 W in off mode
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Dimensions: 778 x 519 x 230 mm / 30 3/4 x 20 1/2 x 9 1/8 in
• Mass: Approx. 29 kg / 63 lb 15 oz

Why It Helps

This monitor is useful when the production team needs a reference display that can handle serious 4K HDR work without guessing. For grading suites, QC rooms, finishing bays, VFX review, and high-end live production, the BVM-HX3110 gives operators a large 30.5-inch 4K image with the brightness and contrast needed for modern HDR evaluation.

The 4,000 cd/m² peak luminance is helpful when checking highlights, specular detail, and shadow separation in HDR material. Combined with TRIMASTER HX processing, anti-reflection panel design, and wide viewing angle performance, the monitor is built for critical viewing environments where several people may need to judge the same image.

The signal side is just as important. SDI, HDMI, and IP/LAN support make the monitor practical for both traditional baseband rooms and modern IP production systems. Tools like waveform, vectorscope, LUT loading, pixel zoom, quad view, and HDR/SDR conversion support also reduce the need to jump between separate analysis displays during review.

System Characteristics

• TRIMASTER HX technology for professional color accuracy, precision imaging, and picture consistency
• Maximum luminance settings include 4000, 3000, 2000, 1000, 700, 600, 500, and 400 cd/m²
• Integrated IP support for ST 2110, ST 2022-6, NMOS IS-04 / IS-05, Clean Switch, Hitless Failover, and PTP
• HDR-SDR conversion function with optional license support
• 2 x 4K / HD-SDI input with simultaneous processing and display in supported version
• User 3D LUT support for custom LUT loading and comparison workflows
• Pixel Zoom up to 300% for detailed image checking
• 4K / HD scopes with HDR / SDR scale support
• Quad view display for comparing up to four custom display settings
• Copy function for monitor setup and matching to additional units

What’s In The Box

• 1 x SONY BVM-HX3110 30.5-inch 4K TRIMASTER HX Professional Master Monitor
• 1 x AC Power Cord
• 1 x AC Plug Holder
• 1 x Before Using This Unit
