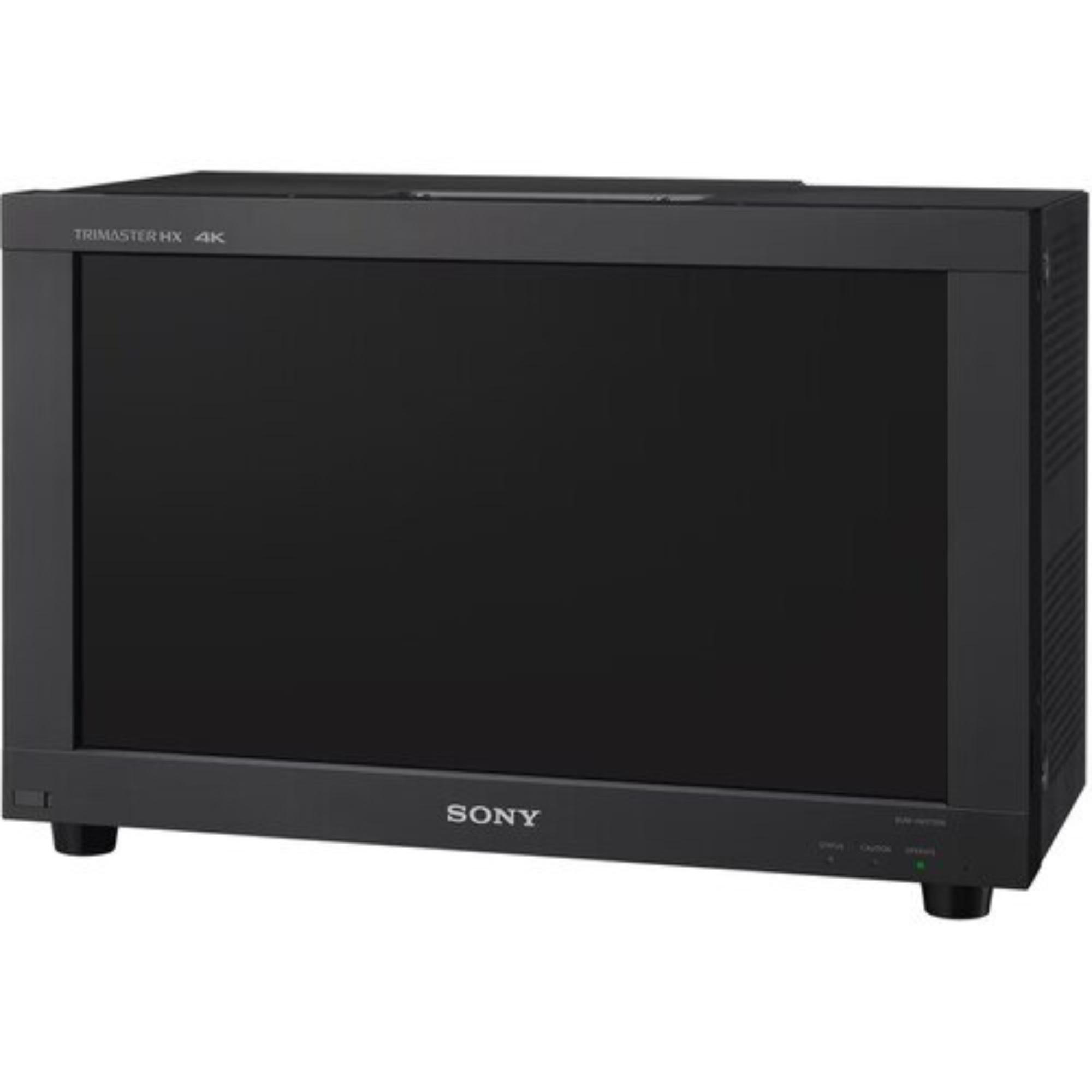

SONY BVM-HX1710N 16.5-inch 4K IP TRIMASTER HX Professional Master Monitor

SONY BVM-HX1710N 16.5-inch 4K IP TRIMASTER HX Professional Master Monitor is a compact 4K HDR professional master monitor built for OB vans, studio control rooms, grading, QC, and live production monitoring. From the supplied source, it uses an α-Si TFT active matrix LCD panel with 3840 x 2160 resolution and peak luminance up to 3,000 cd/m².

This is the kind of monitor that makes sense when a production needs true 4K reference monitoring in a smaller footprint. With integrated IP support, SDI, HDMI, LUT tools, waveform and vectorscope monitoring, pixel zoom, quad view, and TRIMASTER HX processing, it gives engineers and colorists a serious HDR / SDR monitoring tool without moving to a larger display size.

Highlights

• 16.5-inch 4K IP TRIMASTER HX master monitor for HDR / SDR production workflows
• 3840 x 2160 resolution with 3,000 cd/m² peak luminance
• Integrated IP support for ST 2110, ST 2022-6, NMOS, Clean Switch, Hitless Failover, and PTP
• SDI, HDMI, IP/LAN, USB, and remote connectivity
• Waveform, vectorscope, LUT, pixel zoom, and quad-view tools

Quick Specs & Uses

• Product type: 4K IP HDR professional master monitor
• Panel: α-Si TFT active matrix LCD
• Picture size: 420.3 mm / 16.5 in
• Effective picture size: 366.3 x 206.1 mm / 14 1/2 x 8 1/8 in
• Pixel pitch: Approx. 0.0037 x 0.0037 in
• Resolution: 3840 x 2160 pixels
• Aspect: 16:9
• Pixel efficiency: 99.99%
• Display colors: Approx. 1.07 billion colors
• Panel frame rate: 96 Hz, 100 Hz, 120 Hz
• Viewing angle: 89° up / down / left / right
• Normal scan: 0% scan
• Underscan: 3% underscan
• Color temperature: D50, D60, D65, D93, DCI, User 1–10, DCI XYZ
• Luminance: 3000 cd/m² typical; 700 cd/m² typical
• Color space: ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, S-Gamut3, S-Gamut3.Cine
• Transmission matrix: ITU-R BT.2020, ITU-R BT.709
• EOTF: 2.2, 2.4, 2.6, CRT, 2.4 HDR, S-Log3, S-Log3 Live HDR, SMPTE ST 2084, ITU-R BT.2100 HLG
• Warm-up time: Approx. 30 minutes for stable picture quality
• SDI input: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2
• HDMI input: HDMI with HDCP 2.3 / 1.4, 1 x
• IP/LAN input: SFP28 x 2, 25G BASE
• Parallel remote: RJ-45 8-pin, 1 x
• Serial remote / LAN: Ethernet, 10BASE-T / 100BASE-TX, RJ-45 x 1
• USB input: USB 2.0 connector, 1 x
• Enhanced Monitor Output: 12G / 6G / 3G / HD-SDI BNC x 1
• SDI output: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2
• DC 12V output: 4-pin circular female, 1 x, for BVMK-R10 or BKM-17R
• Power requirement: AC 100 V to 240 V, 3.3 A to 1.3 A, 50 / 60 Hz
• Power consumption: Approx. 315 W max; 0.3 W in off mode
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Recommended operating temperature: 20°C to 30°C / 68°F to 86°F
• Operating humidity: 20% to 80%, no condensation
• Storage temperature: -20°C to 60°C / -4°F to 140°F
• Dimensions without stand and handle: 436 x 265.8 x 230 mm / 17 1/4 x 10 1/2 x 9 1/8 in
• Dimensions with stand and handle: 436 x 320.6 x 230 mm / 17 1/4 x 12 5/8 x 9 1/8 in
• Mass: Approx. 12.5 kg / 27 lb 9 oz

Why It Helps

This monitor is useful when a facility needs high-grade 4K HDR monitoring in a compact size. For OB vans, studio control rooms, engineering racks, grading stations, and QC areas, the 16.5-inch body gives teams a reference-class display without taking the space of a larger master monitor.

The 3,000 cd/m² peak luminance helps with HDR highlight review, while the 3840 x 2160 panel keeps detail sharp for UHD production. That matters when checking exposure, focus, color, and shadow detail in workflows where small image differences can affect the final result.

The built-in IP support is valuable in newer production facilities. ST 2110, ST 2022-6, NMOS, Clean Switch, Hitless Failover, and PTP support help the monitor fit into IP-based systems without needing extra conversion hardware in the signal path.

System Characteristics

• TRIMASTER HX technology for professional color accuracy, precision imaging, and picture consistency
• Maximum luminance settings include 4000, 3000, 2000, 1000, 700, 600, 500, and 400 cd/m²
• HDR-SDR conversion function with optional license support
• User 3D LUT support for custom LUT loading and comparison workflows
• Pixel Zoom up to 300% for detailed image checks
• Quad view display for comparing up to four custom display settings
• 4K / HD scopes with HDR / SDR scale support
• Setting copy through BVMK-R10 for matching setup data between monitors
• Anti-fingerprint surface for easier cleaning after transport or installation
• Integrated IP support made for Sony Networked Live workflows

What’s In The Box

• 1 x SONY BVM-HX1710N 16.5-inch 4K IP TRIMASTER HX Professional Master Monitor
• 1 x AC Power Cord
• 1 x AC Plug Holder
• 1 x Handle
• 1 x Monitor Interface Cable
• 1 x Before Using This Unit
