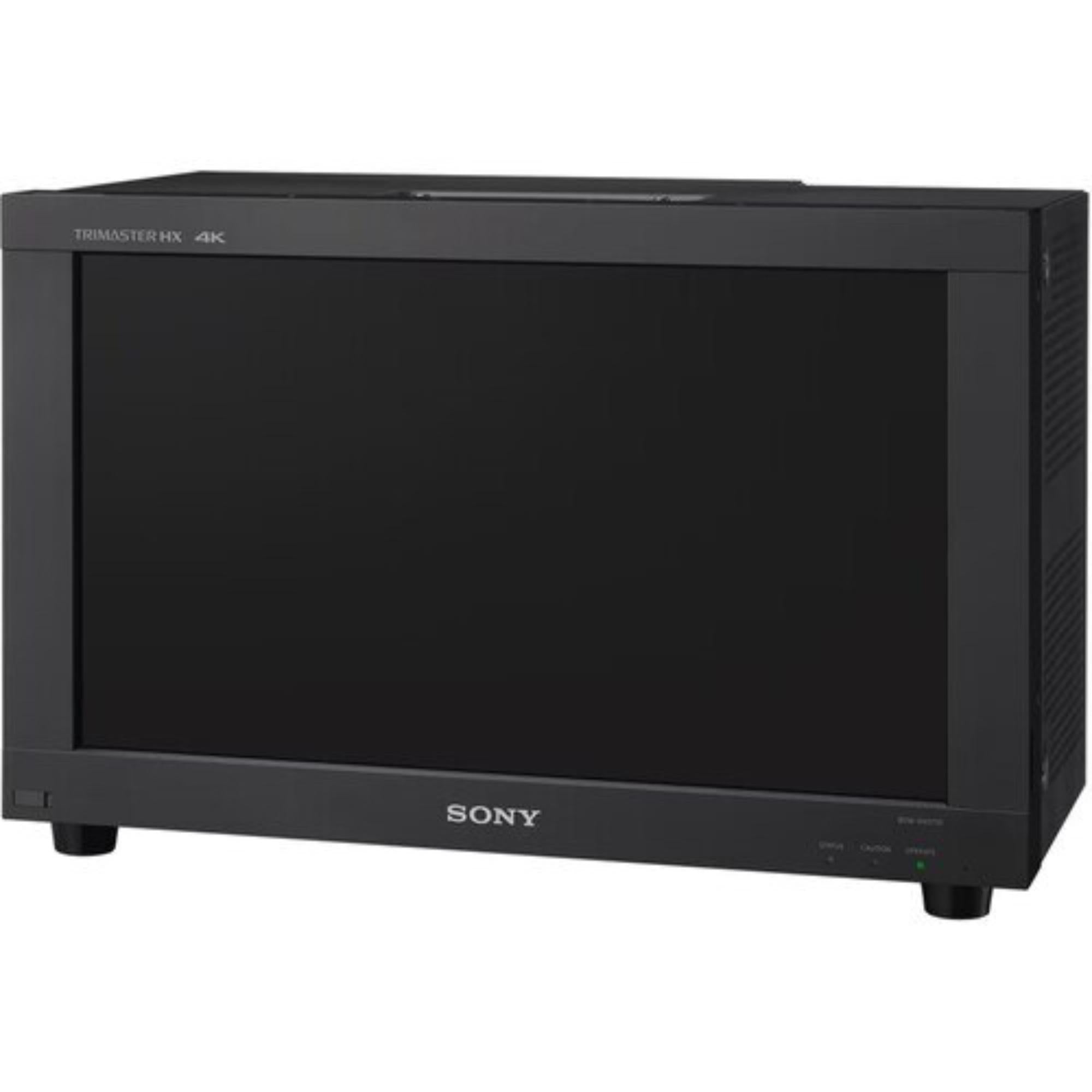

SONY BVM-HX1710 16.5-inch 4K TRIMASTER HX Professional Master Monitor

SONY BVM-HX1710 16.5-inch 4K TRIMASTER HX Professional Master Monitor is a compact 4K HDR master monitor built for OB vans, studio control rooms, grading, QC, and live production review. From the supplied source, it uses an α-Si TFT active matrix LCD panel with 3840 x 2160 resolution and peak luminance up to 3,000 cd/m².

This is the kind of monitor that makes sense when a production needs serious 4K reference monitoring in a smaller footprint. With SDI, HDMI, LUT tools, waveform and vectorscope monitoring, pixel zoom, quad view, and TRIMASTER HX processing, it gives engineers and colorists a practical HDR / SDR monitoring display without taking the space of a larger master monitor.

Highlights

• 16.5-inch 4K TRIMASTER HX master monitor for HDR / SDR production workflows
• 3840 x 2160 resolution with 3,000 cd/m² peak luminance
• SDI, HDMI, USB, and remote connectivity
• Enhanced Monitor Output for supported monitoring workflows
• Waveform, vectorscope, LUT, pixel zoom, and quad-view tools

Quick Specs & Uses

• Product type: 4K HDR professional master monitor
• Panel: α-Si TFT active matrix LCD
• Picture size: 420.3 mm / 16.5 in
• Effective picture size: 366.3 x 206.1 mm / 14 1/2 x 8 1/8 in
• Pixel pitch: Approx. 0.0037 x 0.0037 in
• Resolution: 3840 x 2160 pixels
• Aspect: 16:9
• Pixel efficiency: 99.99%
• Display colors: Approx. 1.07 billion colors
• Panel frame rate: 96 Hz, 100 Hz, 120 Hz
• Viewing angle: 89° up / down / left / right
• Normal scan: 0% scan
• Underscan: 3% underscan
• Color temperature: D50, D60, D65, D93, DCI, User 1–10, DCI XYZ
• Luminance: 3000 cd/m² typical; 700 cd/m² typical
• Color space: ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, S-Gamut3, S-Gamut3.Cine
• Transfer matrix: ITU-R BT.2020, ITU-R BT.709
• EOTF: 2.2, 2.4, 2.6, CRT, 2.4 HDR, S-Log3, S-Log3 Live HDR, SMPTE ST 2084, ITU-R BT.2100 HLG
• Warm-up time: Approx. 30 minutes for stable picture quality
• SDI input: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2, input impedance 75 Ω unbalanced
• HDMI input: HDMI with HDCP 2.3 / 1.4, 1 x
• Parallel remote: RJ-45 8-pin, 1 x
• Serial remote / LAN: Ethernet, 10BASE-T / 100BASE-TX, RJ-45 x 1
• USB input: USB 2.0 connector, 1 x
• Enhanced Monitor Output: 12G / 6G / 3G / HD-SDI BNC x 1, output impedance 75 Ω unbalanced
• SDI output: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2, output impedance 75 Ω unbalanced
• DC 12V output: 4-pin circular female, 1 x, for BVMK-R10 or BKM-17R
• Power requirement: AC 100 V to 240 V, 3.0 A to 1.1 A, 50 / 60 Hz
• Power consumption: Approx. 280 W max; 0.3 W in off mode
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Recommended operating temperature: 20°C to 30°C / 68°F to 86°F
• Operating humidity: 20% to 80%, no condensation
• Storage temperature: -20°C to 60°C / -4°F to 140°F
• Dimensions without stand and handle: 436 x 265.8 x 230 mm / 17 1/4 x 10 1/2 x 9 1/8 in
• Dimensions with stand and handle: 436 x 320.6 x 230 mm / 17 1/4 x 12 5/8 x 9 1/8 in
• Mass: Approx. 12 kg / 26 lb 8 oz

Why It Helps

This monitor is useful when a facility needs reference-grade 4K HDR monitoring in a compact body. For OB vans, studio control rooms, engineering positions, grading stations, and QC benches, the 16.5-inch size gives teams a serious master monitor without demanding as much space as a larger display.

The 3,000 cd/m² peak luminance helps when checking HDR highlights, shadow detail, and overall image separation. Combined with the 3840 x 2160 panel, it gives operators a sharp UHD picture for judging exposure, focus, color, and contrast during production or review.

The built-in monitoring tools make day-to-day work easier. LUT support, HDR/SDR conversion, waveform, vectorscope, pixel zoom, quad view, and Enhanced Monitor Output help engineers and colorists check the signal without relying on several separate displays or analysis tools.

System Characteristics

• TRIMASTER HX technology for professional color accuracy, precision imaging, and picture consistency
• Maximum luminance settings include 4000, 3000, 2000, 1000, 700, 600, 500, and 400 cd/m²
• HDR-SDR conversion function with optional license support
• User 3D LUT support for custom LUT loading and comparison workflows
• Pixel Zoom up to 300% for detailed image checks
• Quad view display for comparing up to four custom display settings
• 4K / HD scopes with HDR / SDR scale support
• Setting copy through BVMK-R10 for matching setup data between monitors
• Anti-fingerprint surface for easier cleaning after transport or installation

What’s In The Box

• 1 x SONY BVM-HX1710 16.5-inch 4K TRIMASTER HX Professional Master Monitor
• 1 x AC Power Cord
• 1 x AC Plug Holder
• 1 x Handle
• 1 x Monitor Interface Cable
• 1 x Before Using This Unit
