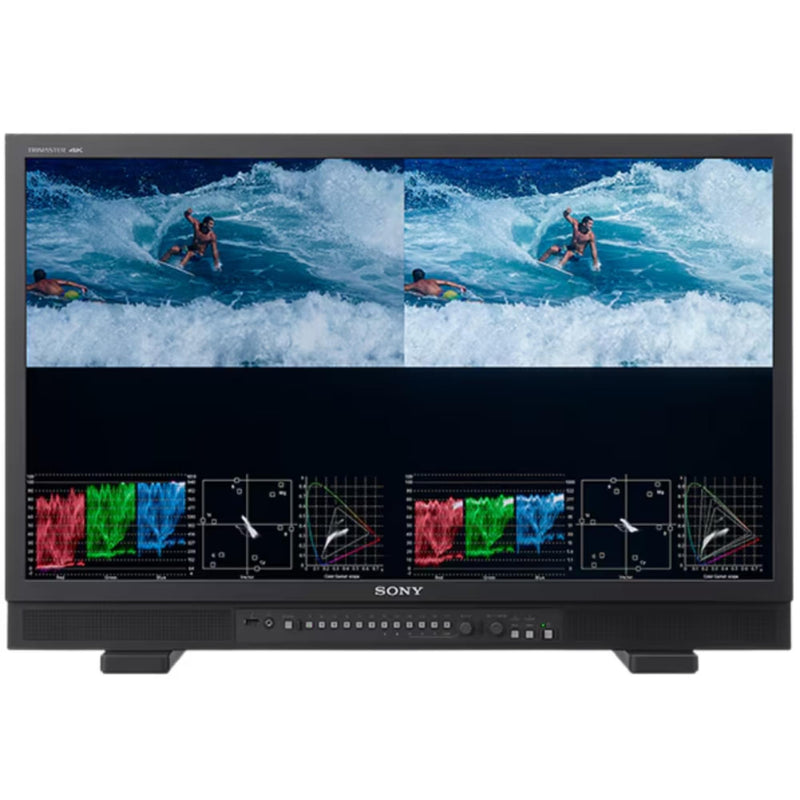

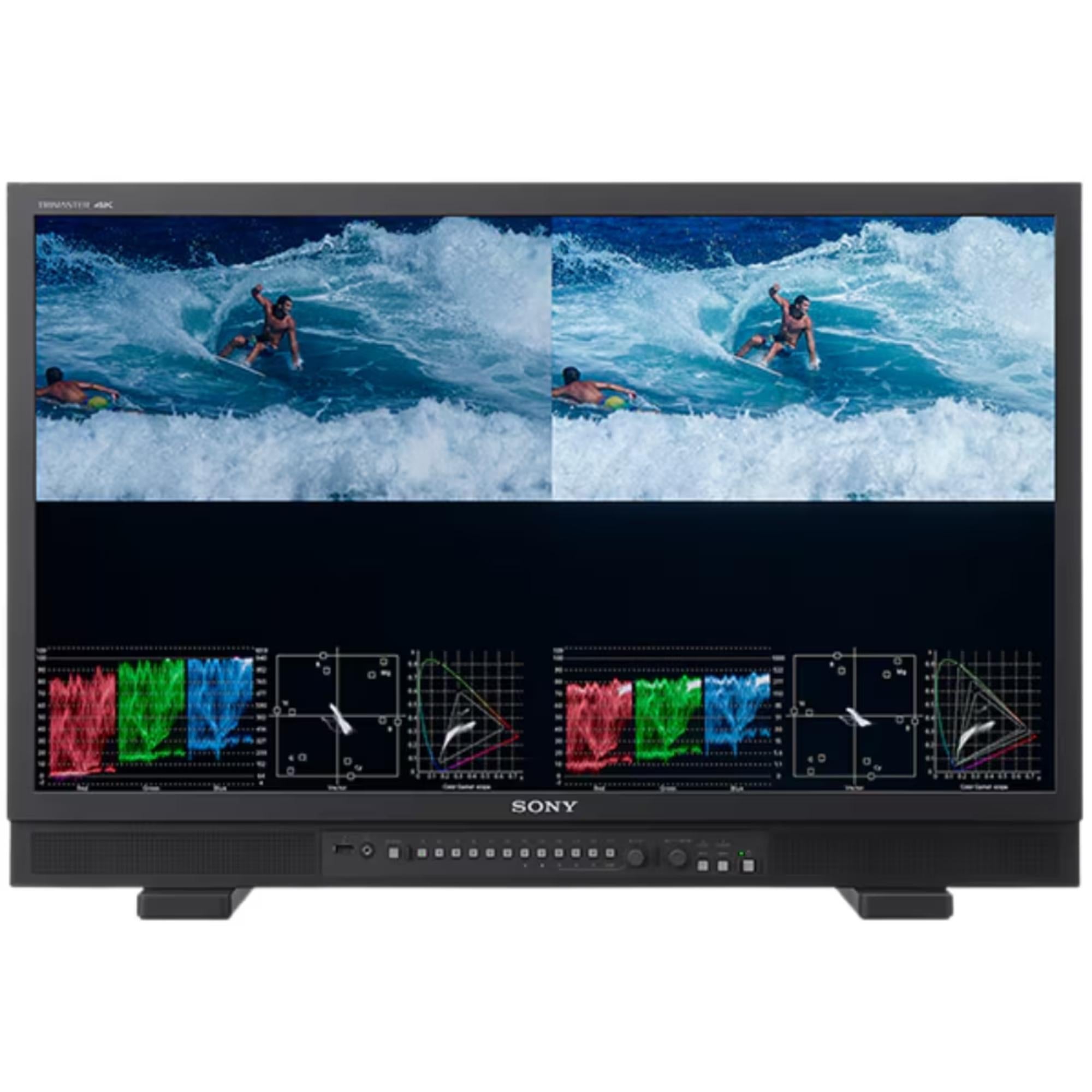

SONY 32" Professional 4K HDR Monitor

SONY 32" Professional 4K HDR Monitor is a high-grade 32-inch 4K HDR picture monitor designed for professional studio, truck, field, editing, and production monitoring workflows. It uses a 3840 x 2160 α-Si TFT active matrix LCD panel with 1,000 cd/m² typical luminance and color matching designed to sit close to Sony’s BVM-HX310 master monitor workflow.

For broadcast engineers, this monitor makes sense when multiple people need to judge the same 4K HDR picture with confidence. It supports 12G-SDI, quad-link 3G-SDI, HDMI, scopes, HDR / SDR monitoring, User 3D LUTs, Quad View, and Enhanced Monitor Output, giving teams a practical monitoring point for live production, review, grading support, and technical control positions.

Highlights

• 32-inch 4K HDR professional monitor for production and review workflows
• 3840 x 2160 resolution with 1,000 cd/m² typical panel luminance
• TRIMASTER architecture for accurate color, imaging precision, and consistency
• Color matching with Sony BVM-HX310 for HDR production environments
• 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, HDMI, LAN remote, and USB support
• Waveform, vectorscope, audio meter, Quad View, and User 3D LUT support
• Dynamic Contrast Drive with Black Detail High / Mid / Low monitoring

Quick Specs & Uses

• Product type: 32-inch professional 4K HDR monitor
• Panel: α-Si TFT active matrix LCD
• Picture size: 812.8 mm / 32 inches
• Effective picture size: 708.48 x 398.52 mm / 28 x 15 5/8 in
• Resolution: 3840 x 2160 pixels
• Aspect: 16:9
• Luminance: 1,000 cd/m² typical
• Display colors: Approx. 1.07 billion colors
• Viewing angle: 89° / 89° / 89° / 89° up / down / left / right
• Panel frame rate: 48 Hz / 50 Hz / 60 Hz
• Color space: ITU-R BT.2020, ITU-R BT.709, DCI-P3, S-GAMUT3, S-GAMUT3.Cine
• EOTF: 2.2, 2.4, 2.6, 2.4 HDR, S-Log3, S-Log3 Live HDR, SMPTE ST 2084, ITU-R BT.2100 HLG

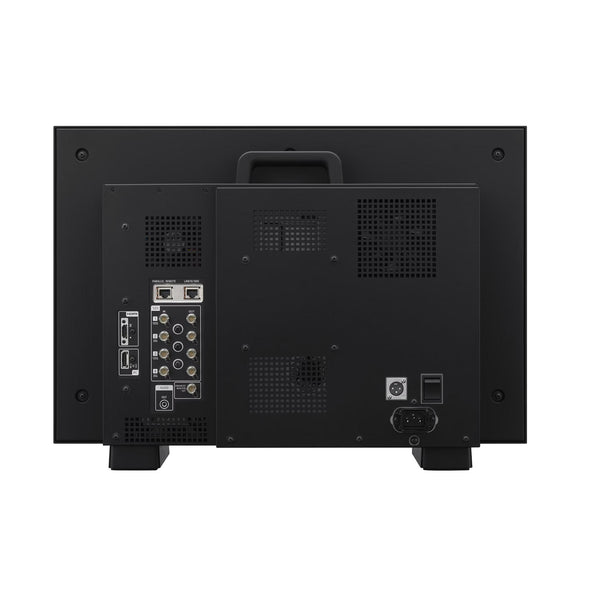

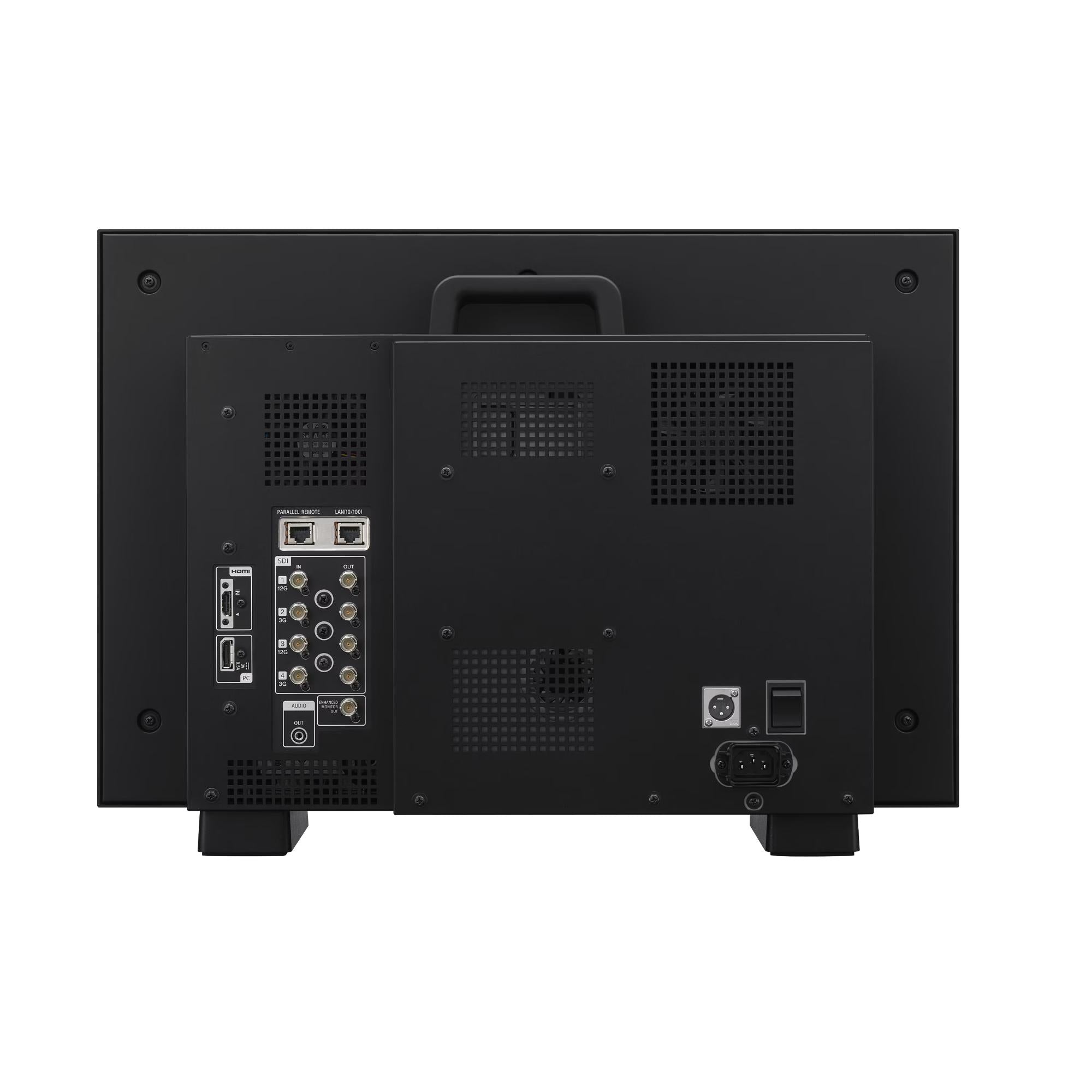

• SDI input: 12G / 6G / 3G / HD-SDI BNC x2; 3G / HD-SDI BNC x2
• HDMI input: HDMI with HDCP 2.3 / 1.4 x1
• Enhanced Monitor Output: 12G / 6G / 3G / HD-SDI BNC x1
• SDI output: 12G / 6G / 3G / HD-SDI BNC x2; 3G / HD-SDI BNC x2
• Serial remote / LAN: RJ-45 x1, 10BASE-T / 100BASE-TX
• Parallel remote: RJ-45 8-pin x1
• USB input: USB 2.0 x1
• Built-in speakers: 2.0 W + 2.0 W stereo
• Power requirements: AC 100 V to 240 V, 50 / 60 Hz
• Power consumption: Approx. 280 W max; 0.3 W off mode
• Dimensions without monitor stand: 752 x 494.5 x 155 mm / 29.63 x 19.5 x 6.13 in
• Dimensions with monitor stand: 752 x 513 x 229.9 mm / 29.63 x 20.25 x 9.13 in
• Weight: Approx. 15.5 kg / 34 lb 2.7 oz
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Storage / transport temperature: -20°C to +60°C / -4°F to +140°F
• Optional accessory: BKM-17R

Why It Helps

The PVM-X3200 is useful when a production needs a reliable 4K HDR viewing point that can be shared across a team. Its 32-inch size works well for group monitoring on set, in a studio, inside an OB truck, or in technical rooms where operators need to judge picture quality from a practical viewing distance.

The monitor’s 12G-SDI support helps simplify cabling for 4K workflows, while quad-link 3G-SDI support keeps it compatible with older 4K systems. HDMI is also available for rasterizers, multiviewers, digital cameras, PCs, and other production devices.

Built-in scopes, Quad View, User 3D LUT support, Black Detail mode, and Dynamic Contrast Drive make it more than a display. Engineers can check signal level, color, exposure, HDR / SDR behavior, and black detail directly from the monitor during live or post-production work.

System Characteristics

• TRIMASTER processing for accurate color reproduction and consistent image quality
• HDR-to-SDR conversion support with optional PVML-HSX1 license
• User 3D LUT loading via USB with 33-grid-point or 17-grid-point .cube file support
• SR Live metadata support for matching monitor settings to incoming signals
• Dynamic Contrast Drive for improved highlight and shadow balance
• Black Detail High / Mid / Low for checking dark low-APL images
• Waveform, vectorscope, gamut error, and audio level meter display
• Quad View display with independent settings for each view
• Flexible markers, aspect marker, center marker, zoom, tally, and focus assist support

What’s In The Box

• 1 x SONY 32" Professional 4K HDR Monitor
