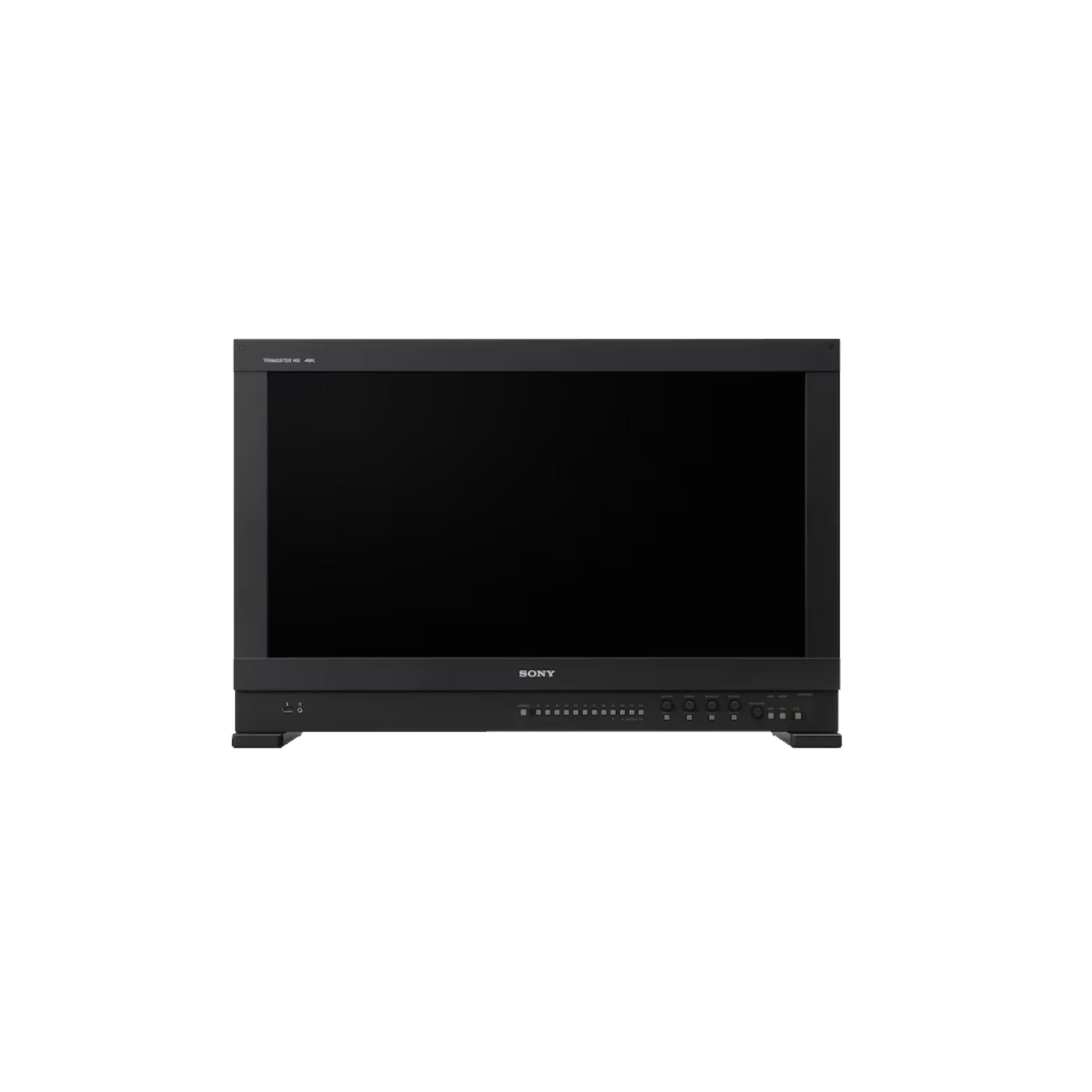

SONY 31.1 INCH 4K HDR REFERENCE MONITOR

SONY 31.1 INCH 4K HDR REFERENCE MONITOR is a professional 4K HDR reference monitor built for color grading, QC, VFX, finishing, and live production review. From the supplied source, it uses an α-Si TFT active matrix LCD panel with 4096 x 2160 resolution and peak luminance up to 4,000 cd/m².

This is the kind of monitor that makes sense when the image has to be judged carefully, not just displayed. With SDI, HDMI, IP/LAN support, LUT operation, waveform and vectorscope tools, pixel zoom, quad view, and TRIMASTER HX processing, it fits rooms where HDR, SDR, color accuracy, and signal confidence all matter.

Highlights

• 4K HDR reference monitor for professional grading and production workflows
• 4096 x 2160 resolution with 4,000 cd/m² peak luminance
• SDI, HDMI, IP/LAN, remote, and USB connectivity
• Waveform, vectorscope, LUT, pixel zoom, and quad-view tools
• Integrated IP support for ST 2110, ST 2022-6, NMOS, Hitless Failover, and PTP workflows

Quick Specs & Uses

• Product type: 4K HDR professional reference monitor
• Panel: α-Si TFT active matrix LCD
• Picture size: 30.5 in / 775.2 mm
• Effective picture size: 685.7 x 361.6 mm / 27 x 14 1/4 in
• Resolution: 4096 x 2160 pixels
• Aspect: 1.90:1 / 17:9
• Pixel efficiency: 99.99%
• Display colors: 1.07 billion
• Panel frame rate: 96 Hz, 100 Hz, 120 Hz
• Viewing angle: 89° up / down / left / right
• Normal scan: 0% scan
• Underscan: 3% underscan
• Color temperature: D50, D60, D65, D93, DCI, User 1–10, DCI XYZ
• Luminance: 4,000 cd/m² typical; 1,000 cd/m² typical
• Color space: ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, S-Gamut3, S-Gamut3.Cine
• Transmission matrix: ITU-R BT.2020, ITU-R BT.709
• EOTF: 2.2, 2.4, 2.6, CRT, 2.4 HDR, S-Log3, S-Log3 Live HDR, SMPTE ST 2084, ITU-R BT.2100 HLG
• SDI input: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2
• HDMI input: HDMI with HDCP 2.3 / 1.4, 1 x
• IP/LAN input: SFP28 x 2, 25G BASE
• Parallel remote: RJ-45 8-pin, 1 x
• Serial remote / LAN: Ethernet 10BASE-T / 100BASE-TX, RJ-45 x 1
• USB input: USB 2.0 connector, 1 x
• Enhanced Monitor Output: 12G / 6G / 3G / HD-SDI BNC x 1
• SDI output: 12G / 6G / 3G / HD-SDI BNC x 2; 3G / HD-SDI BNC x 2
• Audio monitor output: Stereo mini jack, 1 x
• Headphone output: Stereo mini jack, 1 x
• Power requirement: AC 100 V to 240 V, 6.6 A to 2.5 A, 50 / 60 Hz
• Power consumption: Approx. 610 W max; 0.3 W in off mode
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Operating humidity: 30% to 80%, no condensation
• Storage / transport temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: 778 x 519 x 230 mm / 30 3/4 x 20 1/2 x 9 1/8 in
• Mass: Approx. 29 kg / 63 lb 15 oz

Why It Helps

This monitor is useful when the production team needs a trusted reference display for 4K HDR work. In grading suites, QC rooms, VFX review, finishing bays, and live production areas, the high peak luminance and 4096 x 2160 resolution help operators judge highlights, shadows, color, and fine image detail with more confidence.

The HDR and SDR toolset is practical for mixed delivery work. LUT support, HDR/SDR conversion, waveform, vectorscope, pixel zoom, and quad-view display give engineers and colorists more ways to check the image without constantly moving between separate analysis tools.

The connection options also make it easier to place into modern facilities. SDI and HDMI cover traditional baseband workflows, while IP/LAN support helps the monitor fit into ST 2110, ST 2022-6, NMOS, Hitless Failover, and PTP-based production environments.

System Characteristics

• TRIMASTER HX technology for color accuracy, precision imaging, and picture consistency
• Maximum luminance settings include 4000, 3000, 2000, 1000, 700, 600, 500, and 400 cd/m²
• HDR-SDR conversion function with optional license support
• User 3D LUT support for custom LUT loading and comparison work
• Pixel Zoom up to 300% for detailed image checks
• Quad view display for comparing up to four custom display settings
• 4K / HD scopes with HDR / SDR scale support
• Improved reflection performance for better contrast in production rooms
• Copy function for monitor setup and matching to additional units

What’s In The Box

• 1 x SONY 31.1 INCH 4K HDR REFERENCE MONITOR
