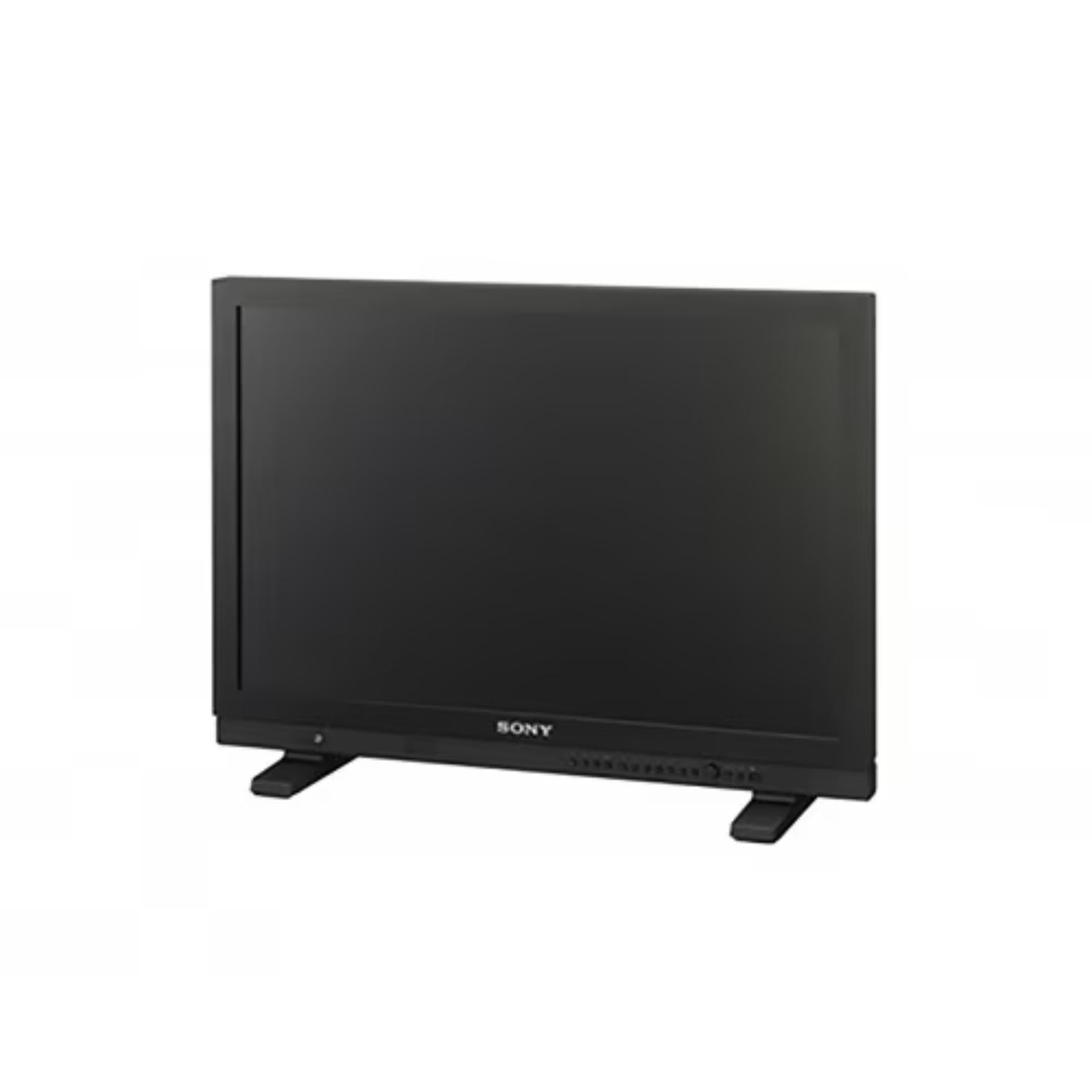

SONY 24" Professional Video Monitor

SONY 24" Professional Video Monitor is a lightweight 24-inch high-grade LCD monitor designed for studio and field production use. It uses an a-Si TFT active matrix LCD panel with 1920 x 1200 WUXGA resolution, a 16:10 aspect ratio, and a 24-inch diagonal picture size.

For broadcast crews, this monitor is useful when you need a dependable production display that can handle SDI, HDMI, composite, network control, tally, scopes, audio metering, and field-friendly power options. It fits well in control rooms, OB trucks, camera shading positions, edit areas, and mobile production kits.

Highlights

• 24-inch professional LCD monitor for studio and field workflows
• 1920 x 1200 WUXGA resolution with 16:10 aspect ratio
• 3G / HD / SD-SDI, HDMI, and composite input support
• Waveform, vectorscope, and audio level meter display
• False color, focus assist, markers, flip, and time code display
• On-screen tally with red, green, and yellow display
• AC or DC power operation for studio and mobile use

Quick Specs & Uses

• Product type: 24-inch professional video monitor
• Panel: a-Si TFT active matrix LCD
• Picture size: 611.3 mm / 24 inches
• Effective picture size: 518.4 x 324.0 mm / 20 1/2 x 12 7/8 inches
• Resolution: 1920 x 1200 pixels
• Aspect: 16:10
• Display colors: Approx. 1.073 million colors
• Pixel efficiency: 99.99%
• Normal scan: 0% scan

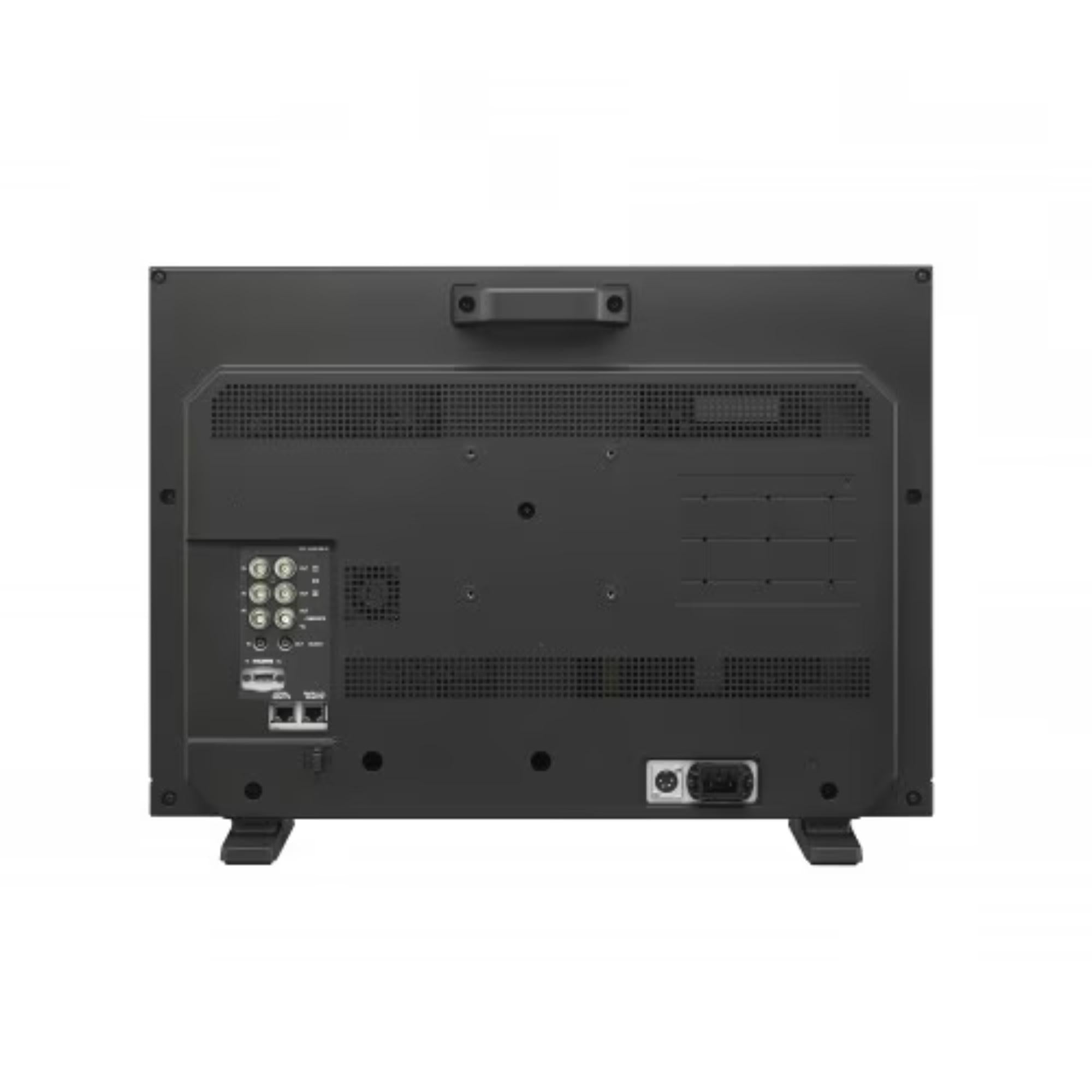

• SDI input: BNC x2
• SDI output: BNC x2, 800 mVp-p ±10%, 75 Ω unbalanced
• HDMI input: HDMI x1 with HDCP support
• Composite input: BNC x1
• Composite output: BNC x1 loop-through with 75 Ω automatic terminal function
• Audio input: Stereo mini jack x1, -5 dBu, 47 kΩ or higher
• Audio monitor output: Stereo mini jack x1
• Headphone output: Stereo mini jack x1
• Built-in speaker: 1.0 W monaural
• Parallel remote: RJ-45 modular connector 8-pin x1, pin-assignable
• Serial remote / LAN: RJ-45 x1, Ethernet 10BASE-T / 100BASE-TX
• DC input: XLR-type 4-pin male x1, DC 12 V to 17 V
• Power requirements: AC 100 V to 240 V, 50 / 60 Hz; DC 12 V to 17 V
• Power consumption: Approx. 51 W max; approx. 45 W average default status
• Dimensions without feet: 566.6 x 397.8 x 64.4 mm
• Dimensions with feet: 566.6 x 420.3 x 165.0 mm
• Mass: Approx. 7.6 kg / 16 lb 12 oz with monitor feet
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Storage / transport temperature: -20°C to +60°C / -4°F to +140°F
• Optional accessory: SU-561 Monitor Stand

Why It Helps

This monitor is practical for crews who need more than a basic display. In a studio or field setup, it gives operators confidence with built-in tools such as waveform, vectorscope, audio level meters, false color, focus assist, safety markers, time code display, and on-screen tally.

The input section is also production-friendly. SDI, HDMI, composite, LAN, and remote control options make it easier to drop into older baseband systems, newer camera chains, field carts, or rack-based monitoring positions without adding extra conversion boxes.

For rental and mobile work, the AC and DC power options are useful. The monitor can run from standard AC power in a control room or from DC 12 V to 17 V in a field environment, which keeps setup flexible when power conditions change from job to job.

System Characteristics

• High dynamic range support for supported HDR EOTF workflows
• Wide color gamut support including ITU-R BT.2020, DCI-P3, S-Gamut / S-Gamut3 / S-Gamut3.Cine, sRGB, and Adobe RGB
• False color display for quick exposure level checking
• Camera focus function with sharpened edge display for focus confirmation
• Waveform and vectorscope display for signal monitoring and color balance checks
• Audio level meter display for embedded SDI or HDMI audio monitoring
• Network control for Ethernet-based setup and software updates
• Multiple monitor upgrade utility for managing units on the same network
• Flexible area marker, grid display, center marker, and flip functions

What’s In The Box

• 1 x SONY 24" Professional Video Monitor
• 1 x AC power cord
• 1 x AC plug holder
• 1 x Before Using This Unit
