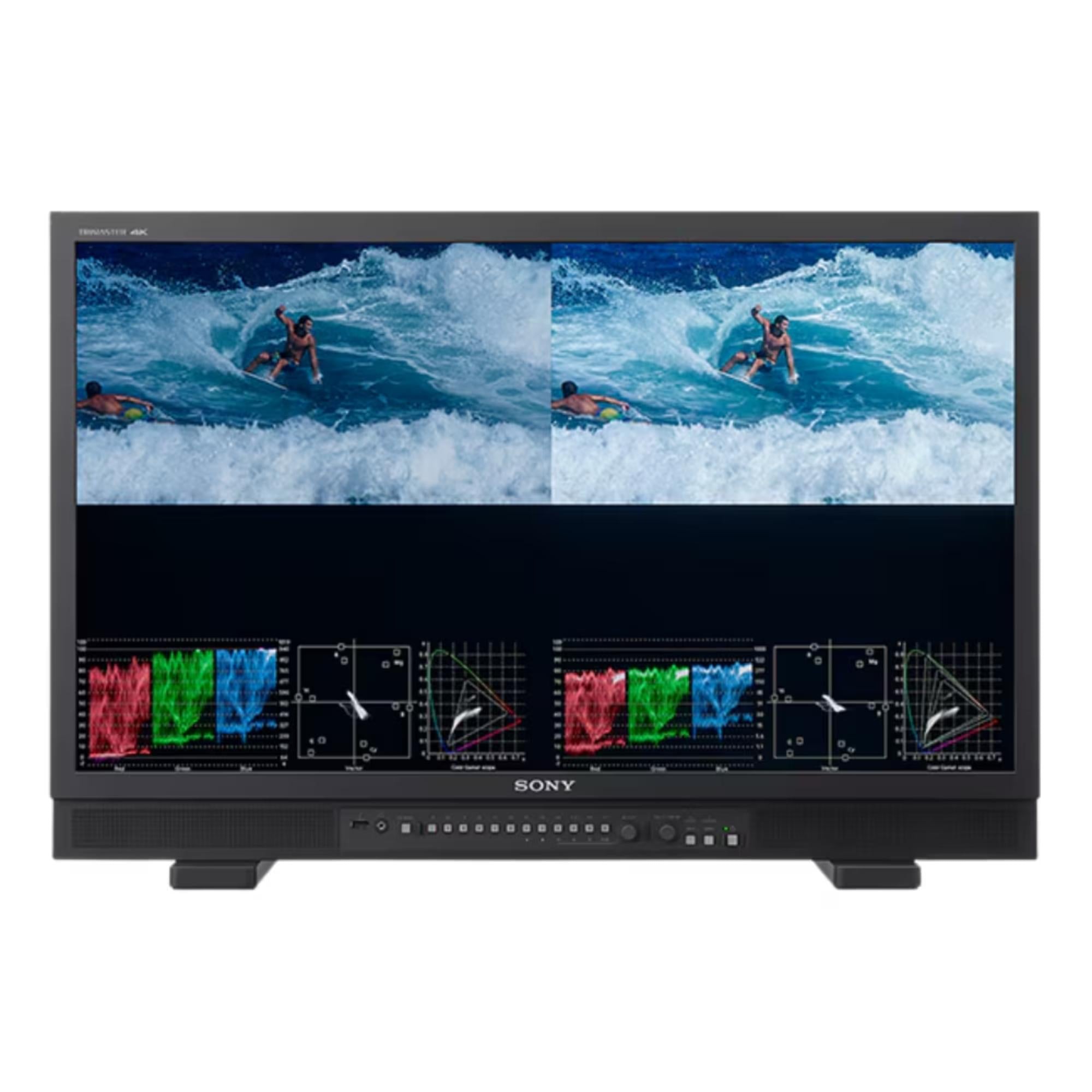

SONY 24" Professional 4K HDR Monitor

SONY 24" Professional 4K HDR Monitor is a compact high-grade 4K HDR picture monitor made for professional studio, field, rack, truck, and production monitoring. It uses a 24-inch α-Si TFT active matrix LCD panel with 3840 x 2160 resolution, 1,000 cd/m² typical luminance, and color matching designed for Sony BVM-HX310-based HDR workflows.

For broadcast engineers, the PVM-X2400 is useful when a facility needs accurate 4K HDR monitoring in a smaller footprint than a 32-inch display. It supports 12G-SDI, quad-link 3G-SDI, HDMI, HDR / SDR monitoring, scopes, User 3D LUTs, Quad View, LAN remote, USB setup, and DC operation for field use.

Highlights

• 24-inch 4K HDR professional monitor for studio and field workflows
• 3840 x 2160 resolution with 1,000 cd/m² typical luminance
• TRIMASTER architecture for accurate color and consistent image quality
• Color matching with Sony BVM-HX310 for 4K HDR production monitoring
• 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, HDMI, LAN, USB, and DC input
• Waveform, vectorscope, audio meter, Quad View, and User 3D LUT support
• Dynamic Contrast Drive with Black Detail High / Mid / Low

Quick Specs & Uses

• Product type: 24-inch professional 4K HDR monitor
• Panel: α-Si TFT active matrix LCD
• Picture size: 610.0 mm / 24 inches
• Effective picture size: 531.6 x 299.1 mm / 21 x 11 7/8 in
• Resolution: 3840 x 2160 pixels
• Aspect: 16:9
• Luminance: 1,000 cd/m² typical
• Display colors: Approx. 1.07 billion colors
• Viewing angle: 89° / 89° / 89° / 89° up / down / left / right
• Panel frame rate: 48 Hz / 50 Hz / 60 Hz
• Color space: ITU-R BT.2020, ITU-R BT.709, DCI-P3, S-GAMUT3, S-GAMUT3.Cine
• EOTF: 2.2, 2.4, 2.6, 2.4 HDR, S-Log3, S-Log3 Live HDR, SMPTE ST 2084, ITU-R BT.2100 HLG

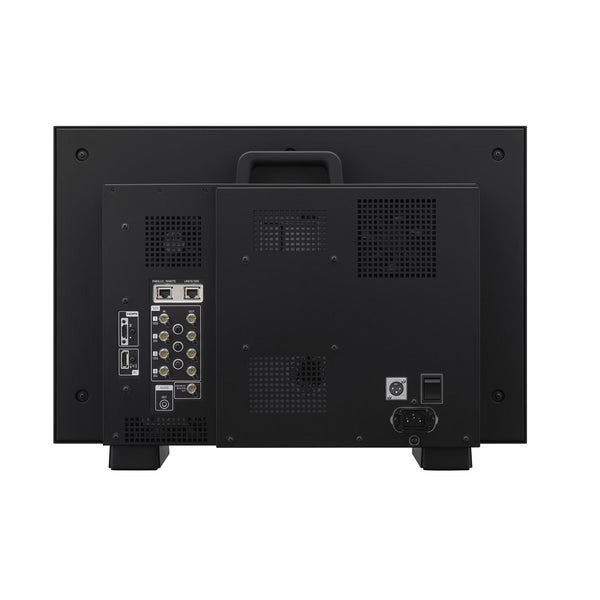

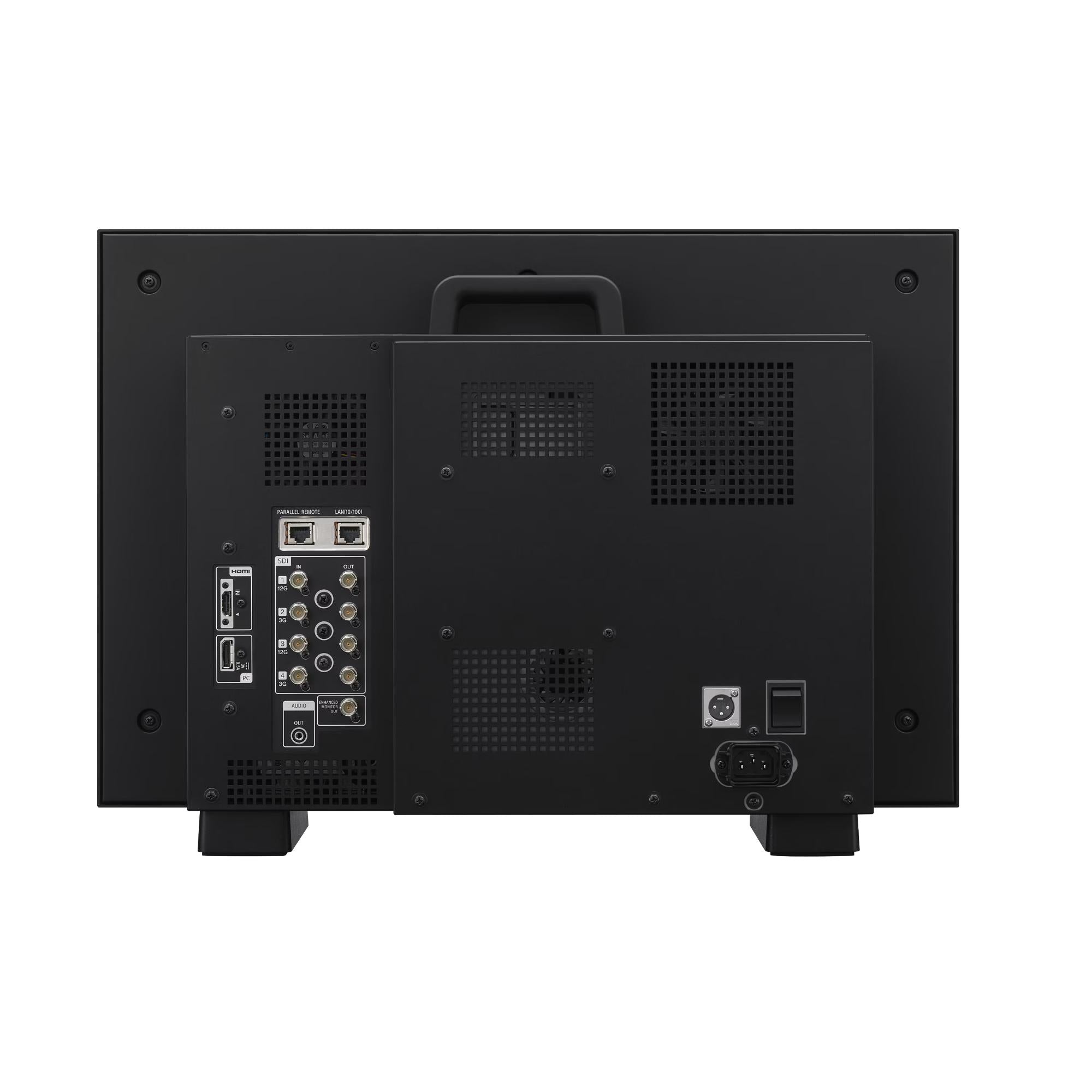

• SDI input: 12G / 6G / 3G / HD-SDI BNC x2; 3G / HD-SDI BNC x2
• HDMI input: HDMI with HDCP 2.3 / 1.4 x1
• Enhanced Monitor Output: 12G / 6G / 3G / HD-SDI BNC x1
• SDI output: 12G / 6G / 3G / HD-SDI BNC x2; 3G / HD-SDI BNC x2
• Serial remote / LAN: RJ-45 x1, 10BASE-T / 100BASE-TX
• Parallel remote: RJ-45 8-pin x1
• USB input: USB 2.0 connector x1
• DC input: XLR-type 3-pin male x1, DC 22 V to 32 V
• Built-in speakers: 2.0 W + 2.0 W stereo
• Power requirements: AC 100 V to 240 V, 50 / 60 Hz; DC 22 V to 32 V
• Power consumption: Approx. 225 W max at AC operation; approx. 205 W max at DC operation; 0.3 W off mode
• Dimensions without monitor stand: 568 x 382 x 158.5 mm / 22.36 x 15.04 x 6.24 in
• Dimensions with monitor stand: 568 x 398 x 178.5 mm / 22.36 x 15.67 x 7.03 in
• Weight: Approx. 10.5 kg / 23 lb 2.4 oz
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Storage / transport temperature: -20°C to +60°C / -4°F to +140°F
• Optional accessories: PVMK-RX24 Rack-mounting Bracket, PVMK-PX24 Protection Panel, BKM-17R

Why It Helps

The PVM-X2400 is a strong fit when the team needs 4K HDR confidence monitoring but does not have room for a larger display. Its 24-inch size works well in OB trucks, field carts, edit rooms, rack positions, and production areas where space is tight but picture accuracy still matters.

The monitor supports both modern and traditional signal paths. 12G-SDI helps simplify 4K cabling, quad-link 3G-SDI keeps compatibility with older systems, and HDMI is useful for cameras, multiviewers, rasterizers, PCs, and playback devices.

Built-in tools such as waveform, vectorscope, Quad View, User 3D LUTs, Dynamic Contrast Drive, and Black Detail modes help engineers check exposure, signal level, color, HDR behavior, and shadow detail directly from the monitor.

System Characteristics

• TRIMASTER processing for accurate color reproduction and consistent picture quality
• HDR-to-SDR conversion support with optional PVML-HSX1 license and supported firmware
• User 3D LUT loading through the front USB port with .cube file support
• SR Live metadata support for matching monitor settings to incoming signals
• Dynamic Contrast Drive for balancing highlight and low-light detail
• Black Detail High / Mid / Low for checking dark low-APL images
• Waveform, vectorscope, gamut error, and audio level meter display
• Quad View display with independent settings for each view
• Yoke-mount, wall-mount, rack-mount, and field installation support

What’s In The Box

• 1 x SONY 24" Professional 4K HDR Monitor
