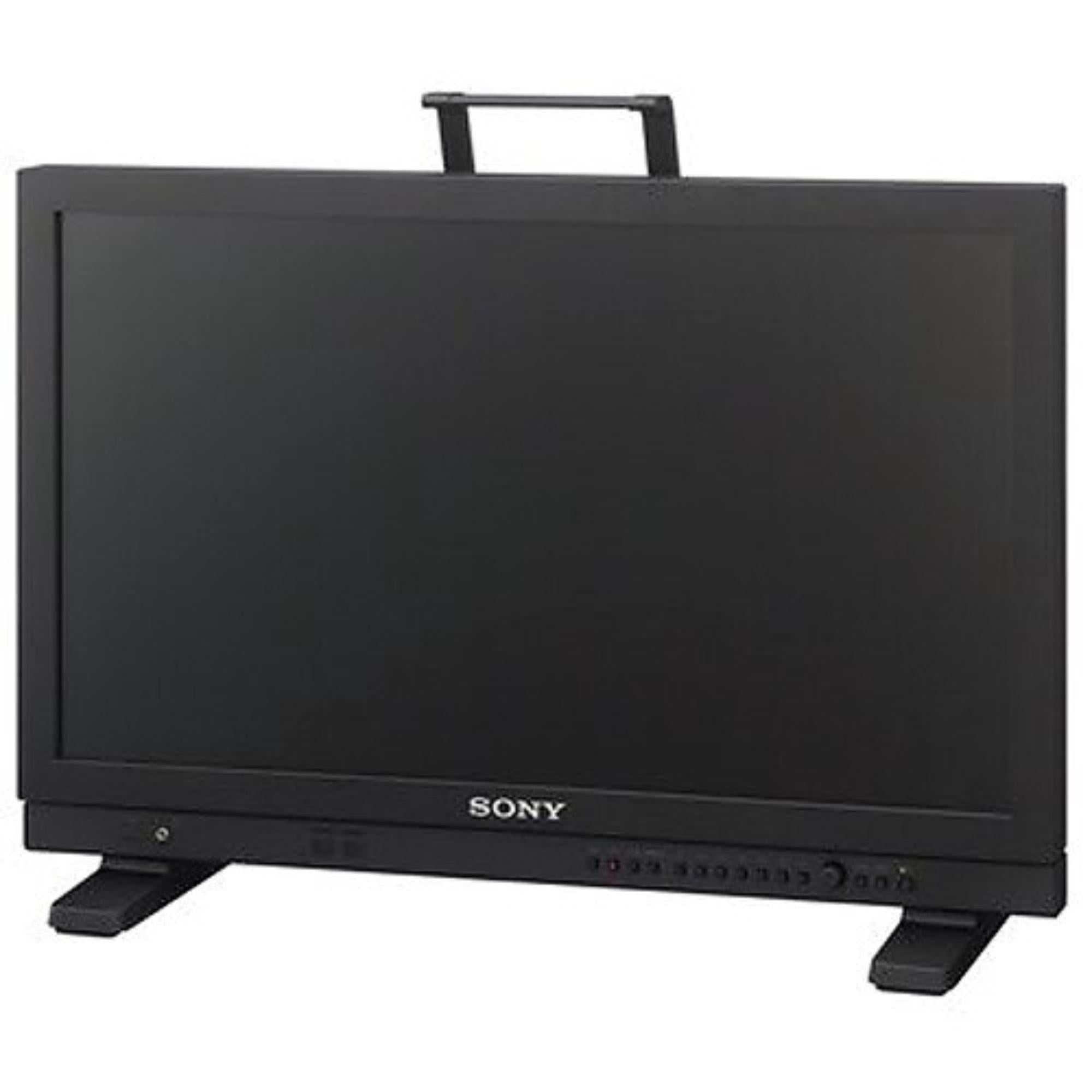

SONY 22" Professional Video Monitor

SONY 22" Professional Video Monitor is a compact Full HD monitor designed for studio, field, and production monitoring workflows. It uses an a-Si TFT active matrix LCD panel with 1920 x 1080 resolution, 16:9 aspect ratio, and wide viewing performance for control rooms, OB setups, rack positions, and mobile production carts.

For broadcast crews, this monitor is useful when the job needs more than a simple picture display. It gives operators SDI, HDMI, composite, network control, tally, scopes, audio metering, false color, focus assist, markers, and AC/DC power support in a lightweight monitor body.

Highlights

• 22-inch professional video monitor for studio and field production
• 1920 x 1080 Full HD resolution with 16:9 aspect ratio
• 3G / HD / SD-SDI, HDMI, and composite input support
• Waveform, vectorscope, and audio level meter display
• False color, focus assist, markers, flip, and time code display
• Red, green, and yellow on-screen tally
• AC and DC power operation for studio or field use

Quick Specs & Uses

• Product type: 22-inch professional video monitor
• Panel: a-Si TFT active matrix LCD
• Picture size: 546.1 mm / 21.5 inches
• Effective picture size: 476.1 x 267.8 mm / 18 3/4 x 10 5/8 inches
• Resolution: 1920 x 1080 pixels, Full HD
• Aspect: 16:9
• Display colors: Approx. 16.7 million colors
• Viewing angle: 89° / 89° / 89° / 89° typical, up / down / left / right
• Pixel efficiency: 99.99%
• Normal scan: 0% scan
• SDI input: BNC x2
• SDI output: BNC x2, 800 mVp-p ±10%, 75 Ω unbalanced
• HDMI input: HDMI x1 with HDCP support
• Composite input: BNC x1, 1 Vp-p ±3 dB, sync negative
• Composite output: BNC x1 loop-through with 75 Ω automatic terminal function
• Audio input: Stereo mini jack x1, -5 dBu, 47 kΩ or higher
• Audio monitor output: Stereo mini jack x1
• Headphone output: Stereo mini jack x1
• Built-in speaker: 1.0 W monaural
• Parallel remote: RJ-45 modular connector 8-pin x1, pin-assignable
• Serial remote / LAN: RJ-45 x1, Ethernet 10BASE-T / 100BASE-TX
• DC input: XLR-type 4-pin male x1, DC 12 V to 17 V
• Power requirements: AC 100 V to 240 V, 50 / 60 Hz; DC 12 V to 17 V
• Power consumption: Approx. 47 W max; approx. 43 W average default status
• Dimensions without monitor feet: 517.8 x 338.0 x 67.2 mm / 20 1/2 x 13 3/8 x 2 3/4 in
• Dimensions with monitor feet: 517.8 x 360.5 x 165.0 mm / 20 1/2 x 14 1/4 x 6 1/2 in
• Weight: Approx. 5.9 kg / 13 lb with monitor feet
• Operating temperature: 0°C to 35°C / 32°F to 95°F
• Storage / transport temperature: -20°C to +60°C / -4°F to +140°F
• Optional accessories: SU-561 Monitor Stand, MB-L22

Why It Helps

The 22-inch size is a good fit when space is limited but the operator still needs proper production tools. It can work on a monitor wall, field cart, rack setup, camera assist station, or small control-room position without taking up the footprint of a larger display.

The built-in waveform, vectorscope, and audio level meter help operators check signal condition directly on the monitor. False color and focus assist are also useful during camera setup, especially when judging exposure and focus quickly during live production.

AC and DC power support make the monitor practical for mixed environments. It can stay in a studio rack during the week, then move into a field or rental setup where DC 12 V to 17 V power is more convenient.

System Characteristics

• Optimized low-latency I/P conversion for live production monitoring
• Picture & Picture function for viewing two input signals on screen
• Waveform and vectorscope display for signal and color checks
• Audio level meter display for embedded SDI or HDMI audio monitoring
• False color function for exposure level confirmation
• Camera focus function with sharpened edge display
• Flexible markers, grid display, center markers, and flip functions
• Network control for Ethernet-based software updates and multi-monitor management
• Detachable handle for portable applications and easier installation

What’s In The Box

• 1 x SONY 22" Professional Video Monitor
• 1 x AC power cord
• 1 x AC plug holder
• 1 x Handle, including 4 screws
• 1 x Before Using This Unit
