SlingStudio Mobile Production Bundle Kit

The SlingStudio Mobile Production Bundle Kit is a complete production kit includes all the accessories for SlingStudio Wireless Multi-Camera Live Production so you can start making your own wireless multi-camera video streaming and recording events right out of the box.

This Production Kit includes:

• SlingStudio Base Hub
• SlingStudio CameraLink
• SlingStudio Battery
• SlingStudio Backpack.
• Anker 5-in-1 USB-C Ethernet Hub

Full information on each individual items included, check out the product description below.

SlingStudio Base Hub

SlingStudio Hub is a Portable, Wireless Live Multi Camera switcher, recorder and streaming. The switcher allows you can connect a up to 10 professional cameras, camcorders, SlingStudio CameraLink and smartphone with its video-grade 802.11ac wireless technology transmit video signal up tp 300 feet of distance. Just under 3 lbs, this unit also has HDMI Input Type A connector support resolution up to 1080p30. SlingStudio HUB can record resolution up to 1080p60 up to 30 Mbps. With Console app running on iPad Air 2 or above you can configure your streaming server in the touch of a button and you are broadcasting your live-switched, multi-camera SlingStudio production to Facebook, YouTube and other sites in HD. SlingStudio allow user simultaneous recording seven video channels into SD UHS or External USB 3.0 hard drives.

Switching between different sources to create a live cut/program stream.

Video transitions supported: cut, dissolve, and wipe.

Live broadcasting to Facebook and YouTube.

New Console App Features

Chroma Key
Use chroma key (green screen) in your productions, including using live video sources as backgrounds.

Motion Graphics
Import your own motion graphic overlays using chroma keying and use for animated lower thirds, logos, etc.

Auto-Switching
Switch between video sources automatically using custom time intervals or voice-activated switching.

Video Conferencing / Low-Delay Mode
Special low-delay mode optimized for teleconferencing with a remote location.

Plus many other enhancements including...
Ability to reorder video sources, ability to live stream without a storage device (SD/USB) when not recording, instant replay intervals increased up to 10 minutes, additional PIP positioning options, and more.

Wireless Video Inputs

With SlingStudio Capture App, you can use your iPhone 6* or higher or Android Phones with Android 5.0 Lollipop or higher.

HDMI Input

Video: HDMI Type A connector - 1080i60, 1080p30, 720p60 and 720p30

Audio: 2-channel embedded audio (48 KHz, 16-bit)

HDMI Output

HDMI Type C connector supporting up to 1080p60 video output of program/quad view. Zero-latency option available in HDMI passthrough mode for an HDMI input source

AV Sources Supported

Up to 10 connected sources and 4 monitored sources* in 1080p30/720p60/720p30 modes. Some example combinations include:

• 2 smartphones, 1 CameraLink, 1 HDMI input
• 3 smartphones, 1 HDMI input
• 3 cameras/camcorder via CameraLink, 1 HDMI input
• 4 cameras/camcorder via CameraLink
• 4 smartphones

Up to 2 monitored sources.* Some example combinations include:

• 2 cameras/camcorder via CameraLink
• 2 smartphones
• 1 camera/camcorder via CameraLink, 1 smartphone

Video Recording Formats (MP4)

• H.264 High Profile 4:2:0 support up to 1080p60 up to 30 Mbps

Multi-Stream Recording (MP4) ISO

• Record up to 7 simultaneous recordings

SlingStudio Console App (free for iPad Air 2 or higher)

Monitoring of all input sources

Recording:

• Recording of all input sources, program stream, quad-view composite stream, and line-in audio

• Playback of all recordings

• Recordings are time-align-optimized for post-production workflow in Adobe Premiere Pro CC and Apple Final Cut Pro X

Editing:

• Lower-third overlay

• Text overlay

• Multiple compositions (split view, PIP)

• Saving compositions and lower-thirds

Audio mixer:

• Mutes/unmutes audio to program mix

• Always-on audio (ON) or audio follows video (AFV) for all video input sources

• Mixing audio line-in input

• Volume fader control

• Audio metering

• Audio monitoring of inputs and program mix

Dashboard:

Single location to visualize SlingStudio hotspot quality. For each connected device, the SlingStudio Hotspot Quality indicator provides real-time suggestions and troubleshooting tools for easy SlingStudio setup.

Information on your event settings within a project context (video production mode, storage left for recording, Internet upload speeds for live broadcasting, battery of each source, and battery indication for the SlingStudio Battery)

HDMI output switching between quad-view input monitoring and program monitoring

Importing to Adobe Premiere Pro CC and Apple Final Cut Pro X

Saving lower-thirds/compositions

Recording playback

Storage:

• SD card or USB hard drives/SSD drives

• Real-time information on remaining hours of storage

• Testing write speed of storage devices to validate real-time recording bit rates

• Formatting of SD cards and USB drives

Importing multimedia and graphics

SlingStudio Capture App (free for iPhone 6 or higher and Android 5.0 Lollipop or higher)

Support program tally
Auto exposure
Focus
Zoom
Audio meter
Manual focus/exposure lock support
Battery indicator
Seamless integration with the SlingStudio Console app to switch to different video
production modes and bit rates
Seamless connection to SlingStudio wirelessly. SlingStudio Hotspot Quality
indicator showing connection quality.

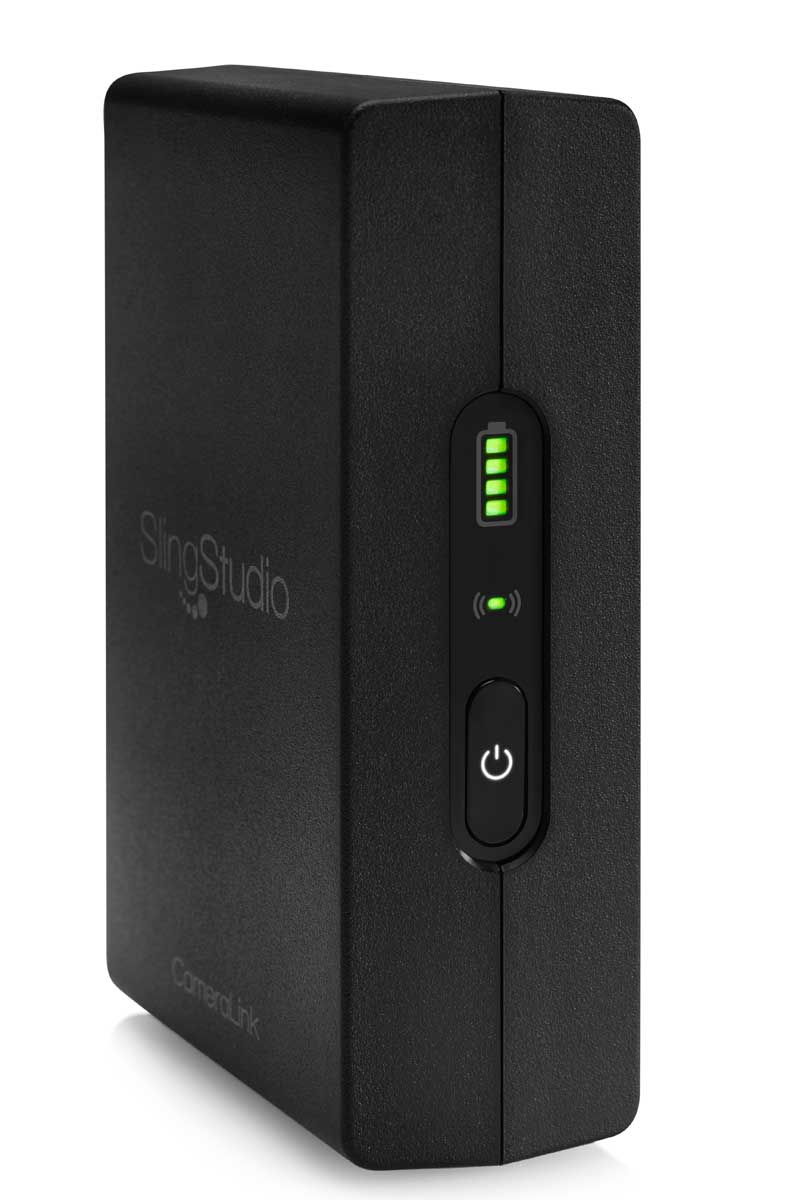

SlingStudio CameraLink

SlingStudio CameraLink is SlingStudio Hub accesorries, allow user transmit camcorder video signal wirelessly to SlingStudio Hub for swicthing, streaming or recording. This SlingStudio CameraLink features HDMI input, built-in 802.11ac Wi-Fi, rechargeable battery, Program Tally Light and support video resolution up to 1080p60 at 30 Mbps with H.264 Encoding.

Wireless

Use your supported HDMI camera or camcorder to wirelessly send video to SlingStudio from up to 300 feet away.

HDMI input

HDMI D-to-C (micro-to-mini) cable included, support resolution of 1080p60, 1080i60, 1080p30, 720p60, and 720p30 video inputs with 2-channel HDMI embedded audio.

Rechargeable Battery

Up to Two Hours of Battery Life of continuous usage and LED indicator reports the current battery capacity.

Program Tally LED

Built-in Tally Light indicates the camera is on the air.

Video Encoding

H.264 High Profile 4:2:0 with 1080p60 up to 30 Mbps

SlingStudio Battery

Place your SlingStudio Hub anywhere with SlingStudio Battery. Cut the cord and use SlingStudio Battery with up to 3 hours of usage. The seamless design allows this battery dock to the HUB right in.

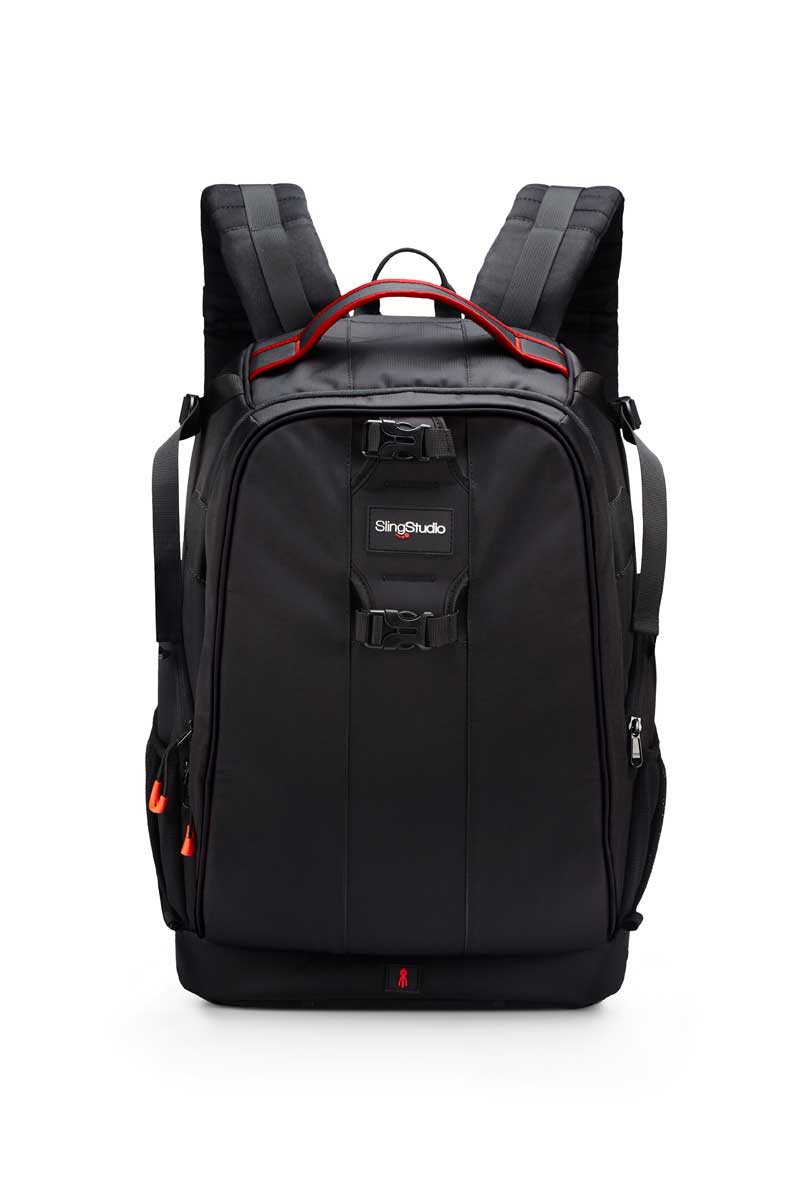

SlingStudio Backpack

Place all your SlingStudio HUB, Battery, CameraLink, USB-C Expander, Hard Drives, iPhone, iPad, Laptop and more on SlingStudio Backpack. With padded compartment, this SlingStudio Backpack is protecting your equipment from damages. This backpack has padded shoulder straps and a top carry-handle.

Anker 5-in-1 USB-C Expander Adapter

The Anker 5-in-1 USB-C Expander Adapter allows user to connect up to three USB 3.0 hard drives and a Wired Ethernet for Internet Access. This USB-C Expander for SlingStudio HUB support USB 3.0 Type A Female, user can record video or importing JPG and PNG graphics from or to the Hard Drives.

Live-broadcast your multi-camera production using a wired Ethernet connection and connect a supported USB 3.0 hard drive or SSD drive for alternative recording media.
