Roland V-80HD Direct Streaming Video Switcher

Roland V-80HD Direct Streaming Video Switcher is built for productions that need switching, streaming, recording, audio mixing, and remote control in one compact system. The source material lists 8 video channels, HDMI and SDI connectivity, USB-C streaming output, LAN support, and RTMP/RTMPS/SRT streaming protocols.

For live events, the V-80HD is useful when the operator needs to handle cameras, laptops, graphics, audio, streaming, and recording from one desk. It supports multiple HDMI and SDI sources, onboard effects, PTZ camera control, SDXC recording, and remote operation through dedicated apps and software.

Highlights

• 8-channel video switcher for live production and streaming
• HDMI, SDI, USB-C, LAN, RTMP, RTMPS, and SRT support
• USB-C plug-and-play streaming output
• SDXC card recording for event capture
• 28-channel audio mixer with effects and routing tools

Quick Specs & Uses

• Video processing: 4:2:2 Y/Pb/Pr, 8-bit
• Number of video channels: 8 channels

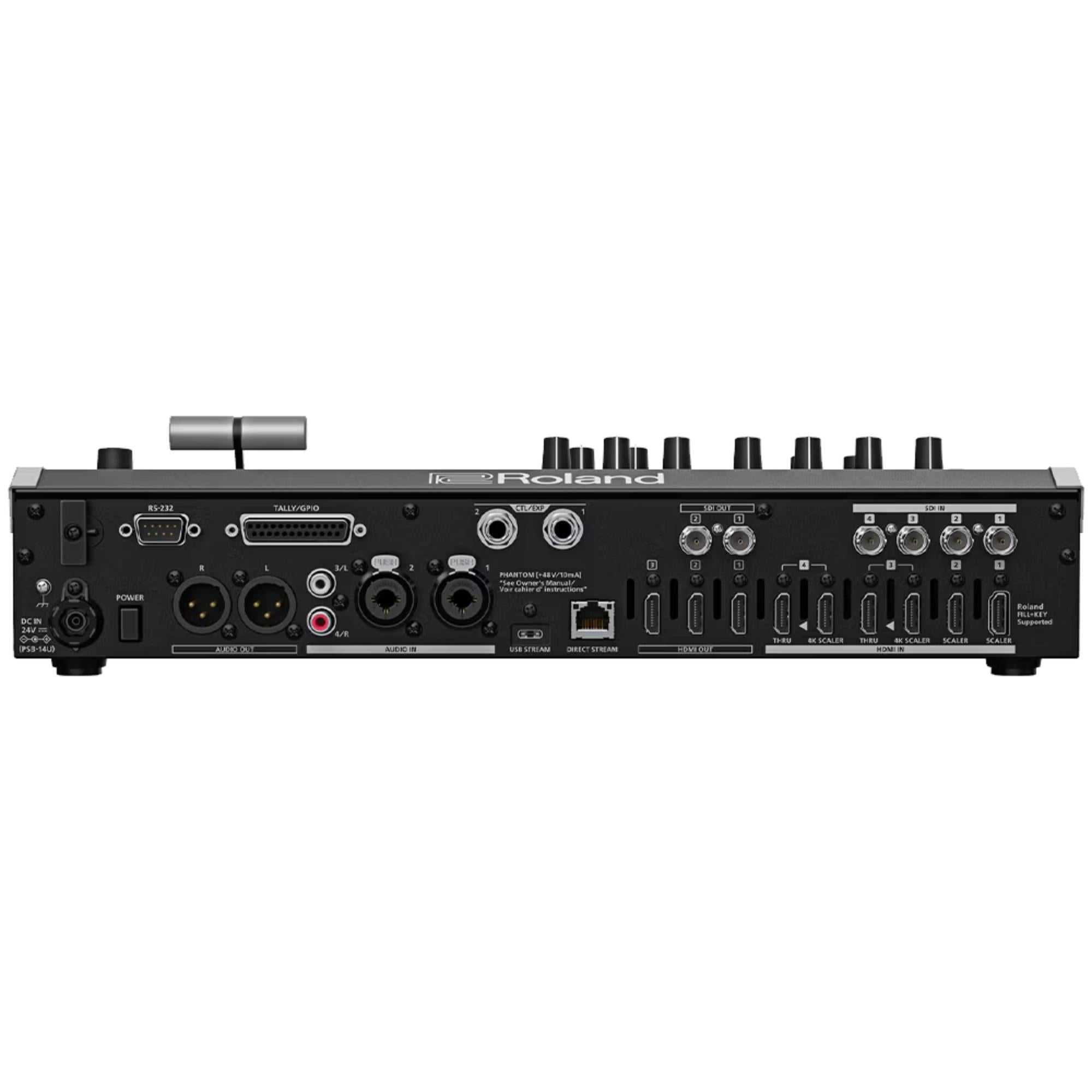

• Video inputs: HDMI type A x4, SDI BNC x4
• Video outputs: HDMI type A x3, SDI BNC x2, USB-C stream output
• Streaming protocols: RTMP, RTMPS, SRT caller/listener
• Recording format: MP4 video, WAV audio
• Audio channels: 28 channels
• Display: 4.3" TFT color LCD, 480 x 272 dots
• Power supply: AC adapter
• Power consumption: 51 W
• Dimensions: 396 x 254 x 103 mm / 15-5/8 x 10 x 4-1/16"
• Weight: 3.5 kg / 7 lb 12 oz, excluding AC adapter

Why It Helps

The V-80HD is useful when a production needs to go beyond simple camera switching. It can handle video sources, livestream delivery, audio processing, graphics workflows, recording, PTZ control, and remote operation from one central system.

That matters for teams running live events, worship services, corporate streams, education, hybrid meetings, and studio productions where space, setup time, and operator workload all matter.

System Characteristics

• Direct streaming workflow through USB-C or LAN
• SRT support for secure video transmission over IP networks
• Scene and macro control with 32 scene memories and 100 macro types
• Sequencer control with up to 1000 steps
• Remote camera control for up to 8 supported PTZ cameras

What’s In The Box

• 1 x V-80HD
• 1 x Startup Guide
• 1 x Leaflet “USING THE UNIT SAFELY”
• 1 x AC adaptor
• 1 x Power cord
