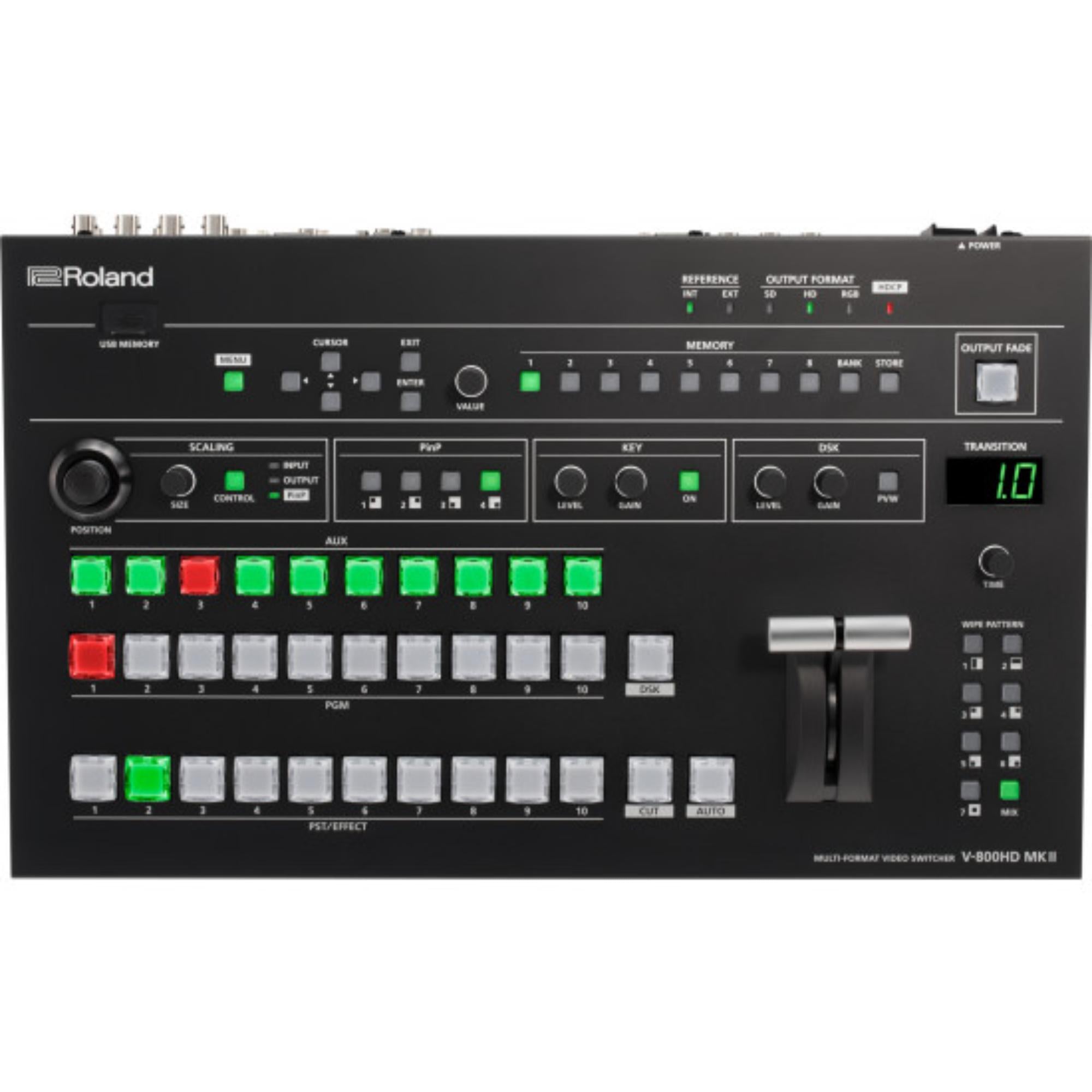

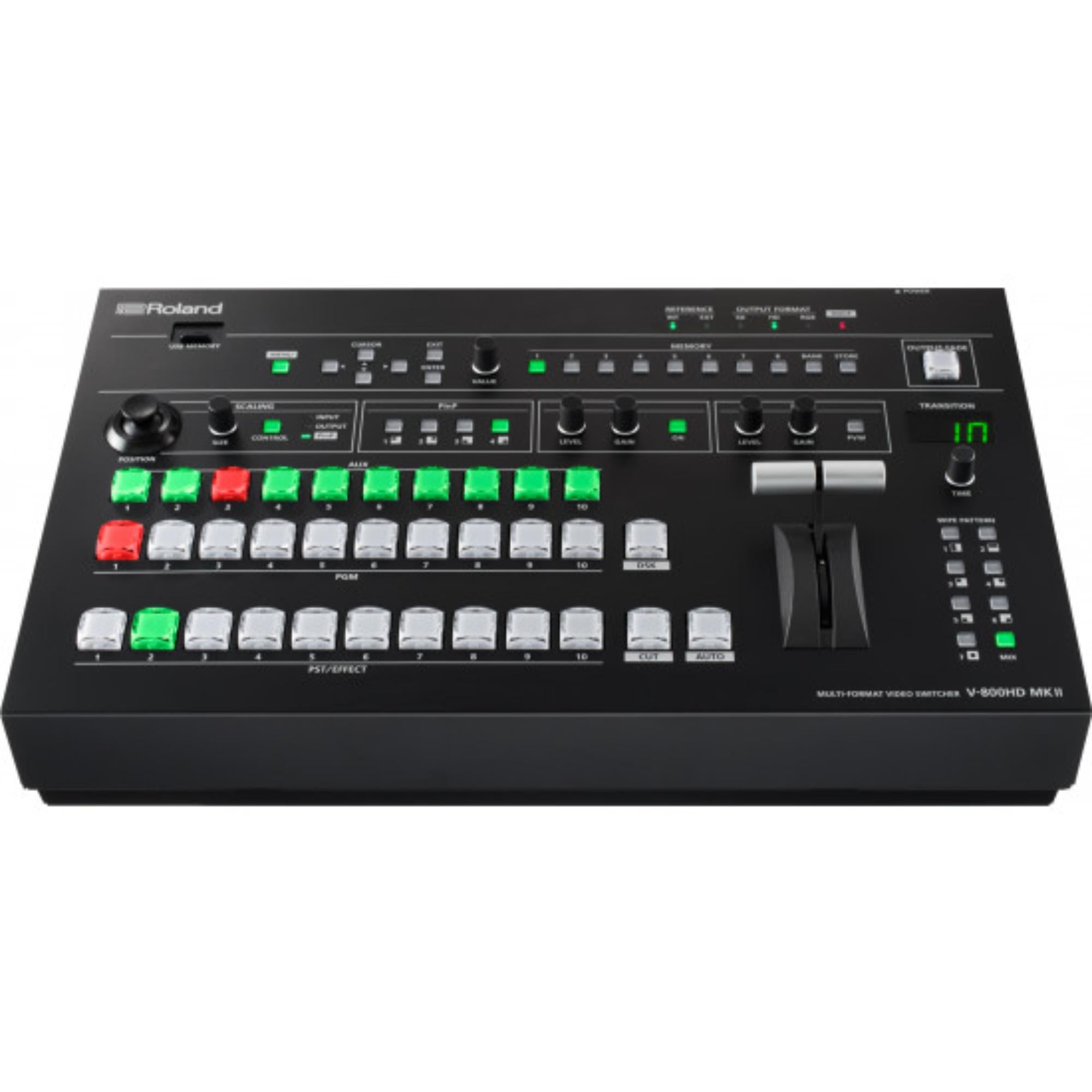

Roland V-800HD MK II Multi-format Video Switcher

Roland V-800HD MK II Multi-format Video Switcher is built for live production environments that need to handle many signal types without rebuilding the system around one format. The source material lists 16 inputs, 10 cross points, 6 outputs, dedicated multiview output, and 4:4:4 / 10-bit processing.

This switcher is useful when cameras, computers, playback devices, and legacy sources all need to land in the same workflow. With frame sync and scaling on all inputs and outputs, the V-800HD MK II can help keep mixed-resolution sources manageable during events, presentations, worship services, and staged productions.

Highlights

• 16 inputs with 10 assignable cross points
• 6 outputs with simultaneous output support
• Dedicated multiview monitor output
• 4:4:4 / 10-bit internal video processing
• Frame sync and scaler on all inputs and outputs

Quick Specs & Uses

• Video processing: 4:4:4 Y/Pb/Pr, RGB, 10-bit

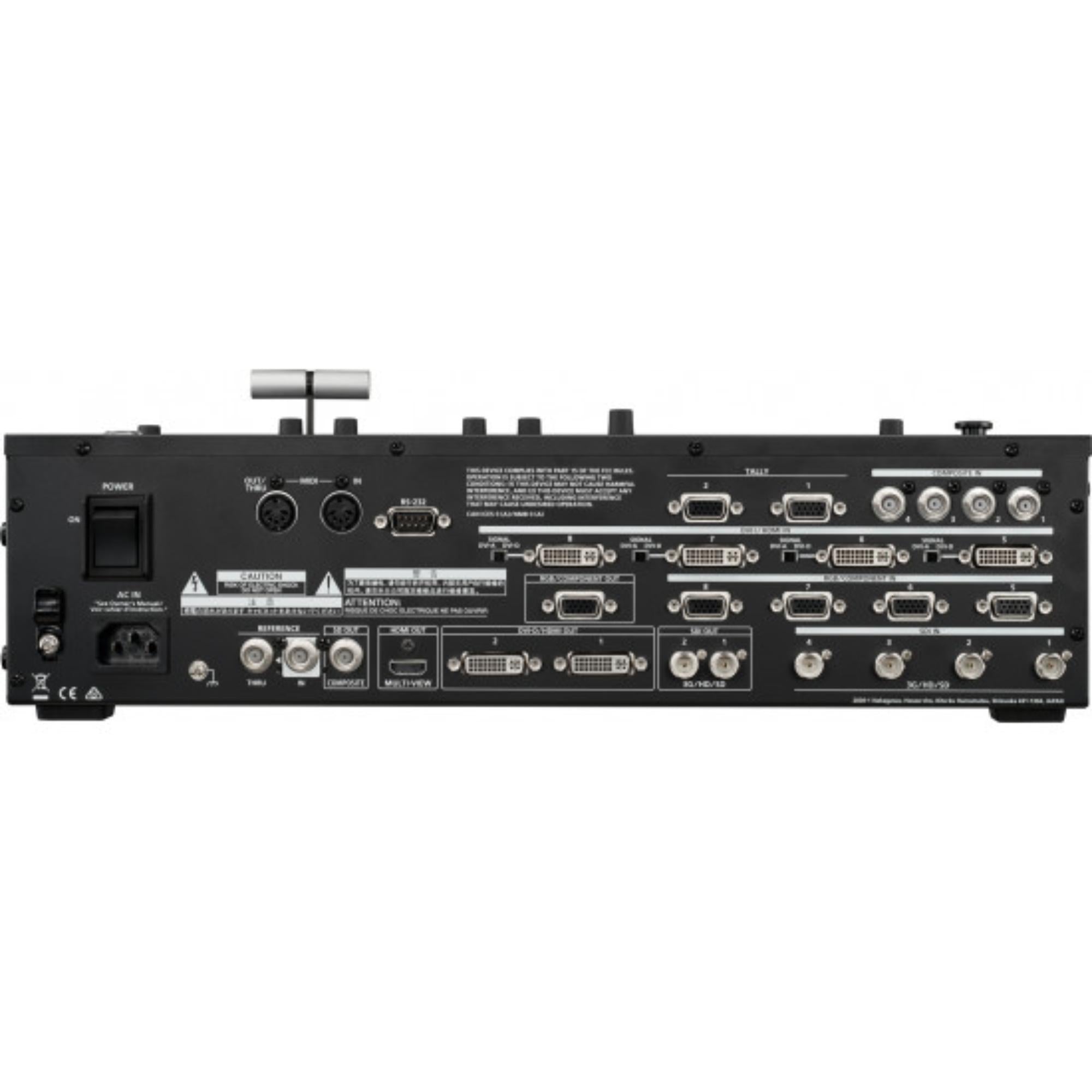

• Input formats: 3G/HD/SD-SDI, DVI-D/HDMI, analog video, composite, RGB
• Output formats: 3G/HD/SD-SDI, DVI-D/HDMI, analog video, composite, RGB
• Supported video: 1080p, 1080i, 720p, 576i/50, 480i/59.94
• Effects: Mix, cut, wipe, PinP, DSK, chroma key, luminance key, external key, output fade, output freeze
• Power supply: AC 115V, 117V, 220V, 230V, 240V, 50/60 Hz
• Dimensions: 482 x 275 x 116 mm / 19 x 10-7/8 x 4-5/8"
• Weight: 5.5 kg / 12 lb 3 oz

Why It Helps

In real live production, not every source arrives in the same format. One input may be SDI from a camera, another may be HDMI from a laptop, and another may be legacy analog. The V-800HD MK II is designed to bring those sources into one switcher and scale them as needed.

The multiview output is especially useful for operators because it gives one screen for checking source status, preview, and program monitoring. That keeps the switcher easier to manage during fast live changes.

System Characteristics

• Multi-format switching for mixed digital and analog source environments
• AUX bus switching for sending sources to secondary destinations
• HDCP mode support with panel status indication
• Still image support with two active still images from sixteen still memories
• MIDI control support for linking with compatible Roland video systems

What’s In The Box

• 1 x Roland V-800HD MK II Multi-format Video Switcher
• 1 x Owner's Manual
• 1 x Power cord
• 1 x Rack-mount angle x2
