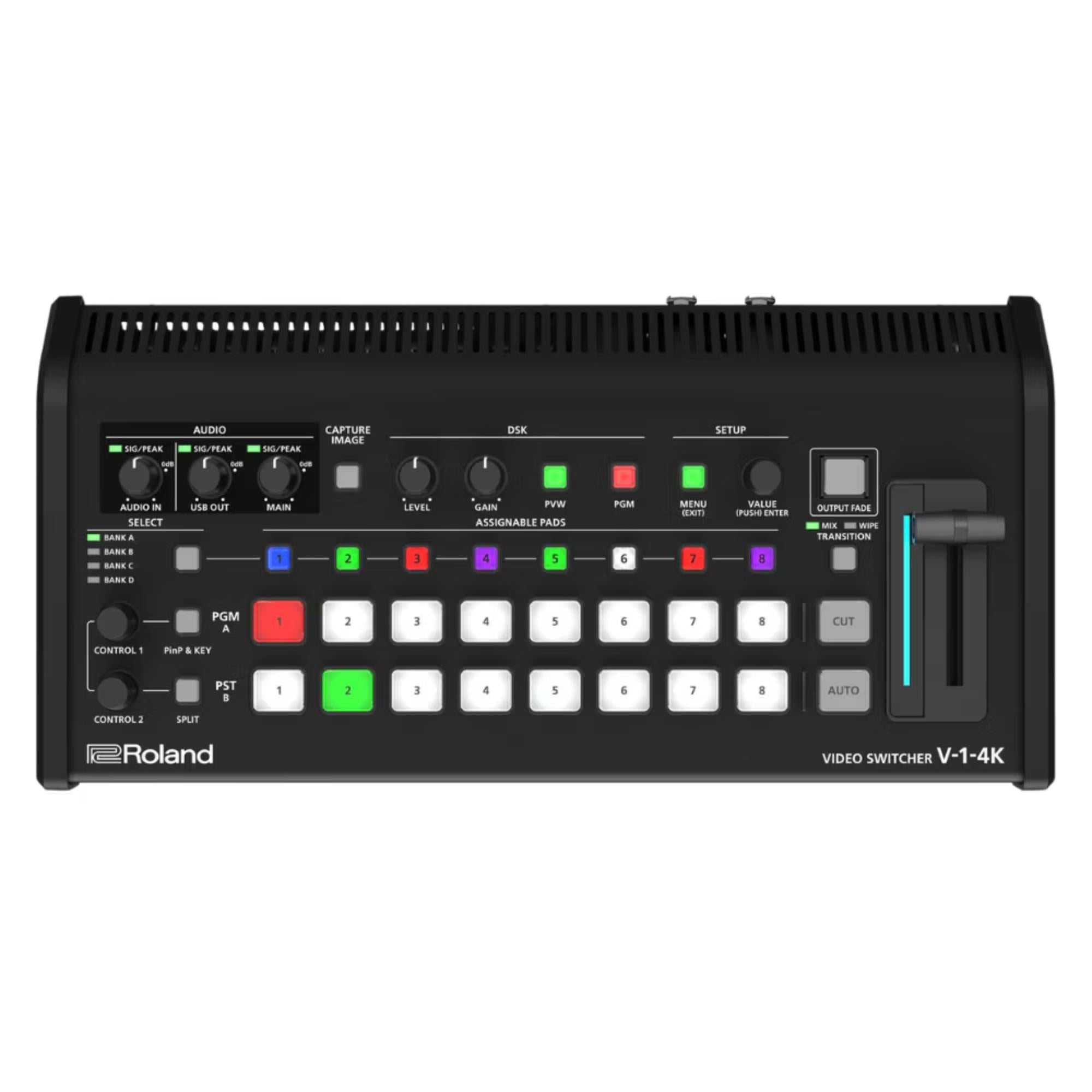

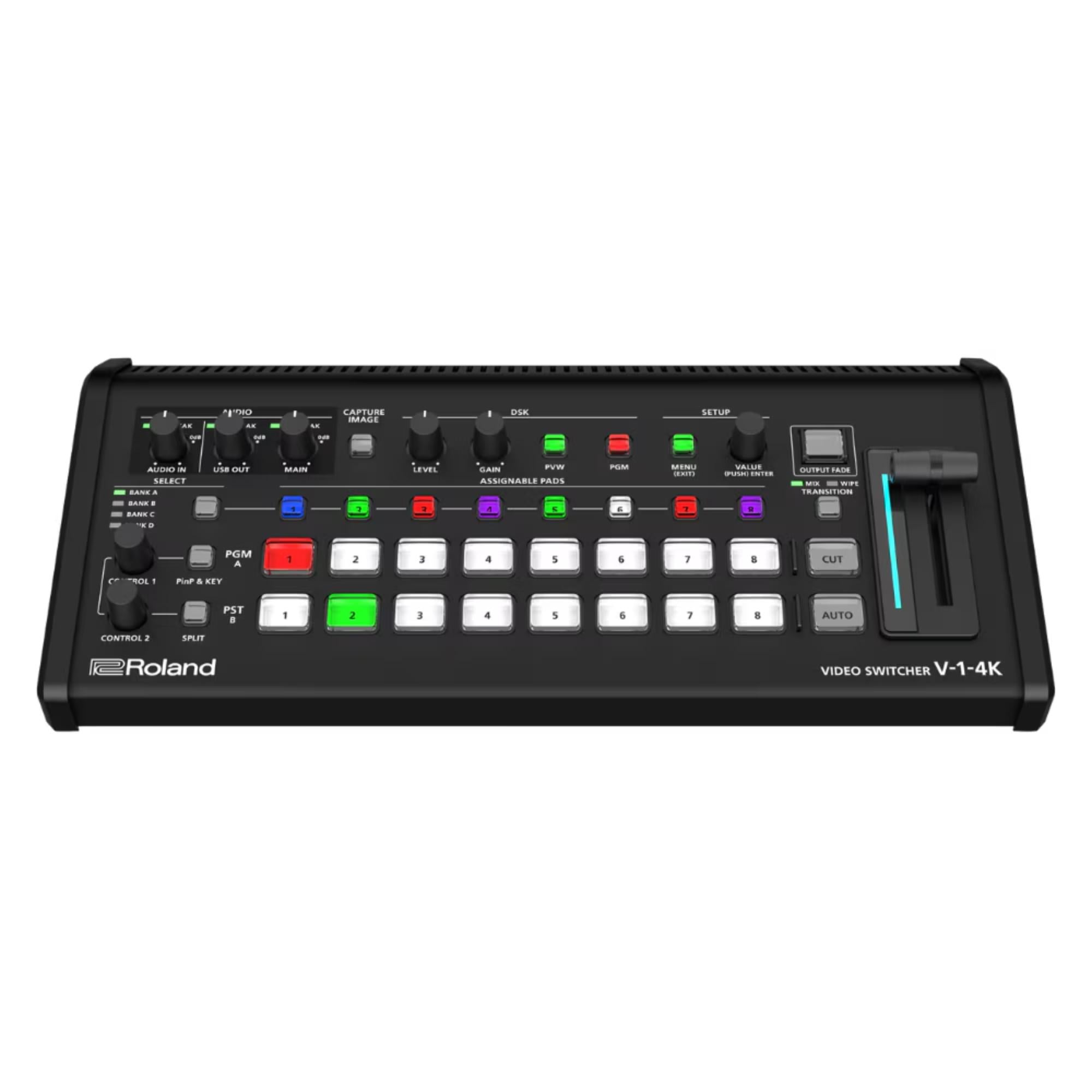

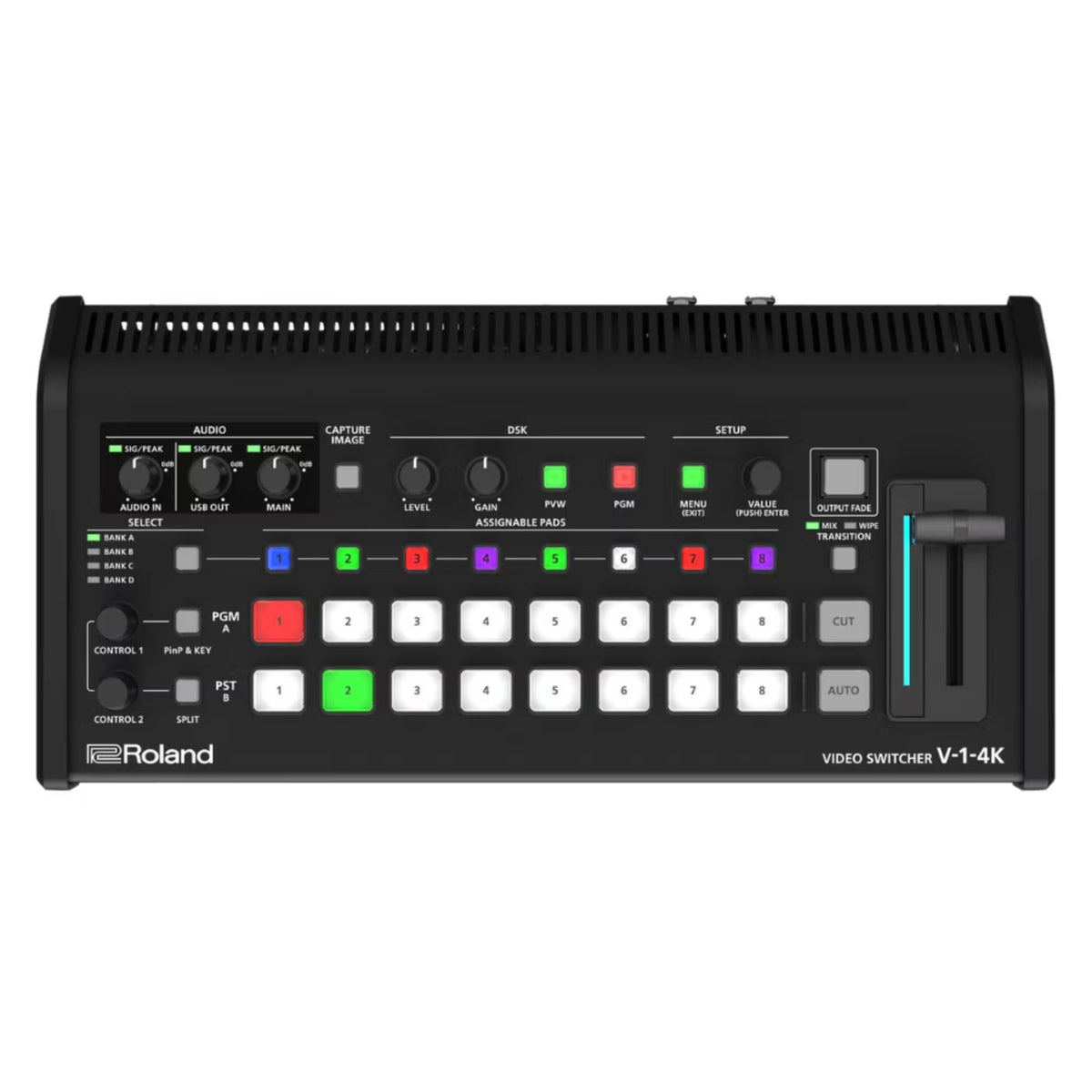

Roland V-1-4K Video Switcher

Roland V-1-4K Video Switcher is a compact all-in-one 4K video switcher built for live events, livestreaming, studio production, and small venue workflows. The source material lists 5 HDMI inputs, 5 outputs, USB streaming output, and support for up to 4K60p processing.

For small production teams, the V-1-4K is useful when different HDMI sources need to be switched, scaled, streamed, and routed without adding extra format converters. It supports HD and 4K sources, output bus assignment, ROI cropping, graphics software workflows, and simple operation in the style of Roland’s V-1 series.

Highlights

• 5-channel HDMI video switcher
• Up to 4K60p video processing with HDR support
• 5 outputs including USB streaming output
• Input scalers for mixed HD and 4K source formats
• ROI feature for creating multiple shots from one 4K source

Quick Specs & Uses

• Video processing: 4:2:2 Y/Pb/Pr, 8-bit
• Number of video channels: 5 channels

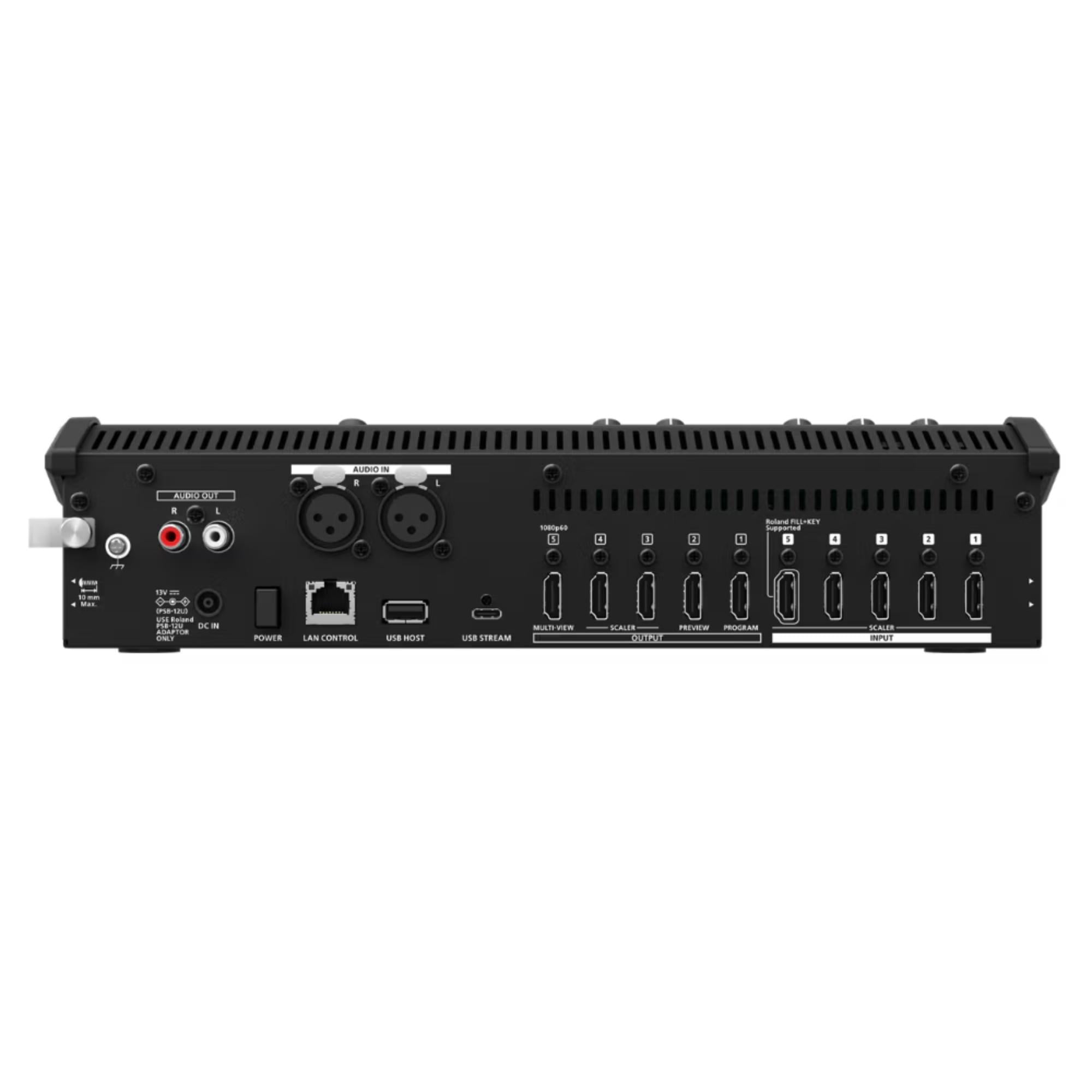

• Video inputs: HDMI type A x5
• Video outputs: HDMI type A x4, USB-C streaming output
• Input support: 720p, 1080i, 1080p, 2160p, and computer resolutions including UXGA, WUXGA, and WQHD
• Audio channels: 14 channels
• Power supply: AC adapter
• Power consumption: 52 W
• Dimensions: 330 x 164 x 79 mm / 13 x 6-1/2 x 3-1/8"
• Weight: 1.9 kg / 4 lb 4 oz, excluding AC adapter

Why It Helps

The V-1-4K is practical when a production needs 4K switching but does not have space for a large switcher. It gives operators HDMI input scaling, flexible output routing, USB streaming, and built-in effects in a compact desktop format.

The ROI feature is especially useful for simple productions. A single 4K camera source can be cropped into different shots, helping create more angles without adding more cameras.

System Characteristics

• 4K/HD HDMI workflow for live events, streaming, and studio production
• Output flexibility with PGM, preview, multiview, and assignable outputs
• Video effects: cut, mix, dissolve, wipe, split, PinP, keyer, DSK, still image capture/playback, output fade, and test pattern output
• Audio processing: high-pass filter, noise gate, compressor, EQ, delay, auto mixing, master effects, and output fade
• Remote control support through LAN control, USB remote, and compatible software workflows

What’s In The Box

• 1 x Roland V-1-4K Video Switcher
• 1 x Startup Guide
• 1 x Leaflet Guide
• 1 x AC Adapter
• 1 x Power Cord
