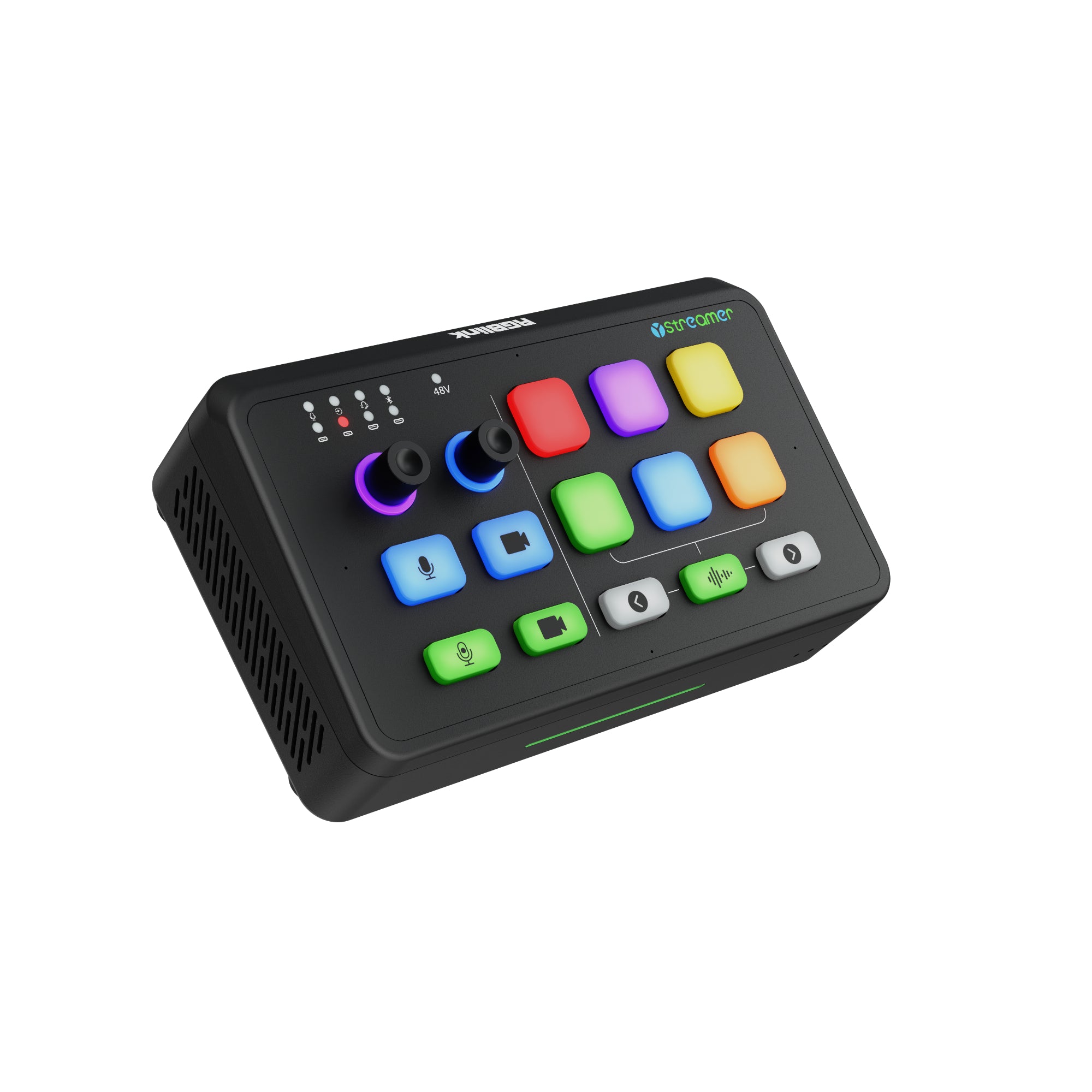

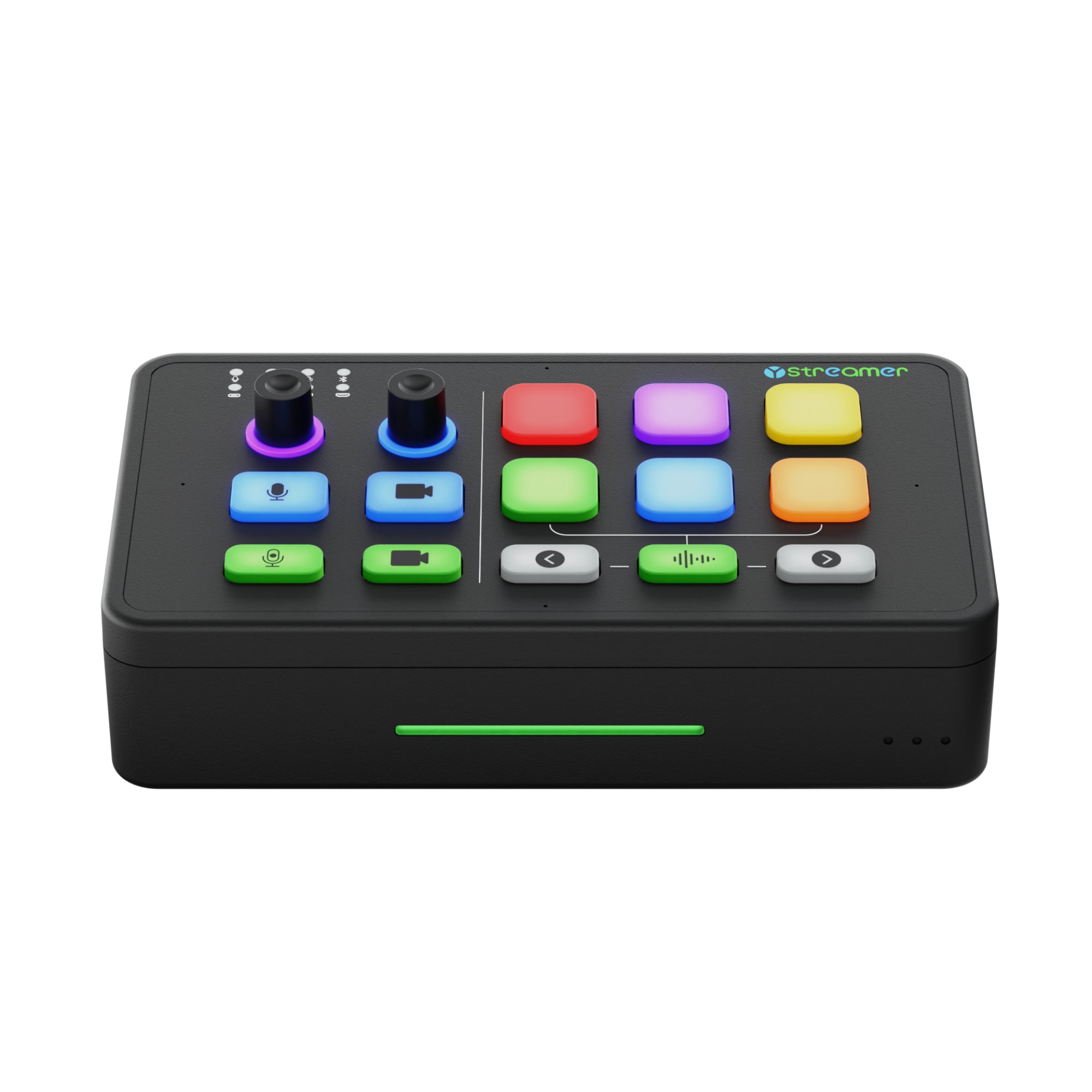

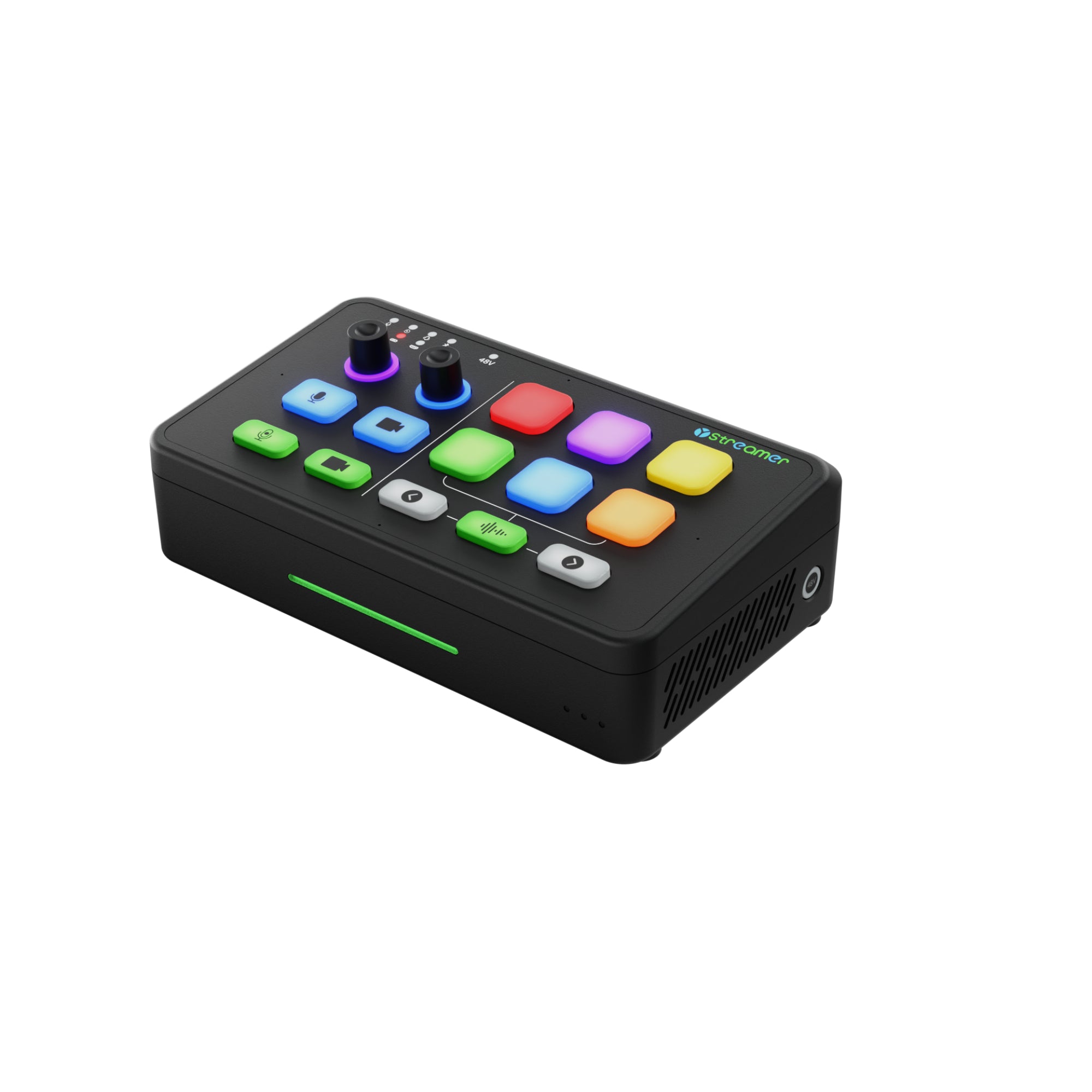

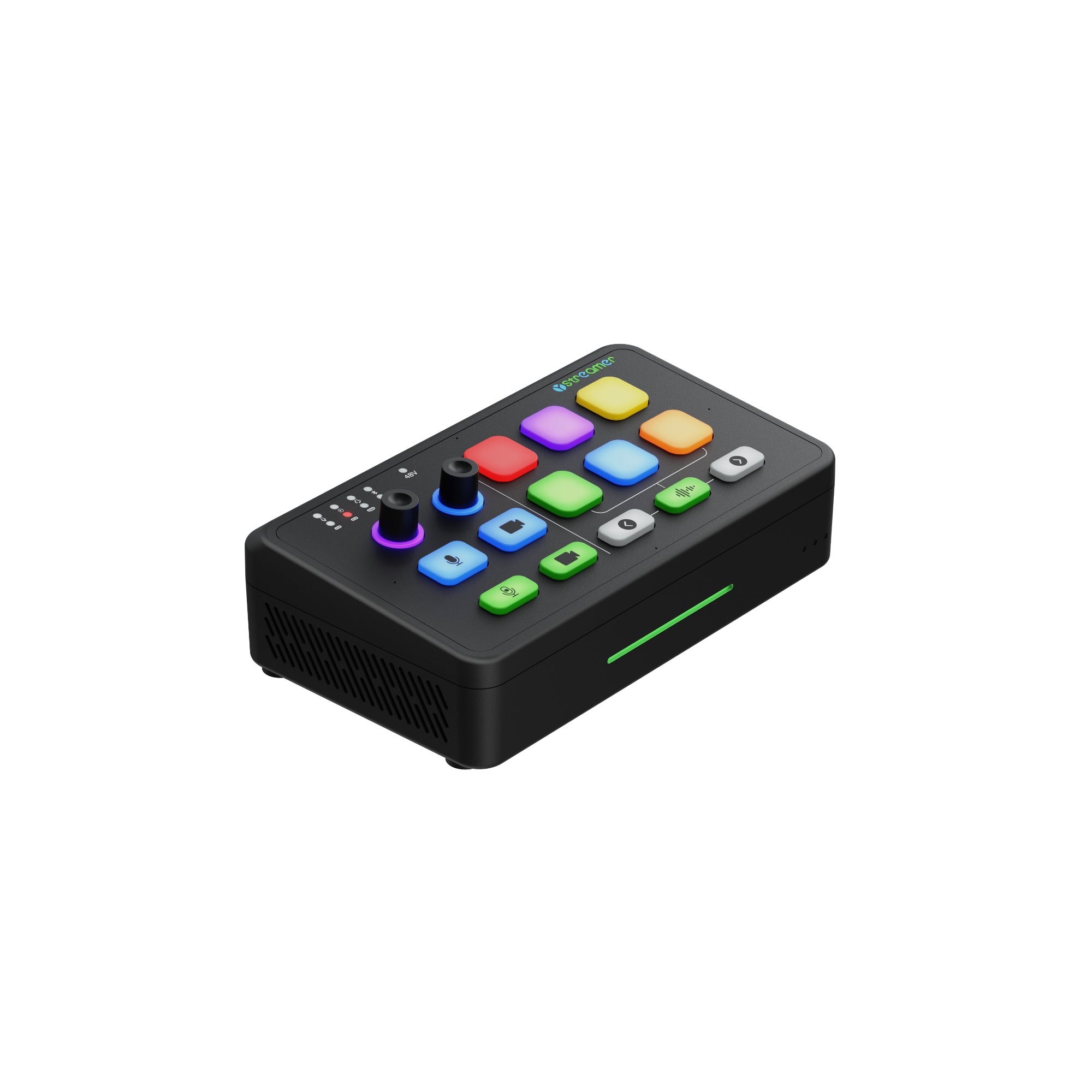

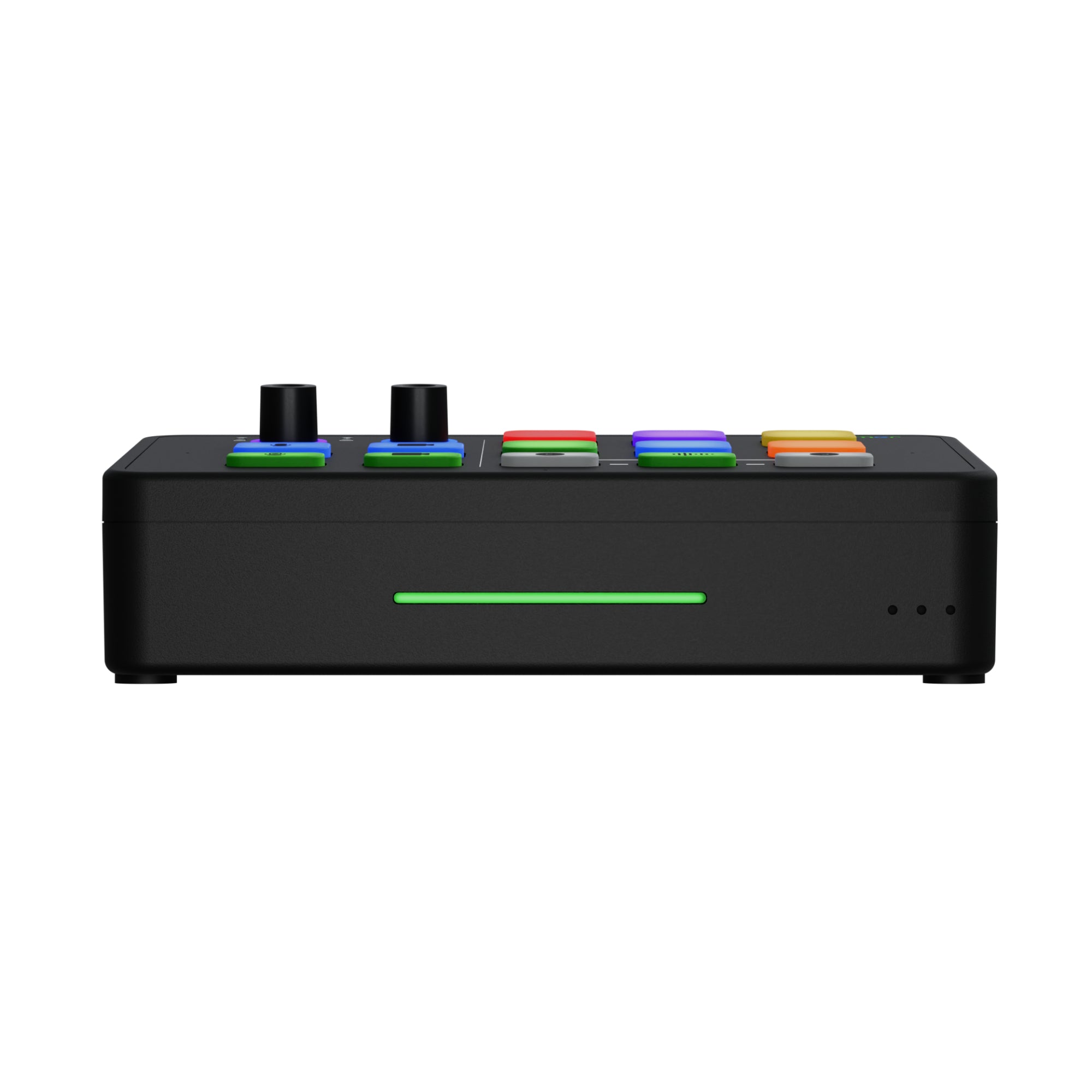

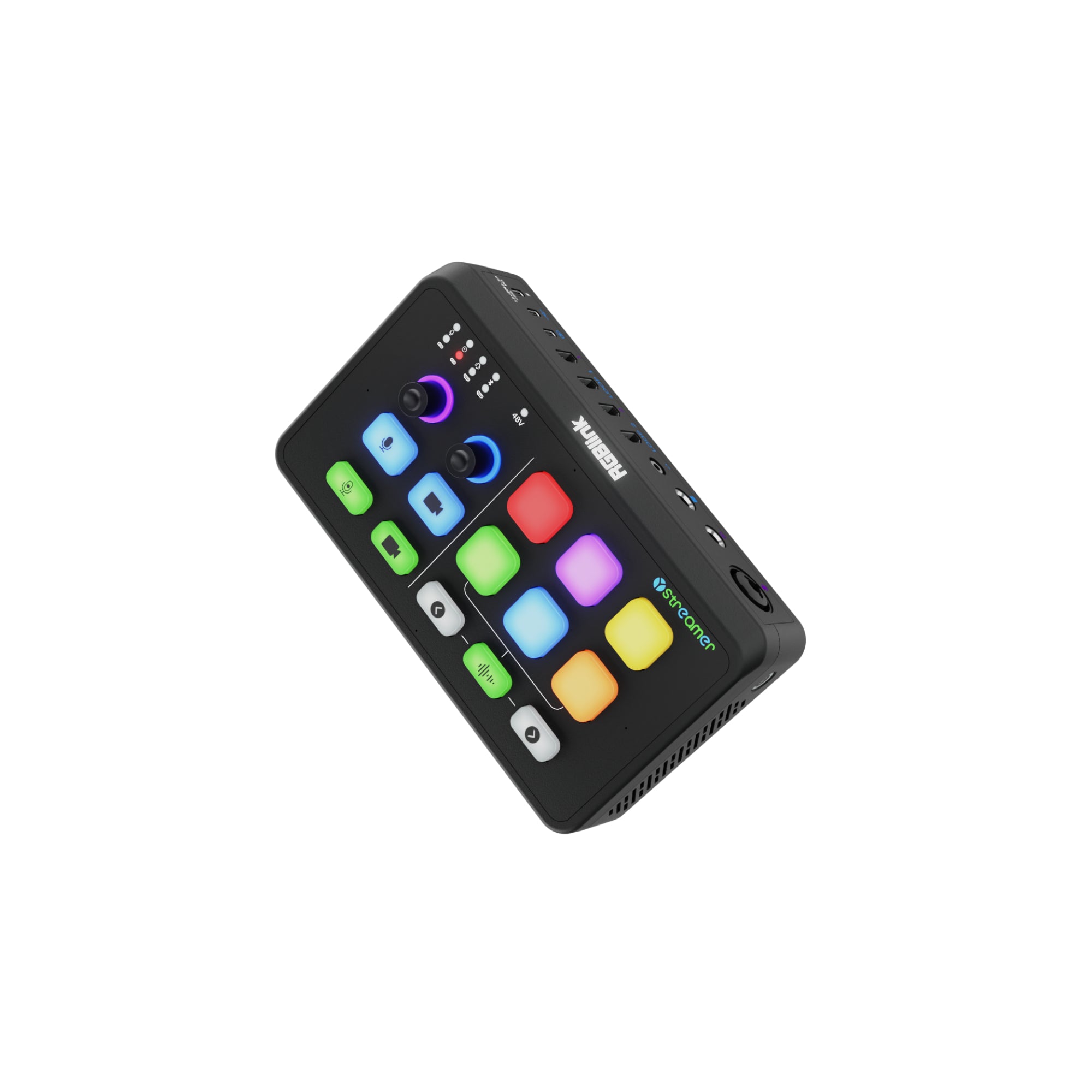

RGBlink Ystreamer

The RGBlink Ystreamer is a professional-grade, dual-channel video capture and 9-channel audio mixer solution designed for next-generation UVC workflows. It enables high-fidelity signal processing by capturing dual 4K UVC streams via a single USB-C connection, making it an essential hub for sophisticated streaming setups, live productions, and multi-source content creation.

Highlights

• Dual-Channel HDMI 2.0 Capture supports independent loop-through outputs for zero-latency monitoring
• Integrated 9-Channel Audio Mixer providing comprehensive control over digital, analog, and wireless audio sources
• High-Resolution UVC Streaming capable of capturing 4096×2160 @60Hz signals via MJPEG and YUY2 protocols

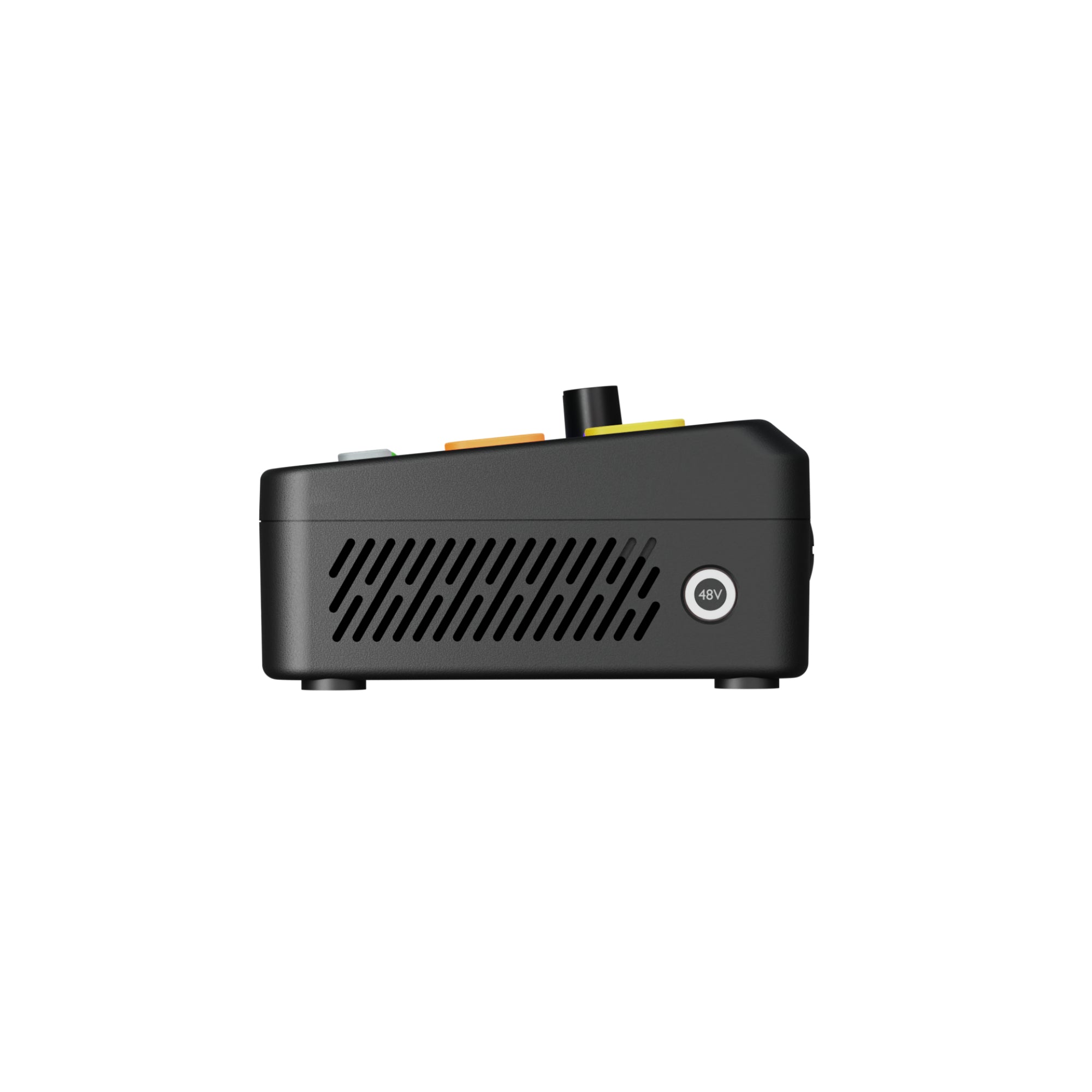

• Professional Audio Interface featuring XLR Combo jacks with 48V Phantom Power for condenser microphones

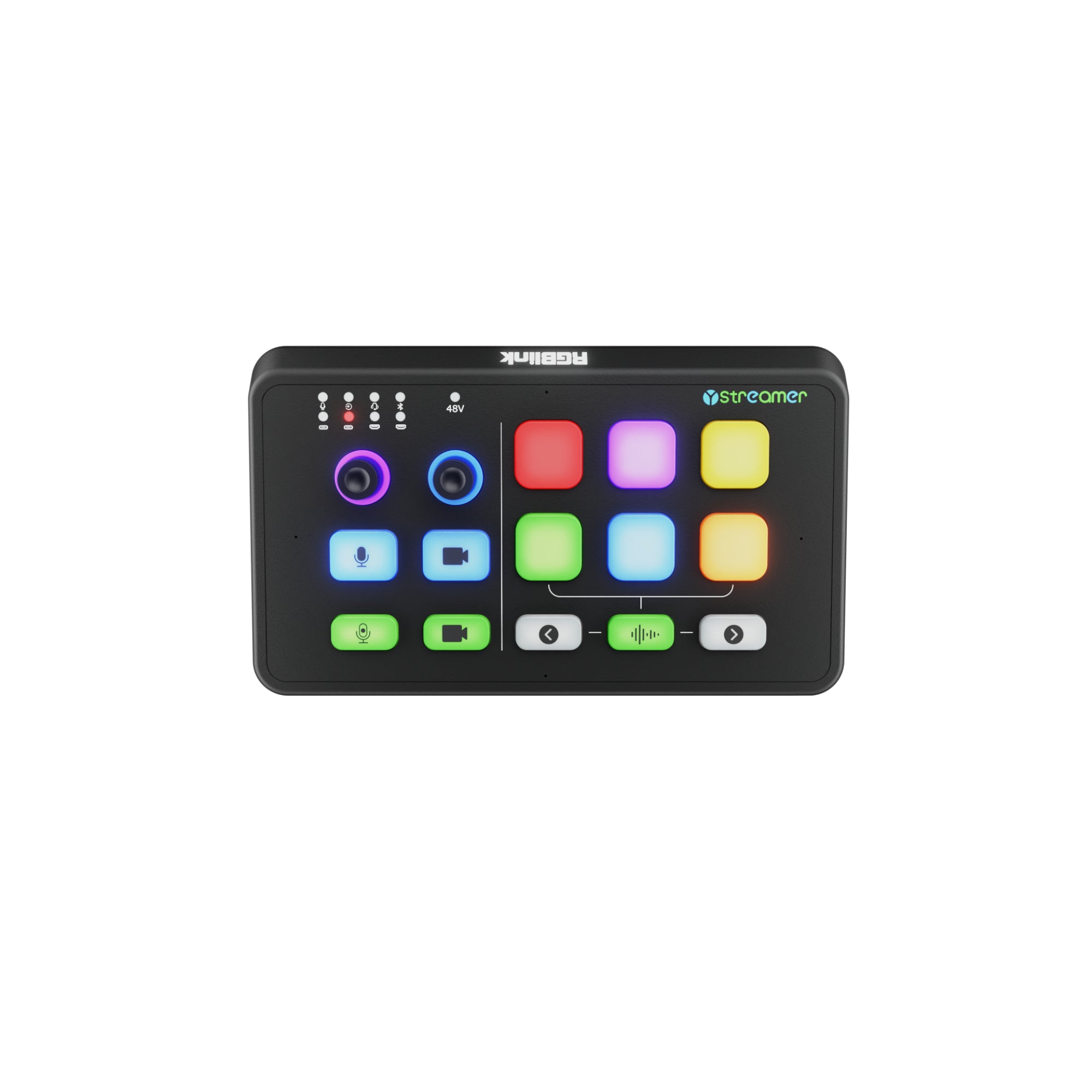

• User-Friendly Control Interface with dedicated keys for volume adjustment, privacy (black screen), and customizable user functions

Quick Specs & Uses

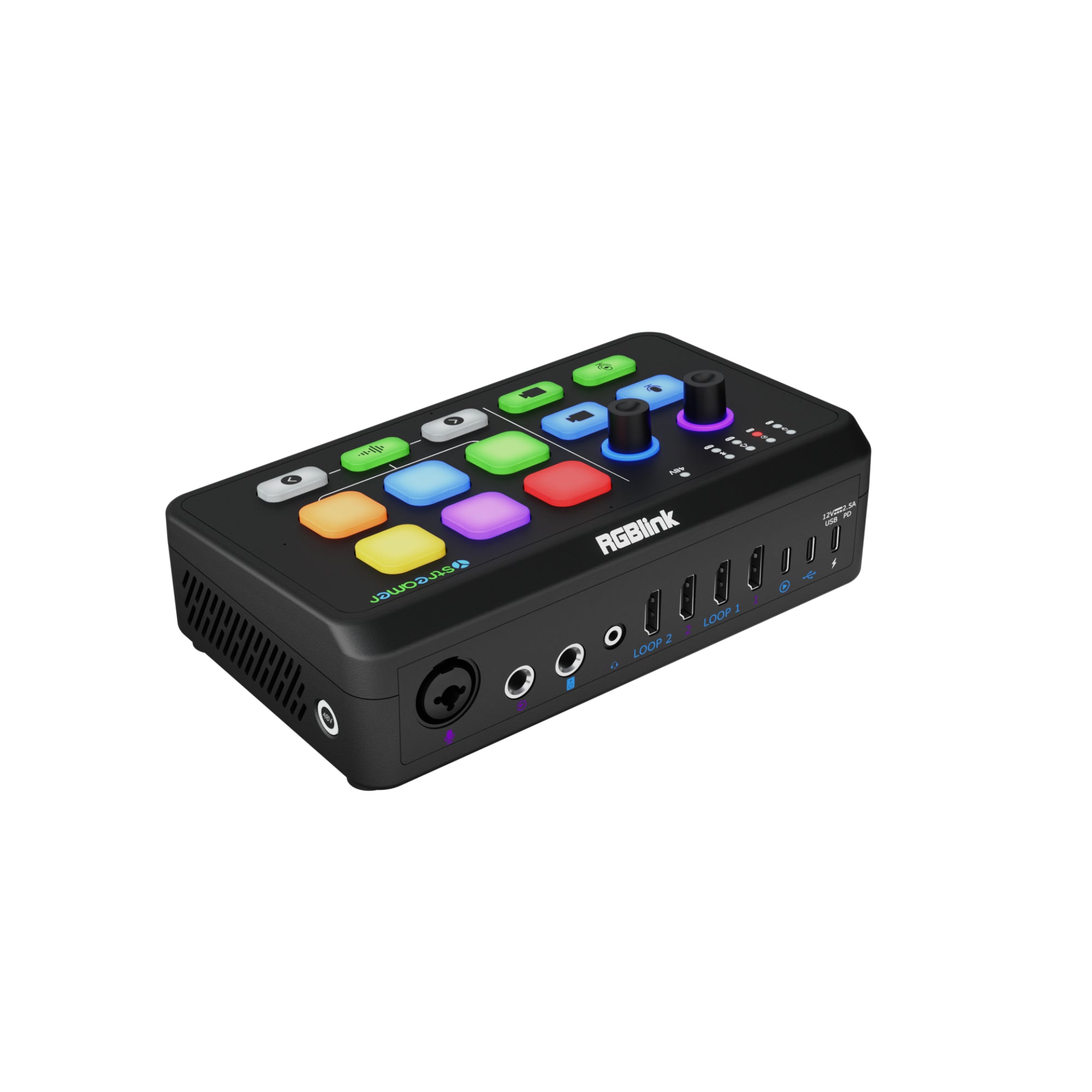

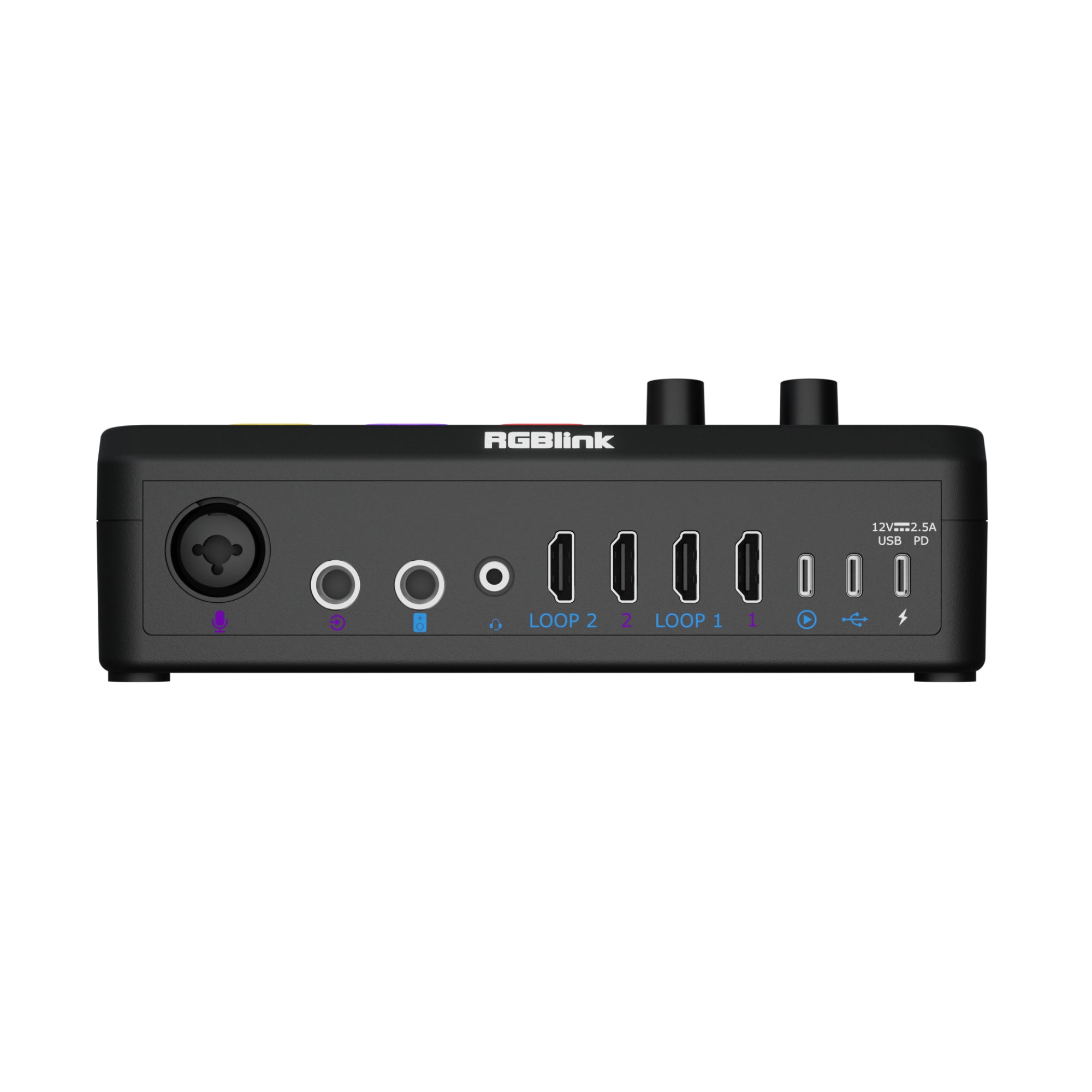

• Video Inputs: 2 x HDMI-A (HDMI 2.0 / HDCP 2.3)
• Video Outputs: 2 x HDMI Loop-through and 1 x USB-C (Dual UVC Stream)
• Max Resolution: Input & Loop up to 4096×2160 @60Hz; Capture up to 4096×2160 @60Hz
• Audio Inputs: XLR/TRS Combo, 6.35mm TRS Line In, 3.5mm TRS Headset, Bluetooth 5.2, and 2 x HDMI Embedded
• Audio Outputs: 6.35mm TRS Balanced, 3.5mm TRRS Headset, and Internal Speaker (4Ω 3W)
• Sampling Rate: 48KHz (16-bit / 24-bit)
• System Requirements: Windows 10 (64-bit) or later, macOS 11.0 or later
• Power: PD 12V 2A via USB-C

Why It Helps

The RGBlink Streamer solves the complexity of multi-device setups by leveraging dual-channel capture in a single UVC device. By consolidating high-resolution video switching, professional audio mixing with phantom power, and tactile hardware control into one compact unit, it eliminates the need for multiple capture cards and external mixers, significantly reducing points of failure in high-stakes broadcast environments.

System Characteristics

• Advanced Subsampling Support: Compatible with RGB, YCbCr 444, YCbCr 422, and YCbCr 420 color spaces
• Versatile Audio Routing: Manages diverse inputs including digital MICs, Bluetooth audio, and analog instruments

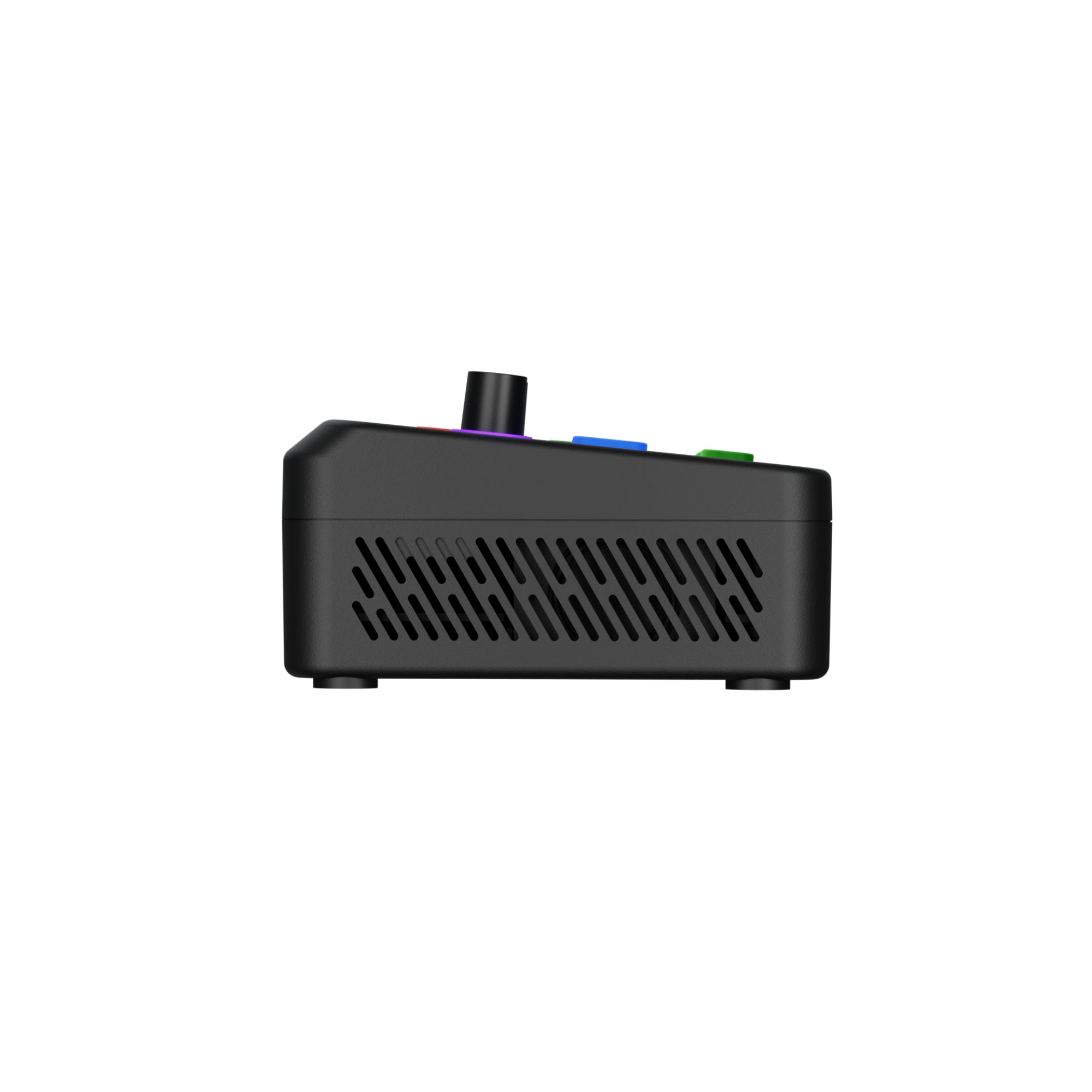

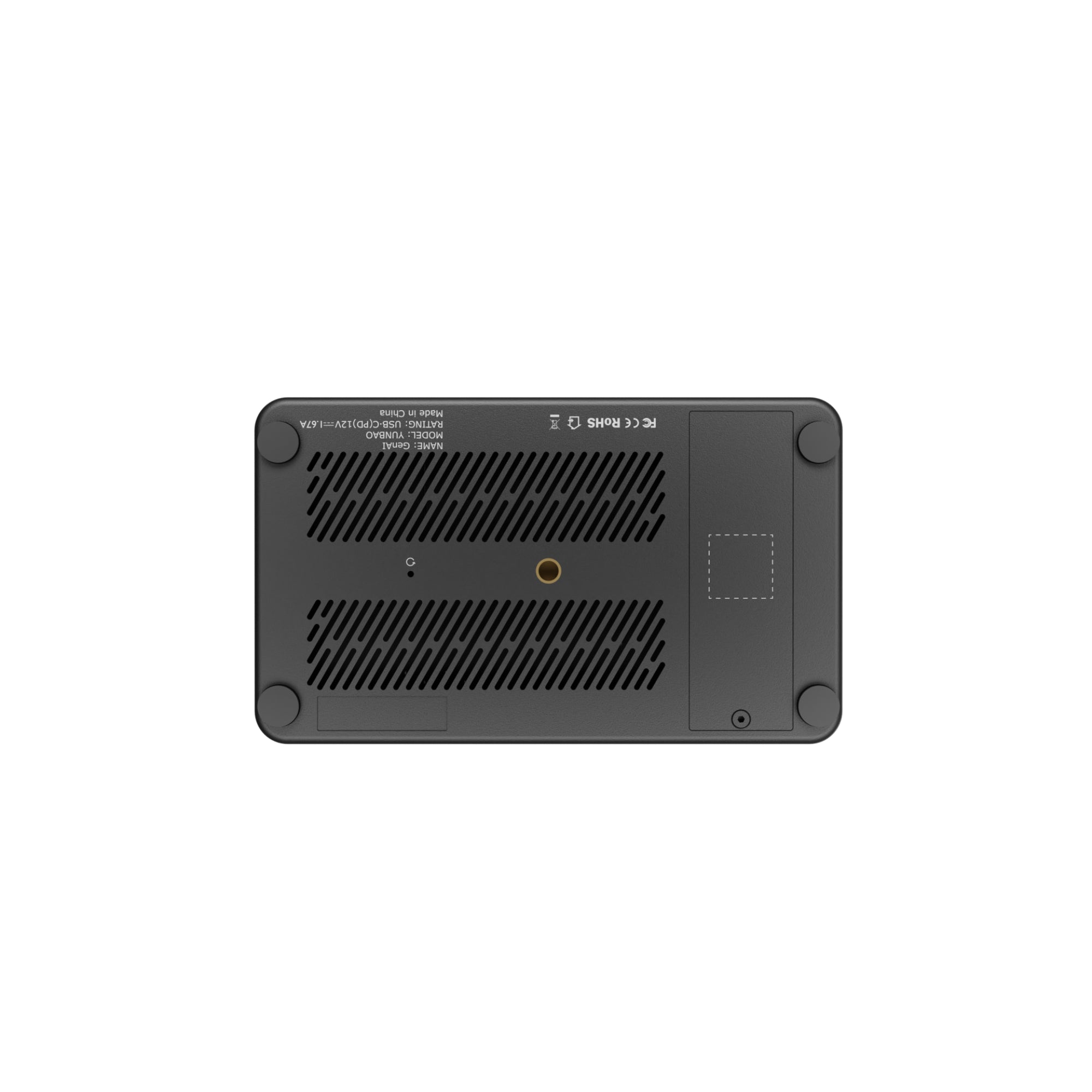

• Robust Physical Build: Compact 187.5 x 109 x 64.8 mm form factor weighing 0.45kg, ideal for mobile or desktop stations
• Tactile Precision: Features dedicated faders and backlit buttons for real-time adjustments without software latency

What’s In The Box

1 x RGBlink Ystreamer
1× 35W PD Power Adapter
1× 5A USB-C Cable
