RGBLINK Quad HDMI 2.0 Input Module for X8

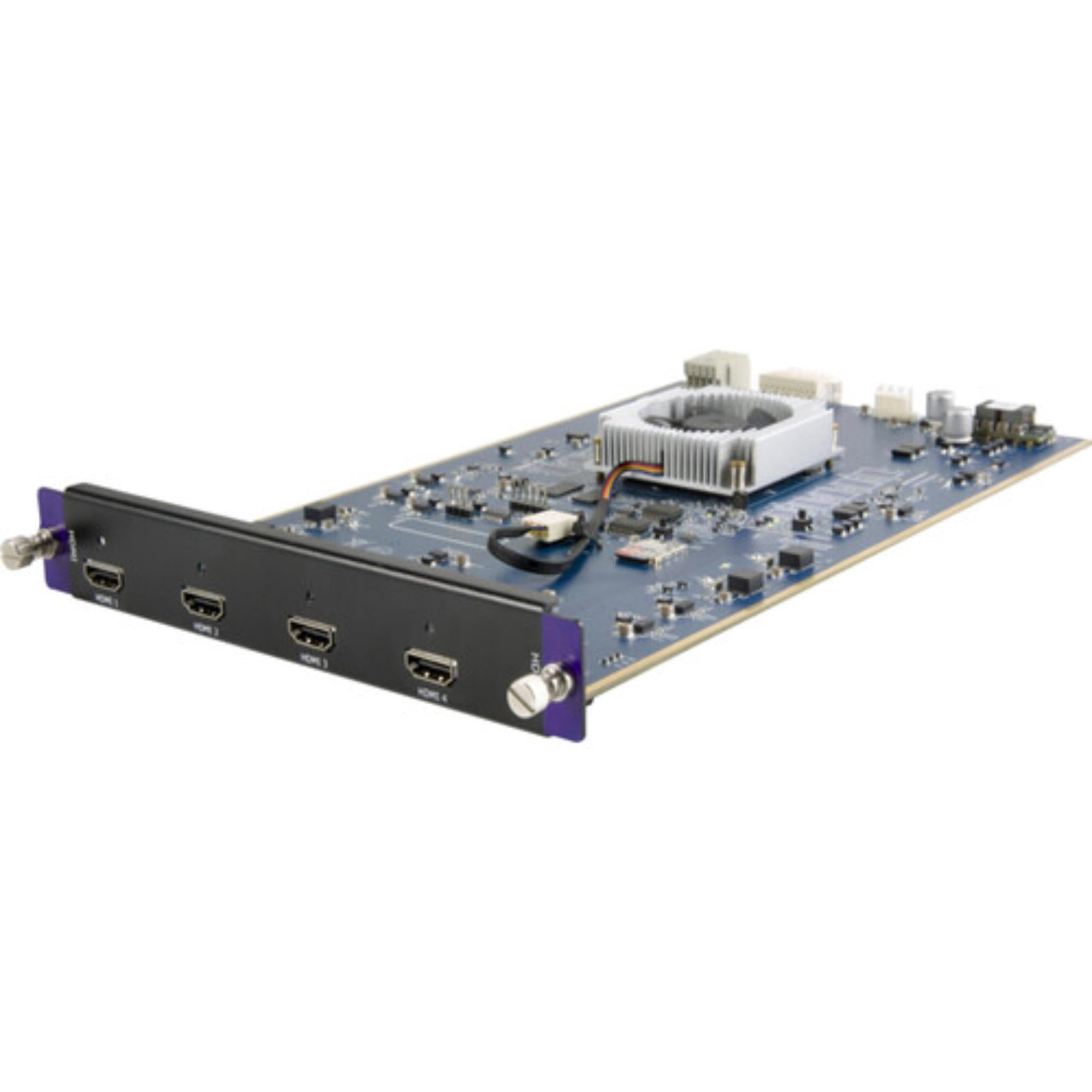

RGBLINK Quad HDMI 2.0 Input Module for X8 is the kind of card you add when an X8 chassis needs serious HDMI source capacity without pushing modern digital signal handling out to external interface gear. Built as an input card for the RGBLINK X8 I/O chassis, this module provides 4 x HDMI 2.0 inputs, supports video up to UHD 4K60, and is hot-swap capable.

Highlights

• Input card for X8 I/O chassis built for HDMI-based source workflows
• 4 x HDMI 2.0 inputs for multi-source digital intake
• Supports video up to UHD 4K60 for higher-resolution source workflows
• Maximum input resolution of 7680 x 4320 for larger canvas and ultra-high-resolution input scenarios
• Hot-swap capable for easier service and modular expansion

Quick Specs & Uses

• Module type: quad HDMI 2.0 input module
• Compatibility: RGBLINK X8 chassis
• Inputs: 4 x HDMI 2.0 female
• Maximum listed video support: UHD 4K60
• Maximum input resolution: 7680 x 4320 at 60 Hz
• SMPTE support: 2160p and 1080p at 60, 59.94, 50, 30, 29.97, and 25 fps
• VESA support: 640 x 480 through 7680 x 4320 at listed frame rates
• Service behavior: hot-swap capable
• Dimensions: 12.3 x 7.5 x 1.2 in / 312.34 x 191.6 x 29.6 mm
• Weight: 10.6 oz / 300 g

Why It Helps

When a processor chassis has to deal with several digital sources at once, the cleanest solution is usually to bring that flexibility directly into the frame. This module gives the X8 four HDMI 2.0 input paths and supports not only standard UHD workflows but also much wider and larger canvas-style input formats. That makes it useful in systems where the source side needs to handle both conventional video signals and more demanding graphics-driven layouts.

System Characteristics

• Four HDMI 2.0 inputs on one card make it easier to bring multiple digital sources into the X8
• UHD 4K60 support provides strong baseline compatibility for higher-resolution input workflows
• Broad SMPTE and VESA compatibility helps the module fit both professional video and computer-style source environments
• 7680 x 4320 maximum input support extends the module into ultra-high-resolution and broader canvas applications
• Hot-swap design supports easier chassis service and staged expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
