RGBLINK Dual HDMI 2.0 Output Module for X8

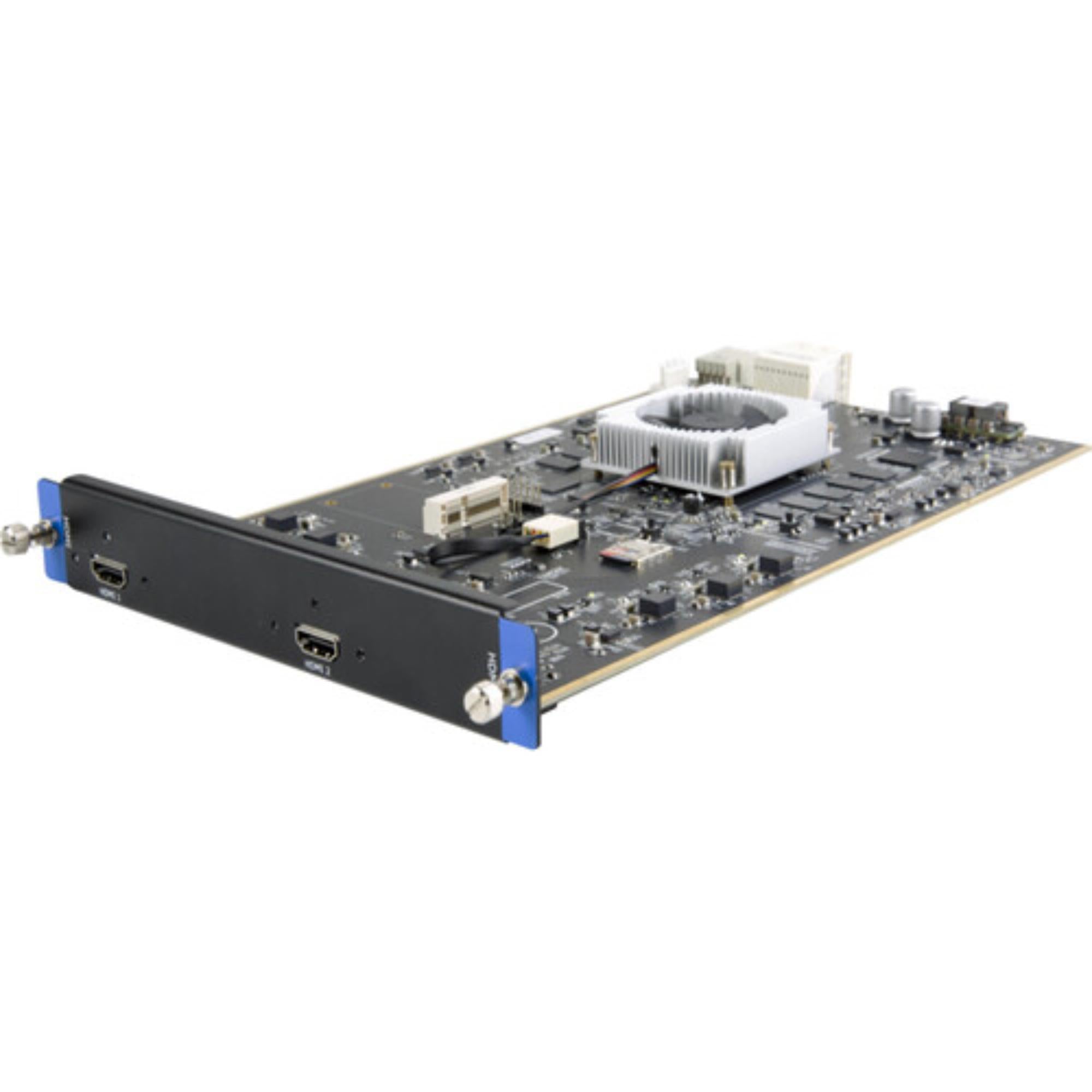

RGBLINK Dual HDMI 2.0 Output Module for X8 is the kind of card you add when an X8 chassis needs direct HDMI output in a format that already makes sense for modern displays, presentation systems, and downstream AV infrastructure. Built as an output card for the RGBLINK X8 I/O chassis, this module provides 2 x HDMI 2.0 outputs, supports video up to UHD 4K60, and is hot-swap capable.

Highlights

• Output card for X8 I/O chassis built for HDMI-based display workflows
• 2 x HDMI 2.0 outputs for direct connection to modern display endpoints
• Supports video up to UHD 4K60 for higher-resolution output workflows
• Maximum video height of 7680 pixels for broader canvas and ultra-wide output scenarios
• Hot-swap capable for easier service and modular expansion

Quick Specs & Uses

• Module type: dual HDMI 2.0 output module
• Compatibility: RGBLINK X8 chassis
• Outputs: 2 x HDMI 2.0 female
• Maximum listed video support: UHD 4K60
• Maximum video height: 7680 pixels
• SMPTE support: 2160p and 1080p at 60, 59.94, 50, 30, 29.97, and 25 fps
• VESA support: 640 x 480 through 7680 x 1080 at listed frame rates
• Service behavior: hot-swap capable
• Dimensions: 12.3 x 7.5 x 1.2 in / 312.34 x 191.6 x 29.6 mm
• Weight: 10.6 oz / 300 g

Why It Helps

When a processor needs to hand signal off to modern display infrastructure, the cleanest answer is usually to keep that output path inside the chassis itself. This module gives the X8 two direct HDMI 2.0 outputs and supports not only standard UHD resolutions but also wider and taller canvas-driven output formats. That makes it useful in systems where the output side needs to serve both conventional displays and more custom visual layouts.

System Characteristics

• Two HDMI 2.0 outputs on one card make it easier to feed modern HDMI-based endpoints directly from the chassis
• UHD 4K60 support provides higher-resolution output capability for current display workflows
• Broad SMPTE and VESA compatibility helps the module fit both professional video and computer-style output environments
• 7680-pixel maximum video height support points to broader canvas and wide-format output use cases
• Hot-swap design supports easier chassis service and staged expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
