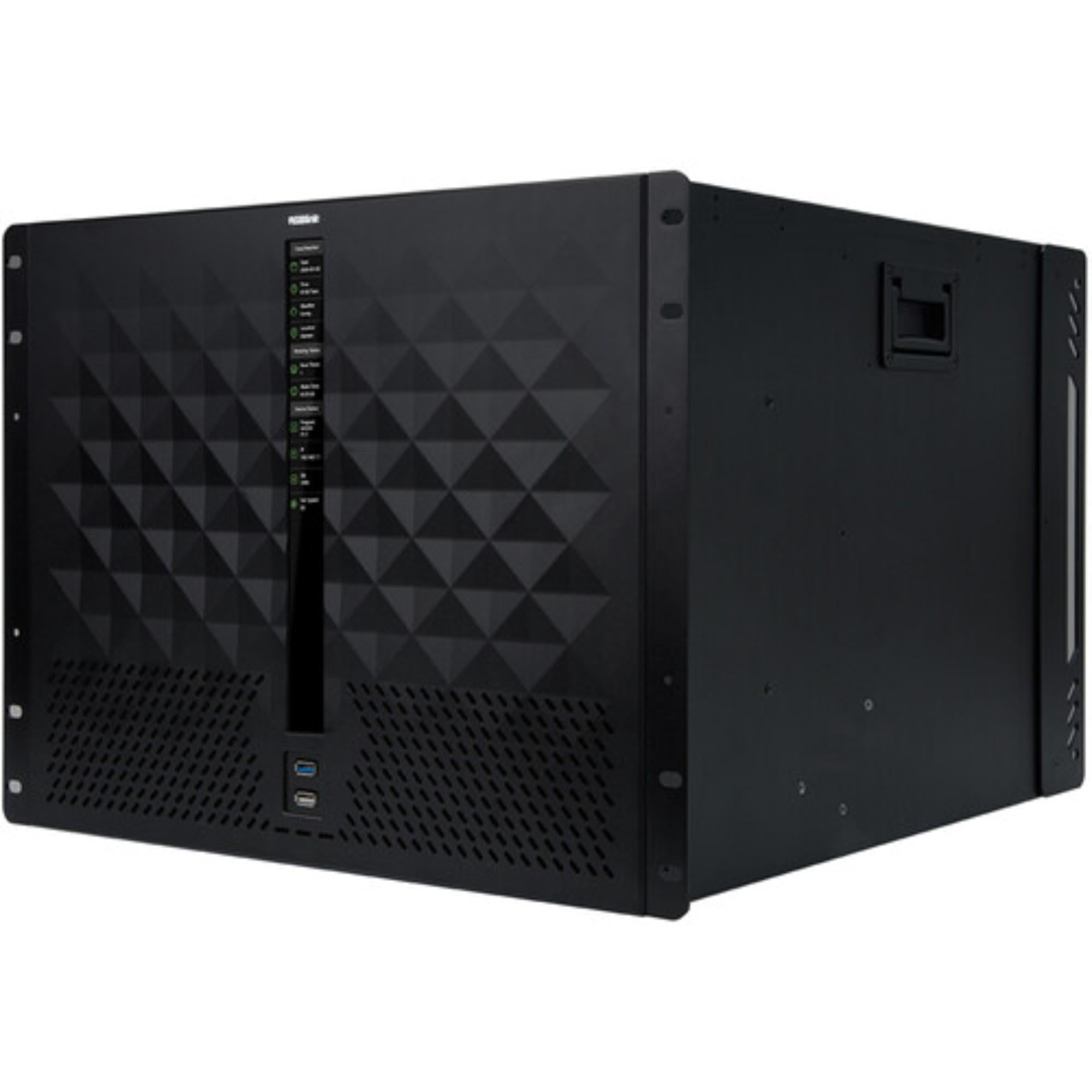

RGBLINK X8 Video Wall Processor Frame

RGBLINK X8 Video Wall Processor Frame is the kind of chassis you build around when a video wall system needs to do more than just switch sources. Designed as a modular processor frame with RGBLINK’s SmartSlot system, it supports up to 24 inputs and 12 outputs while giving the platform room to scale around the job instead of locking the system into a fixed I/O layout.

Highlights

• Modular SmartSlot processor frame for scalable video wall system design
• Supports up to 24 inputs and 12 outputs for higher-density signal environments
• Built for scaling, routing, and transcoding across configurable output workflows
• 8K-ready input support through quad-link HDMI 2.0 and single-link HDMI 2.1 / DP 1.4
• Hot-swappable I/O module design for serviceability and staged expansion

Quick Specs & Uses

• Product type: video wall processor frame
• Architecture: modular SmartSlot chassis
• Maximum system I/O: up to 24 inputs, up to 12 outputs
• Core processing roles: scaling, routing, transcoding, and layered output composition
• HDR support: HDR10 and HLG compliant
• Signal management: customizable in/out resolutions and EDID management
• Overlay and sync tools: OSD overlay, GENLOCK / SYNC
• Control platform: XPOSE 2.0
• Layer capability: 6+2 structure with up to 6 x 4K layers on any output port, plus 2 additional selectable layers
• Module capability: each input module supports up to 4 x 4K2K@60, HDMI 2.0 output module supports up to 2 x 4K2K@60

Why It Helps

In larger video wall systems, the processor has to do more than pass signals from one side to the other. It has to scale them, route them, place them, and keep the whole system flexible enough to grow. The X8 is built for exactly that kind of environment. Its frame-based modular design makes it easier to configure the system around the installation, while its higher-resolution support and composition tools help it fit more demanding wall designs.

System Characteristics

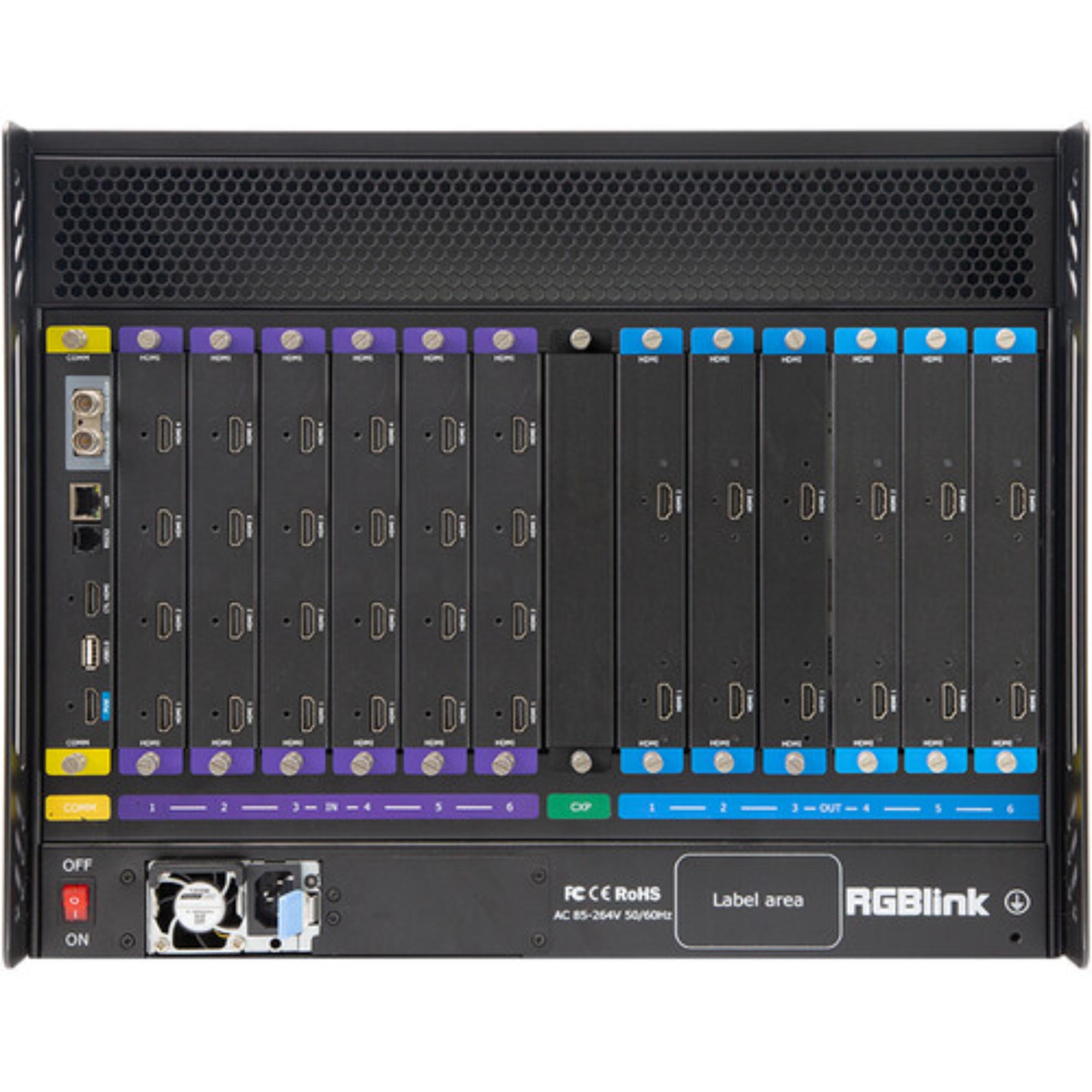

• SmartSlot modularity lets the chassis be configured around actual I/O needs instead of fixed port counts
• Advanced processing functions allow inputs to be scaled, positioned, routed, transcoded, or layered across outputs
• 8K-ready signal support helps the platform fit newer high-bandwidth source environments
• EDID, OSD, and sync tools support cleaner integration and more disciplined system behavior
• Hot-swappable module design improves serviceability in installed professional systems

What’s In The Box

Please refer to the Specifications tab for the exact included items.
