RGBlink X1-S Gen2 LED Video Processor

RGBlink X1-S Gen2 LED Video Processor is the kind of front-end box you put between your sources and an LED sending chain when you need predictable I/O, standard broadcast formats, and PC-friendly scaling in one place. It provides HDMI, DVI, VGA, composite, and SDI input options, then outputs a clean DVI signal at the resolution you need for your LED canvas.

Highlights

• Mixed-source friendly inputs with HDMI In/Loop, DVI-I, VGA, CVBS, and SDI In/Loop
• Broadcast-standard SDI support, including SMPTE 425M (Level A & B), 424M, 292M, 259M-C, plus DVB-ASI
• PC + LED wall scaling made practical with VESA output options up to 2560 x 1600 at 60
• Audio routing built in with RCA in/out, plus a 3.5mm stereo audio out
• Install-friendly power with wide-range AC input 85–264V and low draw at 25W max

Quick Specs & Uses

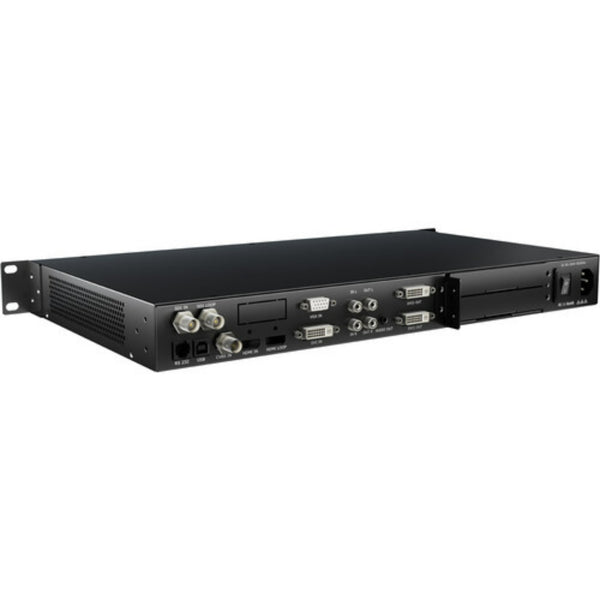

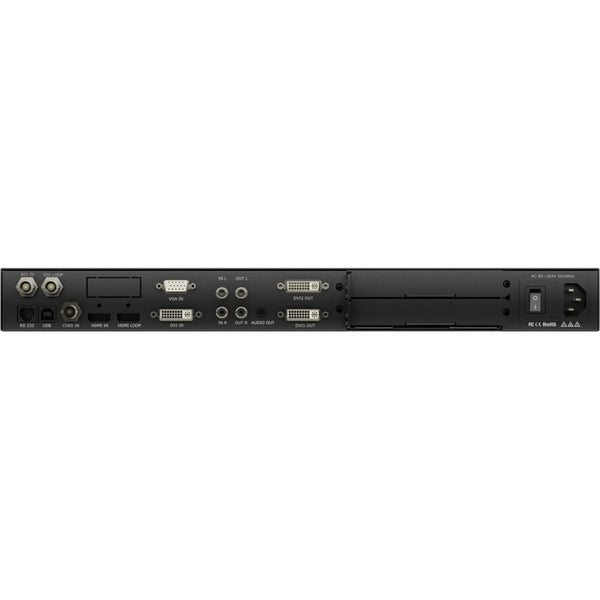

• Inputs: 2x HDMI-A (HDMI In/Loop), 1x DVI-I, 1x VGA (DB15), 1x CVBS (BNC), 2x SDI (BNC, 1 in + 1 loop)
• Outputs: 2x DVI-I
• SDI formats: 720p up to 60; 1080i up to 60; 1080p including 23.98/24/25/29.97/30/50/59.94/60
• HDMI/DVI video formats: 480i, 576i, 720p, 1080i, 1080p up to 60
• Output scaling: VESA options from 1024 x 768 up to 2560 x 1600 at 60, including 1920 x 1080, 1920 x 1200, and 2048 x 1152
• Audio: 2x RCA in (L/R), 2x RCA out (L/R), 1x 3.5mm stereo out
• Control: RS232 (RJ11) and USB-B
• Power: IEC inlet, AC 85–264V 50/60Hz, 25W max
• Physical: 480 x 303 x 45mm, 3.1kg net

Why It Helps

LED jobs get messy when you’re juggling a laptop feed, a media player, and a camera chain. The X1-S Gen2 cleans that up. You loop sources where needed, lock the output to a known VESA timing for your wall, and avoid last-minute adapters and guesswork by keeping legacy signals like VGA or CVBS.

System Characteristics

• HDMI In/Loop and SDI In/Loop are there for real-world routing, especially when you need confidence monitoring or a downstream device in the chain
• If you are feeding an LED processor or sender that likes specific canvases, the VESA output list is the main tool for matching pixel maps cleanly.
• SDI format support includes common fractional frame rates like 23.98 and 59.94, which helps when you’re mixing broadcast cameras with computer sources
• Composite (CVBS) is still useful for older playback or troubleshooting feeds, but treat it as a utility input, not your hero signal.
• Low max power at 25W makes it easy to add to a flypack without rethinking your power budget.

What’s In The Box

1 x RGBlink X1-S Gen2 LED Video Processor
