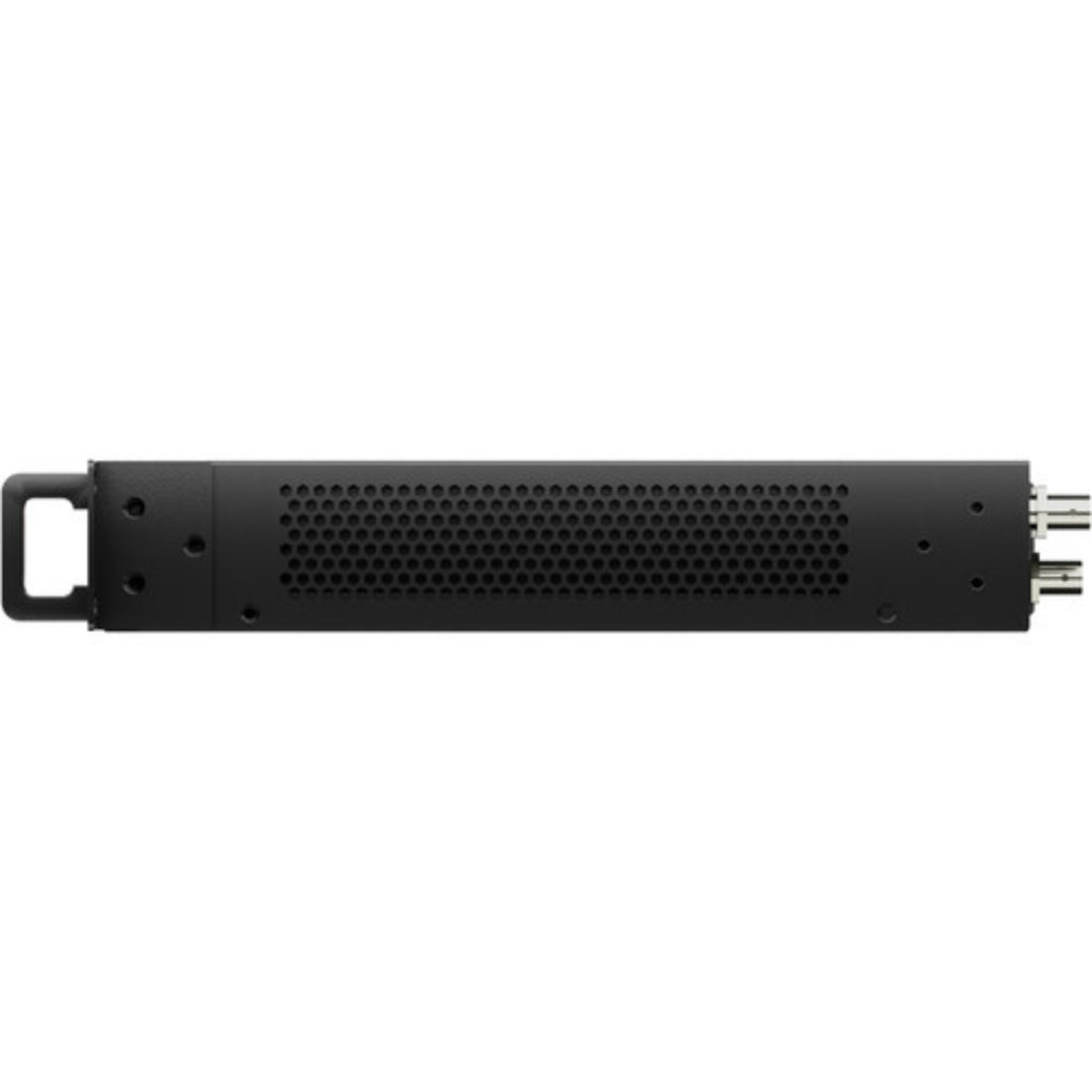

RGBlink X1 Gen2 LED Video Processor

RGBlink X1 Gen2 LED Video Processor is the kind of front-end box you put between your sources and an LED sending chain when you need predictable I/O, standard broadcast formats, and PC-friendly scaling in one place. It gives you HDMI, DVI, VGA, and composite input options, then pushes a clean dual DVI output at the resolution you actually need for your LED canvas.

Highlights

• Mixed-source friendly inputs with HDMI In/Loop, DVI-I, VGA, and CVBS
• Broadcast + PC timing support across SMPTE video formats and VESA computer resolutions
• LED wall scaling made practical with selectable DVI output formats (SMPTE + VESA options)
• Audio routing built in with RCA in/out plus a 3.5mm stereo audio out
• Install-friendly power with wide-range AC input 85–264V and low draw at 25W max

Quick Specs & Uses

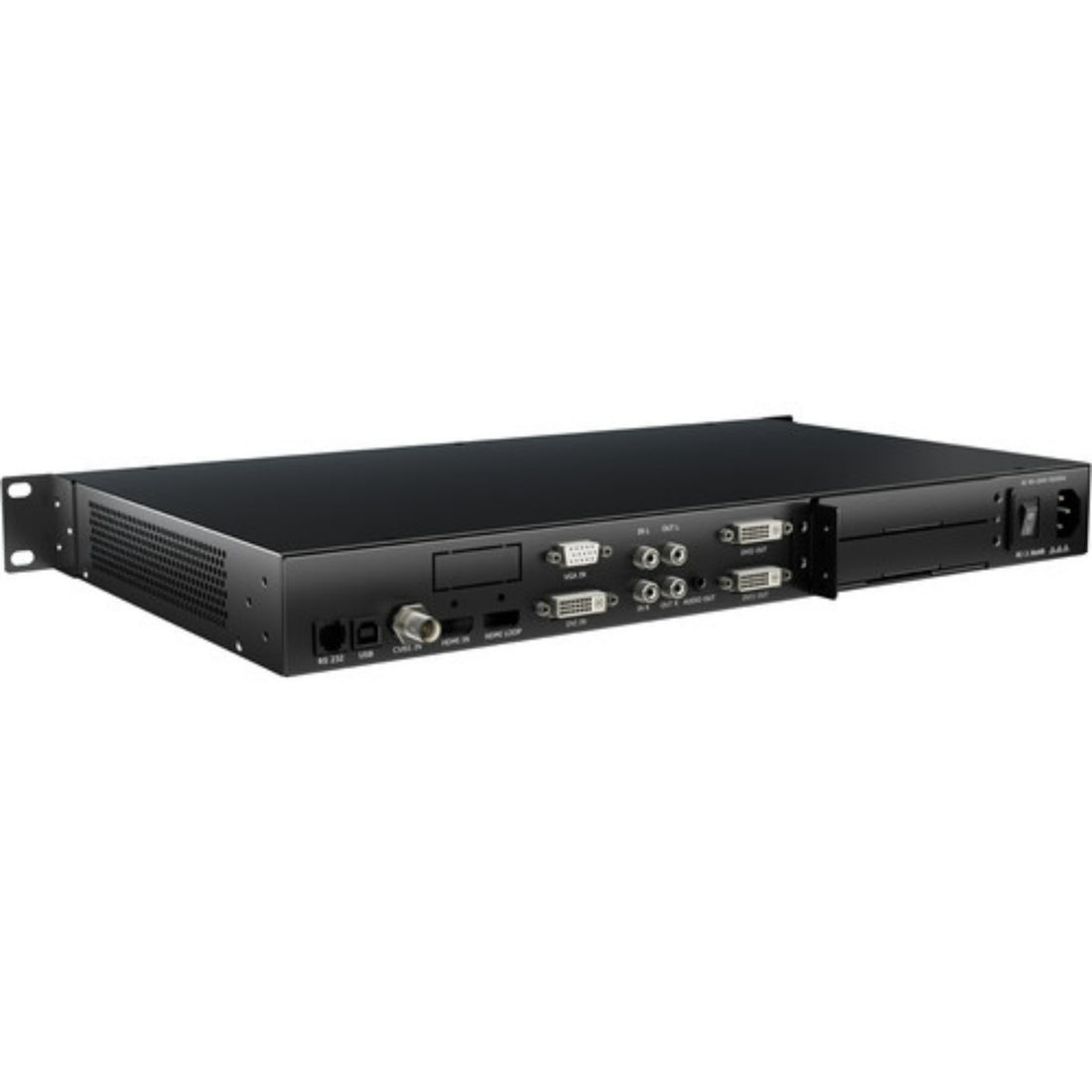

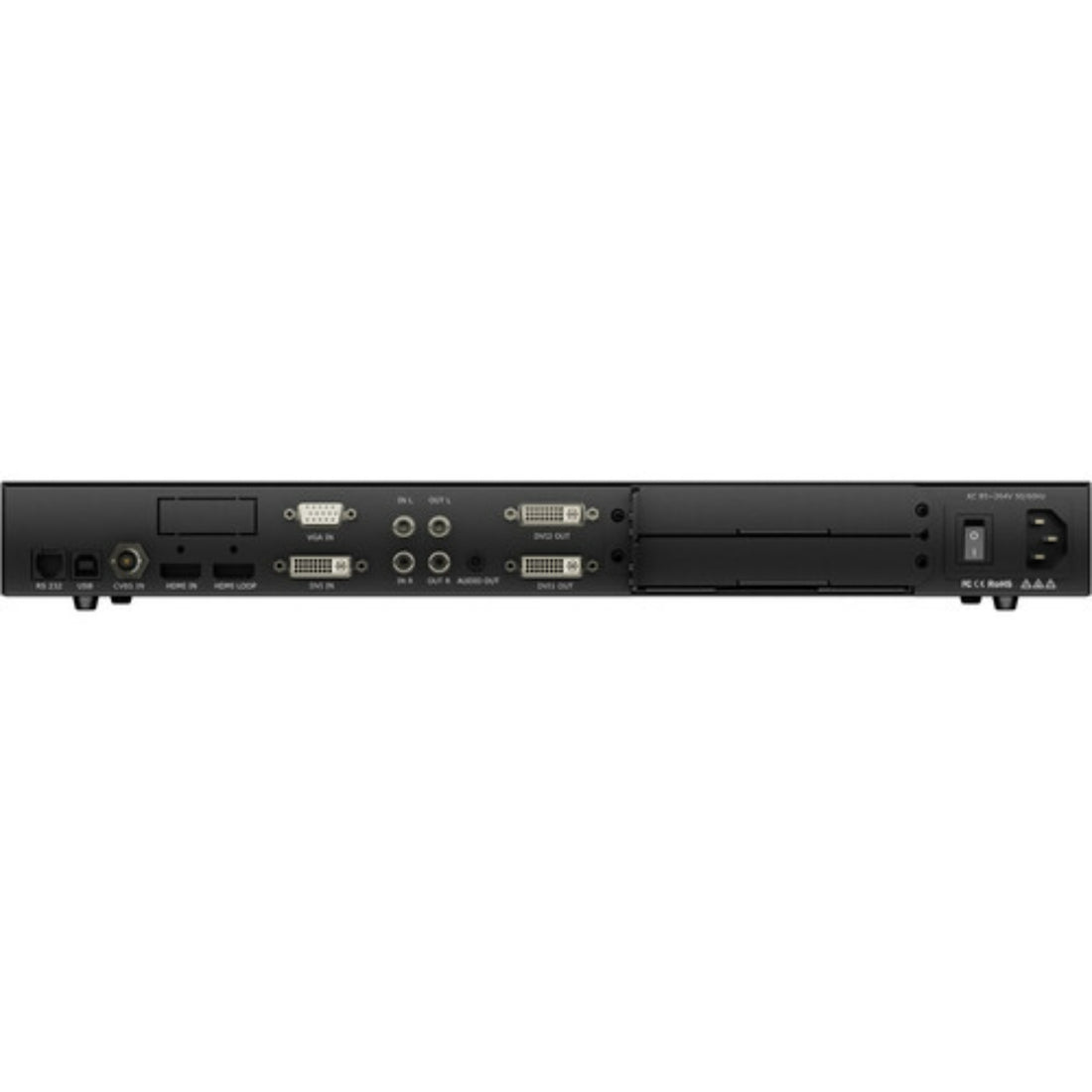

• Inputs: 2x HDMI-A (HDMI In/Loop), 1x DVI-I, 1x VGA (DB15), 1x CVBS (BNC)
• Outputs: 2x DVI-I
• HDMI/DVI video formats (SMPTE): 480i, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@50/59.94/60
• HDMI/DVI computer formats (VESA): 800x600@60, 1024x768@60, 1280x768@60, 1280x1024@60, 1366x768@60, 1600x1200@60, 1920x1080@60
• VGA formats (VESA): 800x600@60, 1024x768@60, 1280x1024@60, 1366x768@60, 1440x900@60, 1600x1200@60
• Output (DVI, SMPTE): 720p@50/60, 1080p@50/60
• Output scaling (DVI, VESA): 1024x768@60, 1280x720@60, 1280x800@60, 1280x1024@60, 1360x768@60, 1366x768@60, 1440x900@60, 1400x1050@60, 1600x1200@60, 1680x1050@60, 1920x1080@60, 1920x1200@60, 2048x1152@60, 2560x816@60
• Audio: 2x RCA in (L/R), 2x RCA out (L/R), 1x 3.5mm stereo out
• Control: RS232 (RJ11) and USB-B
• Power: IEC inlet, AC 85–264V 50/60Hz, 25W max
• Physical: 480 x 303 x 45mm, 3.1kg net

Why It Helps

LED jobs get messy when you’re juggling a laptop feed, a media player, and whatever the venue hands you last-minute. The X1 Gen2 cleans that up. You can loop HDMI through when needed, lock the output to a known VESA timing for your wall, and keep legacy signals like VGA or CVBS from turning into a scramble of adapters and guesswork.

System Characteristics

• HDMI In/Loop is there for real-world routing, especially when you need a confidence monitor or a downstream device fed without adding a splitter
• If your LED sender likes specific canvases, the VESA output list is the main tool for matching pixel maps cleanly
• For “video-ish” sources, the listed SMPTE timings cover common broadcast frame-rate families, including 59.94
• Composite (CVBS) is still useful for older playback or troubleshooting feeds, but treat it as a utility input, not your hero signal
• Low max power at 25W makes it easy to add to a flypack without rethinking your power budget

What’s In The Box

1 x RGBlink X1 Gen2 LED Video Processor
