RGBLINK TAO 1mini 4K Pro Streaming Node

RGBLINK TAO 1mini 4K Pro Streaming Node is the kind of device you use when you need a compact encoder and IP video endpoint that can sit close to the camera instead of living in a separate rack. Based on the source, it combines HDMI input, USB-C video input, HDMI output, LAN connectivity, local touchscreen control, and support for up to 32 simultaneous streams in a small camera-friendly enclosure.

Highlights

• Supports up to 4K60 HDMI and USB-C input for high-resolution source workflows
• Encodes and decodes via H.264 / H.265 / MJPEG up to 4096 x 2160 at 60p
• Supports 32 simultaneous streams for broader distribution workflows
• Works with NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, and SRT

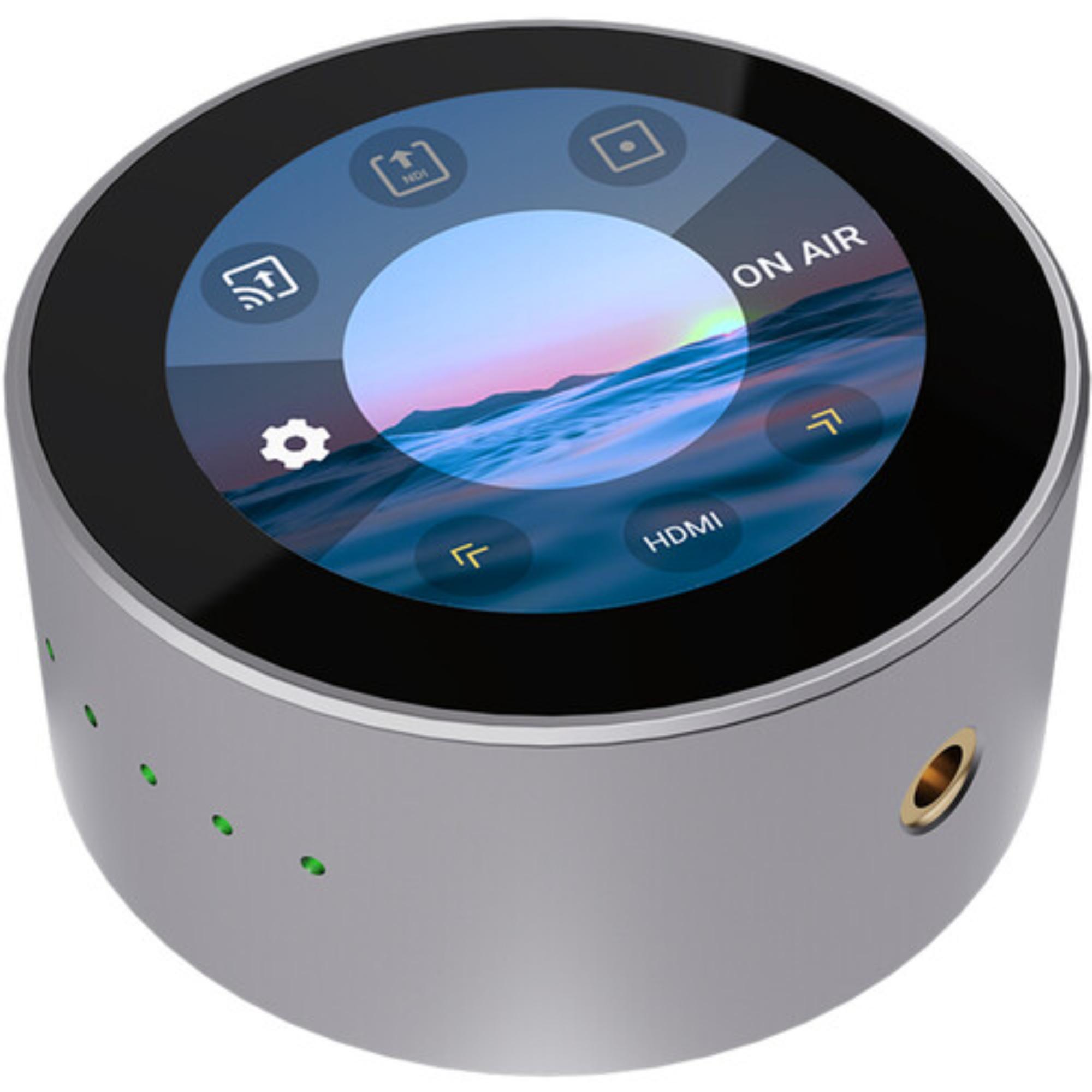

• Includes touchscreen, tally lights, and dual 1/4"-20 mounting threads for operator-facing use

Quick Specs & Uses

• Product type: 4K Pro streaming node

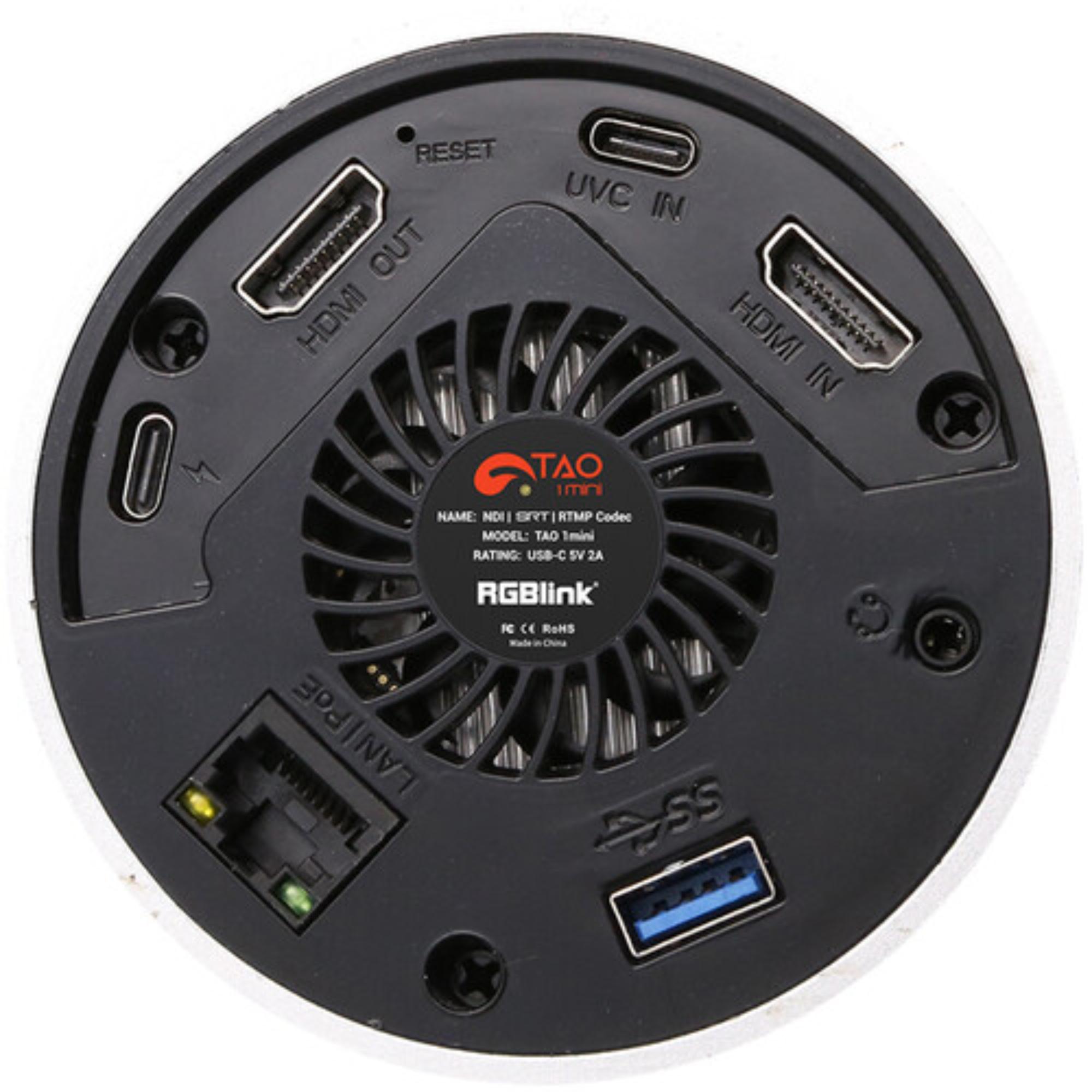

• Video I/O: 1 x HDMI input, 1 x USB-C (USB video) input, 1 x HDMI output
• Audio I/O: 1 x 1/8" / 3.5 mm TRS analog input
• Other I/O: 1 x RJ45 Fast Ethernet (NDI), 1 x USB-A 3.0 / 3.1 / 3.2 Gen 1
• IP video: H.264 / H.265 / MJPEG encoding and decoding up to 4096 x 2160 at 60p
• Simultaneous streams: 32
• Embedded audio: HDMI / LAN (RJ45) / NDI / USB
• Transport protocols: NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, SRT
• Recording media: 1 x USB-A 3.0 / 3.1 / 3.2 Gen 1 for external drives
• Power I/O: 1 x USB-C (5 to 12 VDC) input, 1 x RJ45 (5 to 12 VDC) input/output
• Display: LCD
• Operating conditions: 32 to 131°F / 0 to 55°C at 5 to 85% humidity
• Dimensions: 3.6 x 3.6 x 1.6 in / 91 x 91 x 40.8 mm
• Weight: 6.3 oz / 180 g

Why It Helps

In compact streaming systems, the challenge is usually not just getting one signal onto one platform. It is handling source input, network transport, local monitoring, protocol flexibility, and physical placement without adding too much gear. This node addresses that by combining camera-adjacent streaming, high-resolution codec support, multiple transport options, and a compact mountable form factor in one device.

System Characteristics

• Hybrid video input support makes it easier to work with either HDMI cameras or USB-C/UVC sources
• 32-stream capability supports broader multi-destination distribution workflows
• NDI and streaming protocol coverage helps the unit fit into both AV-over-IP and direct streaming environments
• Touchscreen and tally indicators make the device more usable in operator-facing and camera-side setups
• Compact mounting-friendly design helps it fit where larger streaming hardware would be awkward

What’s In The Box

RGBLINK TAO 1mini 4K Pro Streaming Node, USB-C cable, international power socket adapter set, and limited 1-year manufacturer warranty.
