RGBLINK TAO 1mini-HN USB/HDMI Streaming Node

RGBLINK TAO 1mini-HN USB/HDMI Streaming Node is the kind of device you use when you need a compact streaming endpoint that can live on-camera, on a desk, or inside a small mobile kit without giving up real workflow flexibility. Based on the source, it combines HDMI and USB-C UVC input, HDMI output, LAN and NDI streaming support, analog audio input, and a touchscreen-driven circular form factor built for tight setups.

Highlights

• HDMI and USB-C UVC input for flexible source connection
• HDMI output for local display or downstream handoff
• Streams via LAN and NDI protocols for IP-based workflows
• Touchscreen and LED tally lights for on-device control and on-air visibility
• 1/4"-20 thread and included cold shoe adapter for camera-friendly mounting

Quick Specs & Uses

• Product type: USB/HDMI streaming node

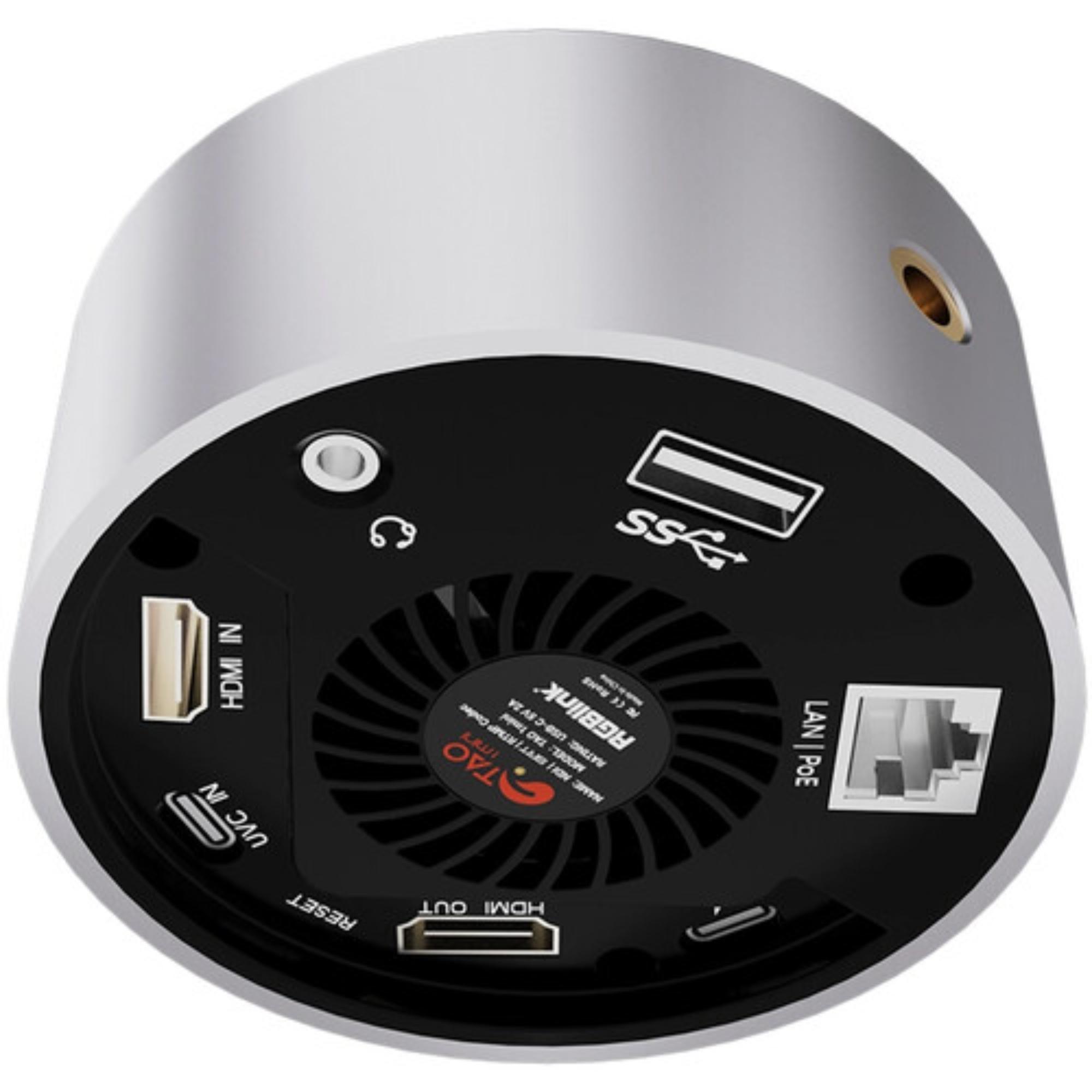

• Video input: 1 x HDMI 1.3 female, 1 x USB-C female
• Video output: 1 x HDMI 1.3 female
• Audio input: 1 x 1/8" / 3.5 mm TRRS analog female
• Other I/O: 1 x RJ45 (LAN), 1 x USB-A
• HDMI input latency: 3 frames
• IP video: encoding and decoding via H.264 / H.265 / MJPEG up to 1920 x 1080 at listed frame rates
• Power input: 1 x USB-C (5 to 12 VDC)
• Power consumption: 10 W
• Operating conditions: 32 to 131°F / 0 to 55°C at 5 to 85% humidity
• Dimensions: 3.6 x 1.6 in / 91 x 40.8 mm
• Weight: 6.3 oz / 180 g

Why It Helps

In compact streaming workflows, the biggest challenge is usually not one feature. It is how many jobs the device has to do without becoming bulky. This node gives you source input, local output, IP streaming, audio integration, and mounting flexibility in one small package. That makes it useful for PTZ cameras, DSLR setups, mobile live kits, and smaller production spaces where every inch of space matters.

System Characteristics

• Hybrid source support makes it easier to work with either HDMI cameras or USB-C/UVC devices
• LAN and NDI workflow support helps the unit fit into modern network-based production environments
• Codec support for H.264, H.265, and MJPEG expands compatibility across streaming and IP video use cases

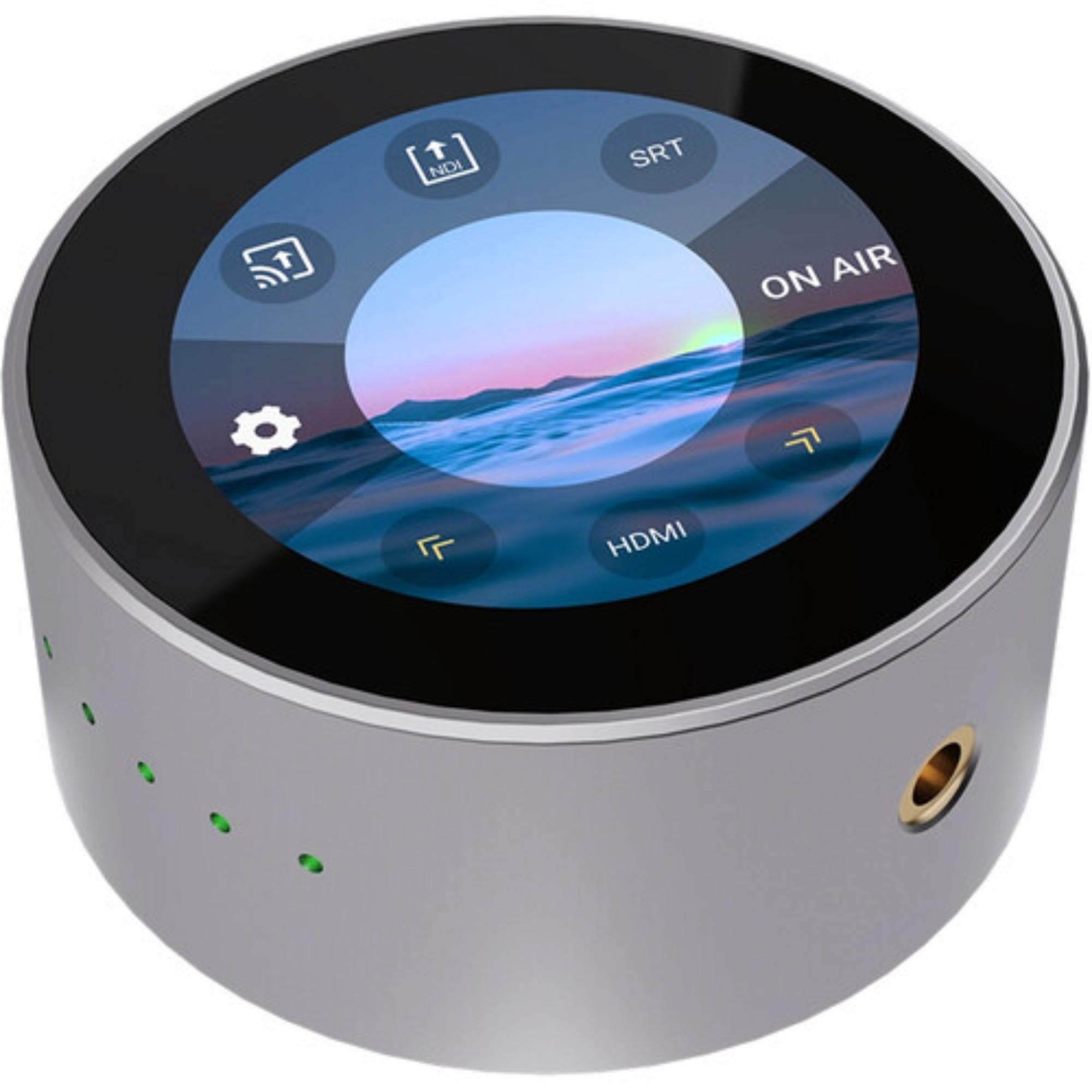

• Touchscreen and tally indicators make the device more practical in operator-facing setups
• Compact mountable form factor helps it live close to the camera without turning into clutter

What’s In The Box

RGBLINK TAO 1mini-HN USB/HDMI Streaming Node, power adapter, USB-C cable, 1/4"-20 to cold shoe adapter, storage case, and limited 1-year manufacturer warranty.
