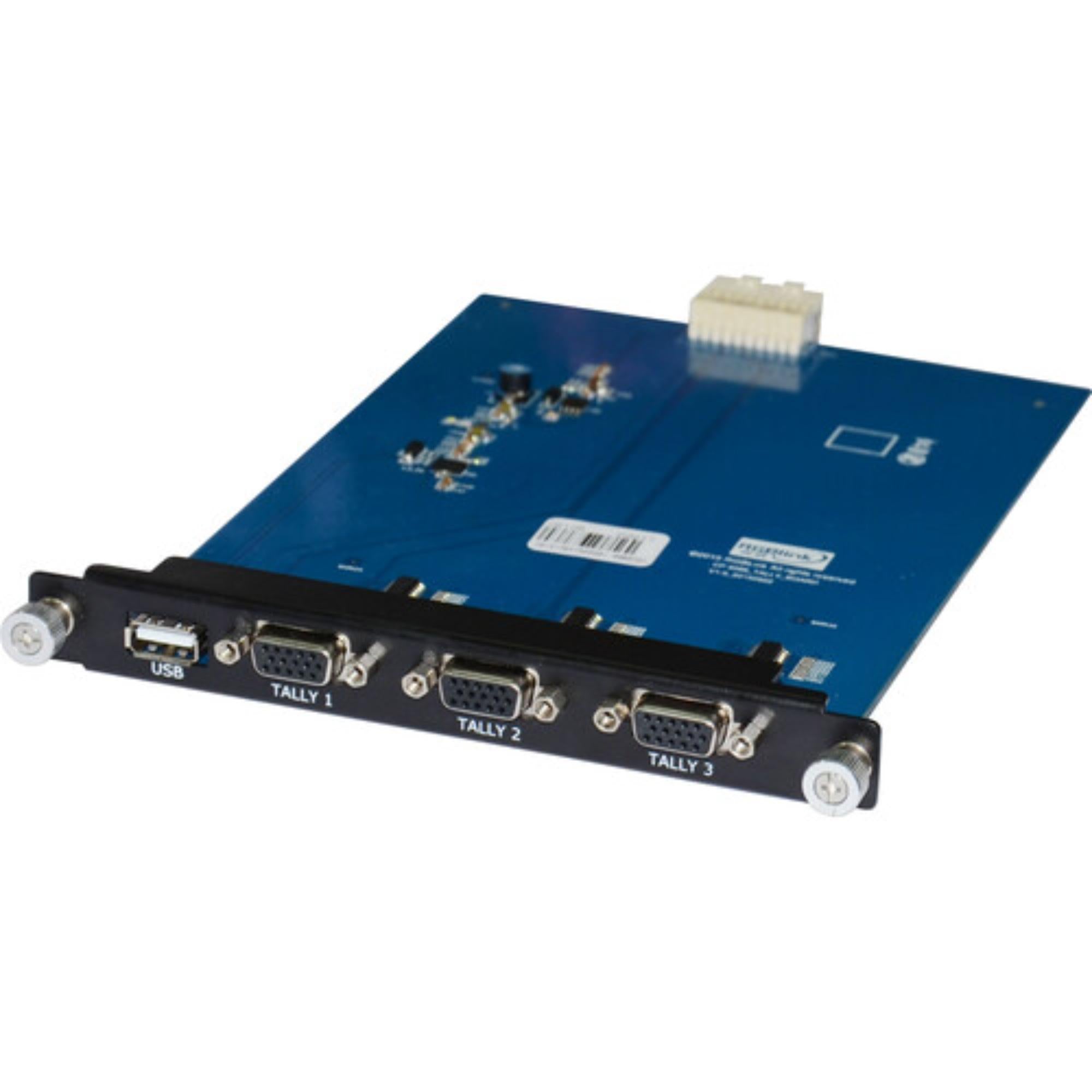

RGBLINK Tally/USB Configuration Module for M3 Mixer

RGBLINK Tally/USB Configuration Module for M3 Mixer is the kind of card you add when the mixer needs a more practical bridge between system configuration and live production signaling. Built for the RGBLINK M3 mixer/scaler unit, this module combines USB-based file and firmware handling with dedicated tally connectivity, making it useful both during setup and in live operation.

Highlights

• Module for RGBLINK M3 mixer/scaler unit built for configuration and tally workflow support
• 1 x USB-B port for image import/export and firmware updates
• Supports LOGO, OSD, STILL, and MASK import/export
• 3 x DB-15 tally connectors for tally light I/O
• Combines setup and live signaling functions in one chassis-mounted module

Quick Specs & Uses

• Module type: tally and USB configuration module
• Compatibility: RGBLINK M3 mixer/scaler unit
• USB port: 1 x USB-B
• USB functions: LOGO, OSD, STILL, and MASK import/export plus firmware updates
• Tally connectivity: 3 x DB-15 tally connectors
• Primary role: configuration access and tally light I/O for M3 workflows

Why It Helps

In production systems, setup and live operation often depend on different kinds of connectivity. This module gives the M3 a direct path for both. The USB side handles visual asset movement and firmware updates, while the tally side supports live signal indication through DB-15 tally connections. That makes the mixer easier to manage before the show and easier to work with once the show is live.

System Characteristics

• USB-B connectivity gives the M3 a direct path for file handling and maintenance
• LOGO, OSD, STILL, and MASK support helps with visual asset management inside the workflow
• Firmware update support keeps maintenance tied to the module’s USB connection
• Three DB-15 tally ports provide dedicated tally light I/O for production signaling
• M3-specific compatibility keeps expansion tied to the correct mixer platform

What’s In The Box

Please refer to the Specifications tab for the exact included items.
