RGBLINK Single 3G-SDI Input/Loop Module for GX4pro

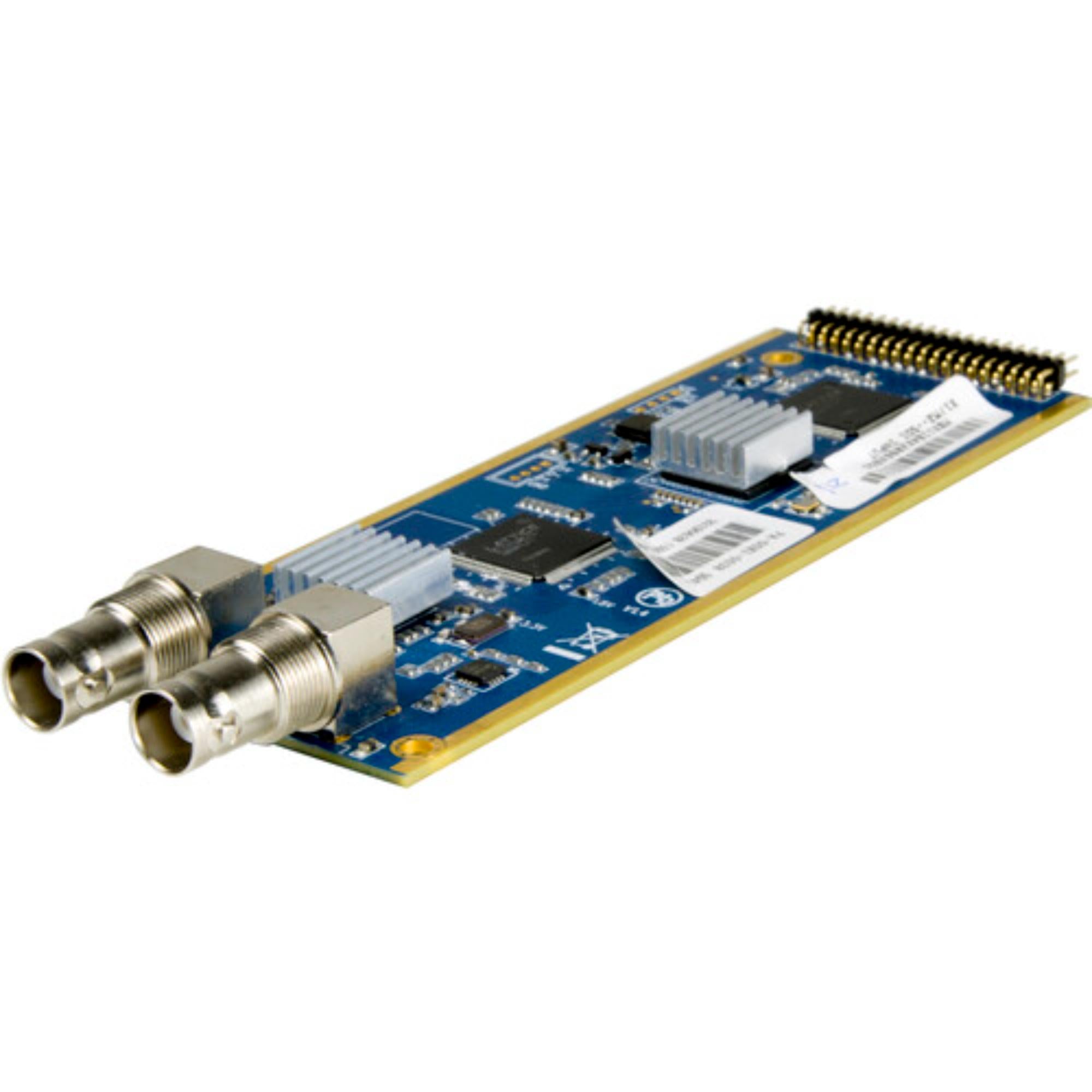

RGBLINK Single 3G-SDI Input/Loop Module for GX4pro is the kind of card you add when a GX4pro system needs one clean SDI source path and one equally clean loop-through path without turning the rack into a patchwork of external converters. Built specifically for the RGBLINK GX4pro, this module provides 1 x BNC 3G-SDI input and 1 x BNC 3G-SDI loop output, with support up to 1080p60.

Highlights

• 3G-SDI input/loop card for GX4pro built for modular chassis integration
• 1 x BNC 3G-SDI input and 1 x BNC 3G-SDI loop output for intake and pass-through
• Supports up to 1080p60 for HD-SDI workflows
• Bus powered through the GX4pro with no separate local power supply
• Fully modular architecture keeps the signal path cleaner than external workaround hardware

Quick Specs & Uses

• Module type: single 3G-SDI input/loop module
• Compatibility: RGBLINK GX4pro
• Video I/O: 1 x BNC (3G-SDI) input, 1 x BNC (3G-SDI) loop output
• Maximum listed resolution: up to 1080p60
• Supported standards: SMPTE 425M (Level A & B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, DVB-ASI
• Supported resolutions: 1080p, 1080i, 720p, 576i, 480i at listed frame rates
• Power source: proprietary built-in interface
• Power behavior: bus powered
• Environmental resistance: no

Why It Helps

In SDI-based systems, a source often needs to do more than feed one destination and stop. This module gives the GX4pro a direct 3G-SDI input path while also preserving that signal on a loop output for downstream use. That makes it easier to feed the system and keep the same source available for monitoring, recording, routing, or additional processing.

System Characteristics

• Direct HD-SDI source intake gives the GX4pro a cleaner professional video input path
• Loop-through output helps maintain continuity to downstream devices
• 1080p60 support aligns with practical HD-SDI operating environments
• Broad SMPTE and DVB-ASI support helps the module fit mixed-format workflows
• Bus-powered modular design reduces the need for separate external support hardware

What’s In The Box

Please refer to the Specifications tab for the exact included items.
