RGBLINK RGBBKT PTZ Camera Controller

RGBLINK RGBBKT PTZ Camera Controller is designed for operators who need direct, physical control over NDI-based PTZ camera systems. It supports control for up to 255 cameras via NDI HX and gives the operator a practical hardware surface for pan, tilt, zoom, focus, iris, and preset operation.

In real production use, this type of controller makes camera operation faster than working only through software. The 3.5-inch LCD panel, real-time preview, 2D/3D joystick, zoom wheel, and dedicated knobs give operators a clearer way to manage multiple camera angles from one position.

Highlights

• Controls up to 255 cameras via NDI HX for larger PTZ camera workflows
• 3.5-inch LCD display supports real-time preview
• 2D/3D joystick provides hands-on pan, tilt, and camera movement control
• Focus, iris, and zoom controls give operators direct access to common camera adjustments
• PoE support helps simplify power and network integration

Quick Specs & Uses

• Product type: PTZ camera controller
• Supported cameras: up to 255 channels
• Supported control protocol: NDI

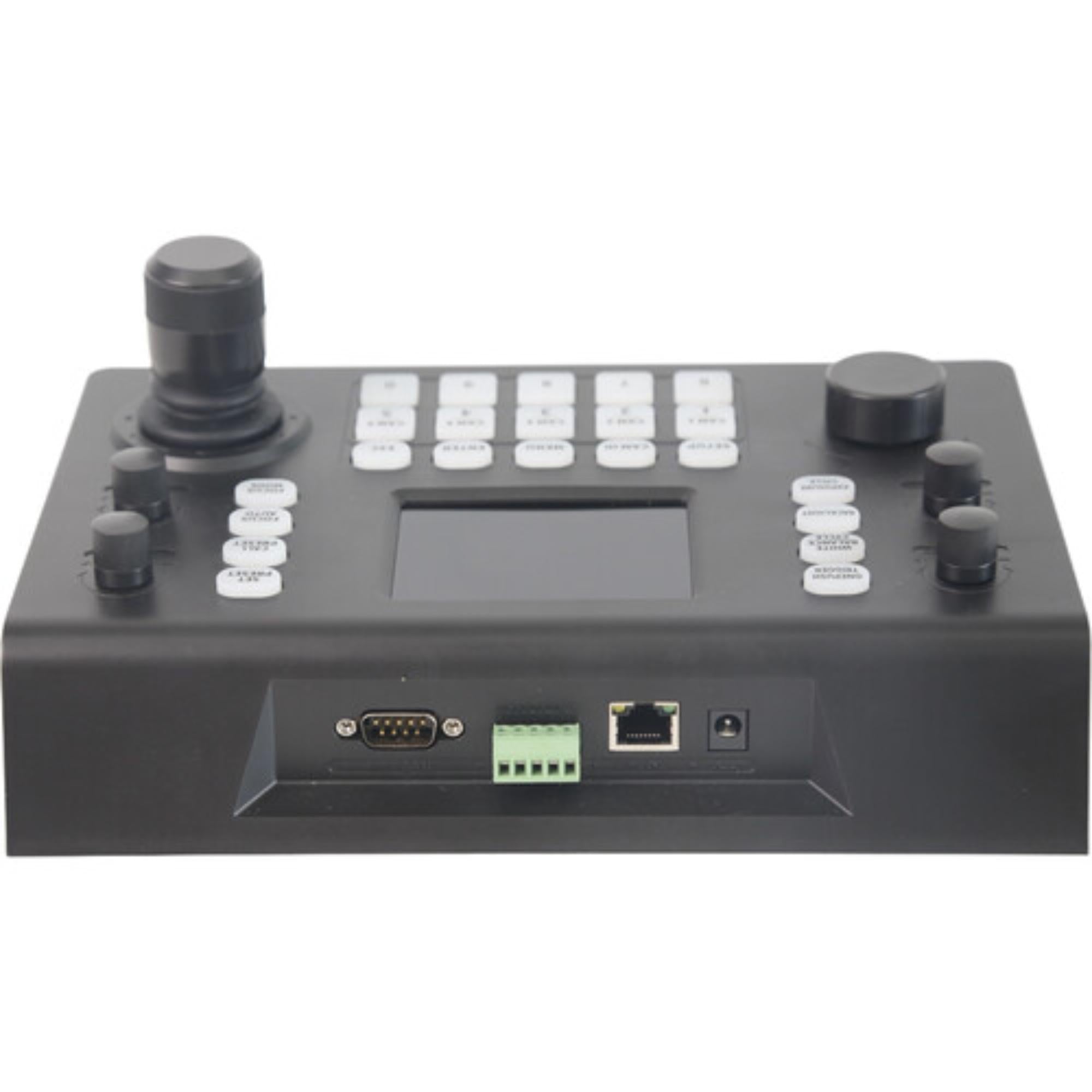

• Control I/O: 1x RJ45
• Video I/O: 1x RJ45
• Other I/O: 1x DE-9/DB-9 input/output

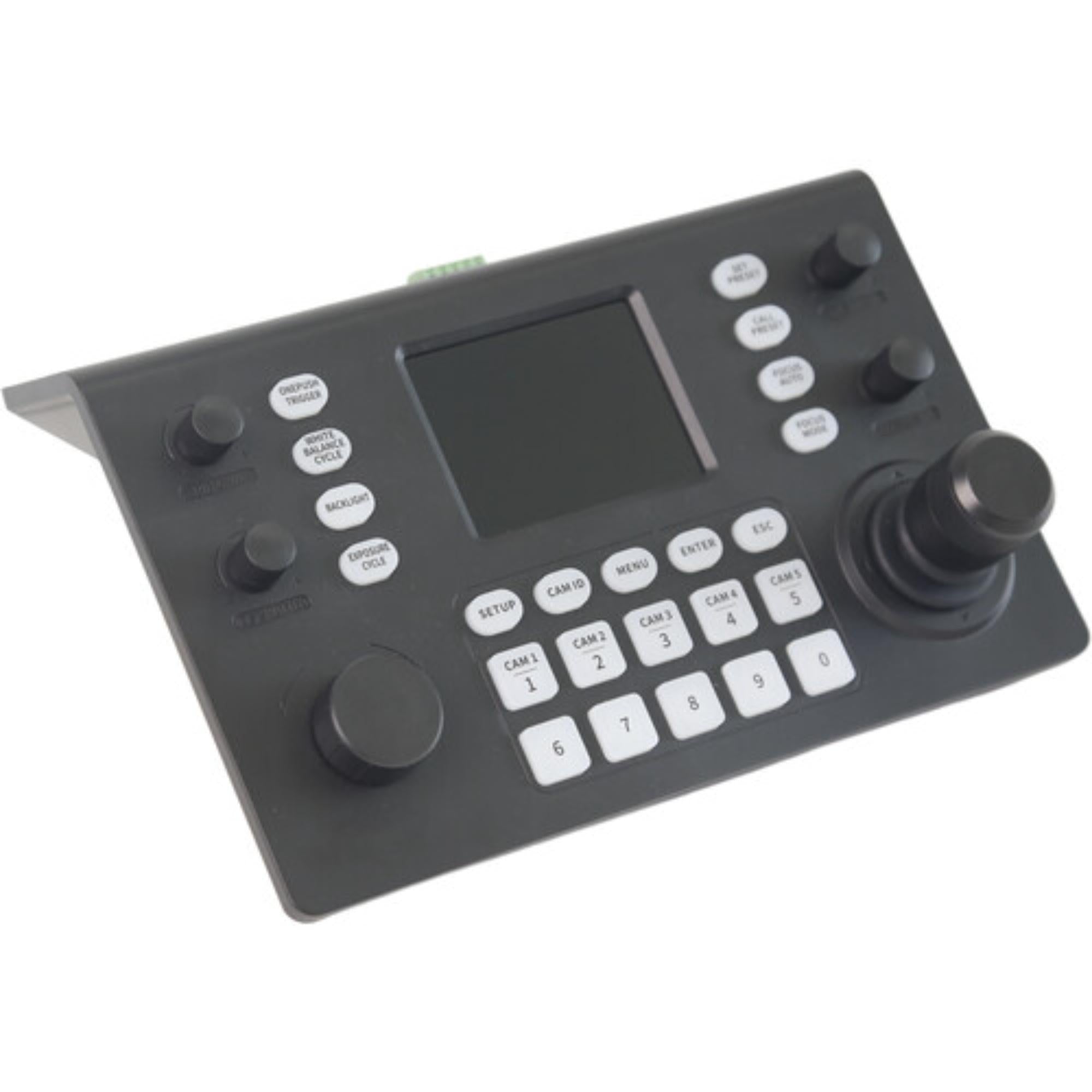

• Controls: 4x knobs, joystick, and zoom wheel
• Presets: up to 255
• Display: 3.5-inch LCD panel
• PoE support: Yes
• Power connector: 1x barrel/coaxial
• Security lock support: No

Why It Helps

PTZ camera systems are much easier to run when the operator has real controls in front of them. This controller keeps the main camera movements, zoom, focus, iris, preview, and preset recall in one place, which is useful when one person is managing multiple camera angles during a live production.

For NDI-based workflows, it also keeps the control side cleaner. RJ45 connectivity and PoE support help the controller fit into network-based production systems without adding unnecessary desktop clutter.

System Characteristics

• NDI control workflow supports network-based PTZ camera operation
• 255-channel capacity gives room for larger camera systems
• Hardware control surface improves speed compared with mouse-only camera control
• Real-time preview display helps operators confirm camera views directly from the controller
• PoE support makes installation cleaner in networked production environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
