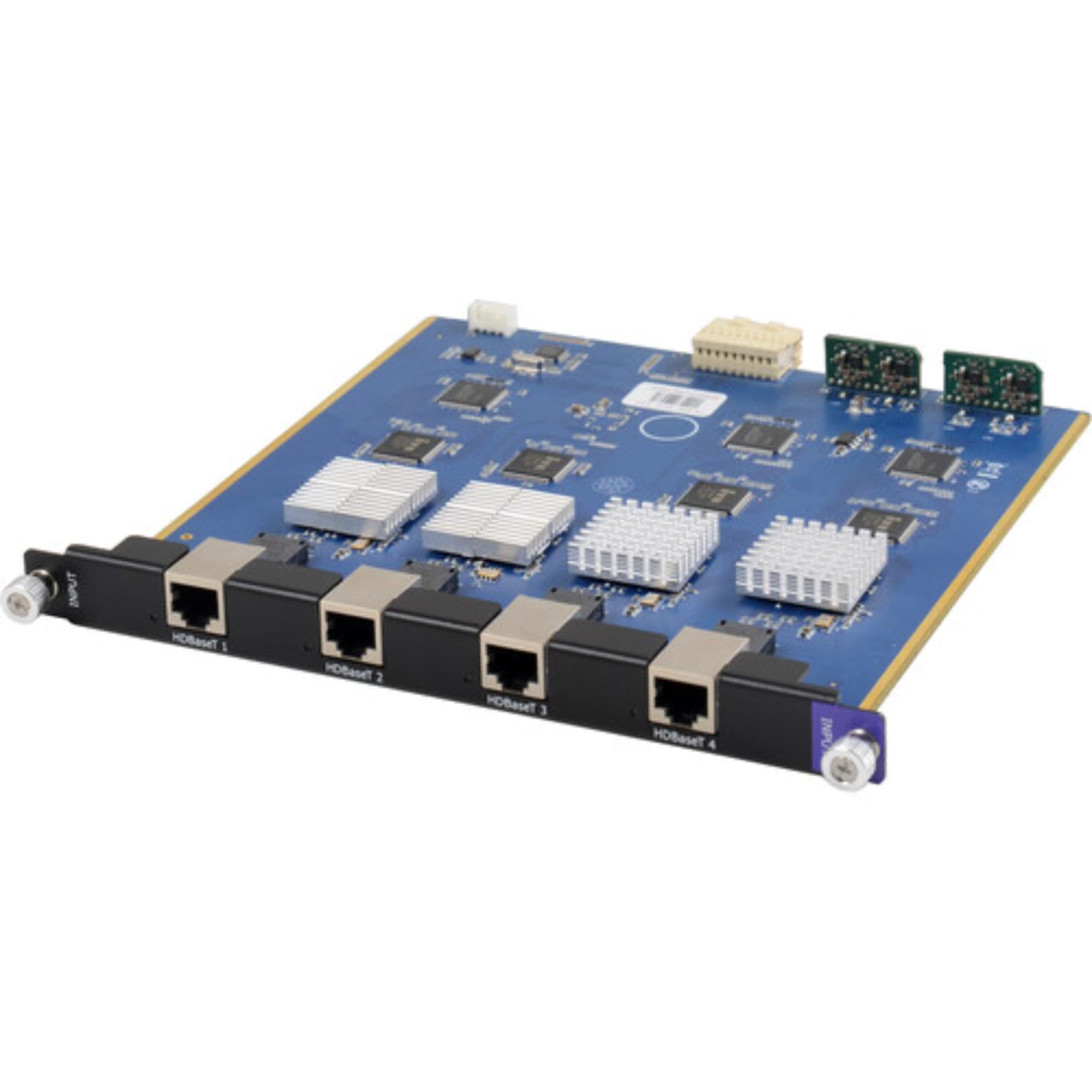

RGBLINK Quad HDBaseT Input Module for X3p and X7

RGBLINK Quad HDBaseT Input Module for X3p and X7 is the kind of card you add when source devices need to reach the processor over structured cabling instead of short-run local connections. Built for the RGBLINK X3p and X7 video processors, this module provides 4 x RJ45 inputs and supports the HDBaseT 1.0 standard, giving the platform a cleaner way to handle longer source runs over Cat 5e or Cat 6.

Highlights

• Input expansion card for X3p and X7 built for HDBaseT source workflows
• 4 x RJ45 inputs for multi-source HDBaseT connectivity
• HDBaseT 1.0 support for signal transport over Cat 5e/6 cabling
• Up to 328 feet transmission distance for longer installed cable runs
• Supports up to 10.2 Gb/s with listed SMPTE and VESA format compatibility

Quick Specs & Uses

• Module type: quad HDBaseT input module
• Compatibility: RGBLINK X3p and X7 video processors
• Inputs: 4 x RJ45
• Transmission standard: HDBaseT 1.0
• Cable type: Cat 5e / Cat 6
• Maximum listed transmission distance: 328 ft
• Maximum listed bit rate: up to 10.2 Gb/s
• SMPTE support: up to 1080p60
• Listed VESA formats: 1920 x 1080p60, 1920 x 1200p60, 2048 x 1152p60

Why It Helps

In many installed systems, the real challenge is not signal processing. It is getting the source to the processor cleanly over distance. This module gives the X3p and X7 platform four HDBaseT input paths over Cat cable, which makes it easier to work with remote source locations and cleaner cable routing. For many integrators, that translates into simpler planning and fewer signal-path compromises.

System Characteristics

• Four HDBaseT inputs on one module make it easier to bring multiple remote sources into the processor
• Cat 5e/6 transport up to 328 feet supports longer cable runs than short local interconnects
• HDBaseT 1.0 support aligns the module with structured-cabling workflows
• 10.2 Gb/s bandwidth fits common HD-class source transport requirements
• Support for listed SMPTE and VESA formats helps the module fit both video and computer-driven signal environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
