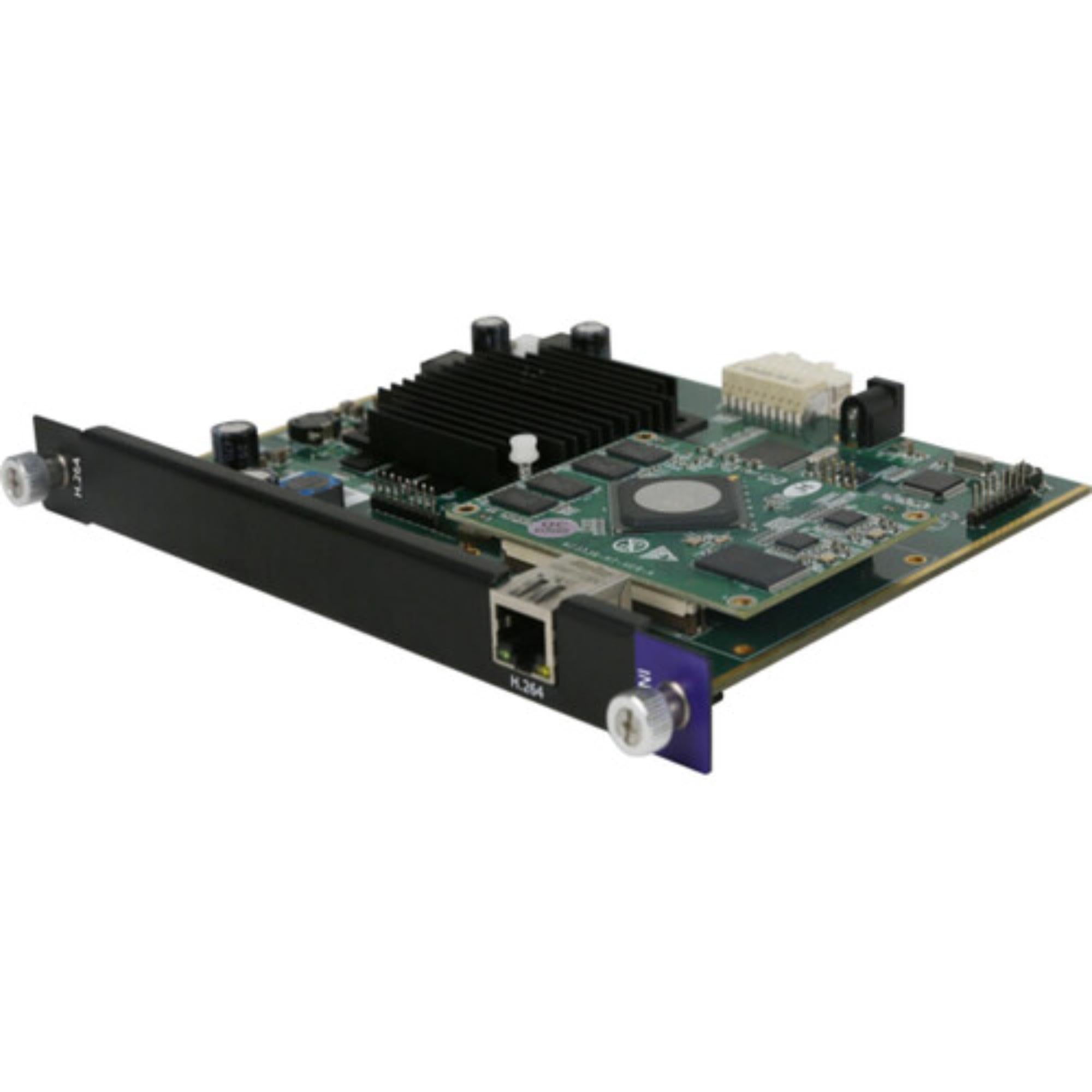

RGBLINK Single H.264 IP Input Module for Q16pro

RGBLINK Single H.264 IP Input Module for Q16pro is built for systems that need network-video ingest directly inside the processor chassis. Designed specifically for the RGBLINK Q16pro, this module provides one RJ45 Ethernet input for RTSP-based IP streams and supports H.264/H.265 decoding for multi-stream HD and 4K workflows.

Highlights

• Dedicated IP input card for the RGBLINK Q16pro chassis
• 1 x RJ45 Ethernet input for RTSP stream ingest
• Supports H.264 and H.265 decoding
• Handles up to 16 x 1080p30 or 4 x 4K30 simultaneous streams
• Hot-swappable for easier service and reconfiguration

Quick Specs & Uses

• Compatibility: RGBLINK Q16pro chassis
• Input: 1 x RJ45 Ethernet female
• Streaming support: RTSP
• Codecs supported: H.265 Main Profile Level 5.1, H.264 Baseline/Main/High Profile Level 5.0
• SMPTE support: 720p, 1080p, 2160p30
• VESA support: up to 3840 x 2160 at 30 Hz
• Stream density: up to 16 x 1080p30 or 4 x 4K30

Why It Helps

Processor-based systems are often easier to manage when IP video sources are brought directly into the chassis instead of being decoded externally first. This module helps by giving the Q16pro a direct RTSP ingest path, which can simplify network-video system design and reduce dependence on separate decoder hardware.

System Characteristics

• Direct chassis-level IP ingest keeps network-video integration cleaner
• Multi-stream decode support improves efficiency for larger IP workflows
• H.264/H.265 compatibility supports broader source integration
• SMPTE and VESA support improves flexibility across mixed workflow types
• Hot-swap capability improves operational flexibility during service or expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
