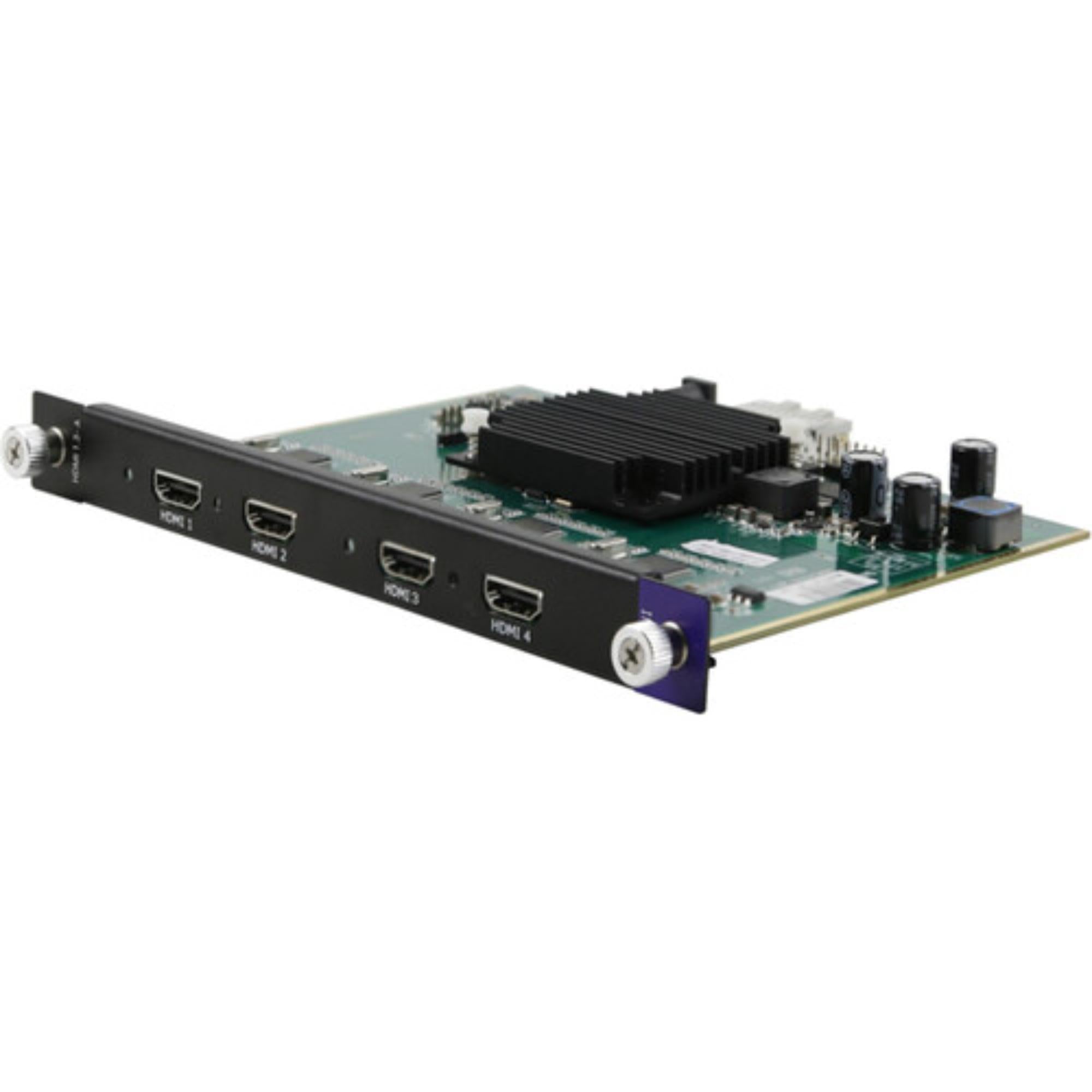

RGBLINK Quad HDMI 1.3 Input Module with Embedded Audio for Q16pro

RGBLINK Quad HDMI 1.3 Input Module with Embedded Audio for Q16pro is built for systems that need multiple HDMI sources brought directly into the processor chassis while keeping audio embedded with the signal. Designed specifically for the RGBLINK Q16pro, this module provides four HDMI 1.3 inputs for a cleaner internal path to mixed HDMI source integration.

Highlights

• Dedicated input card for the RGBLINK Q16pro chassis
• 4 x HDMI 1.3 inputs for direct chassis-level source ingest
• Supports embedded stereo / dual-channel audio via HDMI
• Supports HDCP and EDID management
• Hot-swap capable for easier servicing and reconfiguration

Quick Specs & Uses

• Compatibility: RGBLINK Q16pro chassis
• Inputs: 4 x HDMI Type A 1.3 female
• SMPTE support: 1080p at 60/50/30, 720p at 60/50
• VESA support: up to 1920 x 1200 at 60 Hz
• Audio: embedded stereo / dual-channel via HDMI
• Special features: HDCP, EDID management
• Application: chassis-level HDMI input expansion with embedded audio support

Why It Helps

Processor-based systems are often easier to manage when HDMI sources are brought directly into the chassis instead of being adapted externally first. This module helps by giving the Q16pro a direct HDMI ingest path while keeping stereo audio embedded with the signal, which can simplify source integration and reduce extra routing around the processor.

System Characteristics

• Four HDMI inputs expand the Q16pro’s direct source-ingest capacity
• Embedded audio support keeps HDMI audio and video together at the input stage
• HDCP support improves compatibility with protected HDMI sources
• EDID management helps stabilize source-to-system negotiation
• Hot-swap capability improves operational flexibility during service or expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
