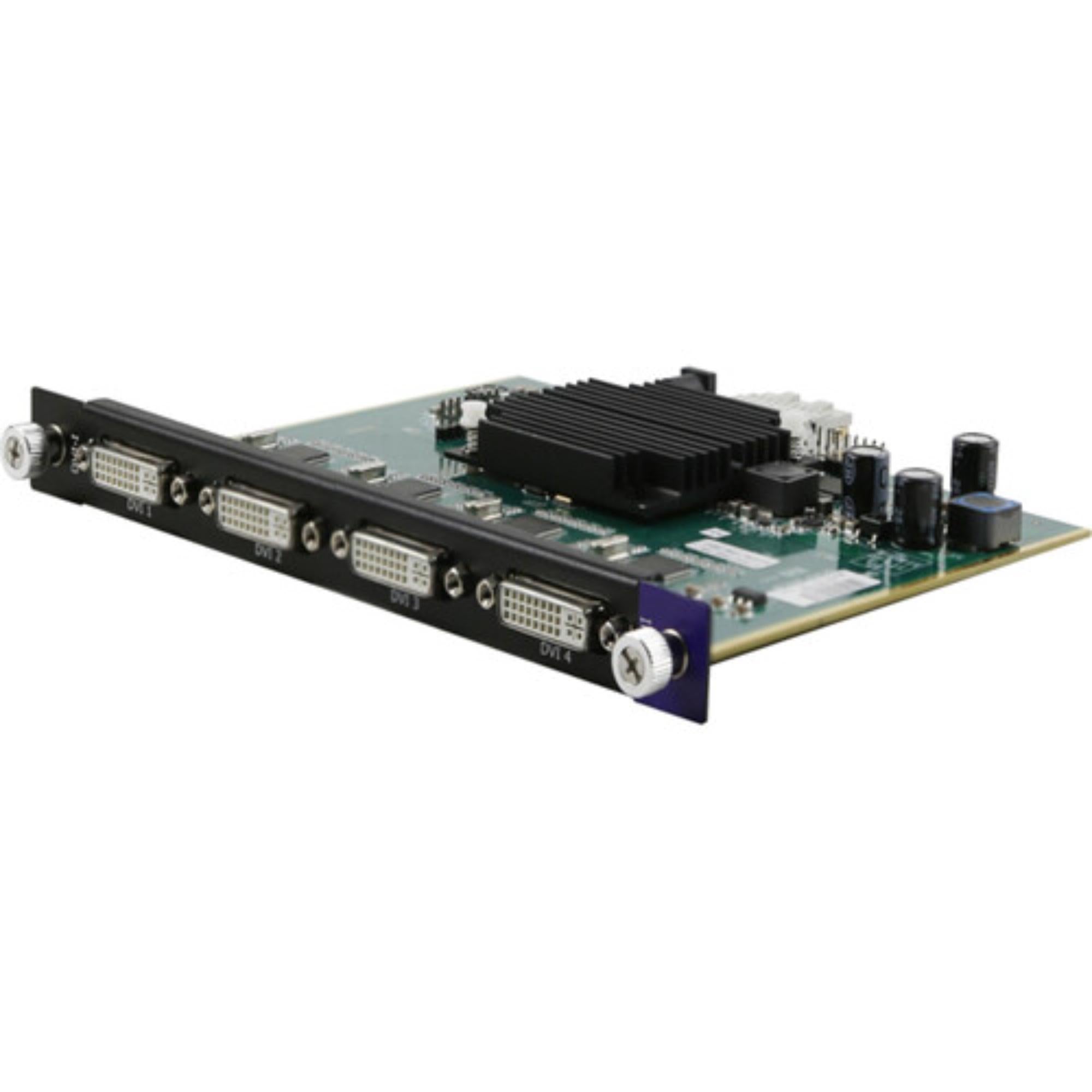

RGBLINK Quad DVI-I Input Module for Q16pro

RGBLINK Quad DVI-I Input Module for Q16pro is built for systems that need multiple DVI sources brought directly into the processor chassis. Designed specifically for the RGBLINK Q16pro, this module provides four DVI-I inputs for a cleaner internal path to HD and computer-resolution source integration.

Highlights

• Dedicated input card for the RGBLINK Q16pro chassis
• 4 x DVI-I inputs for direct chassis-level source ingest
• Supports video up to 1920 x 1200 at 60 Hz
• Includes cropping and EDID management
• Hot-swap capable for easier servicing and reconfiguration

Quick Specs & Uses

• Compatibility: RGBLINK Q16pro chassis
• Inputs: 4 x DVI-I female
• SMPTE support: 1080p at 60/50/30, 720p at 60/50
• VESA support: up to 1920 x 1200 at 60 Hz
• Features: cropping, EDID management
• Application: chassis-level DVI input expansion

Why It Helps

Processor-based systems are often easier to manage when DVI sources are brought directly into the chassis instead of being adapted externally first. This module helps by giving the Q16pro a direct DVI ingest path, which can simplify source integration and reduce dependence on separate external adapter hardware.

System Characteristics

• Four DVI-I inputs expand the Q16pro’s direct source-ingest capacity
• Broad SMPTE and VESA support improves flexibility across mixed-source workflows
• Integrated cropping adds useful processor-side adjustment at the input stage
• EDID management helps stabilize source-to-system negotiation
• Hot-swap capability improves operational flexibility during service or expansion

What’s In The Box

Please refer to the Specifications tab for the exact included items.
