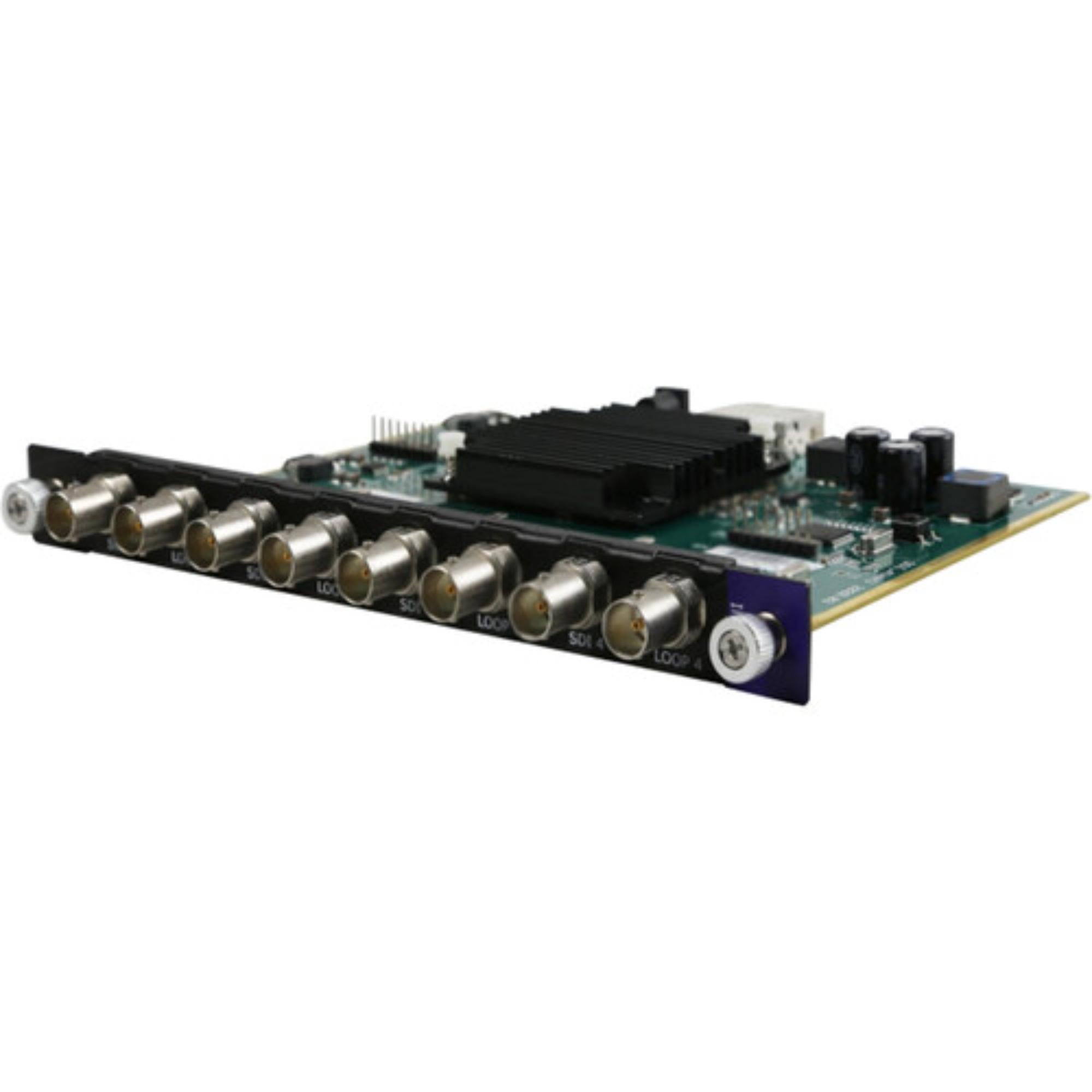

RGBLINK Quad 3G-SDI Input with Quad Loop Output Module for Q16pro

RGBLINK Quad 3G-SDI Input with Quad Loop Output Module for Q16pro is built for systems that need multiple HD-SDI sources brought directly into the processor chassis while still preserving access to those same feeds. Designed specifically for the RGBLINK Q16pro, this module provides four 3G-SDI inputs and four matching loop outputs for a cleaner and more flexible SDI ingest path.

Highlights

• Dedicated input card for the RGBLINK Q16pro chassis
• 4 x BNC 3G-SDI inputs for direct HD-SDI source ingest
• 4 x BNC 3G-SDI loop outputs for parallel source access
• Supports video signals up to 1080p60
• Hot-swap capable for easier servicing and reconfiguration

Quick Specs & Uses

• Compatibility: RGBLINK Q16pro chassis
• Inputs: 4 x BNC 3G-SDI female
• Loop outputs: 4 x BNC 3G-SDI female
• Resolution support: up to 1920 x 1080p60
• Application: chassis-level HD-SDI ingest with preserved loop-through access

Why It Helps

Processor-based systems are often easier to manage when required SDI inputs are added inside the chassis instead of being built around extra external hardware. This module helps by giving the Q16pro direct SDI ingest while also preserving source availability on loop outputs, which can simplify system design when feeds need to be monitored, shared, or routed elsewhere.

System Characteristics

• Four 3G-SDI inputs expand the Q16pro’s direct HD-SDI ingest capacity
• Integrated loop outputs help preserve source access without extra distribution stages
• 1080p60 support keeps the module aligned with standard Full HD SDI workflows
• Hot-swap capability improves operational flexibility during service or reconfiguration
• Internal module design helps reduce dependence on external ingest and looping hardware

What’s In The Box

Please refer to the Specifications tab for the exact included items.
